About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 2220×750×1420
- Color: gold
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Sichuan, China
About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 2220×750×1420
- Color: gold
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Sichuan, China
Product details
| Materials | Carbon steel, stainless steel, iron |
|---|---|
| Size | 2220×750×1420 |
| Color | gold |
From the supplier
ur series YZYX140 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
YZYX140 is basic 2-step-squeezing spiral oil press.
YZYX140-8 is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
YZYX140CJ is a strong pressing type in which the pressure is big. Thus, the squeezing effect is better when operates properly.

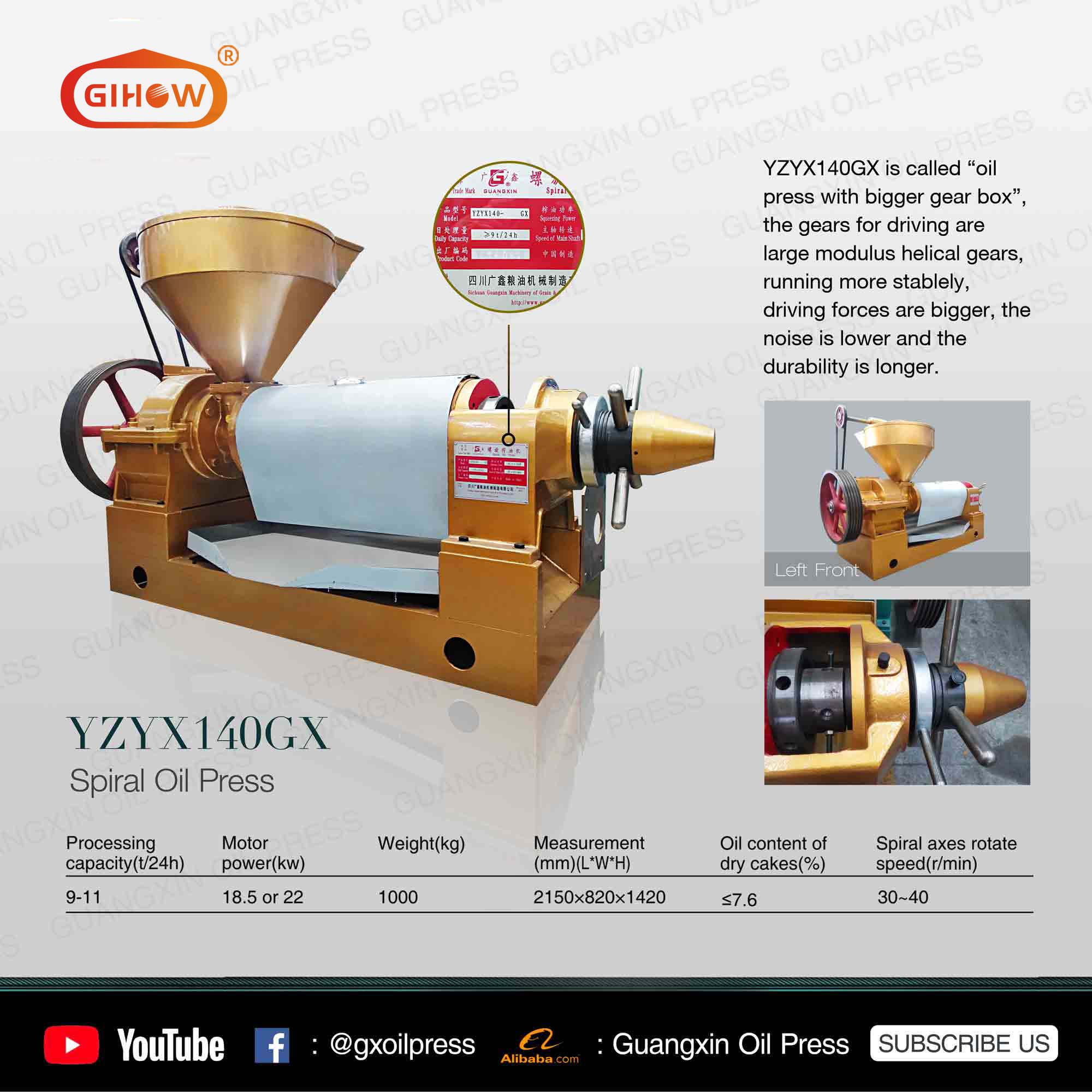

YZYX140GX has bigger deceleration box which operates smoothly and has long service life.
Above models do not have cake cracking device. The models with that will have S at the end of the model number. 120 series with electric heating instrument has WK at the end of the model number.
Main Features:
Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity (t/24h)
Oil content of
Dry cakes (%)
Oil yield efficiency (%)
Electric power consumption (kw.h/t)
Rapeseed
9~11
≤7.6
≥82
≤34
Cotton seeds
9~11
≤6.8
≥77
≤54
Soybean
8~10
≤6.5
≥67
≤51
Peanut
9~11
≤6.5
≥92.3
≤34
Note:
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification:
Item
YZYX140(-8)
YZYX140CJ
YZYX140CJGX
Revolving speed of spiral axis (r/min)
32-44
Power required（kw）
18.5（Y180M-4）or 22（Y180L-4）
Measurement (mm)
2010×690×1430
2100×690×1400
2300×820×1370
Weight (kg)
806
884
1100
Note:
This weight is without electro-motor’s weight.
