Solar water heater
ZHEJIANG JIADELE TECHNOLOGY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $19,000
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (0.0%)
- $0.00
- Section 301 tariff (25.0%)
- $4,750
- Customs fees (MPF/HMF)
- $90
Estimate in USD to a US port using category averages (HTS 8541.43/8501), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $19,000
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (0.0%)
- $0.00
- Section 301 tariff (25.0%)
- $4,750
- Customs fees (MPF/HMF)
- $90
Estimate in USD to a US port using category averages (HTS 8541.43/8501), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Solar water heater
ZHEJIANG JIADELE TECHNOLOGY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $19,000
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (0.0%)
- $0.00
- Section 301 tariff (25.0%)
- $4,750
- Customs fees (MPF/HMF)
- $90
Estimate in USD to a US port using category averages (HTS 8541.43/8501), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $19,000
- Ocean freight + handling (3.0 CBM)
- $1,060
- US duty (0.0%)
- $0.00
- Section 301 tariff (25.0%)
- $4,750
- Customs fees (MPF/HMF)
- $90
Estimate in USD to a US port using category averages (HTS 8541.43/8501), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Galvanized steel+Glass
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: Galvanized steel+Glass
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | Galvanized steel+Glass |
|---|---|
| Color | same as pictures |
Product details
| Materials | Galvanized steel+Glass |
|---|---|
| Color | same as pictures |
From the supplier

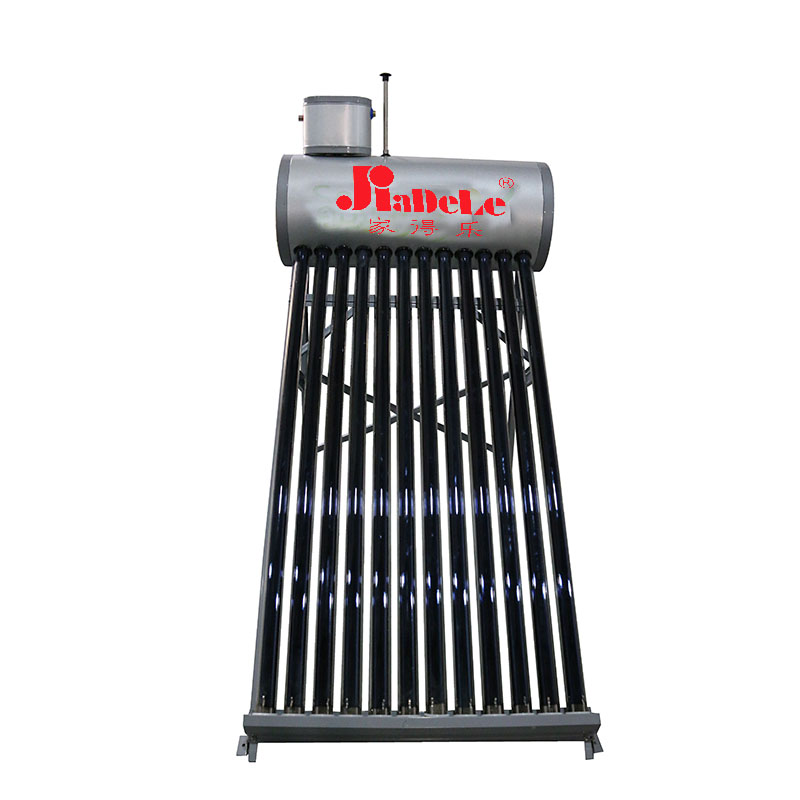

Non-Pressure series Solar Water Heater with assistant tank
KEY SPECIFICATIONA
Instant heat exchange: plentiful warm water for use
Fresh water quality
Works with pressuree
Output water temperature is stable,so it is very comfortable and safe to use
Hot and cold water flow is separated
Copper coil is tested and does not break high grade materials are used
Key Specification
inner tank
stainless steel SUS304-0.5mm
vacuum tube
QB-AL-N/AL-58-1800
outer tank
Galvanized steel
frame
Galvanized steel-1.5mm
insulation
Polyurethane
reflector
Galvanized steel
Solar heat storage tank diameter(mm)
360/460
Thickness, insulated(mm)
50
Max fluid pressure(pa)
1MPA
Operation fluid pressure(pa)
0.4MPA
Coil connection(inch )
1/2
Small tank connection(inch)
3/4
Electric heater connection(inch)
1.25Type (one)
Area
(m^2)
Vacuum tube
Volume
(Liters)
Grosswet
(kg)
Volume/set
(Cubic meter)
Length
(mm)
DIA(mm)
Qty(pcs)
JDL-15-58/1.8
1.92
1800
58
15
135
49
0.51
JDL-18-58/1.8
2.3
1800
58
18
156
58
0.61
JDL-20-58/1.8
2.55
1800
58
20
172
65
0.66
JDL-24-58/1.8
3.06
1800
58
24
206
76
0.77
MATERIAL
Inner tank: stainless steel SUS304--050mm
Vacuum tube: QB-AL-SS/CU-58-1800
Outer tank: galvanized steel o Frame: coated galvanized steel-15mm
The material of insulation: polyurethane
The reflector: aluminun
Copper coil:φ12mm,thickness10mm
REMARK:
Solar heat storage tank diameter(mm）360/460
Thickness insulated(mm):50
Max fluid pressure(pa): 1MPa
Operation fluid pressure(pa): 0.4MPa
Coil connection(inch ): 1/2
Hot-outlet(inch):1/2
Cold-inlet(inch): 1/2.
Small tank connection(inch): 3/4
Electric heater connection(inch): 1.25
Q:What is your delivery time?
A: 15 working days after receipt of signed PI and down payment.
Q:Which payment methods can you support?
BY T/T: 30% as down payment, balance to be paid against the copy of Bill of Lading.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your package ways?
A:Generally, standard products with standard package. Extra charge may be required for other custom requirements such as package logo printing.
