From the supplier
BOHAI Solar panel support frame forming machine
Machine function:
360 degree rotation and straightening, cutting and punching integration
Forming way:
Decoiler-Input sheet-Flattening-Hydraulic forming-360 degree rotation and straightening-Cutting-stacking table
l Main parameter

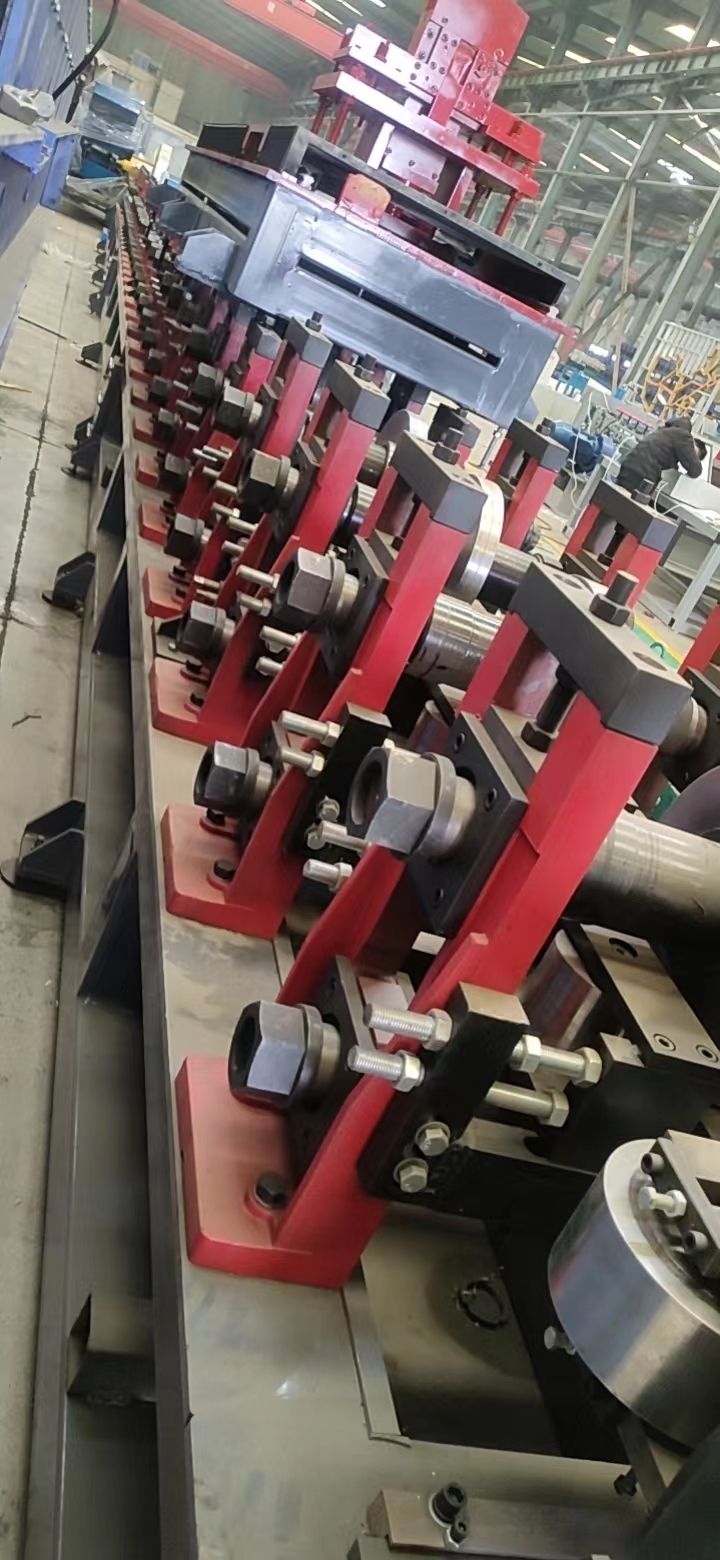

1. Steps of forming part: 22 steps
2. Roller material: Cr12 MoV
3. Axle diameter: 70mm, No.45# adjusted
4. Driving style: Gear box transmission (170 model)
5. Frame: 120/120 150/150 Square steel welded(Upper put 20mm steel sheet)
6. Main machine side plate thickness: 55mm
7. Cutting part:

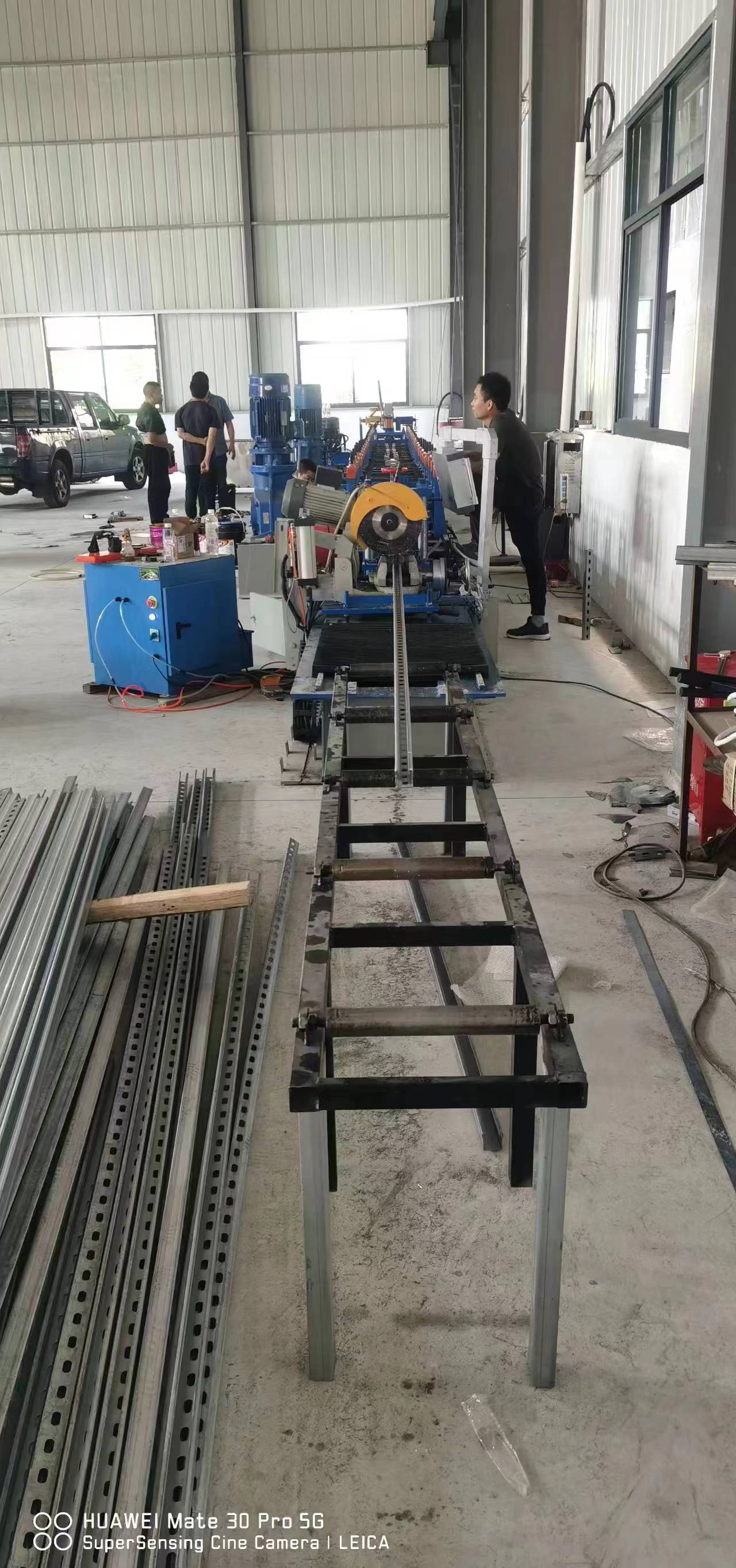

No burr of flying saw cutting（Power:4kw）（including cooling function）
Servo tracking non-stop (Wade)
8. Main motor power: 18.5kw*2
9. Cutting oil pump motor: 3kw
10. Electric component: 50kw frequency, PLC controlling, touch screen
11. Reducer: K107
12. Flattening part: 5 rollers flattening, 100mm axle diameter
13. Stacking table: One set of 5m power roller stacking table, Motor power: 0.75kw
14. Decoiler Suport loading: 5T (single arm), one set

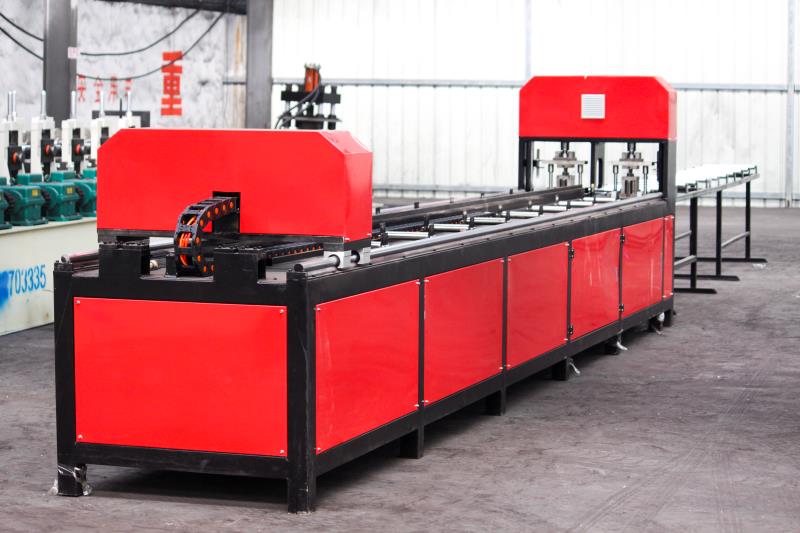

l Punching machine picture
Controlling system: Automatic
1. Main motor power: Double 18 KW(including cooling system)
2. Color touching screen
3. Driving system: Servo motor controlling, 2.2KW
4. Working station: Single working station or double working stations, switch freely
5. Punching position: Any distance
6. Cylinder stroke: 40mm
7. Cylinder size: 125mm
8. Producing length: 200mm~6000mm
9. Max.thickness:2- 3mm
10. Single cylinder Punching working capacity: 60 times/min
11. Main motor working speed:15m/min
