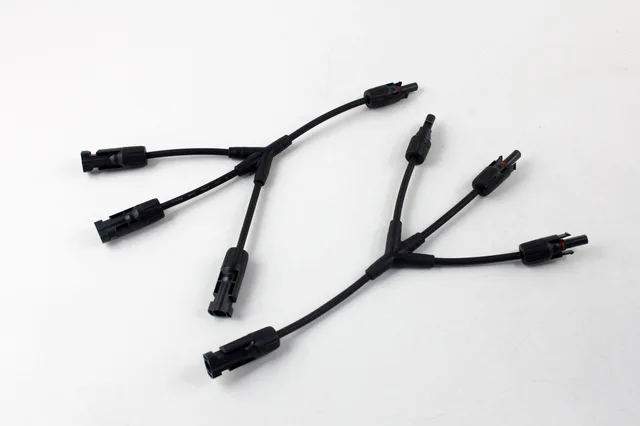

Brief Introduction to Solar Connectors Solar connectors are core connecting and protective components in solar photovoltaic (PV) systems. They are mainly used to achieve electrical circuit connection between PV modules, and between modules and equipment such as inverters/combiner boxes. They serve as a key link to ensure stable current transmission in the system and resist complex outdoor environments.

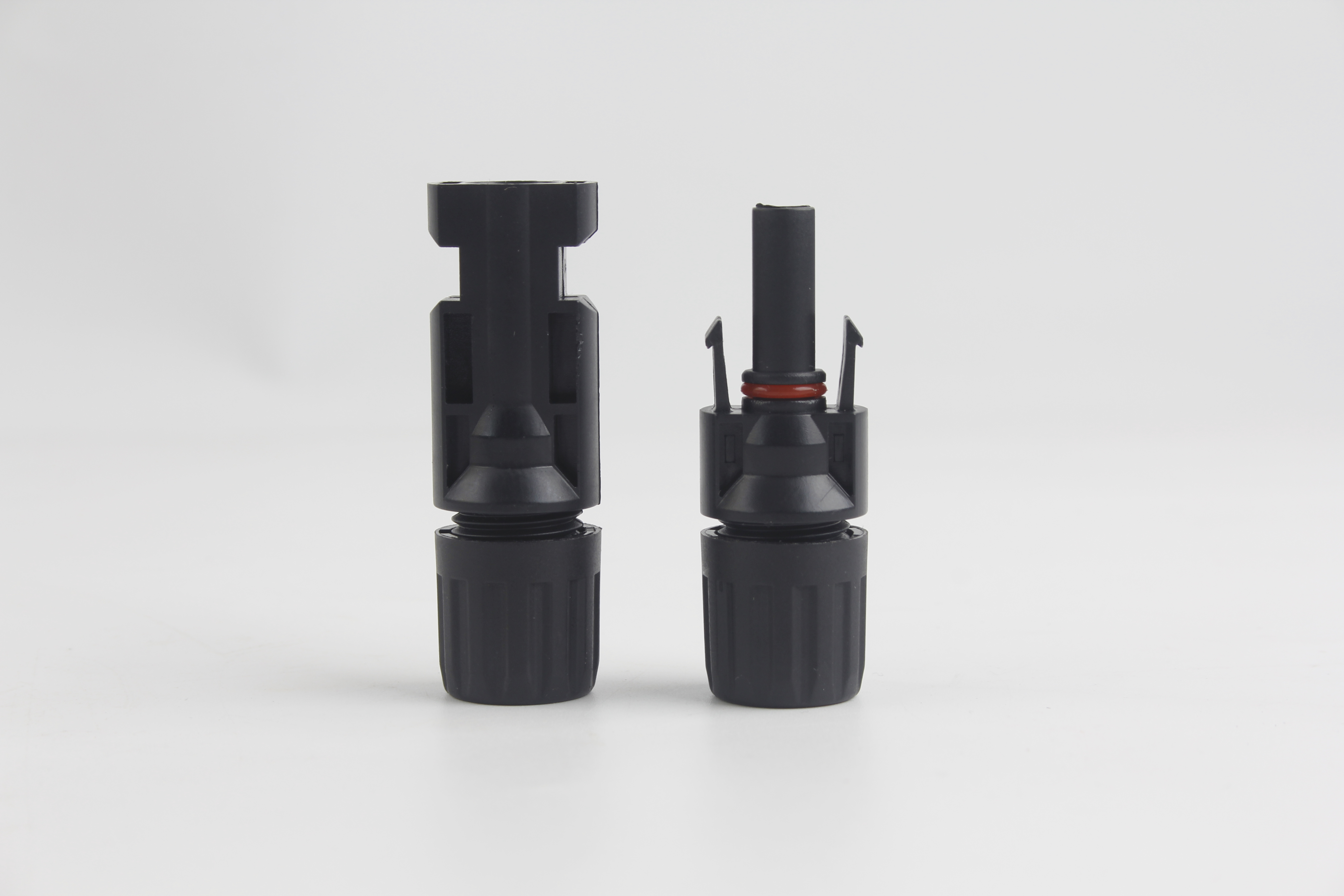

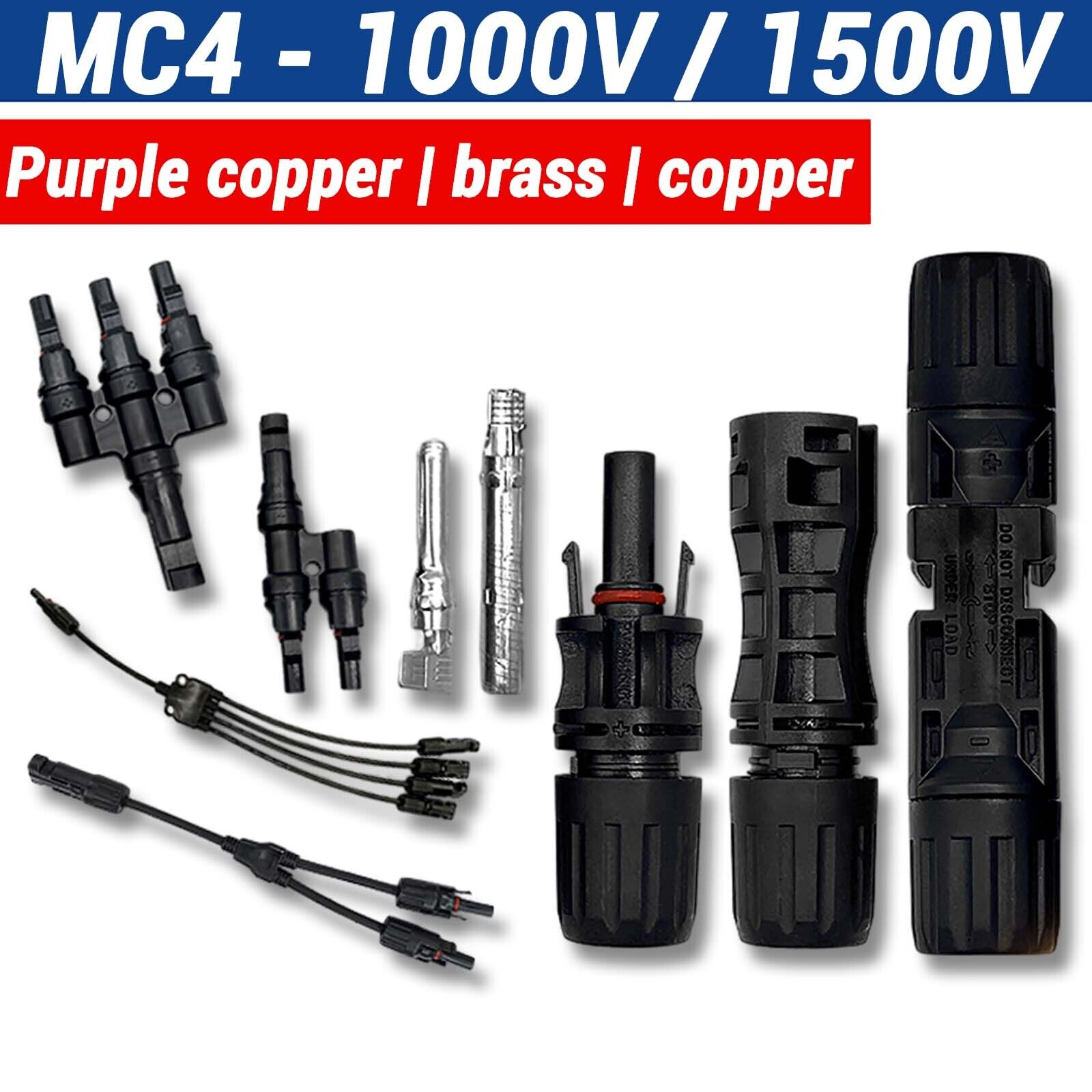

Their core characteristics and functions are as follows: Firstly, they possess high-efficiency electrical conductivity. Made of materials with low contact resistance (such as tinned/silver-plated copper cores), they reduce heat loss during current transmission and ensure power generation efficiency. Secondly, they have excellent outdoor protection capabilities. Their housings are mostly made of UV-resistant engineering plastics (such as PBT and PA66), with a protection level generally reaching IP67/IP68, which can resist extreme temperatures ranging from -40℃ to 85℃, rainwater and dust erosion. They also meet flame-retardant standards (such as UL94 V-0 grade) and insulation standards to avoid the risks of electric leakage and electric shock. Thirdly, they have strong adaptability and operability. Mainstream models (such as the MC4 series) adopt a tool-free plug-and-play design, supporting quick installation and later maintenance. They prevent incorrect insertion through the structural difference between male and female connectors, and are compatible with PV equipment of different brands, adapting to the needs of various specifications from small household systems to large-scale ground-based power stations (rated current 30A~50A, voltage 1000V DC~1500V DC).

Although small in size, solar connectors, as the "electrical circuit joints" of solar systems, directly affect the power generation efficiency, operational safety and service life of the system, and are important basic components for maintaining the stable operation of PV systems.
