About this product
- Materials: assembly parts
- Size: 1965*1070*1358
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
About this product
- Materials: assembly parts
- Size: 1965*1070*1358
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
Product details
| Materials | assembly parts |
|---|---|
| Size | 1965*1070*1358 |
| Color | yellow |
From the supplier
A. Angle of Departure ................................. 22°
B. Carry Position ........................................ 176 mm
C. Dump Angle @ Maximum Height ............ 37°
D. Dump Height with Standard Bucket ........ 1279 mm
E. Dump Reach @ Maximum Height ............ 834 m
F. Ground Clearance .................................. 193 mm
G. Ground Clearance-under platform ........... 185 mm
H. Height to Bucket Hinge Pin .................... 1867 mm
I. Height ...................................................... 1297 mm
J. Length without Attachment .............................. 1969 mm
K. Length with Standard Bucket ......................... 2605 mm
L. Operating Height ....................................... 2623 mm
M. Rollback @ carry Position........................... 20°
N. Rollback Fully Raised
@ Maximum Height................................... 93°
O. Wheel Base............................................. 775 mm
P. Turning Radius with Standard Bucket ....... 1621 mm
Q. Width
23×8.5-12....................................................1080 mm
R. Wheel Tread
23×8.5-12.................................................... 856 mm
S. Width with 36" Bucket ................................. 1250 mm
ENGINE/ELECTRICAL
Make/Model ................................... PERKINS 403D-II
Fuel/Cooling ................................... Diesel/Liquid Horsepower (SAE Gross) ............... 18.5kW
Maximum Governed RPM .............. 3000 RPM
Torque @ 2200 RPM (SAE Net) ..... 71.5 Nm
Number of Cylinders3
Displacement ................................. 1.123L
Bore/Stroke .................................... 78mm/78.4 mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... Gear Pump Pressure Crankcase Ventilation .................... Closed
Air Cleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant ............................... Propylene glycol/water mix (53%-47%)
with freeze protection to -37°C
Starting Aid .................................... Glow plugs
Alternator ....................................... Belt Driven; 40 amps; Open
Battery ........................................... 12 V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type; 1.4 kW

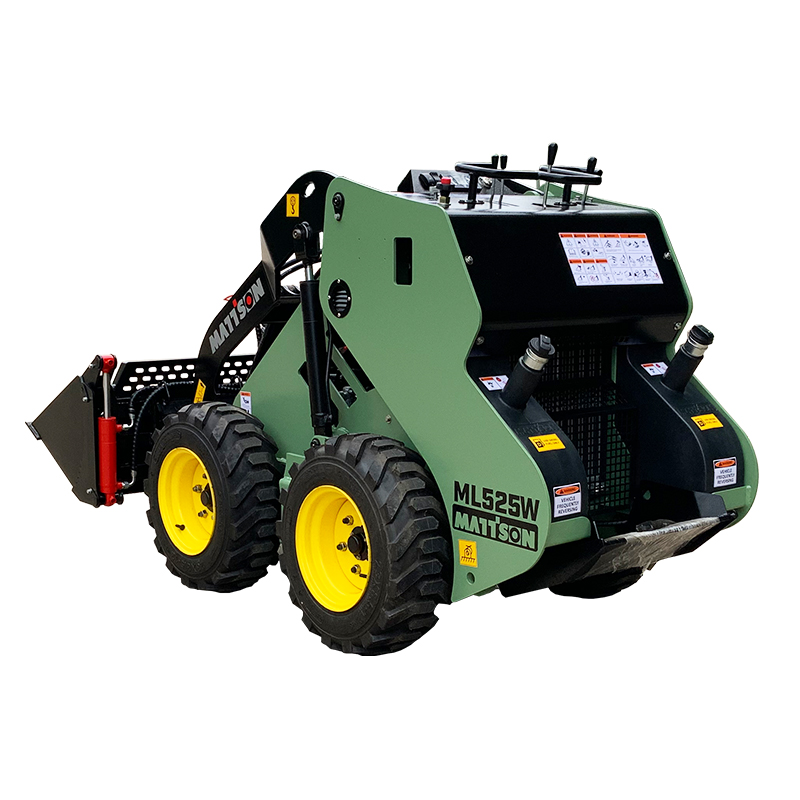

ML525W Mini skid loader features:
1、 Features of the whole machine
Integral welded frame structure, higher strength and better stability;
2、 Power system
Original kubotian diesel engine three cylinder water-cooled engine, lower fuel consumption, stable and reliable, long life, easy maintenance!
3、 Integral frame
Integral welding chassis, integral frame and high-strength integral welding process ensure your continuous operation requirements under harsh working conditions.
4、 Walking system
Full hydraulic open system, equipped with high-strength maintenance free chain drive system, provides strong driving force for the whole machine; high quality industrial grade special sliding loader tires, high wear resistance and shear resistance.
5、 High strength working device
High strength anti fatigue boom design ensures that the boom will not be damaged by fatigue under the condition of long-term and high-strength continuous operation of the whole machine.
6、 Hydraulic system
The full hydraulic four-wheel drive walking device provides the adhesion between the whole machine and the ground to the maximum extent, and the driving is faster and the braking is more reliable;
7、 Quick change
Equipped with international general hydraulic quick change interface, loading and unloading is quick and convenient, which can be used with most brands of hydraulic accessories on the market;
8、 Maintenance
The maintenance and operation of the engine, hydraulic system and electrical system are simple and easy;
9、 More features more options
Simple and convenient quick change connection structure, without any other auxiliary tools, an operator can easily change any accessories within two minutes, which is convenient for you to realize more function exchange and make your work have more choices.
