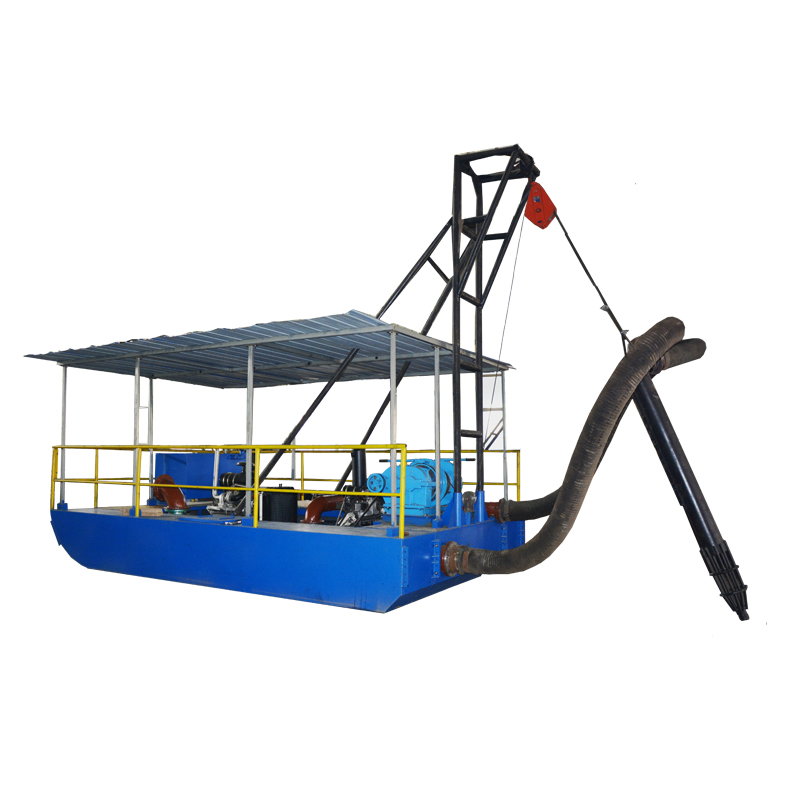

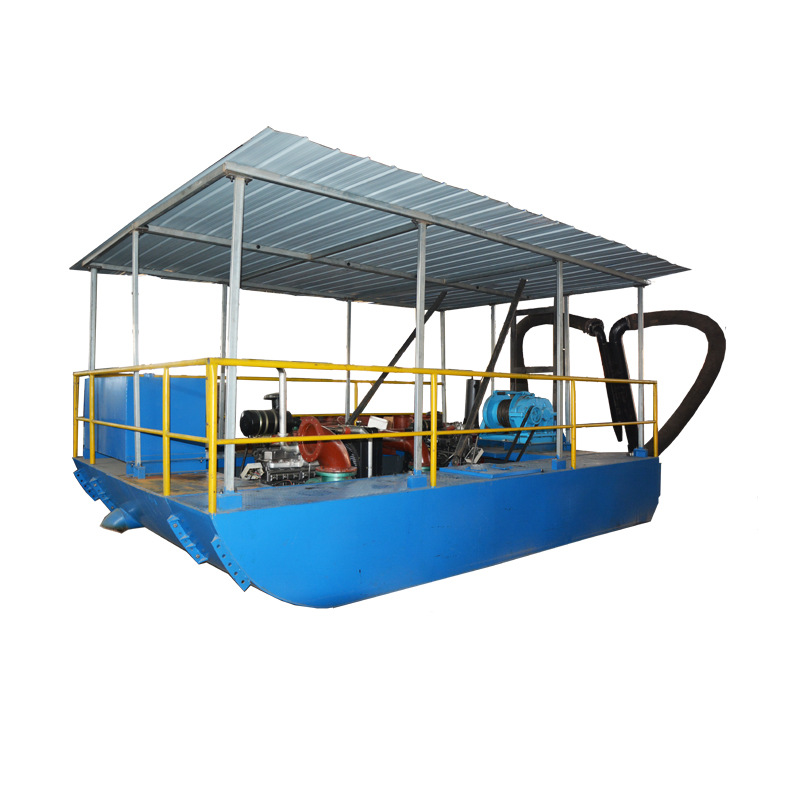

Small Dredge Boat for Sand Suction

More details please contact:

Maggie Wu

Whatsapp: +86 17806285992

Email: oceanpump14@tsbeng.com

Product DescriptionSmall Dredge Boat, also called small horizontal sediment pump dredger, is designed to extract small particles of sediment. Small Dredge Boat uses high-speed impeller to form huge suction force to achieve efficient sand pumping operation. Small Dredge Boat is widely used in rivers, lakes, sedimentation tanks, mining pits and sediments. At present, ssmall dredge boat equipped with small sand suction pump is the main configuration of our fabricated sand dredger products. The sand pump type and supporting equipment can be selected according to specific needs.Specification



ModelDredger size
L*W*H(m)Sand capacity
(m3/h)Max.dig depth
(m)Max. discharge distance
(m)4 inch4.5*2.0*0.725-305-650-806 inch 5.8*2.2*0.7545-606-880-1008 inch 5.8*2.2*1.0060-808-15100-12010inch5.8*4.2*1.0080-10015-20120-200Dredger hull is made of 6 mm thickness steel plate.
Other specific requirements can be adjusted or customized according to request.

The information in the table is not complete. Please click here to get more detailed data.

Features

1. High efficiency, large output and long distance of pump.
2. Very simple and fast assembly and dis-assembly, afloat or onshore, simple operation ,easy to control.
3. Good economic performance. The digging and delivery of material can be completed one time.
4. Highly efficient fuel consumption and minimum overall operational costs
5. Good access to all parts, especially the dredge pump wearing parts.
6. The dredgers can be made according to the customers’ request.

Application

1. Small Dredge Boat used for cleaning river silt, sand production and mining project.

2. Suitable for heavy duty operations in tropical climates and in sheltered waters.

3. Applied to dredging rivers, lakes and ponds, reclaiming land, cleaning ports and pumping sand.

4. Mainly service for the master dredger and transporter for delivering sand to land.



Successful cases

Maldives customers sent an inquiry about sand dredger. The working conditions were as follows.

• The water depth was 5-6m.
• The discharge distance was about 150m.
• The sand output was about 30m3/h.
• There were a small mount of large particles, no garbage, no branches.
• The small dredge boat was required to be quiet.



According to the customers’ requirements and the similar designing experience, our technical engineers recommended 8 inch small dredge boat, and the diesel engine was equipped with a silent box to reduce running noise.
8 Inch Boat Dredge Parameters

• Flow rate - 400m3/h
• Head - 15m
• Power - 90kw
• Speed - 1200rpm
• Intermittent passage maximum particle size - 32mm

The customers selected our small dredge boat construction plan after compared with other companies, then we signed the purchase contract. They required the delivery time was before mid-January, 2019. On January 4th, 2019, the production and commissioning was completed. We sent the small dredge boat test video to the customers, they were satisfied with the small dredge boat and payed the final payment. The small dredge boat was shipped on January 8th.
