Skid-mounted CNG daughter-station
WENZHOU BLUESKY ENERGY TECHNOLOGY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $20,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $700,000
- Section 301 tariff (25.0%)
- $5,000,000
- Customs fees (MPF/HMF)
- $25,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $20,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $700,000
- Section 301 tariff (25.0%)
- $5,000,000
- Customs fees (MPF/HMF)
- $25,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Skid-mounted CNG daughter-station
WENZHOU BLUESKY ENERGY TECHNOLOGY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $20,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $700,000
- Section 301 tariff (25.0%)
- $5,000,000
- Customs fees (MPF/HMF)
- $25,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $20,000,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $700,000
- Section 301 tariff (25.0%)
- $5,000,000
- Customs fees (MPF/HMF)
- $25,635
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Stainless steel
- Size: 11.8m*2.3m*2.3m
- Color: White, blue, customizable
- Exports to: Africa, Middle East, Southeast Asia, Other European Countries
- Made in: Zhejiang, China
About this product
- Materials: Stainless steel
- Size: 11.8m*2.3m*2.3m
- Color: White, blue, customizable
- Exports to: Africa, Middle East, Southeast Asia, Other European Countries
- Made in: Zhejiang, China
Product details
| Materials | Stainless steel |
|---|---|
| Size | 11.8m*2.3m*2.3m |
| Color | White, blue, customizable |
Product details
| Materials | Stainless steel |
|---|---|
| Size | 11.8m*2.3m*2.3m |
| Color | White, blue, customizable |
From the supplier
Product Name: Skid-Mounted Compressed Natural Gas (CNG) Satellite Station
Product Introduction:

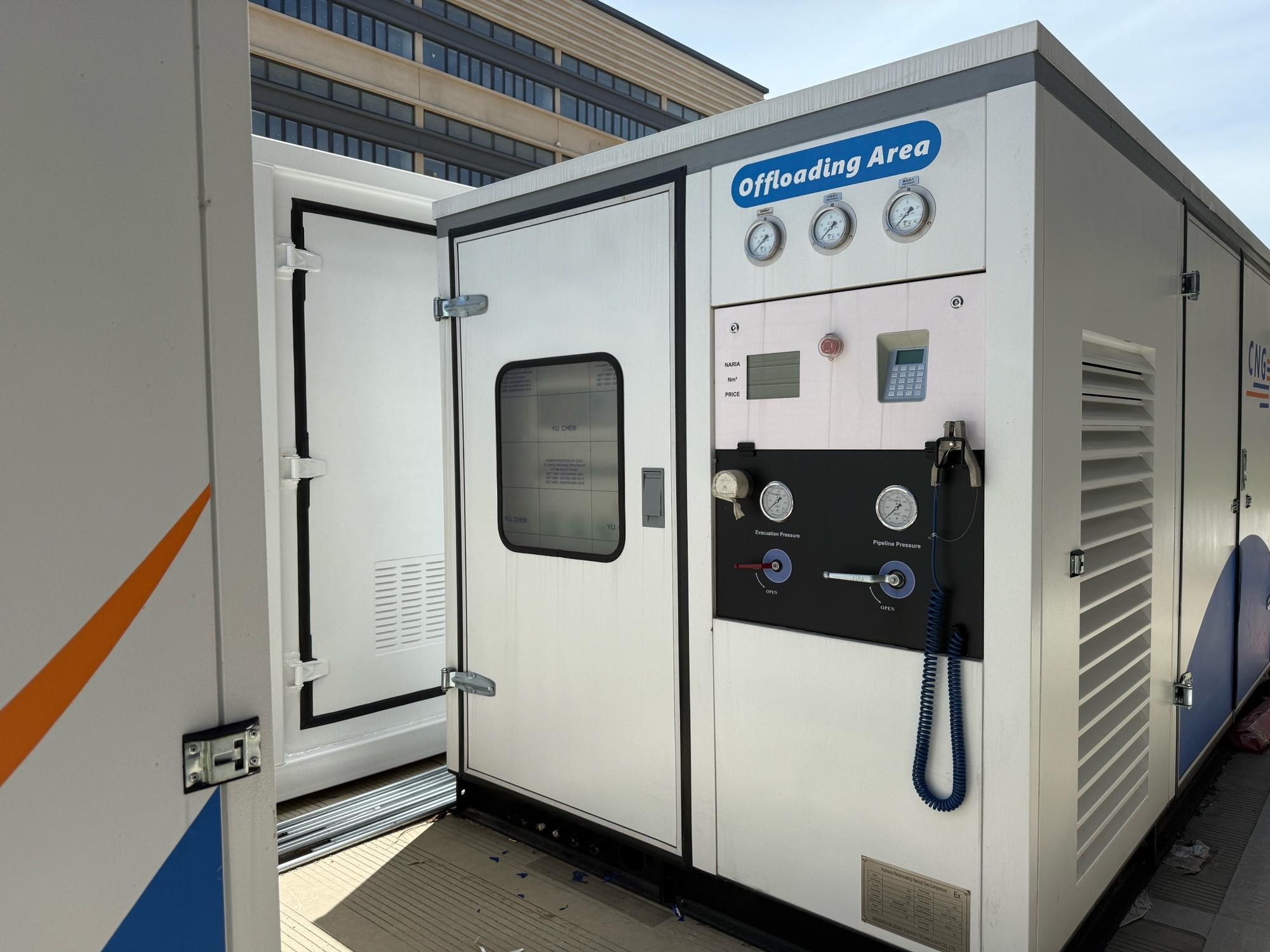

The skid-mounted CNG daughter station is a highly integrated and rapidly deployable compressed natural gas supply unit. It incorporates all essential systems – including filtration, pressure regulation, metering, sequential control, compression, and storage – onto one or more steel skids. Serving as a flexible and cost-effective alternative to traditional fixed CNG stations, it can draw gas directly from medium-pressure urban pipeline networks without relying on city gate stations, providing efficient refueling for CNG vehicles.
Key Features:
-
Rapid Deployment: Modular skid-mounted design allows for easy transportation and minimal on-site installation time, enabling a "plug-and-play" setup.
-
Flexible Gas Sourcing: Can connect directly to medium-pressure gas pipelines , eliminating the need for expensive long-distance high-pressure pipelines.
-
Efficient Compression: Built-in high-efficiency compressor boosts pipeline pressure to the required vehicle refueling pressure (typically 20-25MPa).
-
Intelligent Control: Utilizes a PLC automatic control system for sequential control, automatic filling, safety monitoring, and remote data transmission.
-
Comprehensive Safety: Integrated with multiple safety protections including over-pressure protection, gas leakage detection, and emergency shutdown for reliable operation.
-
Cost & Energy Saving: Lower initial investment by avoiding long pipeline construction, with reduced energy consumption and easier maintenance.
Applications:
-
Dedicated refueling points at urban bus depots, logistics parks, and taxi service centers.
-
Urban areas with gas pipeline coverage but lacking conventional CNG stations.
-
Small to medium-sized gas projects sensitive to construction timelines and investment costs.
-
Serves as a supplement to existing CNG mother stations or a temporary/mobile gas supply solution.
From the supplier
Product Name: Skid-Mounted Compressed Natural Gas (CNG) Satellite Station
Product Introduction:
The skid-mounted CNG daughter station is a highly integrated and rapidly deployable compressed natural gas supply unit. It incorporates all essential systems – including filtration, pressure regulation, metering, sequential control, compression, and storage – onto one or more steel skids. Serving as a flexible and cost-effective alternative to traditional fixed CNG stations, it can draw gas directly from medium-pressure urban pipeline networks without relying on city gate stations, providing efficient refueling for CNG vehicles.
Key Features:
-
Rapid Deployment: Modular skid-mounted design allows for easy transportation and minimal on-site installation time, enabling a "plug-and-play" setup.
-
Flexible Gas Sourcing: Can connect directly to medium-pressure gas pipelines , eliminating the need for expensive long-distance high-pressure pipelines.
-
Efficient Compression: Built-in high-efficiency compressor boosts pipeline pressure to the required vehicle refueling pressure (typically 20-25MPa).
-
Intelligent Control: Utilizes a PLC automatic control system for sequential control, automatic filling, safety monitoring, and remote data transmission.
-
Comprehensive Safety: Integrated with multiple safety protections including over-pressure protection, gas leakage detection, and emergency shutdown for reliable operation.
-
Cost & Energy Saving: Lower initial investment by avoiding long pipeline construction, with reduced energy consumption and easier maintenance.
Applications:
-
Dedicated refueling points at urban bus depots, logistics parks, and taxi service centers.
-
Urban areas with gas pipeline coverage but lacking conventional CNG stations.
-
Small to medium-sized gas projects sensitive to construction timelines and investment costs.
-
Serves as a supplement to existing CNG mother stations or a temporary/mobile gas supply solution.
