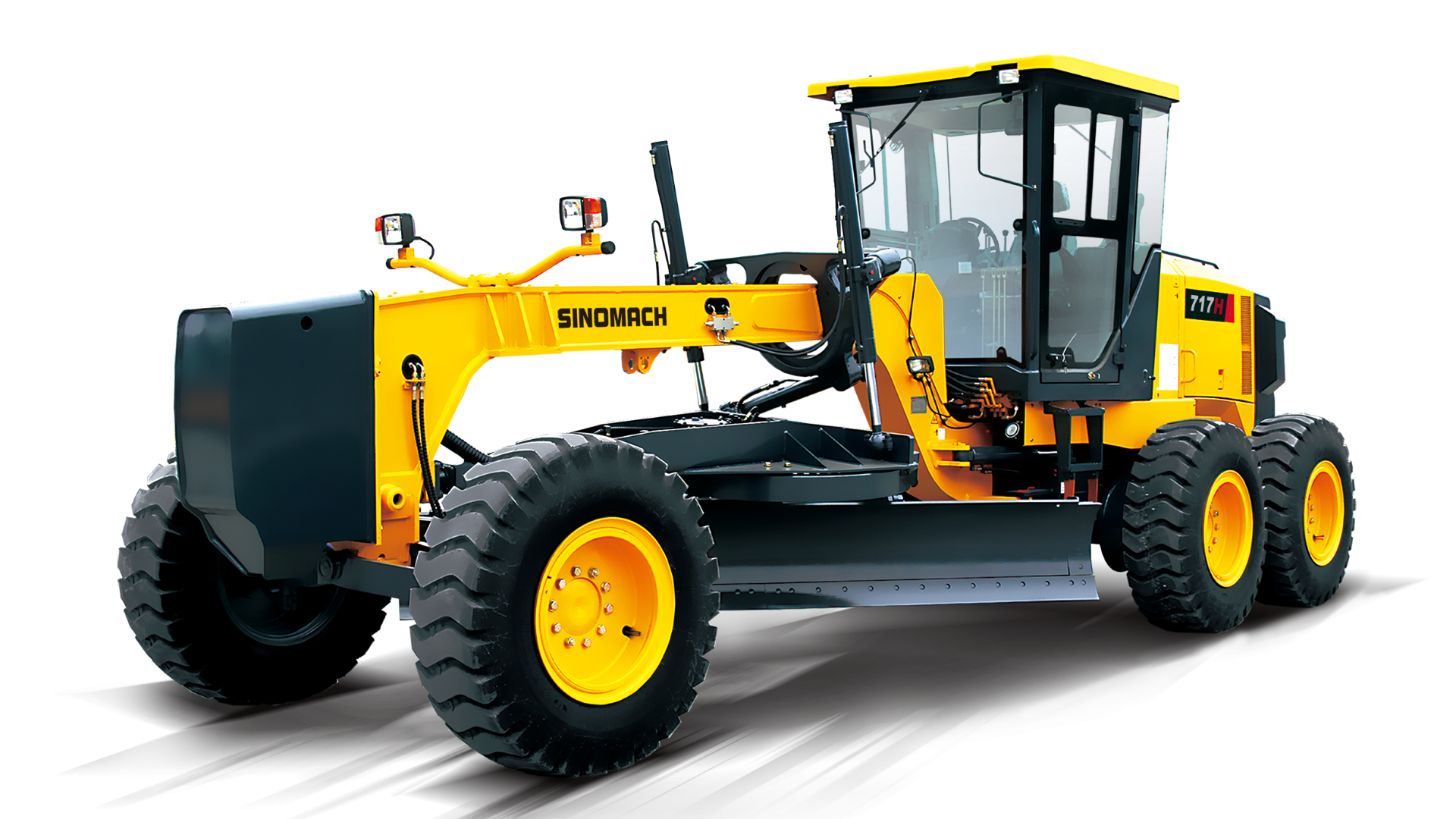

Sinomach Motor Grader 717h
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Sinomach Motor Grader 717h
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
Product details
| Automatic grade | OtherNon Automation |
|---|---|
| Customized | Non-CustomizedOtherCustomized |
| Power source | OtherGasoline |
| Walking mode | WheeledCrawlerOther |
| Engine type | OtherDiesel Engine |
From the supplier
Single-handle electro-hydraulic control power-shift gearbox, 6 forward gears and 3 reverse gears, making operation simple and convenient
Hydraulic locking, automatic locking/unlocking NO-SPIN differential ensures stability and strong traction
Ideal axle load distribution provides excellent stability when cutting hard roads
Highly efficient, maintainable hydraulic system allows every component to be fully utilized
Box frames and advanced gearboxes allow it to perform heavy tasks
Flexible blade suspension system and articulated frame allow for a wide range of work
Overall Dimension
1
Length Length of the machine8820mm
2
Width Machine width2600mm
3
Height(To the top of the cab) Overall height (to the top of the cab)3420mm
4
Wheel base6100mm
5
Tread track2120(mm)
6
Min.& nbsp;turning radius Minimum turning radius7.3（m）
Main Technical Specification Main technical performance parameters
1
Operating weight14500kg
2
Blade length Blade length3658mm
3
Blade height580mm
4
Blade width Blade thickness20mm
5
Max.& nbsp;Lift above ground Maximum lifting height450mm
6
Max.& nbsp;grading depth Maximum cutting depth535mm
7
Max.& nbsp;shoulder reach outside rear tire blade maximum lateral reach distance2000mm
8
Traveling speed(km/h), 6 forward and 3 reverse driving speed Front 6 rear 3 gears(1)forward
6.5/11.4/14.6/24.8/30/49.2
(2)reverse
6.5/14.6/30
Diesel engine engine
1
ModelCummins 6BTA5.9-C180
Dongfeng Cummins 6BTA5.9-C180
2
Type formDirect injection. Turbocharged. Water cooling
Supercharging, water cooling, direct injection
3
Rated output Rated power132 kW
4
Rated speed2200(r/min)
5
Max. Torque Maximum torque750(N.m) at 1300r/min
