About this product
- Size: 7.5M-28.5M
- Color: custom
- Main girder form: Single Girder
- Structure: Other
- Moving method: Orbital
- Application: Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 7.5M-28.5M
- Color: custom
- Main girder form: Single Girder
- Structure: Other
- Moving method: Orbital
- Application: Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 7.5M-28.5M |
|---|---|
| Color | custom |
| Main girder form | Single Girder |
| Structure | Other |
| Moving method | Orbital |
| Application | Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage |
| Power supply | Other |
| Installation | AssembledJack-upOverall Rapid DisassemblyOther |
| Customized | Customized |
From the supplier

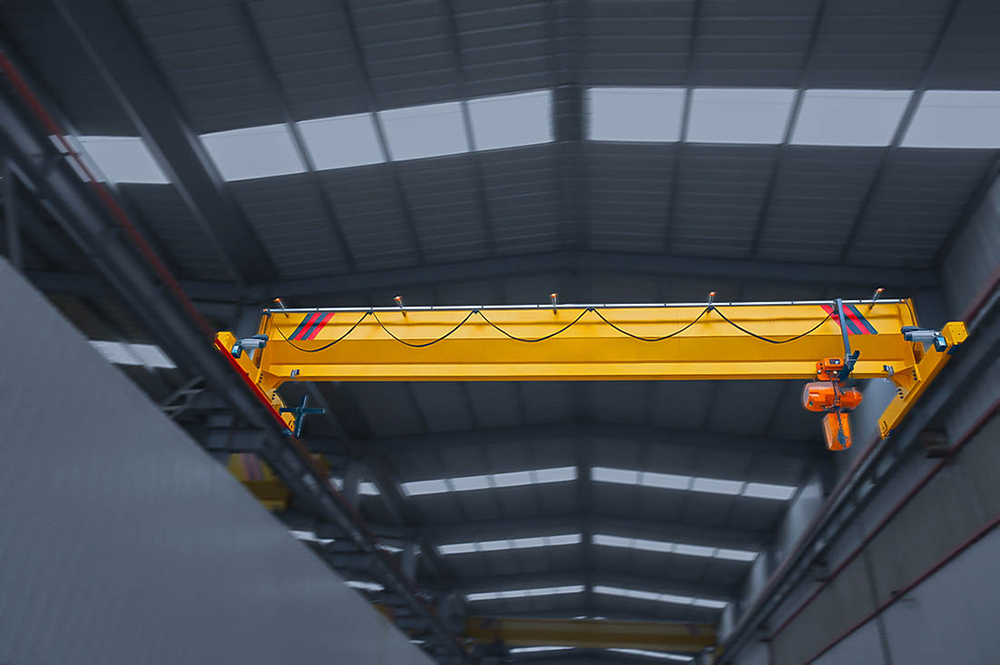

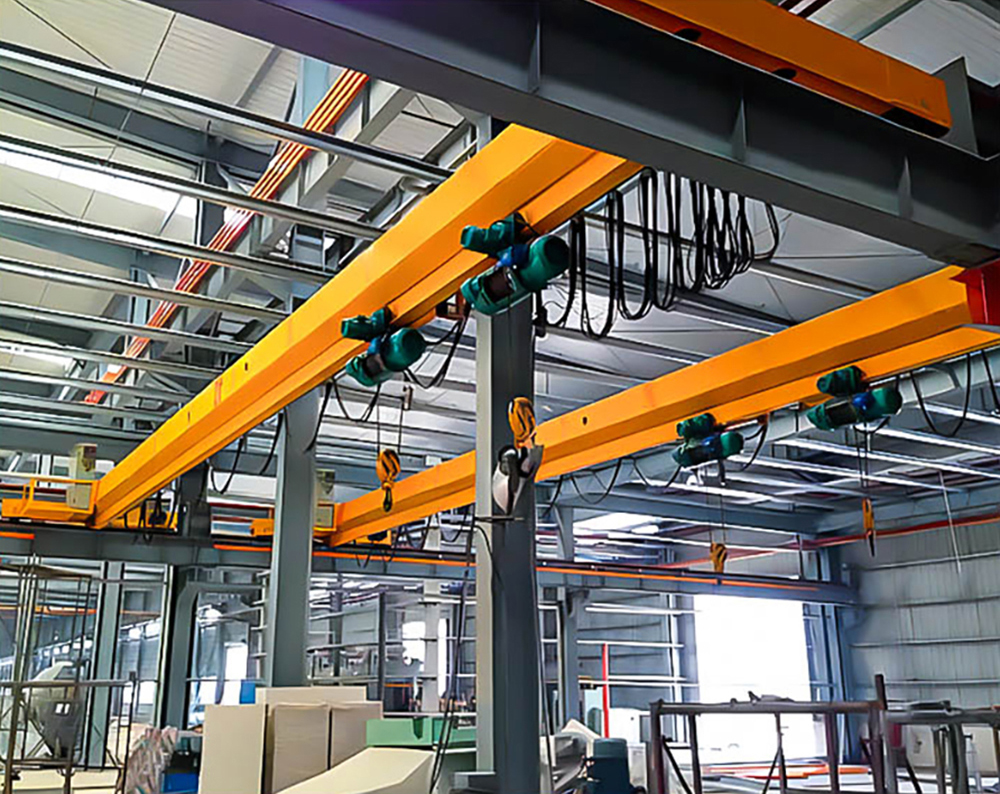

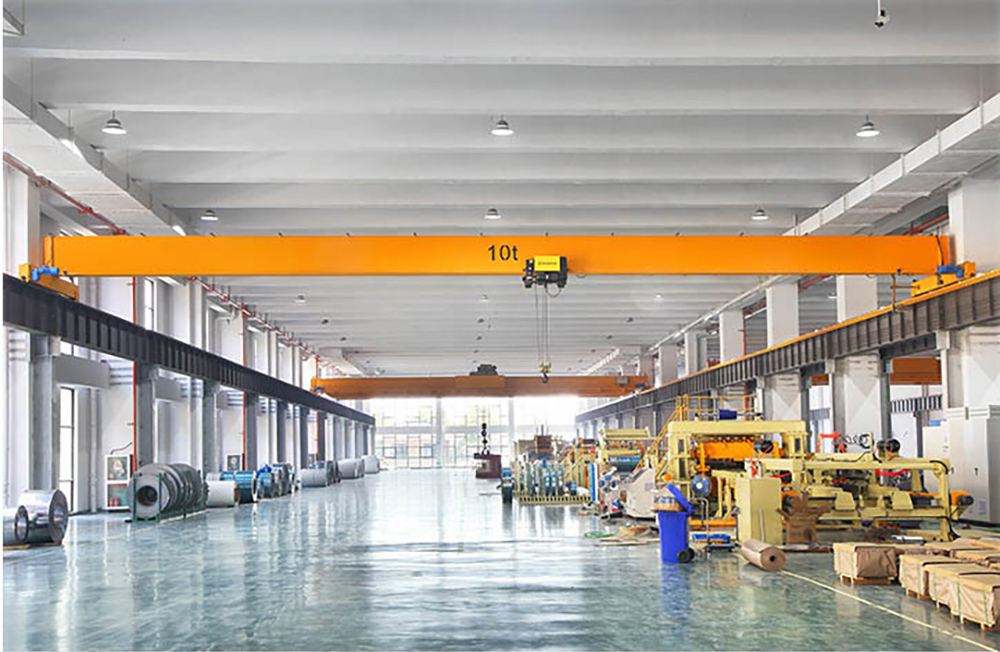

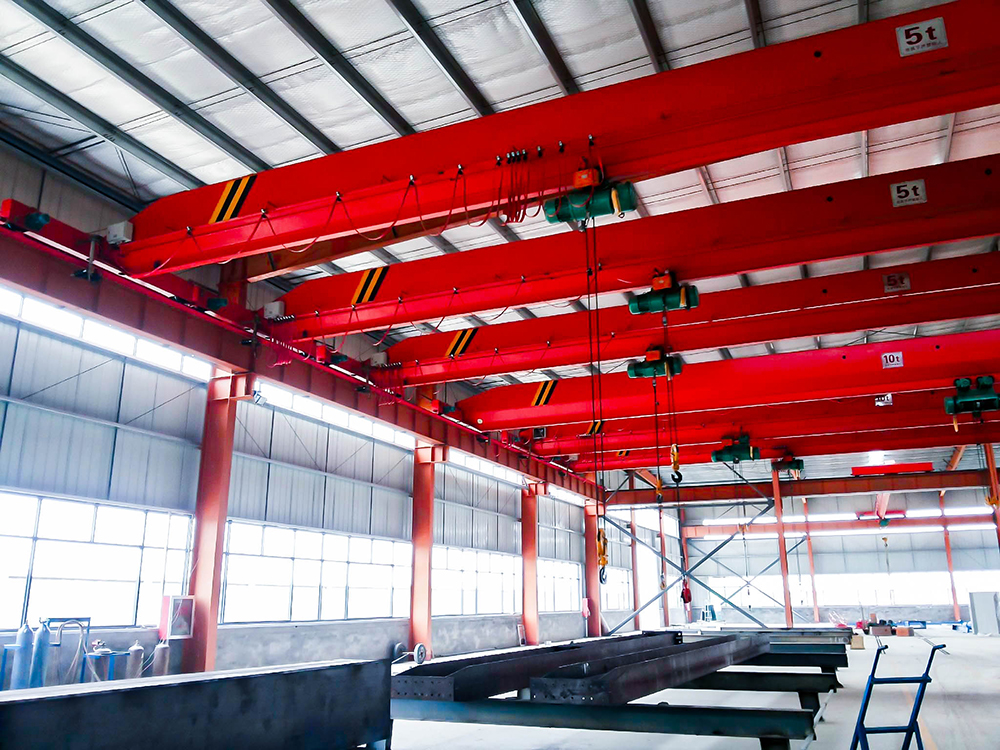

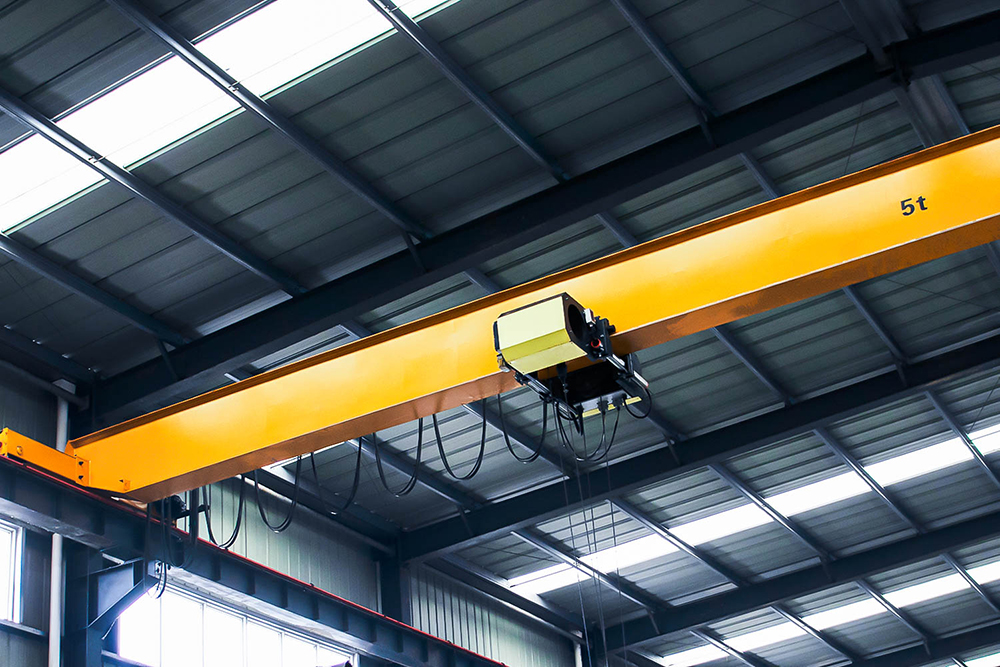

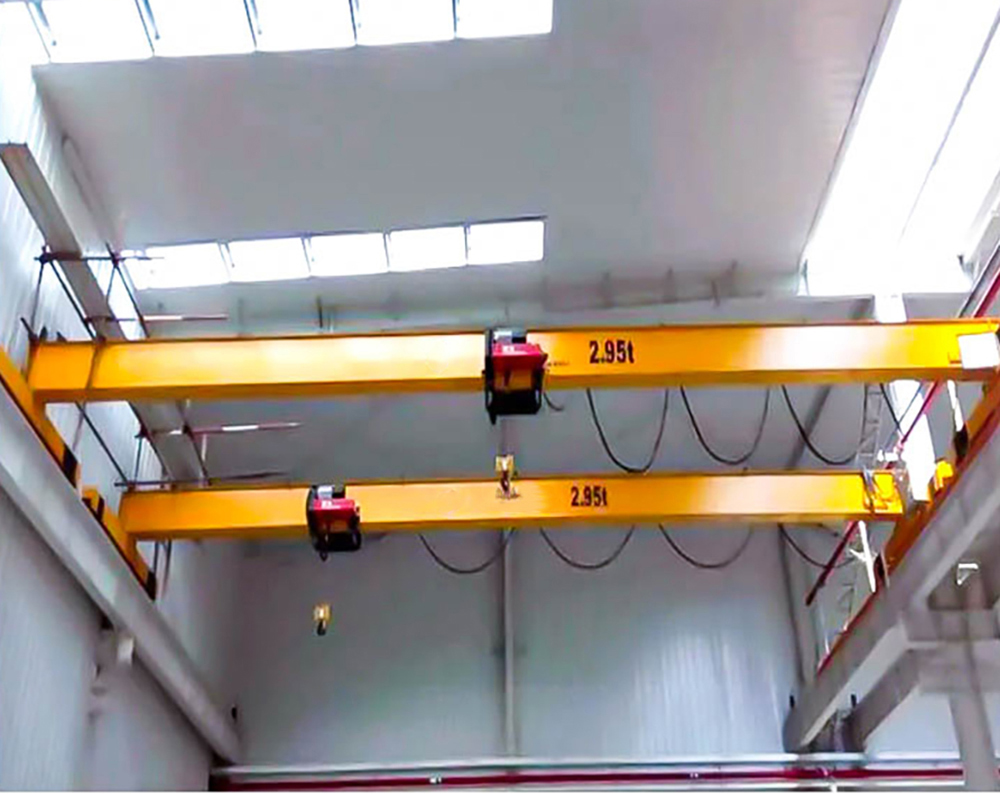

The LD single girder overhead crane features a compact structure and high overall rigidity. Its main beam adopts an I-beam box-type design and is used with CD or MD type electric hoists, making it a light-duty lifting device suitable for various applications. To accommodate different factories, warehouses and working conditions, the LD model single girder overhead crane has evolved into extended versions such as the LDP side-mounted single girder overhead crane and the LDC low headroom single girder overhead crane.
Capacity: 0.5 ton~32 ton
Span: 7.5m-31.5m
Lifting height: 6m/9m/12m/18m/24m/30m
Control Method: Floor Control / Remote Control / Cabin Room Control
Our Single Girder Overhead Crane is a compact and efficient lifting solution designed for workshops, warehouses, and production facilities. Engineered for precision and performance, it offers excellent load handling while minimizing headroom and space requirements.
This type of overhead travelling crane is widely used in:
Light to medium-duty manufacturing
Mechanical workshops
Maintenance bays
Assembly lines
Warehousing and logistics centers
Whether for indoor or outdoor operations, our single beam overhead cranes provide reliable support for daily material handling.
Lifting capacity: 1 ton to 32 tons (customizable)
Span: Up to 31.5 meters
Low headroom design: Saves vertical space
Electric hoist: Equipped with reliable wire rope or chain hoist
Power options: Cable festoon, conductor bars, or energy chains
Control modes: Pendant control, remote control, or cabin control
All our electric single girder cranes comply with international standards such as FEM, ISO, and GB.
We offer a wide range of customization options to suit different industries:
Anti-corrosion coating for outdoor use
Explosion-proof components for hazardous areas
Crane kits for DIY assembly
Extended spans or lifting heights upon request

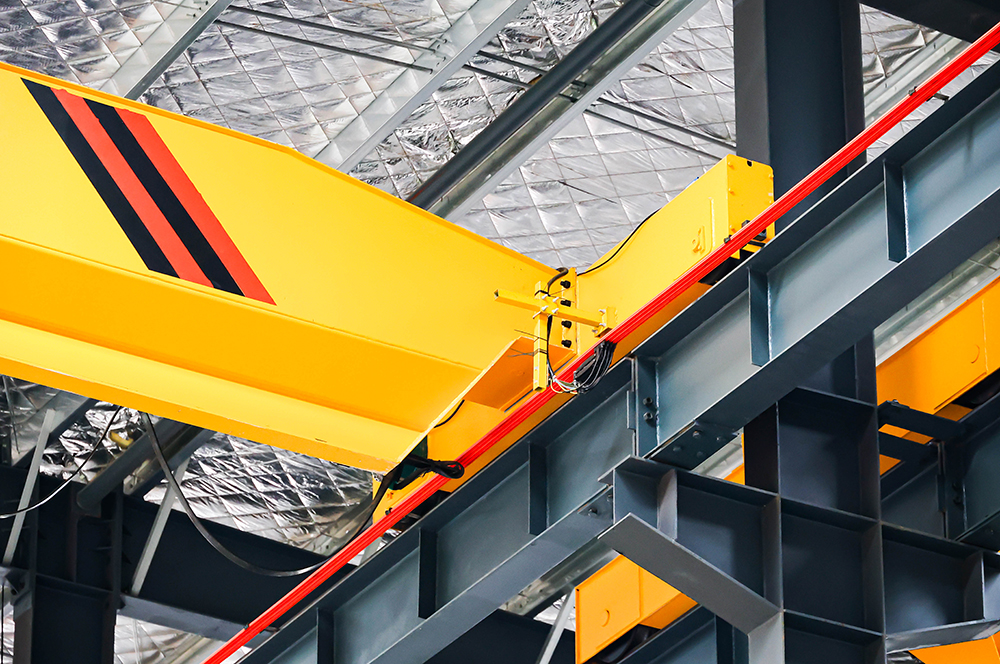

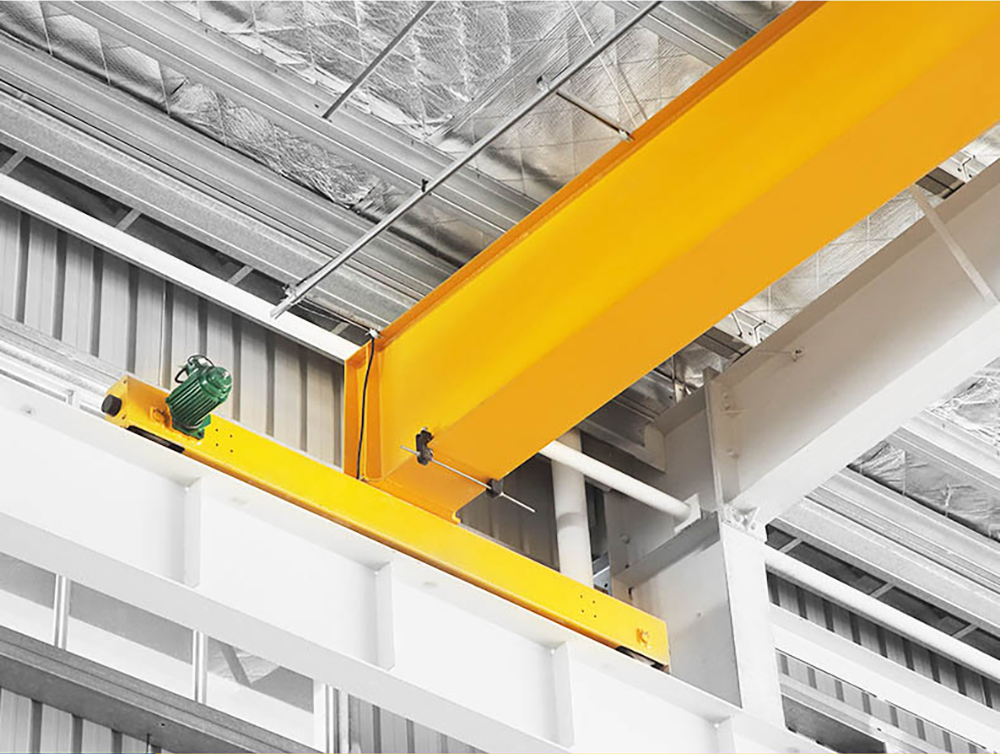

Compact Design: Features a simple overall structure. The main girder utilizes an I-beam reinforced box-section design, making manufacturing and installation straightforward.
Lightweight & Low Wheel Load: Places minimal demands on building structures, reducing construction costs. Ideal for use in facilities with lower load-bearing capacities.
Cost-Effective Solution: Offers a higher value proposition compared to other crane types, providing significant investment savings.
Flexible Operation: Simple control via either pendant (ground control) or wireless remote operation.
Versatile Application: Commonly used in factories, machinery manufacturing, assembly lines, and warehouses. Capable of handling lifting, transporting, and stacking tasks for diverse materials.
