About this product
- Materials: carbon steel
- Size: 1500*1200*2300
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
About this product
- Materials: carbon steel
- Size: 1500*1200*2300
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Jiangsu, China
Product details
| Materials | carbon steel |
|---|---|
| Size | 1500*1200*2300 |
| Color | blue |
Product details
| Materials | carbon steel |
|---|---|
| Size | 1500*1200*2300 |
| Color | blue |
From the supplier
Use end and characteristics：

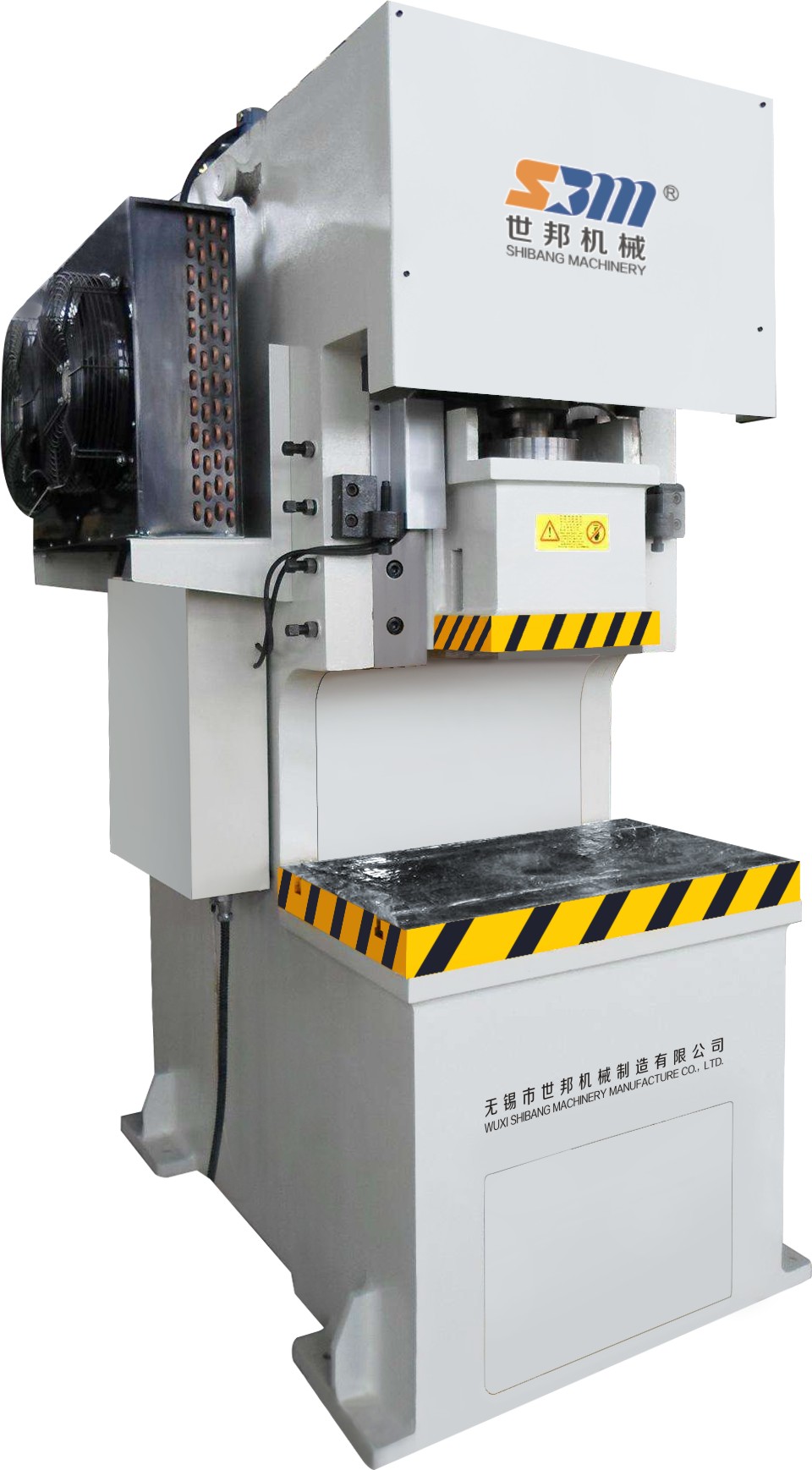

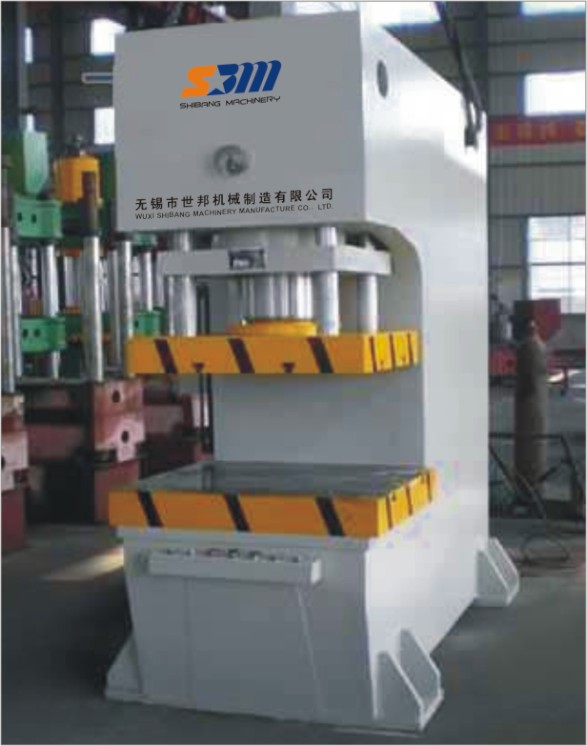

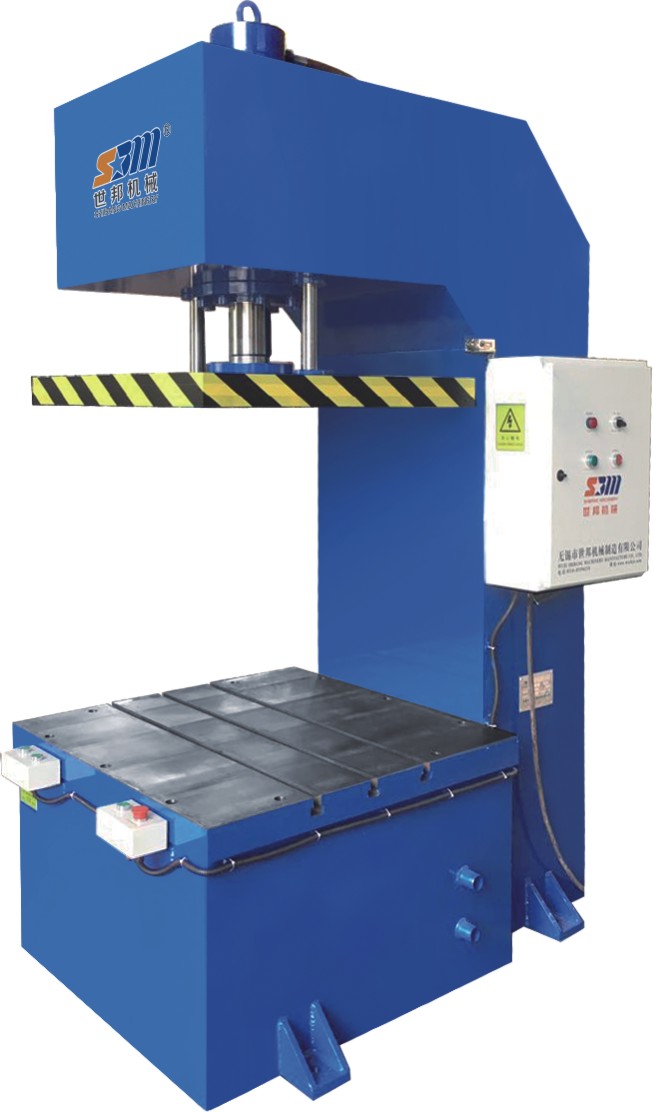

The series hydraulic press is C-frame Single-pillar structure and the whole machine body is jointed with steel. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic cushion. The electric control system applies “PC” program controller with button central controlled to achieve adjusting, manual and semi-automatic operation. The series hydraulic press applies to techniques including the drawing, punching, bending, crimping, amendment, pushing mounting, cold and hot extrusion, etc of metal materials as well as powder and plastic products for press forming.
The operation is very convenient with C-frame single arm structure. The hydraulic system lies inside the body. Under the worktable does equip with hydraulic base. Working press stroke can be adjustable within the specific range. The series hydraulic press applies to techniques including the drawing, bending, incusing, blanking, amendment, pushing mounting, etc of metal parts as well as the forming of general powder and abrasive products, plastic products and insulating materials for press forming.
Optional accessories：
●Accessorial worktable
●Precise straightening system
●Photo-electrical protection device
●Touch style industry screen
●Rate speed regulation system
●Hydraulic system heating
●Cooling device
●Ramming mixes device
●PLC Programmable Logic Controller
Parameter
Unit Unit
ZBJ-DD-10
ZBJ-DD-16
ZBJ-DD-25
ZBJ-DD-40
ZBJ-DD-63
ZBJ-DD-100
ZBJ-DD-150
Nominal Pressure
KN
160
160
250
400
630
1000
1500
Stroke of Slide Block
mm
300
350
350
400
500
500
500
Maximum Distance Between Slider Bottom And Work Table
Max distance from bottom surface of slide block to worktable
mm
500
550
600
700
800
800
800
Worktable size (Left to Right x Front to Back)
mm
600×450
650×500
650×500
700×550
800×650
800×700
900*900
Max Work Pressure of Liquid
Mpa
13
12
16
20
25
25
25
Descent speed of slide block
mm/s
40
48
48
33
32
27
27
Return Speed of Slide Block
mm/s
50
70
70
65
50
40
50
throat depthThroat depth
mm
250
300
260
320
350
350
400
Overall Dimensions (length x width x height) Overall Dimensions (length x width x height)
mm
1100×800
×1800
1100×850 ×2100
1200×830
×2400
1500×800
×2500
1600×1200 ×2600
1800×1400
×3000
1900*1500*
3100
Electric Power
kw
2.2
4
5.5
7.5
7.5
7.5
11.5
Weight
kg
800
1000
1300
2500
3500
4500
7000
