Shaping Machine(Hydraulic)
XI'AN AMCO MACHINE TOOLS CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Shaping Machine(Hydraulic)
XI'AN AMCO MACHINE TOOLS CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Metal
- Size: 2000*1300*1600
- Color: green
- Control type: Other
- Power: Other
- Warranty: 1 Year
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Metal
- Size: 2000*1300*1600
- Color: green
- Control type: Other
- Power: Other
- Warranty: 1 Year
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Metal |
|---|---|
| Size | 2000*1300*1600 |
| Color | green |
| Control type | Other |
| Power | Other |
| Warranty | 1 Year |
Product details
| Materials | Metal |
|---|---|
| Size | 2000*1300*1600 |
| Color | green |
| Control type | Other |
| Power | Other |
| Warranty | 1 Year |
From the supplier

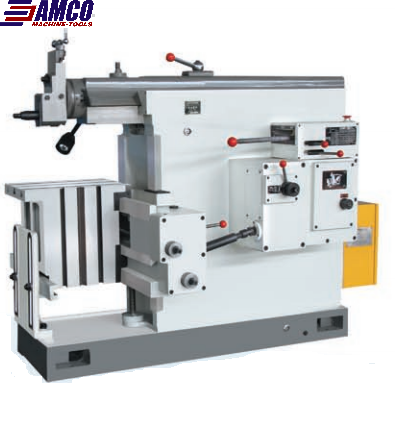

Shaping Machine(Hydraulic) BC6050
Model
BC6050
Max Shaping Length (mm)
500
The Max. Distance of Ram Bottom to Worktable Plane (mm)
370
The Max. Horizontal Movement of Worktable (mm)
525
The Max. Vertical Movement of Worktable (mm)
270
Worktable Size(L*W)(mm)
440/360
Tool Post Travel (mm)
120
Ram Strokes per Minute
14,20,28,40,56,80
Max. Rotational Angel of Tool Post (°)
±60°
The Max. Size of Planing Tool Handle ( Width*Thick)(mm)
20×30
Mechanical Feeding Range of Worktable
Horizontal Feeding(12 Grades)(mm)
0.2~2.5
Vertical Feeding(12 Grades)(mm)
0.08~1.00
Size of Worktable Central T-slot (mm)
18
Main Motor (kw)
3
Overall Size(L*W*H)(mm)
2000×1300×1550
Net Weight/Gross Weight (kg)
1750/1870
From the supplier
Shaping Machine(Hydraulic) BC6050
Model
BC6050
Max Shaping Length (mm)
500
The Max. Distance of Ram Bottom to Worktable Plane (mm)
370
The Max. Horizontal Movement of Worktable (mm)
525
The Max. Vertical Movement of Worktable (mm)
270
Worktable Size(L*W)(mm)
440/360
Tool Post Travel (mm)
120
Ram Strokes per Minute
14,20,28,40,56,80
Max. Rotational Angel of Tool Post (°)
±60°
The Max. Size of Planing Tool Handle ( Width*Thick)(mm)
20×30
Mechanical Feeding Range of Worktable
Horizontal Feeding(12 Grades)(mm)
0.2~2.5
Vertical Feeding(12 Grades)(mm)
0.08~1.00
Size of Worktable Central T-slot (mm)
18
Main Motor (kw)
3
Overall Size(L*W*H)(mm)
2000×1300×1550
Net Weight/Gross Weight (kg)
1750/1870
