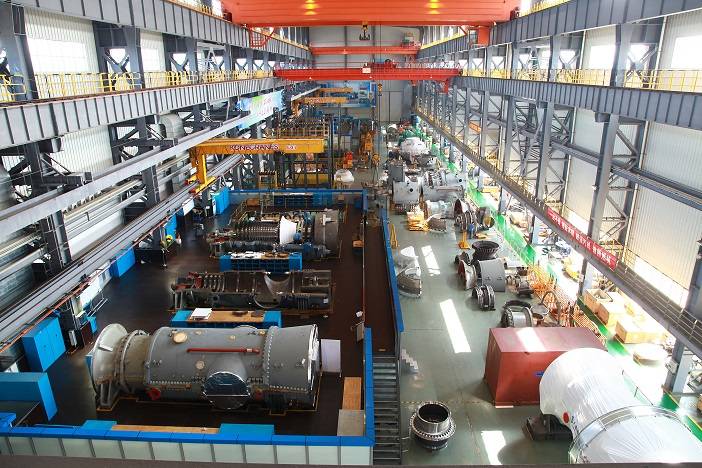

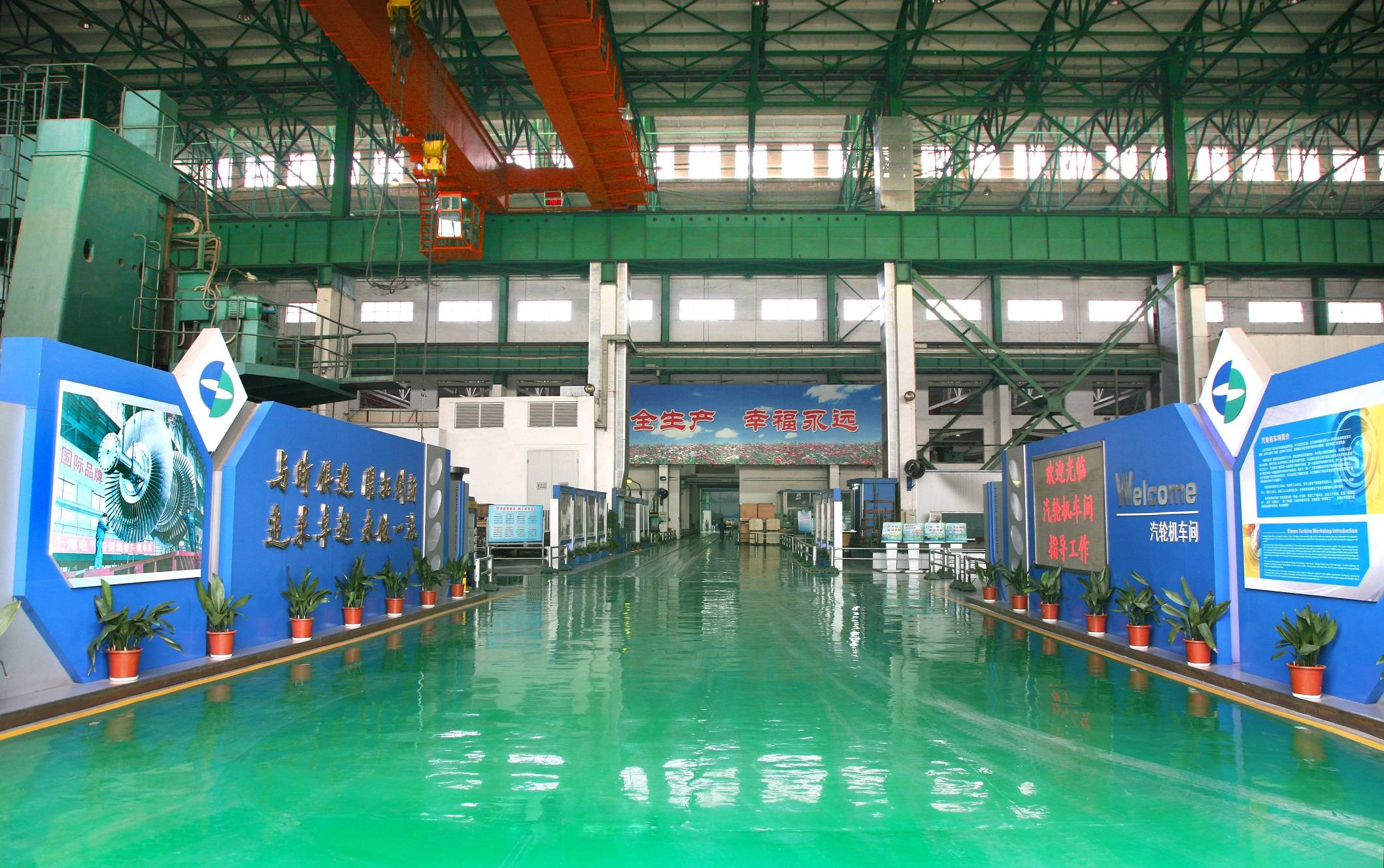

Shanghai Turbine Plant of Shanghai Electric Power Generation Equipment Co., Ltd. (Shanghai Turbine Plant), one of China’s largest turbine manufacturers, has independent design and manufacturing capabilities for subcritical, supercritical, and ultra-supercritical thermal power turbines. Its turbine products range from 50MW to 1350MW, covering a full series.
The ultra-supercritical once - reheat turbine is a flagship product of Shanghai Turbine Plant in the coal - fired power generation sector, with abundant operational experience and a high market share. The turbine’s power ranges from 660MW to 1350MW, with main steam and reheat steam parameters from 31MPa/600℃/610℃/610℃ to 32.5MPa/610℃/630℃/623℃. It adapts to wet - or air - cooled systems, and meets large - scale heating or industrial steam extraction needs. The feedwater heating system can be configured with 10, 11, or 12 stages, and the last - stage blade length can be 915mm or 1146mm, to accommodate different exhaust back - pressures. The turbine is of the ultra - supercritical, once - reheat, five - cylinder, four - exhaust (for 1000MW units: one single - flow ultra - high - pressure cylinder, one double - flow high - pressure cylinder, one double - flow intermediate - pressure cylinder, and two double - flow low - pressure cylinders; for 660MW units: one single - flow ultra - high - pressure cylinder, one single - flow high - pressure cylinder, one double - flow intermediate - pressure cylinder, and two double - flow low - pressure cylinders), single - shaft condensing type.
The Shanghai Turbine Plant’s once - reheat ultra - supercritical turbine uses advanced technologies like ultra - high - pressure cylinder design, “N+1” bearing support, new low - pressure inner cylinder support, low - stress structure, anti - particle erosion, shaft system stability, and smooth sliding key system. These technologies give the unit high efficiency, availability, easy installation and maintenance, long overhaul cycles (10 - 12 years), fast start - up, deep load - following, and flexible operation, reaching world - class performance levels.
From the supplier
Shanghai Turbine Plant of Shanghai Electric Power Generation Equipment Co., Ltd. (Shanghai Turbine Plant), one of China’s largest turbine manufacturers, has independent design and manufacturing capabilities for subcritical, supercritical, and ultra-supercritical thermal power turbines. Its turbine products range from 50MW to 1350MW, covering a full series.
The ultra-supercritical once - reheat turbine is a flagship product of Shanghai Turbine Plant in the coal - fired power generation sector, with abundant operational experience and a high market share. The turbine’s power ranges from 660MW to 1350MW, with main steam and reheat steam parameters from 31MPa/600℃/610℃/610℃ to 32.5MPa/610℃/630℃/623℃. It adapts to wet - or air - cooled systems, and meets large - scale heating or industrial steam extraction needs. The feedwater heating system can be configured with 10, 11, or 12 stages, and the last - stage blade length can be 915mm or 1146mm, to accommodate different exhaust back - pressures. The turbine is of the ultra - supercritical, once - reheat, five - cylinder, four - exhaust (for 1000MW units: one single - flow ultra - high - pressure cylinder, one double - flow high - pressure cylinder, one double - flow intermediate - pressure cylinder, and two double - flow low - pressure cylinders; for 660MW units: one single - flow ultra - high - pressure cylinder, one single - flow high - pressure cylinder, one double - flow intermediate - pressure cylinder, and two double - flow low - pressure cylinders), single - shaft condensing type.
The Shanghai Turbine Plant’s once - reheat ultra - supercritical turbine uses advanced technologies like ultra - high - pressure cylinder design, “N+1” bearing support, new low - pressure inner cylinder support, low - stress structure, anti - particle erosion, shaft system stability, and smooth sliding key system. These technologies give the unit high efficiency, availability, easy installation and maintenance, long overhaul cycles (10 - 12 years), fast start - up, deep load - following, and flexible operation, reaching world - class performance levels.
