Basic parameters of equipment
Load: 280kg (including bracket, robot such as Yaskawa EPX1250)
Itinerary: Standard itinerary available at 25003400 (customization is accepted in special circumstances)
Speed: 0.01-0.5m/s; 0.01-0.7m/s
Acceleration: 0.1-1.5m/s ^ 2
Accuracy: Repetitive positioning accuracy ± 0.1mm
Drive parameters: 4.5kw (explosion-proof optional, linkage optional)

Equipment functional characteristics

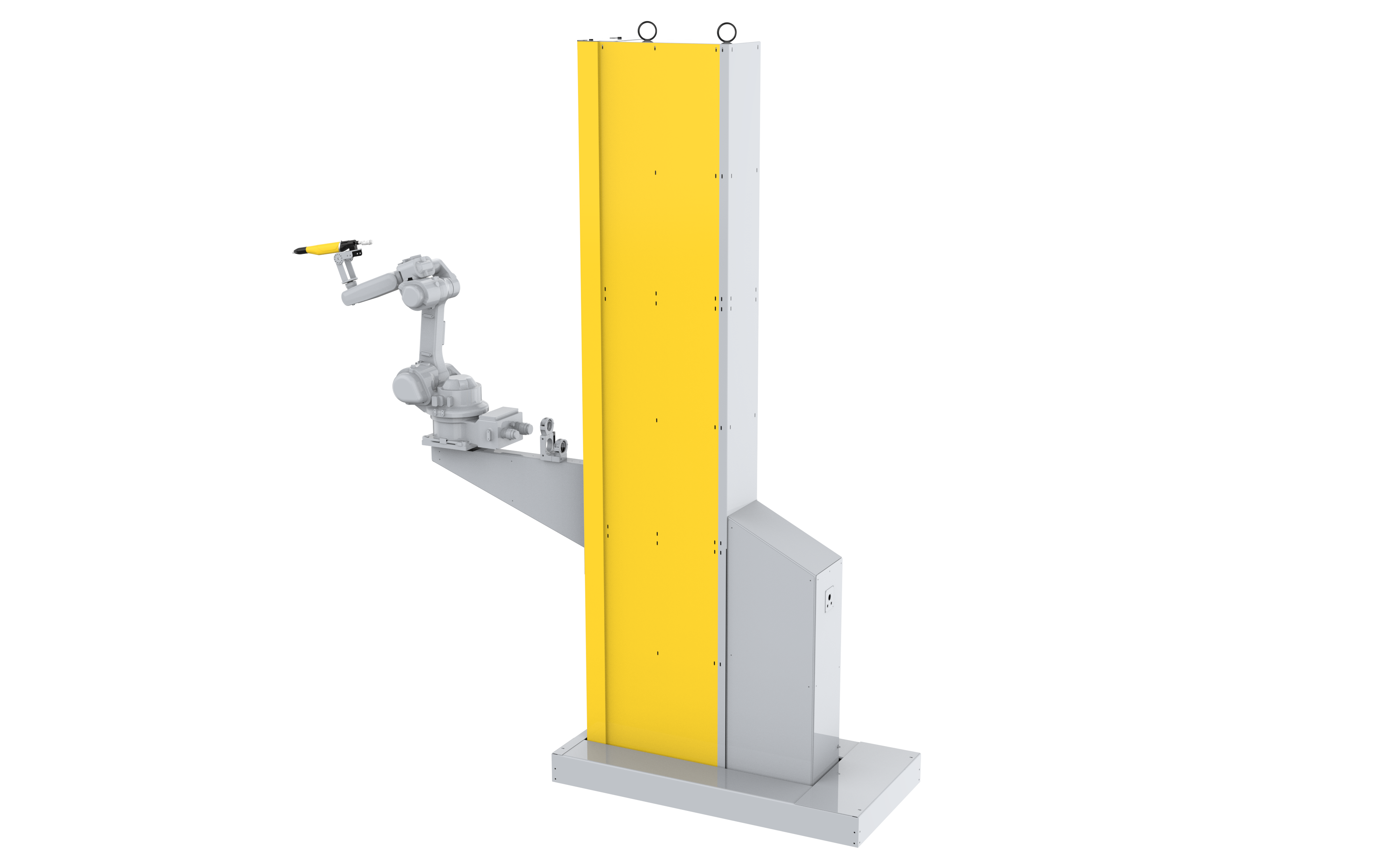

Expanding the working space of robots - This product carries robots for up and down reciprocating motion, and can program trajectories at any effective position according to process requirements, greatly expanding the effective working space of a single robot and achieving full range automated spraying of large and complex workpieces with a small number of robots;
Dust resistant - This product can be used in dusty environments, is dust resistant, and there is no risk of dust entering and getting stuck.
Save the ventilation volume and energy consumption of the powder room system - The robot carried is an explosion-proof series robot, which is built into the powder room. The robot bracket has a small width and basically does not occupy the system's ventilation volume, avoiding the situation where the robot spraying requires a large opening under general schemes, resulting in a large ventilation volume of the powder room system. The required cost has been greatly reduced in the ventilation configuration of the powder room system.
Neat environment - The powder room system that is compatible with this product has a very small opening, making it difficult for powder to overflow from the robot's opening and creating a clean spraying environment.
