Semi Electric Stacker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Semi Electric Stacker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: STEEL
- Size: FORK 570X1150MM , HEIGHT 1.6~3.3M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: STEEL
- Size: FORK 570X1150MM , HEIGHT 1.6~3.3M
- Color: YELLOW + DARK GREY
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | STEEL |
|---|---|
| Size | FORK 570X1150MM , HEIGHT 1.6~3.3M |
| Color | YELLOW + DARK GREY |
From the supplier

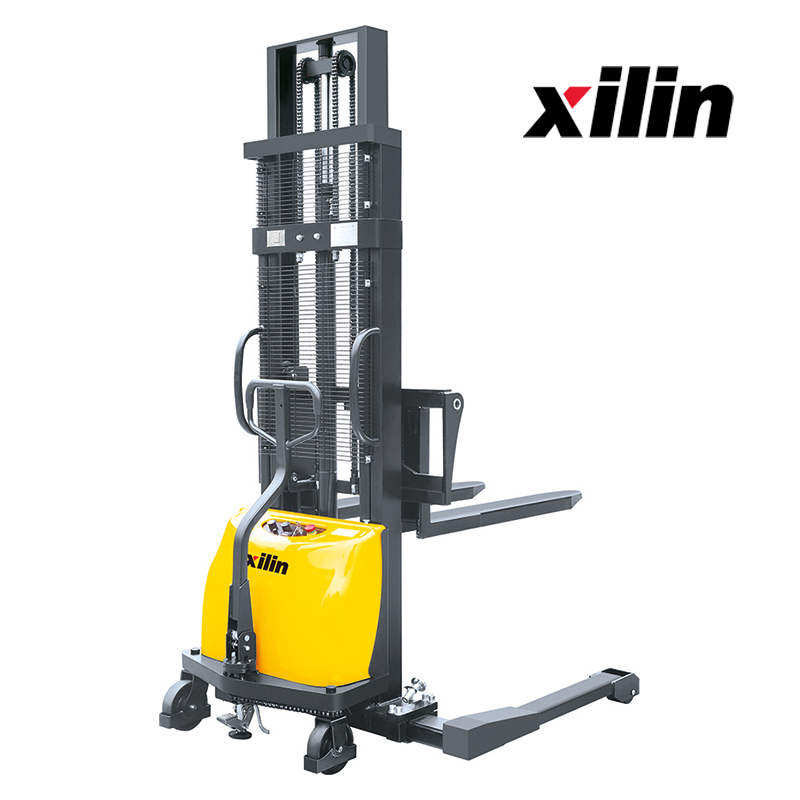

Model：CDD10B-III /CDD15B-III is The standard type Semi- Electric Stacker are with over all forks ( fixed type ) with small turning radius which is widely used in small warehouse and super market. Suit for low level stacking and short distance transportation. Which is powered lifting and manual moving type stacker .
With hydraulic leveler control lifting and lowering, speed is adjustable.
Explosion-proof valve applied in the cylinder reventsinjuries in case of hydraulicpump failure.
Brand-new configuration: adopted 1. 5kw hydraulic pump（manual descending with controllable speed).
With large storage battery
Steering mechanism driven by chains requires small steering force to convenient operations.
Foot brake is more prompt, convenient and labor saving.
Optional forks: stationary forks, adjustable forks, forged forks.
adopted plate chains with high strength. Ensure safety and stability.

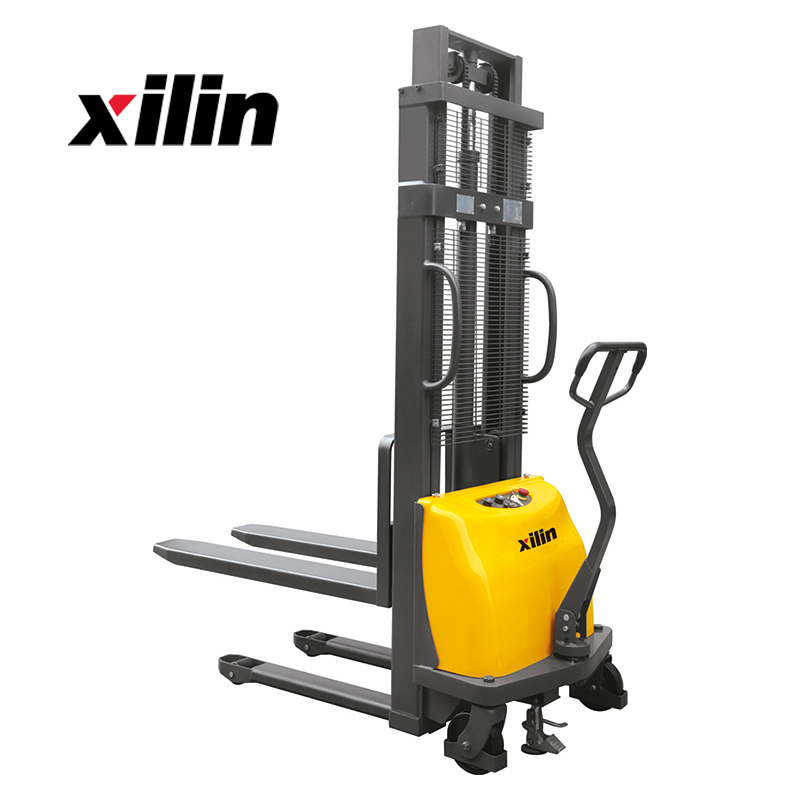

CTD10B-III/CTD15B –III Semi electric stacker are with Straddle legs & Adjustable forks is powered lifting and manual moving type , with adjustable forks can be used as double pallet stackers .
MODEL CDD10B-IIICDD15B-IIICTD10B-IIICTD15B-IIIFORK TYPE FIXED (OVERALL FORK) FIXED (OVERALL FORK) ADJUSTABLE ADJUSTABLE CAPACITY 1000KG1500KG1000KG1500KGLOAD CENTER 500MM500MM500MM500MMFORK WIDTH SIZE 570/695MM570/695MM295-930MM295-930MMLIFTING HEIGHT 1.6M/2.5M/3M/3.3M1.6M/2.5M/3M/3.3M1.6M/2.5M/3M/3.3M1.6M/2.5M/3M/3.3MLOWERED HEIGHT 90MM90MM80MM80MMBATTERY 24V/120AH 24V/120AH 24V/120AH 24V/120AH CHARGER 110V OR 220V 110V OR 220V 110V OR 220V 110V OR 220V
