Sawdust Spent Grain Soybean Meal DryerProduct Description

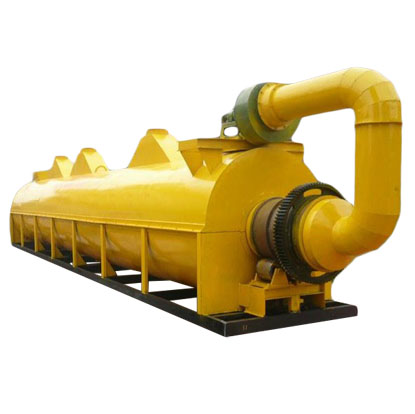

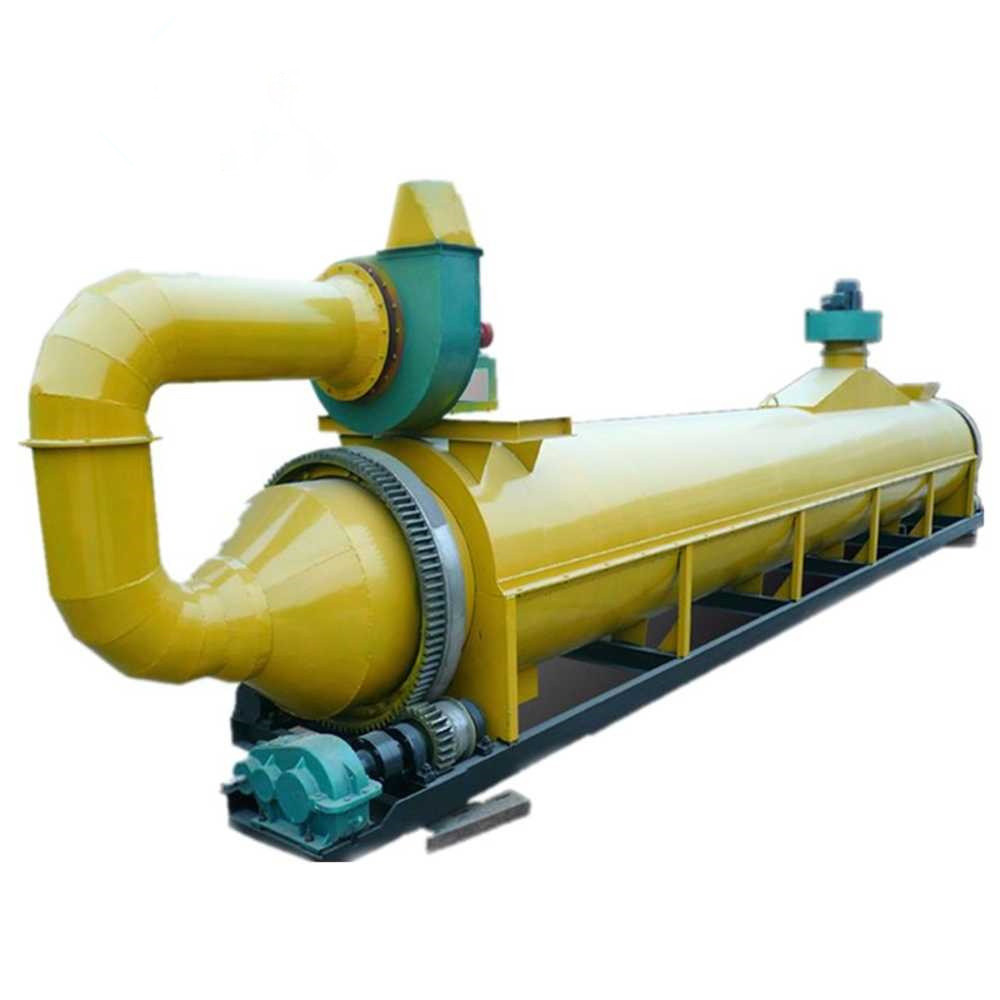

The rotary sawdust dryer is one of the new type drying equipment.The machine is mainly composed of the Rotary body, lifting plate, transmission, supporting device and sealing ring and other components.A dryer is slightly inclined to the horizontal direction of the cylinder, the material is added from the higher end of the high-temperature hot flue gas stream into the cylinder and the material, with the rotation of the cylinder, the material due to gravity to run to the lower end. In the inner wall of the cylinder is equipped with copy board, take the material and sprinkle the contact surface of the material and the air flow is increased, in order to improve the drying rate and promote the material forward.



The Rotary drum dryer is widely applicable to straw press block fuel, charcoal machinery, sawdust pellet fuel, sawdust press block, farming and animal husbandry engineering etc. industry. Such as corn straw drying, soybean straw drying, cotton straw drying, wheat straw drying, sorghum culm drying, wood drying, wood chips drying, sawdust drying, ginkgo biloba drying, mulberry leaves drying etc. agricultural cellulose category etc, materials.

Structures

Inside of the rotary drum dryer, there are many tubes. During drying process, the hot air will enter into tube-
internal by draught fan, while the materials exist tube-external, so that the materials can be dried indirectly, there is no pollution and no color change, also a fire that caused by too high temperature will be avoided successfully.

stove of rotary drum dryer

It consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Can use coal, wood, diesel, etc. as fuel



Advantage: reasonable design can avoid open flame. So it run steadily, safely and have long use-life.

 Lifting of rotary drum dryer



 1. Multi-tube indirect drying, which can evenly dry materials, and avoid burning or contaminating materials.



 2. The lifting can lift the material and push it forward, so that the material can be uniformly dried without clumping.

Advantages

1. New technology of indirect-drying structure, the working process is very safe and health.

2. rotary drum dryer equipped with biofuels stove, has a high environmental protection effect.

3. High thermal efficiency, the thermal efficiency can reach 60%.

4. The effect of drying is very good.

5. High output and low cost, reasonable design.

6. rotary drum dryer moth-proofing, and it prevent mildew, has a long shelf life.

7. rotary drum dryer have a high degree of automation, easy to operate, save manpower.

Technical parametersModel(mm)HY-1060HY-1290HY-1590HY-2090

Dimension(mm)

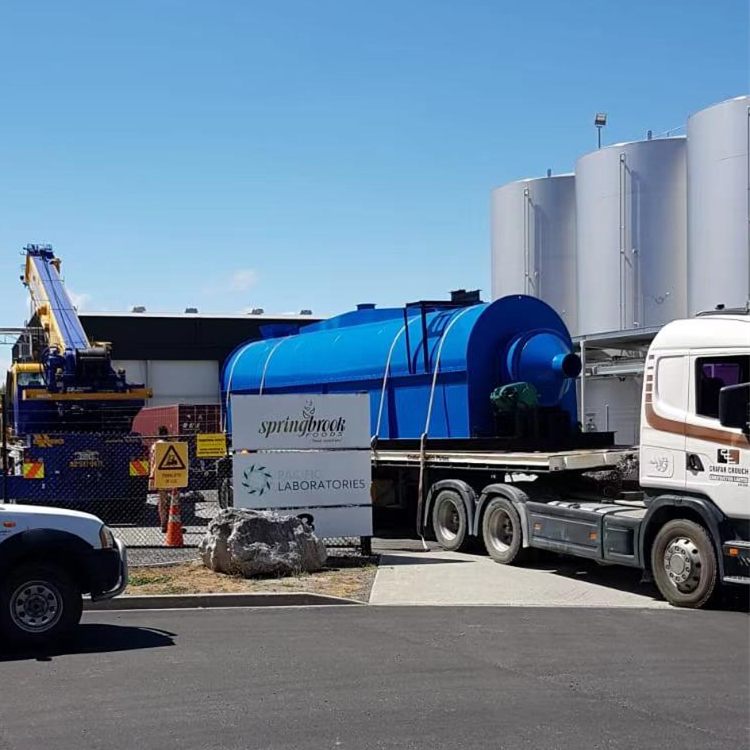

9000×1500×200012000×1700×220012000×2000×250012000×2500×2800Output(t/h)0.5-12-55-1010-20Power(kw)1218.72530Weight(t)6101420Pipe range(m)6999Diameter of pipe(m)11.21.52Dust catcherDiameter(m)11.21.51.5Height(m)1.82.22.52.5Adjustable speed motor4P-4KW4P-4KW4P-5.5KW4P-7.5KWHot air furnaceInside diameter (mm)150018002000Gas output(Nm³/h)1200-16001500-21001750-2500Main air blowerY5-47-5C-5.5KWY5-47-5C-7.5KWDust removing fan4-72-3.2A-2.2KW4-72-3.6A-3KWSpeed(r/min)3-5Reduction of moisture(%)40-50Dryness of finished materials(%)5-10Heating mediumHot clean airHot air temp(℃)Packaging & Shipping

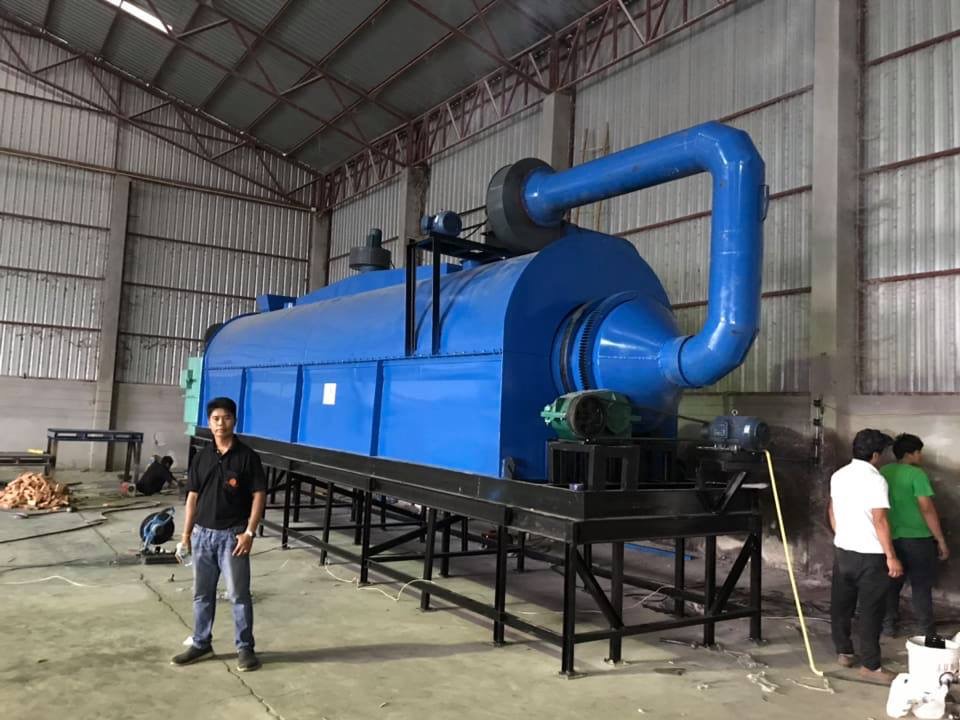

Customers visiting

Company Profile

Laser cutting machine and bending machine

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Henan Haokebang Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Our services:

1).One package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.

2).One year warranty.

3).Long-term supply of components.

FAQ

Q. Quality control

All the equipment offered by Henan Haokebang Machinery Equipment Co., Ltd. are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. Haokebang Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.

Q. What is the heat source of your stove?

Coal, wood, rice husk, or diesel, or natural gas. And our company is developing the gas stove

Q. Delivery time

Normal delivery time within 15 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.

Q. Installation

Haokebang has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians’ safety.

Q. Equipment warranty

Equipment from Henan Haokebang Machinery Equipment Co., Ltd. with 12 months warranty, can be extended to 24 months as request.
