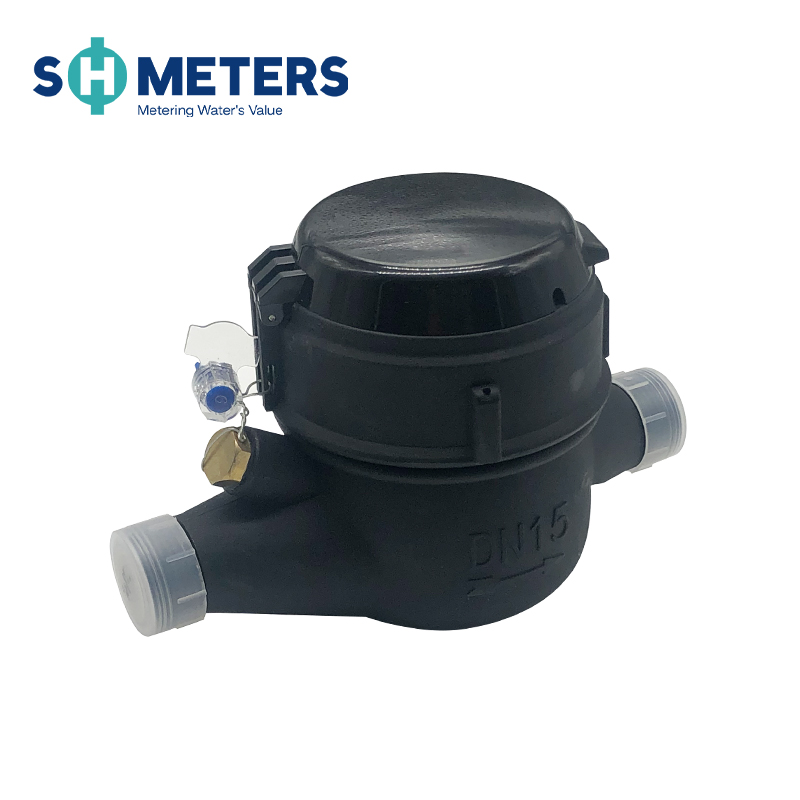

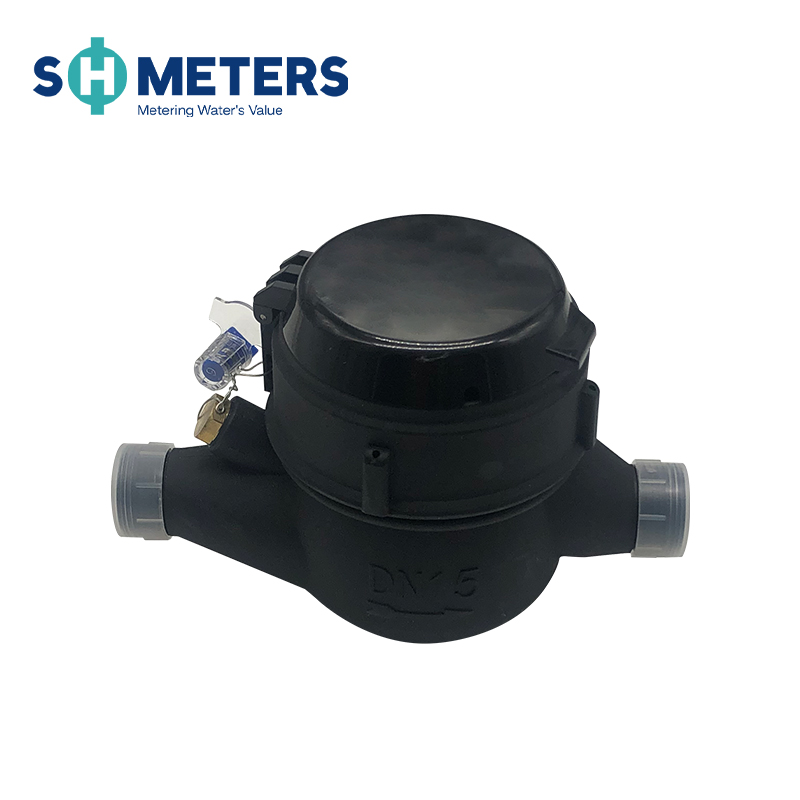

S.H.Meters Mechanical Multi jet Water Meter Plastic Body
HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
S.H.Meters Mechanical Multi jet Water Meter Plastic Body
HEBEI SHANGHONG METERS TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Plastic
- Size: DN15-50
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Plastic
- Size: DN15-50
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Plastic |
|---|---|
| Size | DN15-50 |
Product details
| Materials | Plastic |
|---|---|
| Size | DN15-50 |
From the supplier
MULTI-JET TYPE
Dry-dial Plastic Body Water Meters
Application
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Features
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.

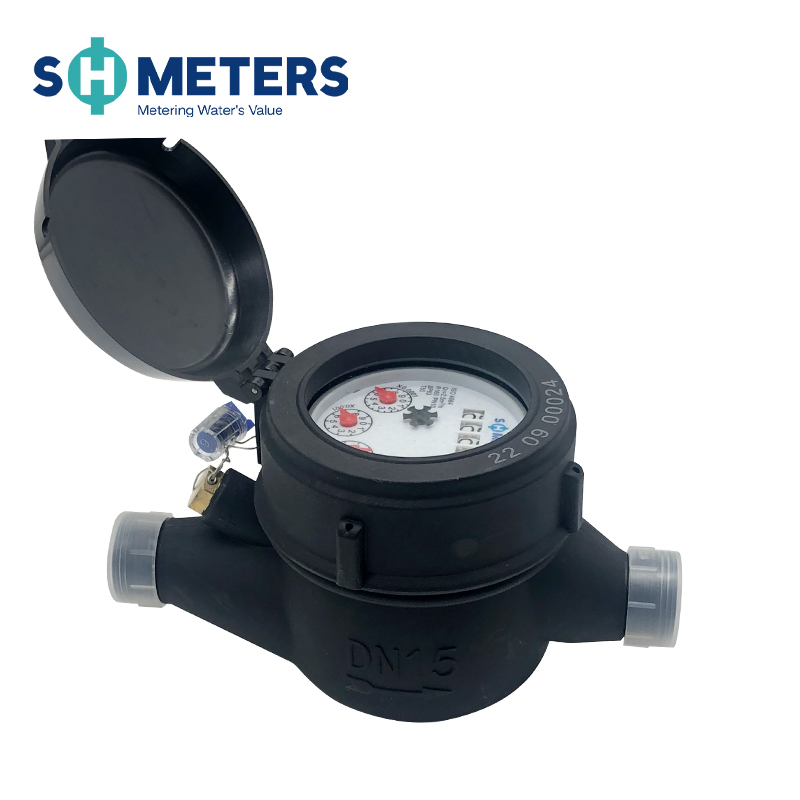

·Sealed dry register ensures long time clear reading.
·External regulating device.

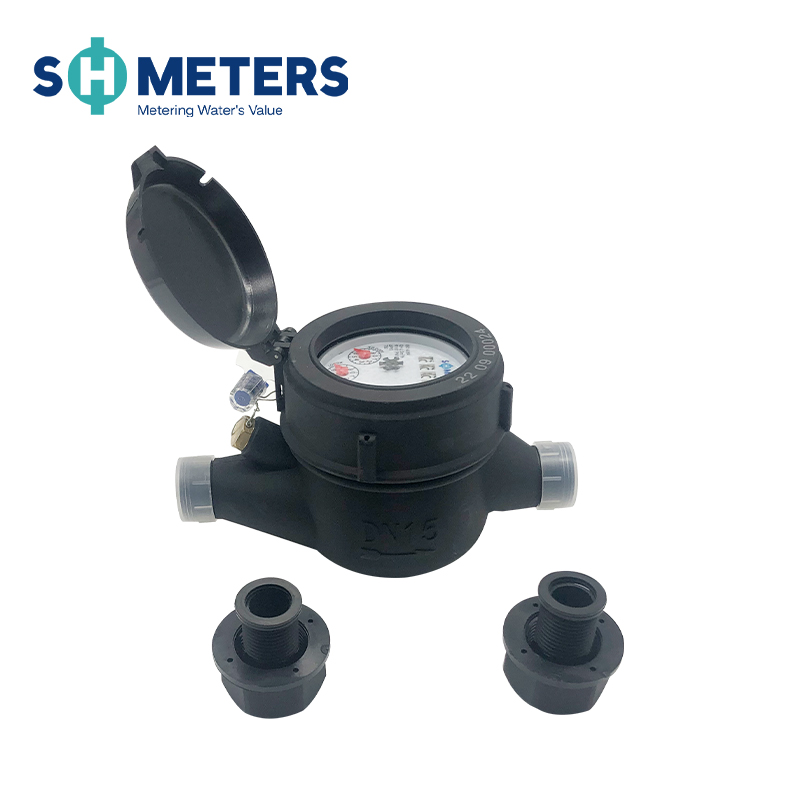

Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=80 ; 100; 125; 160;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Plastic
·Plastic Working pressure: PN10(10bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
DN(mm) 15 20 25 32 40 50 50 Size(inch) 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2" Length(L) 165/190 190 260 260 300 300 280 Width(W) 98 98 103.5 103.5 125 125 160 Height(H) 116 117 124 124 162 162 187.5 Connecting Thread D G3/4B G1B G11/4B G11/2B G2B G21/2B Flange end Weight(kgs) 1.65 1.79 1.85 2.68 5.25 7.25Technical Data
DN(mm) 15 20 25 32 40 50 Size(inch) 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Q4(l/h) 3125 5000 7875 12500 20000 31250 Q3(l/h) 2500 4000 6300 10000 16000 25000 R=80 Q2(l/h) 50 80 126 200 320 400 Q1(l/h) 31.25 50 78.75 125 200 250 R=100 Q2(l/h) 40 64 100.8 160 256 400 Q1(l/h) 25 40 63 100 160 250 R=125 Q2(l/h) 32 51.2 80.64 128 204.8 200 Q1(l/h) 20 32 50.5 80 128 R=160 Q2(l/h) 22.5 40 63 100 160 400 Q1(l/h) 15.62 25 39.37 62.5 100 250 Max.Reading(m³) 99,999 99,999 99,999 99,999 99,999 99,999 Min.Reading(Liter) 0.05 0.05 0.05 0.05 0.05 0.05 Max.Pressure(Bar) 16 16 16 16 16 16 Pressure Loss 63 Max.Temperature T=50/90 Pulse Output Option Vmax=24V Imax=100mA Pmax=2WWarranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
From the supplier
MULTI-JET TYPE
Dry-dial Plastic Body Water Meters
Application
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Features
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=80 ; 100; 125; 160;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Plastic
·Plastic Working pressure: PN10(10bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
DN(mm) 15 20 25 32 40 50 50 Size(inch) 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2" Length(L) 165/190 190 260 260 300 300 280 Width(W) 98 98 103.5 103.5 125 125 160 Height(H) 116 117 124 124 162 162 187.5 Connecting Thread D G3/4B G1B G11/4B G11/2B G2B G21/2B Flange end Weight(kgs) 1.65 1.79 1.85 2.68 5.25 7.25Technical Data
DN(mm) 15 20 25 32 40 50 Size(inch) 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Q4(l/h) 3125 5000 7875 12500 20000 31250 Q3(l/h) 2500 4000 6300 10000 16000 25000 R=80 Q2(l/h) 50 80 126 200 320 400 Q1(l/h) 31.25 50 78.75 125 200 250 R=100 Q2(l/h) 40 64 100.8 160 256 400 Q1(l/h) 25 40 63 100 160 250 R=125 Q2(l/h) 32 51.2 80.64 128 204.8 200 Q1(l/h) 20 32 50.5 80 128 R=160 Q2(l/h) 22.5 40 63 100 160 400 Q1(l/h) 15.62 25 39.37 62.5 100 250 Max.Reading(m³) 99,999 99,999 99,999 99,999 99,999 99,999 Min.Reading(Liter) 0.05 0.05 0.05 0.05 0.05 0.05 Max.Pressure(Bar) 16 16 16 16 16 16 Pressure Loss 63 Max.Temperature T=50/90 Pulse Output Option Vmax=24V Imax=100mA Pmax=2WWarranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
