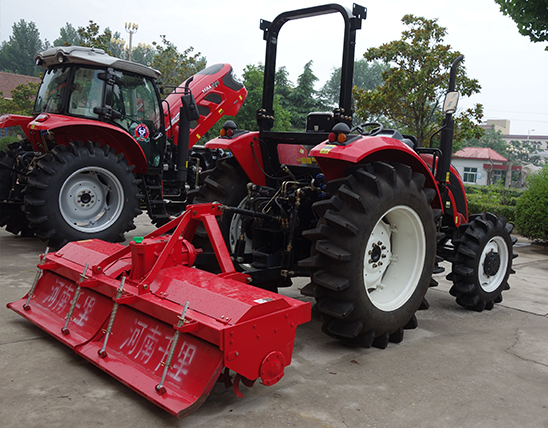

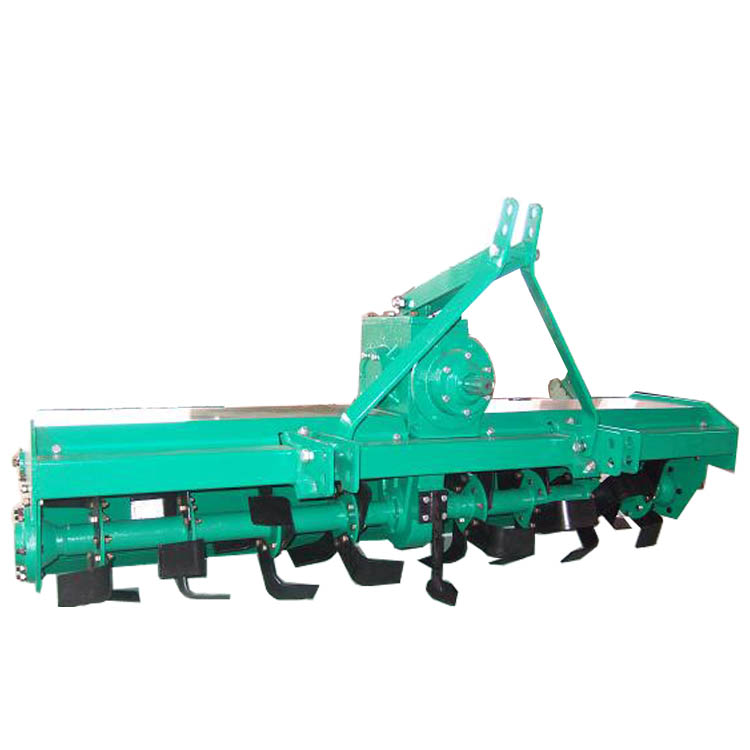

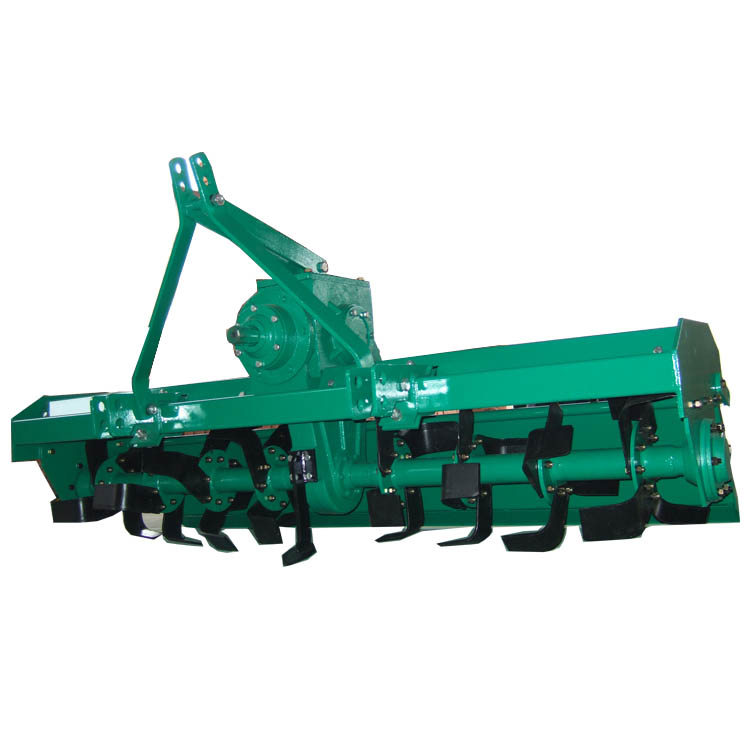

Rotary tiller distribution:

Rotary tiller is soil-working equipment,which was mounted with the tractor of 12-160hp.This machine adopts wide blades to work and clear,it can stubble cleaning and rotary tillages simultaneously.

The quality of the rotary tiller is reliable and the performance is excellent.so it can be used on both dry and paddy field and it can save time,labour and money,ect.

Product parameters:

Type

1GQN-100

1GQN-115

1GQN-120

1GQN-125

1GQN-140

1GQN-150

1GQN-160

1GQN-180

Working width (mm)

1000

1150

1200

1250

1400

1500

1600

1800

Working depth (mm)

Dry land

8-14

8-14

8-14

8-14

12-18

12-18

12-18

12-18

Water land

10-16

10-16

10-16

10-16

14-20

14-20

14-20

14-20

No. of blades

22

22

26

26

30

34

38

50

Weight (kg)

185

190

195

200

205

230

255

320

Linkage

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Matched power (hp)

12-15

15-18

15-18

18-20

20-25

25-30

30-40

50-55

Overal dimensions (mm)

850*1050*950

900*1310*1000

900*1350*1000

900*1450*1000

900*1600*1000

900*1740*1000

900*1880*1000

1020*2056*1152

Type

1GQN-200

1GQN-220

1GQN-250

1GQN-300

Working width (mm)

2000

2200

2500

3000

Working depth (mm)

Dry land

12-16

12-16

12-16

12-16

Water land

14-18

14-18

14-18

14-18

No. of blades

54

58

62

66

Weight (kg)

430

460

480

540

Linkage

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Standard three-point mounted

Matched power (hp)

55-75

60-80

75-80

80-120

Overal dimensions (mm)

1020*2396*1152

1020*2636*1152

1020*2816*1152

1050*2770*1152
