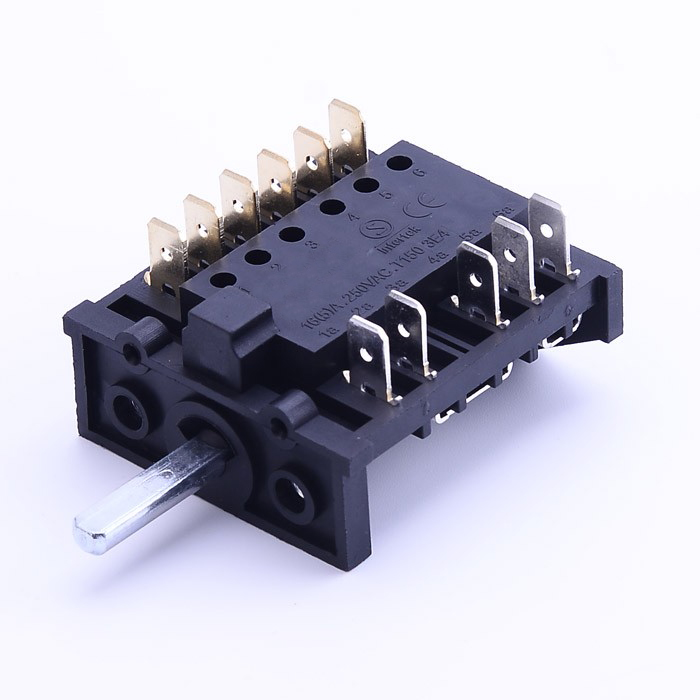

Rotary switch PM-881
XI'AN PRIME MECHATRONICS TECHNOLOGY CO., LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Rotary switch PM-881
XI'AN PRIME MECHATRONICS TECHNOLOGY CO., LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: PA66
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
About this product
- Materials: PA66
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
Product details
| Materials | PA66 |
|---|---|
| Color | black |
Product details
| Materials | PA66 |
|---|---|
| Color | black |
From the supplier
Detailed description
Product introduction：By rotating the function shaft, the contacts are closed and disconnected, and a variety of functional combinations are realized.
Product characteristics：Reliable quality、Stable performance、Flexible feel、Long life、Strong bearing capacity
Product application：Household, commercial or industrial appliances.
Product parameters：
Application：Circuit control
Shell material：PA66、PF…
Voltage and current：250V（16A）/400V（10A）
Life：1E4、3E4
Heat resistance temperature：150℃
Contact material：AgNi10
Temperature range：-25℃~+150℃
Insulation resistance：DC250V，＞100MΩ
Contact resistance：≤50mΩ
Voltage resistance：AC2500V，1min
Accept all kinds of special function customization
Terminal：6.3*0.8…
RoHS、REACH
SEMKO、CE、ISO9001
Appearance drawings：
From the supplier
Detailed description
Product introduction：By rotating the function shaft, the contacts are closed and disconnected, and a variety of functional combinations are realized.
Product characteristics：Reliable quality、Stable performance、Flexible feel、Long life、Strong bearing capacity
Product application：Household, commercial or industrial appliances.
Product parameters：
Application：Circuit control
Shell material：PA66、PF…
Voltage and current：250V（16A）/400V（10A）
Life：1E4、3E4
Heat resistance temperature：150℃
Contact material：AgNi10
Temperature range：-25℃~+150℃
Insulation resistance：DC250V，＞100MΩ
Contact resistance：≤50mΩ
Voltage resistance：AC2500V，1min
Accept all kinds of special function customization
Terminal：6.3*0.8…
RoHS、REACH
SEMKO、CE、ISO9001
Appearance drawings：
