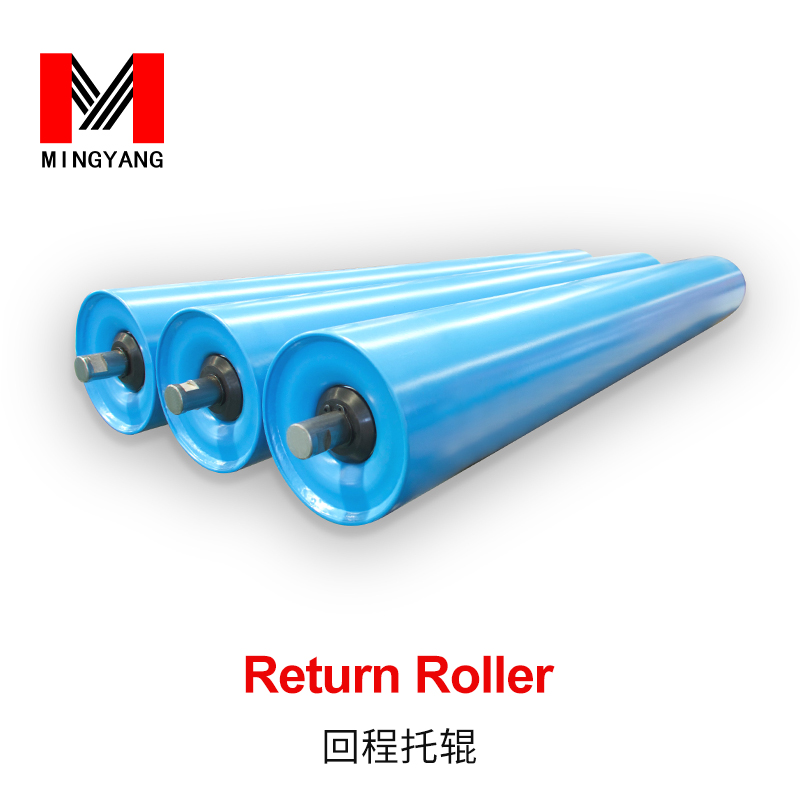

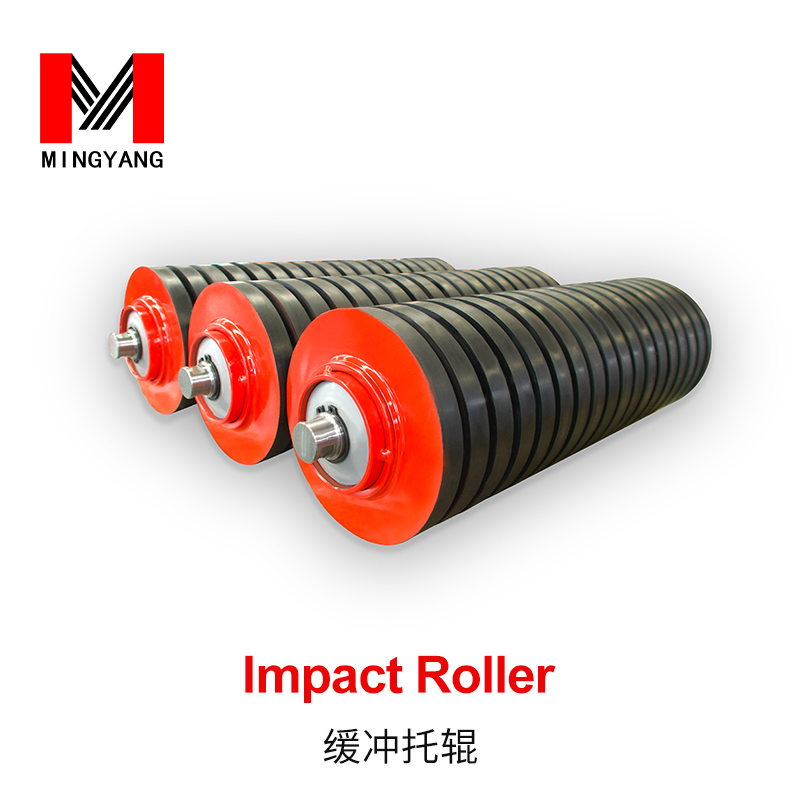

Roller is an important part of the belt conveyor. There are many types of rollers such as carrier roller, impact roller, RDRT roller, return roller and so on. The function of roller is to support the belt, reduce the running resistance of the belt and make the verticality of the belt not exceed a certain limit to ensure the smooth running of the belt.

Roller accounts for 35% of the total cost of a belt conveyor system and generates more than 70% resistance, so the quality of roller is particularly important.

MYC roller adopts self-developed double labyrinth seal structure, which is better than traditional seal structure in waterproof and dustproof effect. Roller pipe adopts high-frequency welding pipe special for rollers, shaft adopts cold drawn bright shaft special for rollers, and bearing housing is made by stamping, drawing and welding with mixed gas. After the roller is welded, both ends are chamfered and polished, and then polish and remove the rust of the pipe surface. The roller surface adopts outdoor powder coating, heating and curing. The roller adopts a double-head pressing machine to press the bearing and the seal in three times, so as not to damage the seal and protect the bearing. The shaft end is subjected to the final anti-rust treatment, and finally put into the export-specific crates.

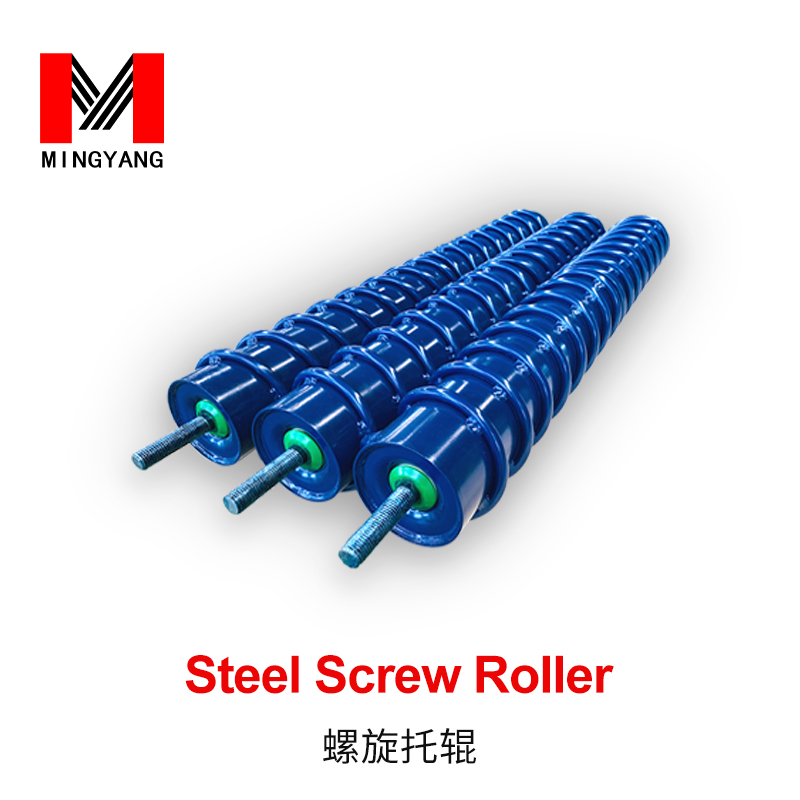

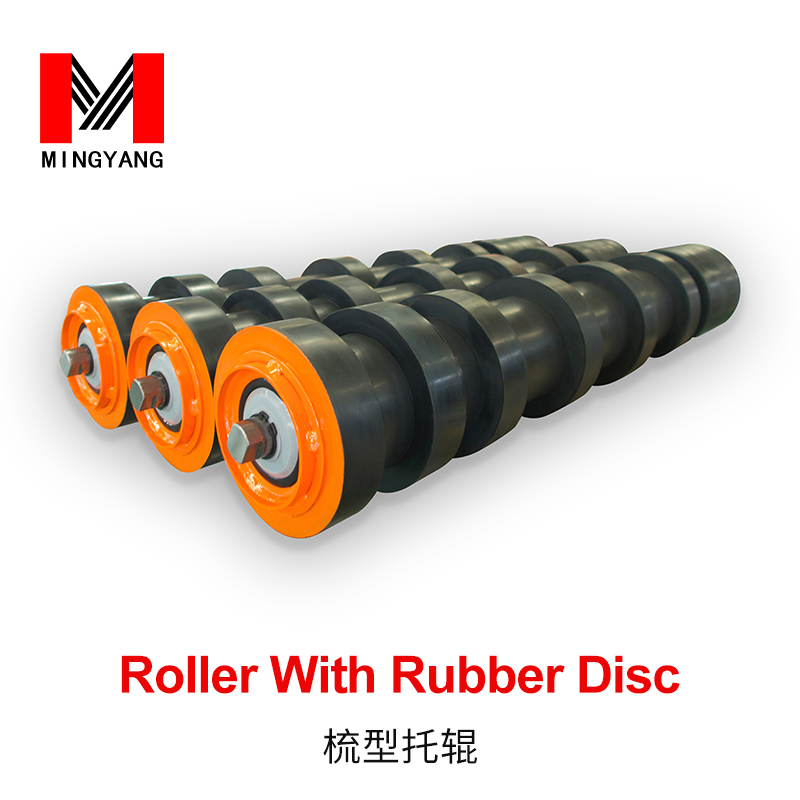

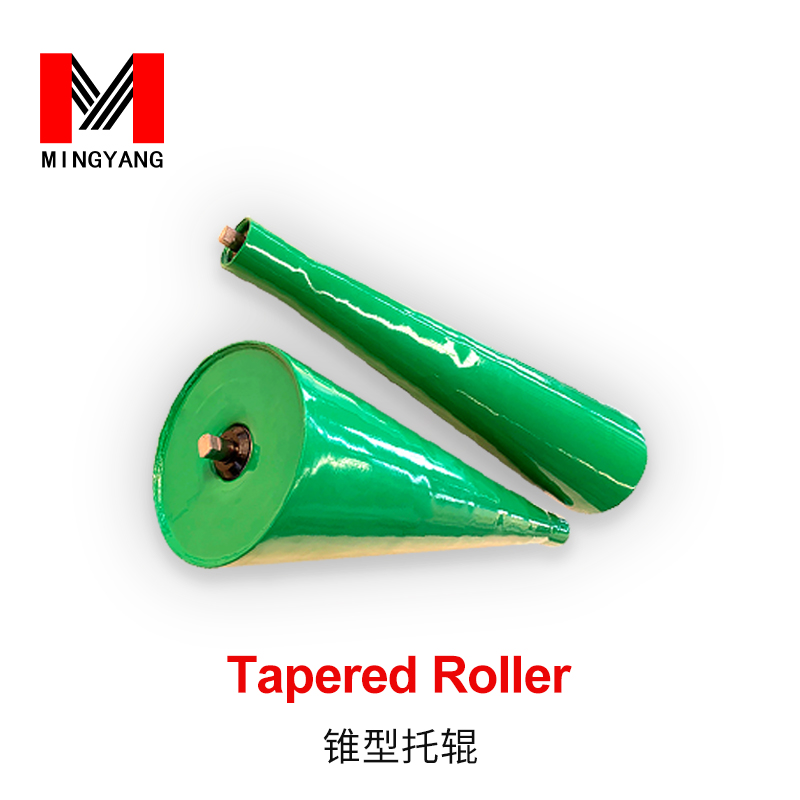

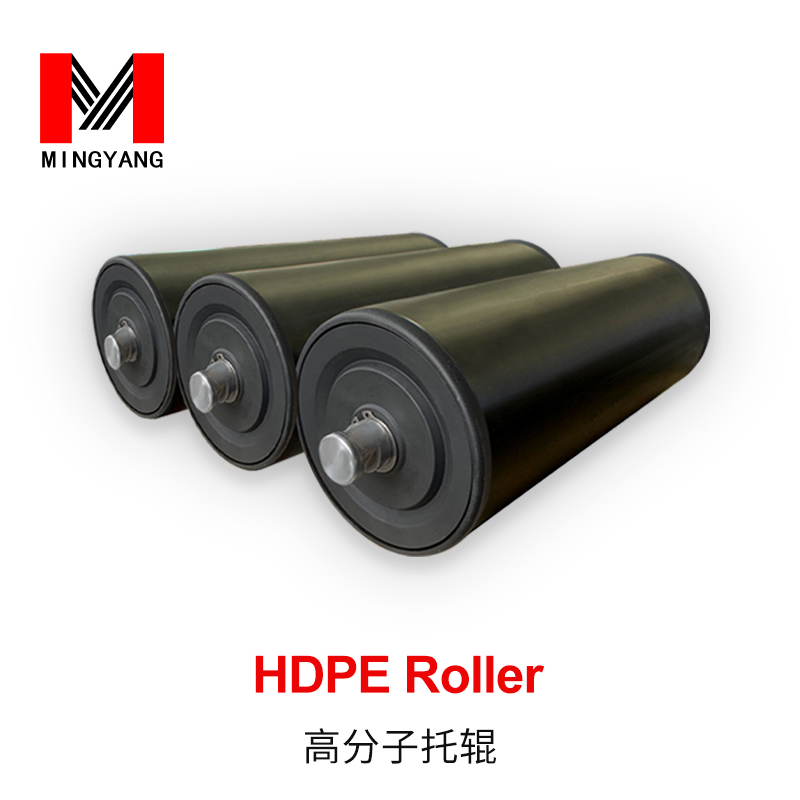

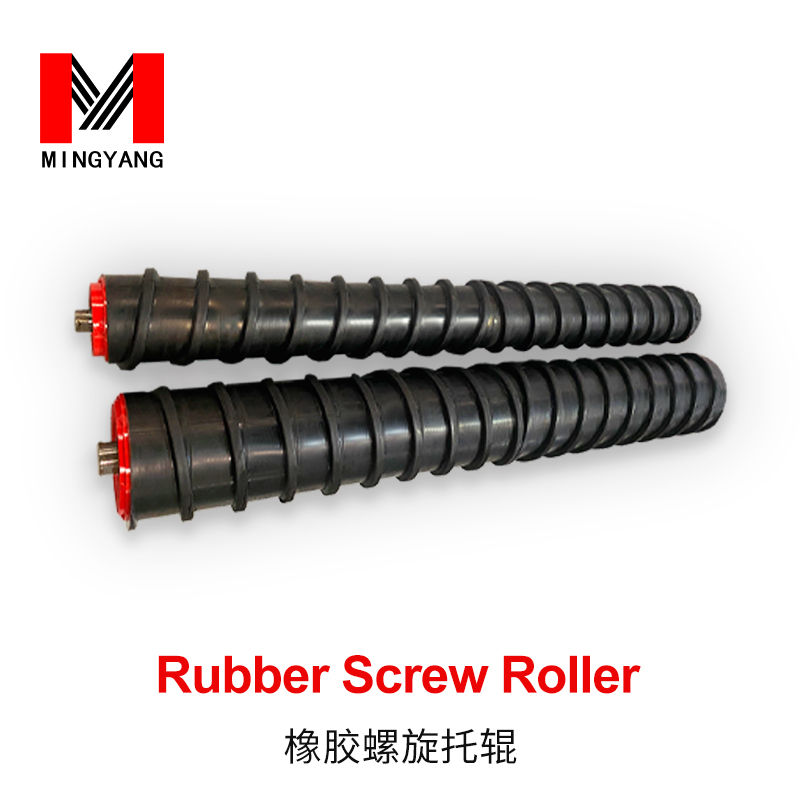

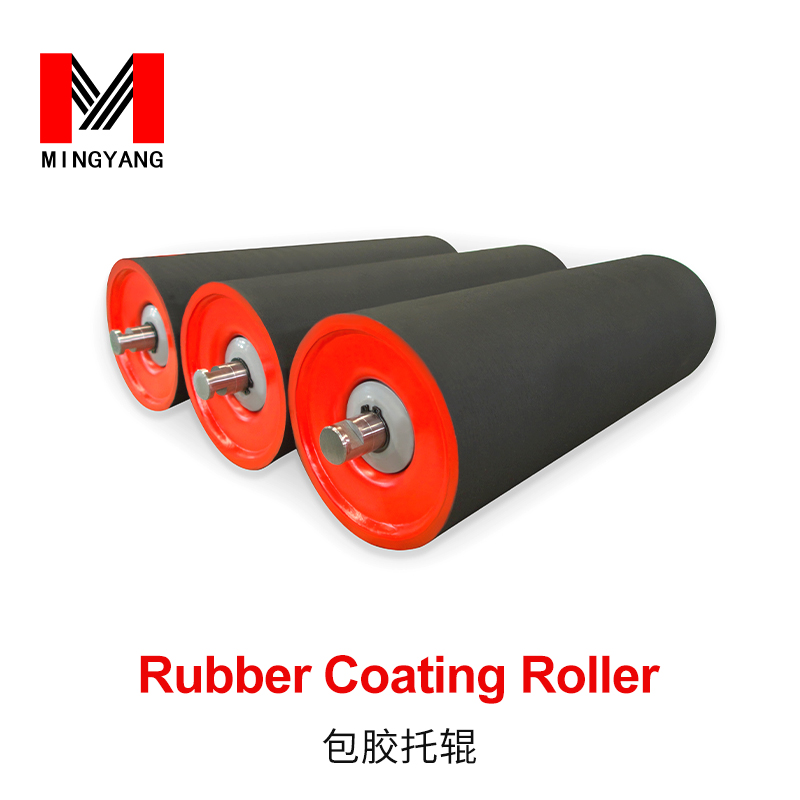

The MYC series of rollers have a wide range of products, including steel rollers, impact rollers, RDRT rollers, rubber-coated rollers, self-aligning rollers, oil injection rollers, galvanized rollers and other types. The size specifications can be customized according to the customer's drawings, also can be produced according to the standards of various countries. For detailed specifications, you can ask us for a product manual.

At present, MYC has the most advanced fully automatic production line for rollers in the industry. The entire production process uses robots instead of manual processing and production. Currently we have 2 automatic production lines and 2 semi-automatic production lines, which can achieve a daily output of 2000 rollers. For roller frames, we use a fully automatic laser cutting machine to cut the material, and use a CNC bending machine to produce the parts of the frame. Welding adopts a robot. Surface treatment is shot blasting and hot-galvanizing in accordance with international standards.
