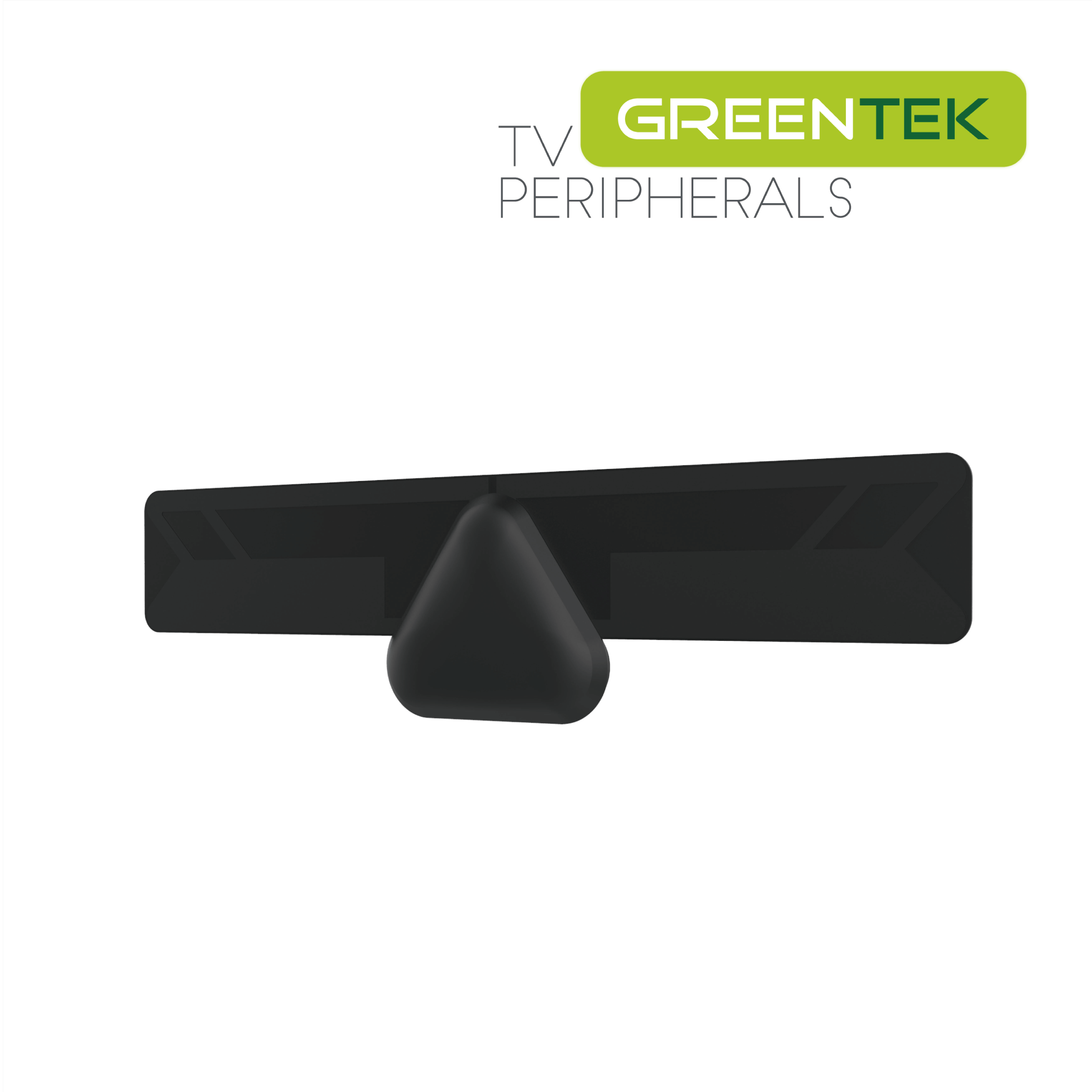

RF-TF02 Razor Flat Antenna
Zhongyuan Innovation CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
RF-TF02 Razor Flat Antenna
Zhongyuan Innovation CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Plastic
- Size: 215 × 55
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Plastic
- Size: 215 × 55
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Plastic |
|---|---|
| Size | 215 × 55 |
| Color | Black |
Product details
| Materials | Plastic |
|---|---|
| Size | 215 × 55 |
| Color | Black |
From the supplier
Highlights
- · High-tech material construction, sophisticated circuitry is all built-in
- · 0.5mm thin receiver body, much more stable in performance
Performance
- · Receives Full HD and digital TV signals
- · Connects directly to TV for standard reception
- · Removable amplifier for enhancing weak signals
Powering
· To be powered by digital receiver
- · Or by included AC/DC adaptor

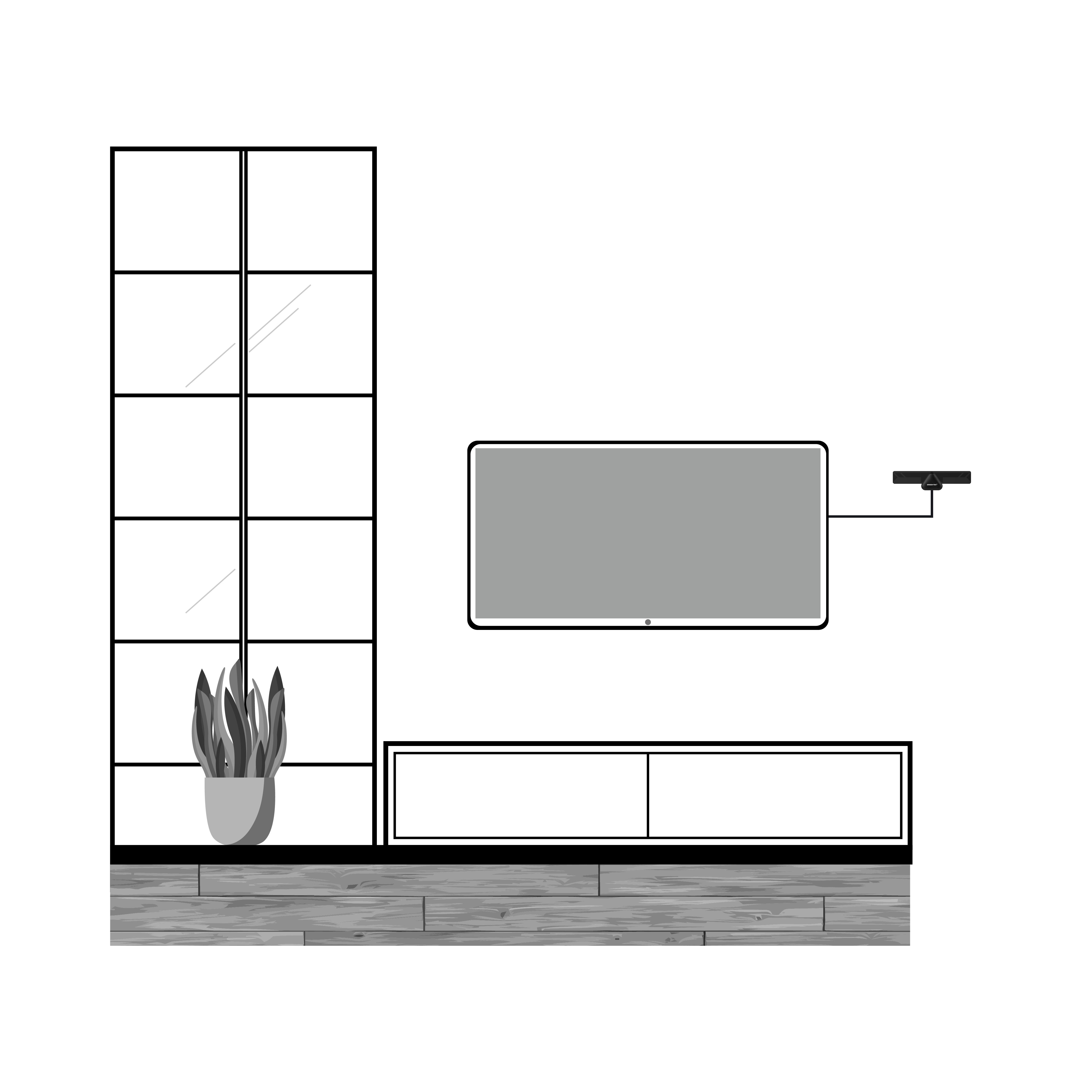

Positioning
- · Stands with the included base
- · Sticks on wall, window or kitchen cabinet with velcro patches
- · 3 meters coaxial cable with cable clip allows you to place the antenna where the signal is stronger
TECHNICAL SPECIFICATIONS
Frequency UHF:470-869MHz
Output level 105dBuV
Noise Figure ＜3.5dB
VSWR UHF: ＜2.3
Impedance 75Ω
Working voltage DC 6V/50mA or 100mA
From the supplier
Highlights
- · High-tech material construction, sophisticated circuitry is all built-in
- · 0.5mm thin receiver body, much more stable in performance
Performance
- · Receives Full HD and digital TV signals
- · Connects directly to TV for standard reception
- · Removable amplifier for enhancing weak signals
Powering
· To be powered by digital receiver
- · Or by included AC/DC adaptor
Positioning
- · Stands with the included base
- · Sticks on wall, window or kitchen cabinet with velcro patches
- · 3 meters coaxial cable with cable clip allows you to place the antenna where the signal is stronger
TECHNICAL SPECIFICATIONS
Frequency UHF:470-869MHz
Output level 105dBuV
Noise Figure ＜3.5dB
VSWR UHF: ＜2.3
Impedance 75Ω
Working voltage DC 6V/50mA or 100mA
