Reversible Disc Plough
SHANDONG YUNTAI MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Reversible Disc Plough
SHANDONG YUNTAI MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Q235 STEEL
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Materials: Q235 STEEL
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Materials | Q235 STEEL |
|---|---|
| Color | red |
Product details
| Materials | Q235 STEEL |
|---|---|
| Color | red |
From the supplier

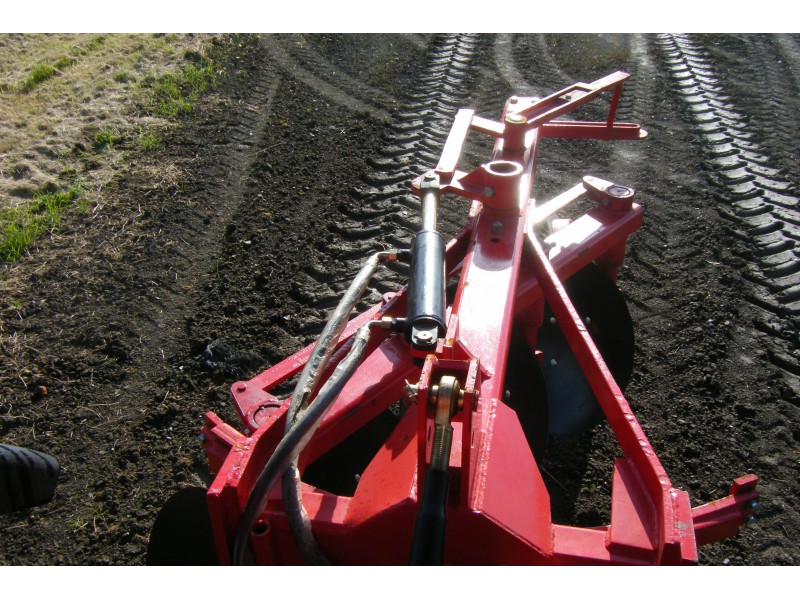

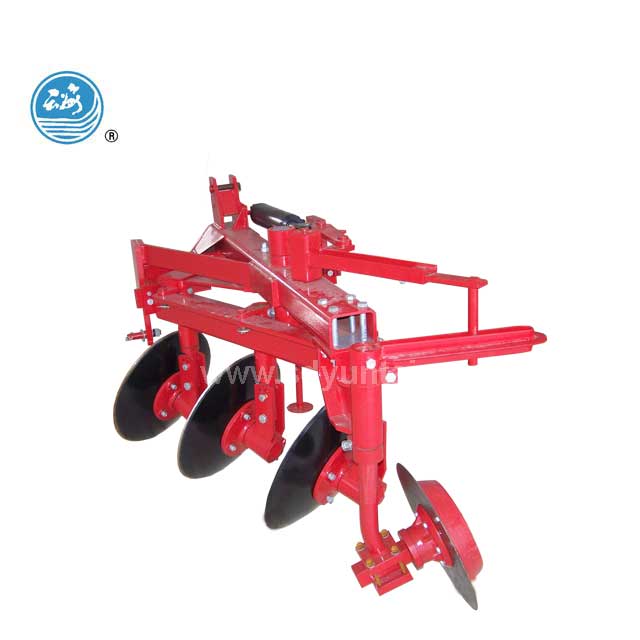

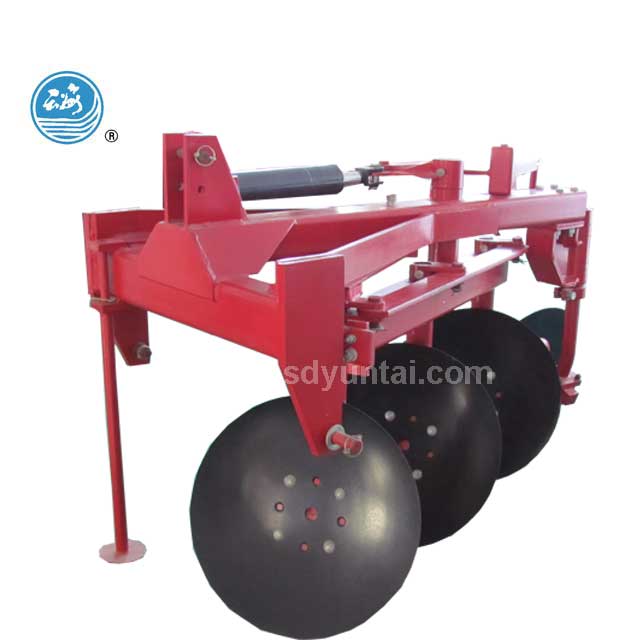

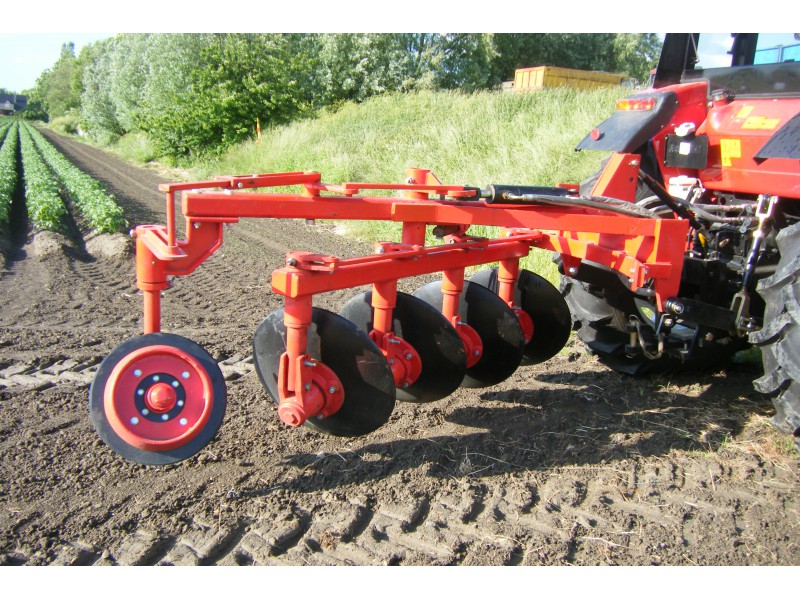

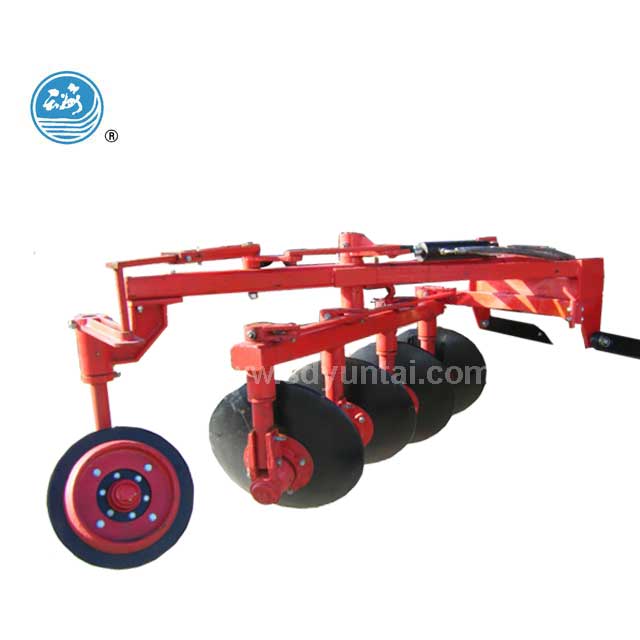

This series reversible disc plow is constructed to be horizontal swing. It’s suitable for plowing up the dry cultivated land. The discs are rotating forward during work, so the friction from soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs, it’s easy to plough into the soil and the land surface is smooth after plowing. The productivity is high and the oil consumption is low. The plow has noticeable advantages for working on the terraced field and small block field.
Model
Number of discs
Size of disc (mm)
Working width(mm)
Weight(kg)
Working depth(mm)
Matched tractor (hp)
1LYS-325
3
660-710
750-900
626-650
250-300
75-90
1LYS-425
4
1000-1200
758-790
90-100
1LYS-525
5
1250-1500
1050-1100
100-120
1LYS-625
6
1500-1800
1300-1350
120-130
1LYS-725
7
1750-2100
1450-1520
150-180
1LYS-825
8
2000-2400
1600-1680
180-210
