Material Mild steel,stainless steel,carbon steelGrade Q235B,Q345BStandard ISO,GB,JIS,ASTM,ANSI,AISI,DIN,BS Manufacturing processes

 Material inspection, material cutting, deburring, bending, assembling, welding,

 polishing/cleaning, shot blasting, machining, painting, packing, delivery.

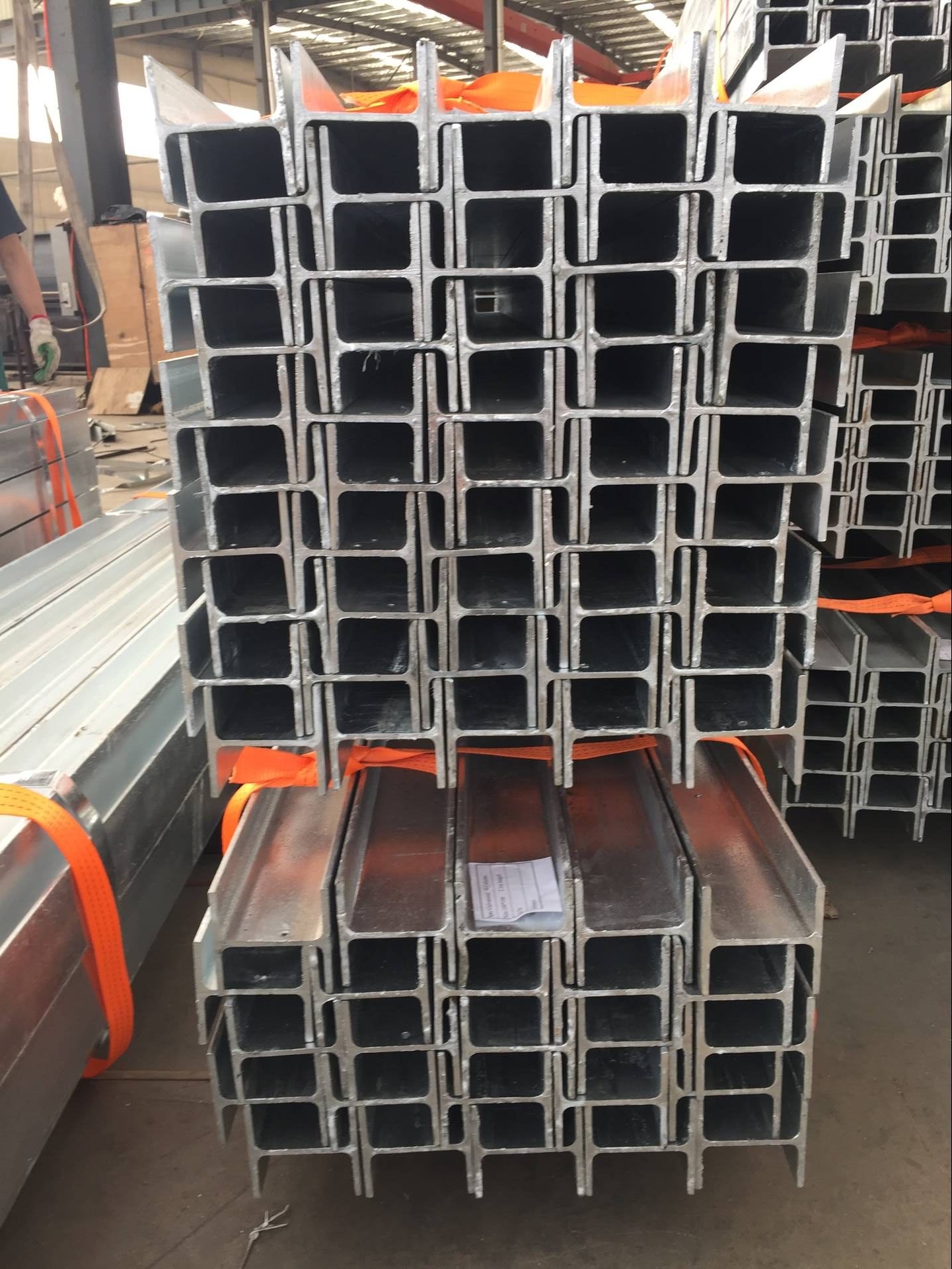

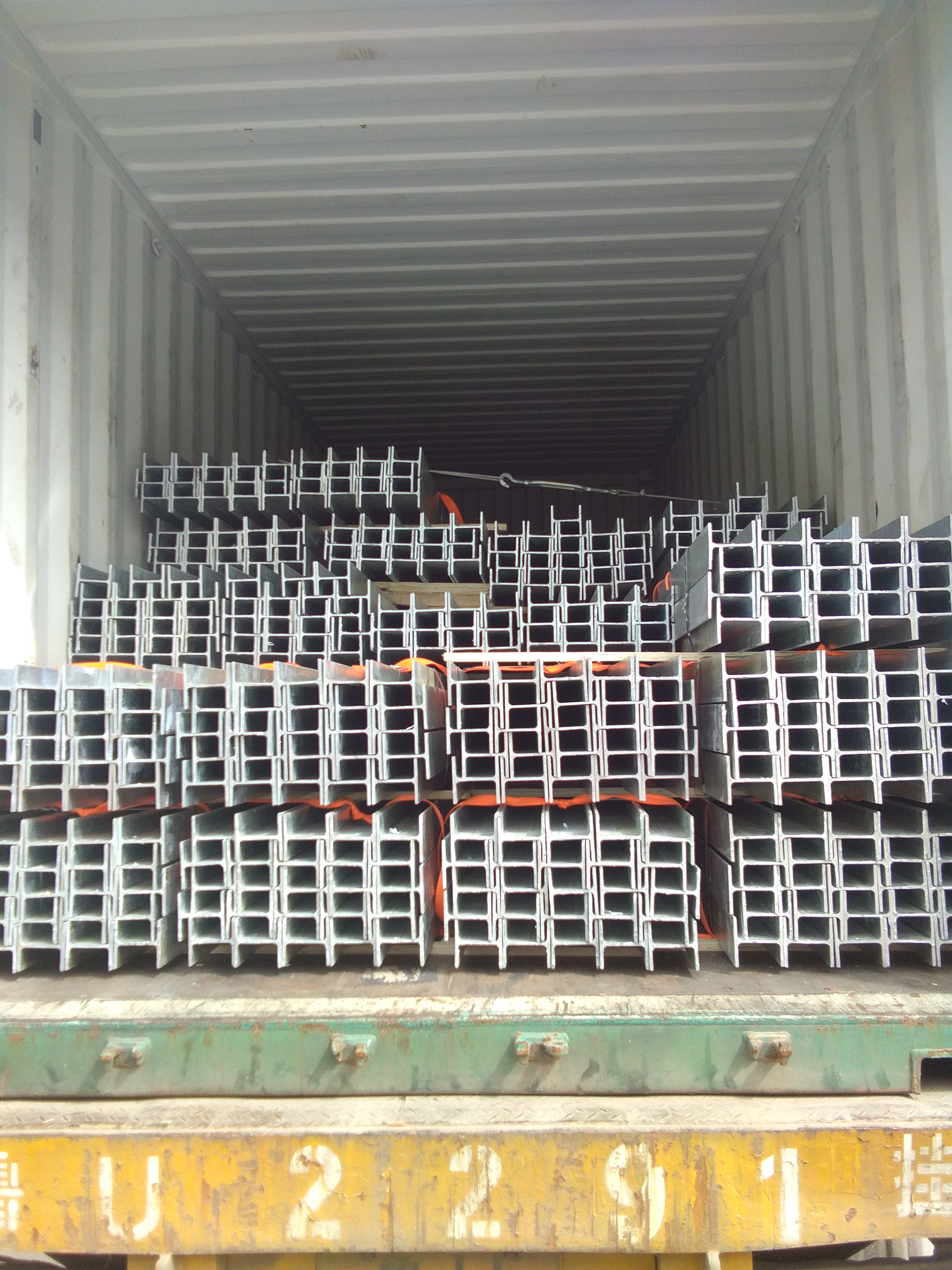

Heat treatment Normalization,annealing,quenching and temperingPacking Bundles using pre galvanized steel strip,Iron pallets/racks, or as per customer's requirements.Inspection 100% dimension inspection and visual inspection, Zinc layer inspectionNon-destructive testing  PT (penetrating testing), MT (magnetic particle testing), UT (ultrasonic testing), RT (radio-      graphic testing).Software Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP , Tekla , etc.Certificates SO9001:2008,BV,CCS,SGSApplication

Widely used in various building structures, bridges, vehicles, brackets, machinery, etc., for example, the industrial structure of the steel bearing bracket,steel piles and underground, engineering supporting structure, petro chemical and power and other industrial equipment structure, shipbuilding, machinery manufacturing frame structure,train, car,tractor beam bracket, port conveyors,high speed shutter stents,Retaining wall.



 Size(mm)

kg/mSize(mm)Kg/mSize(mm)Kg/m100*100*6*816.52100*100*6*1019.47100*100*8*1020.72120*120*6*819.97100*75*4.5*610.17150*100*4.5*614.29150*100*6*818.87150*150*4.5*619150*150*6*825.15200*100*3*39.28200*100*4.5*616.06200*100*6*821.23200*100*8*1027200*150*4.5*620.77200*150*6*827.51200*150*8*1034.85200*150*8*1239.31250*125*6*826.72250*125*8*1034.07250*150*8*1242.25250*200*6*836.14250*200*6*1042.23250*200*8*1045.84250*200*8*1251.87300*150*6*832.22300*150*6*1036.74300*150*8*1041.13300*150*8*1245.59300*200*6*838.5300*200*6*1044.59300*200*8*1048.98300*200*8*1255.01350*150*6*834.57350*150*6*1039.09350*150*8*1044.27350*150*8*1248.73350*175*6*837.71350*175*6*1043.02350*200*6*840.85350*200*6*1046.94350*200*8*1052.12350*250*8*1258.15400*150*6*836.93400*150*6*1041.45400*150*8*1047.41400*150*8*1251.87400*200*6*843.21400*200*8*1055.26400*200*8*1261.29400*200*6*849.49400*250*8*1063.11400*250*6*1057.15400*250*8*1270.71450*150*6*839.28450*200*6*845.56450*250*6*1059.5450*250*10*12

80.54

Products Details:

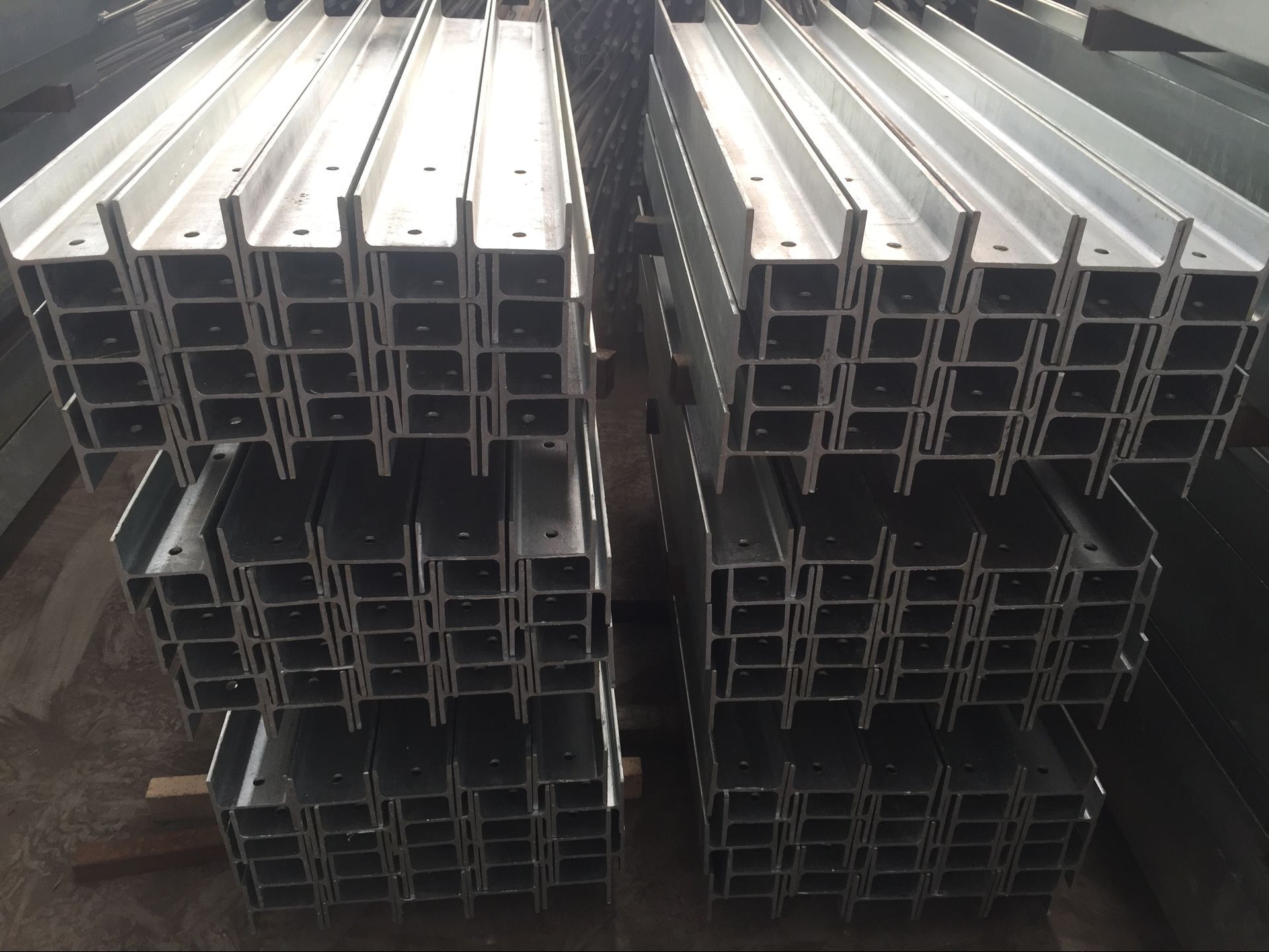

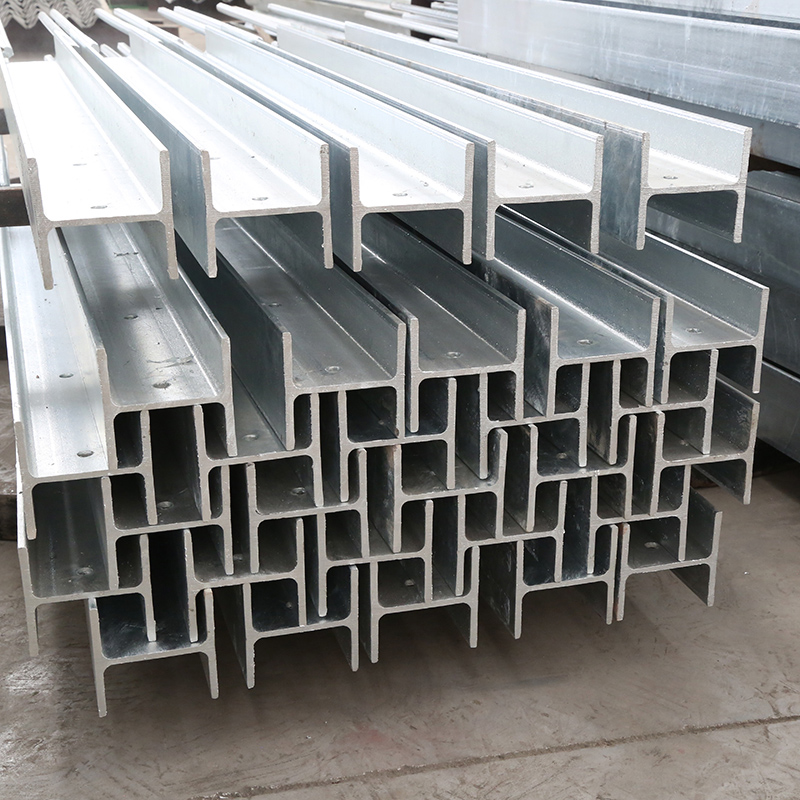

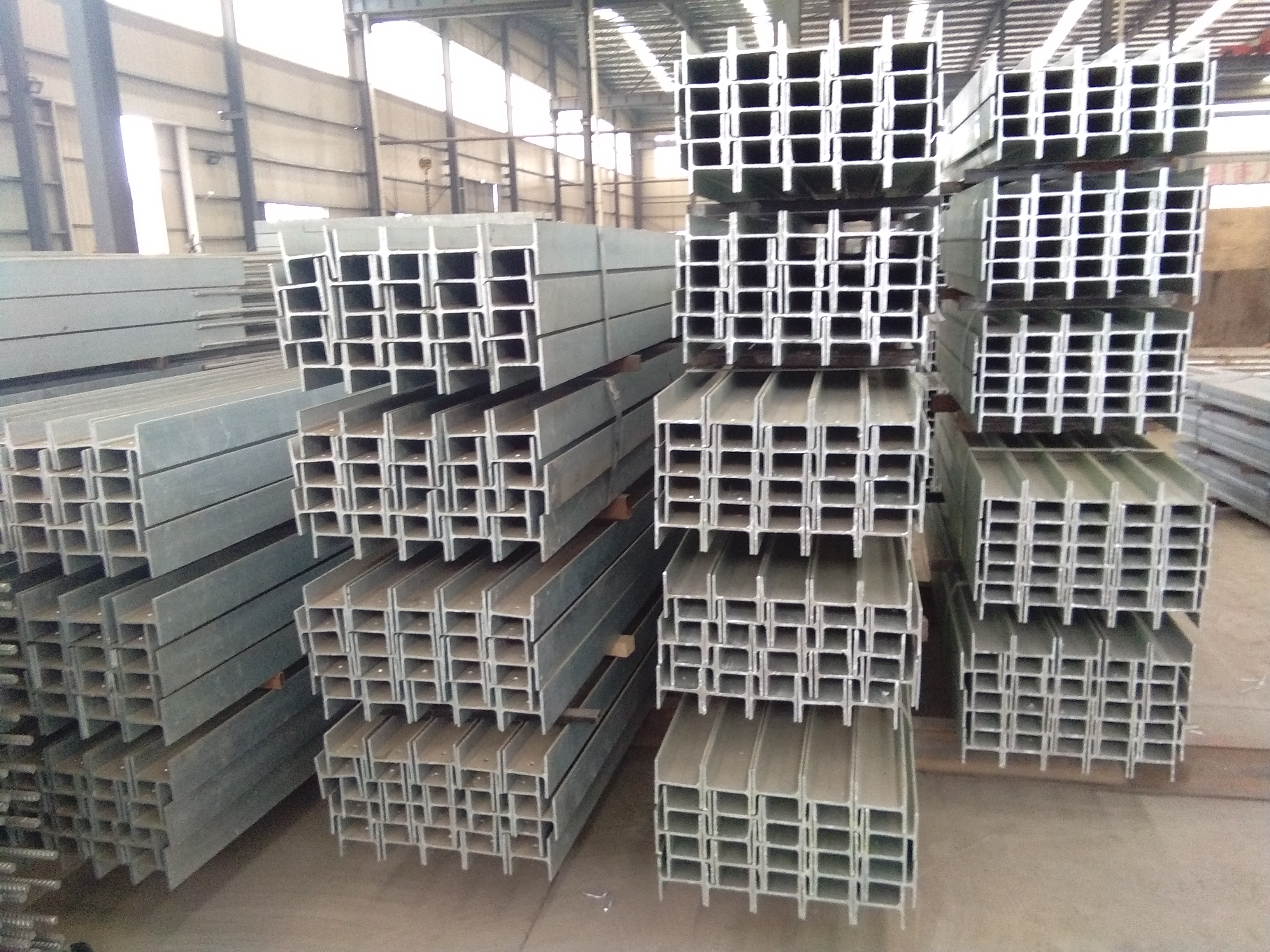

1. Shape: H post

          C channel post

          45 degree corner

          90 dergree corner

2. Surface treatment: Hot dipped galvanized last for one hundred years

3. Mean coating thickness: Average 85 micro meter

4. Size:63*63H post

         100*100 H post

         125*125 H post

         150*150 H post

         63*40 C channel post

         45 degree corner post

         90 degree corner post

5. Length:1.2M  1.5M  1.8M  2.1M  2.4M  2.7M  3M  3.3M  3.6M  4.2M  4.8M

6. The requirements of the coating

   Appearance: The appearance should be smooth, no drops of tumor, rough and zinc spine (If the zinc can cause damage), no peeling, no planting leakage, no residue solvent residue, in may affect the use of hot dip galvanized the workpiecce or the part of the corrosion resistance of tumor should not have zinc and zinc ash.
