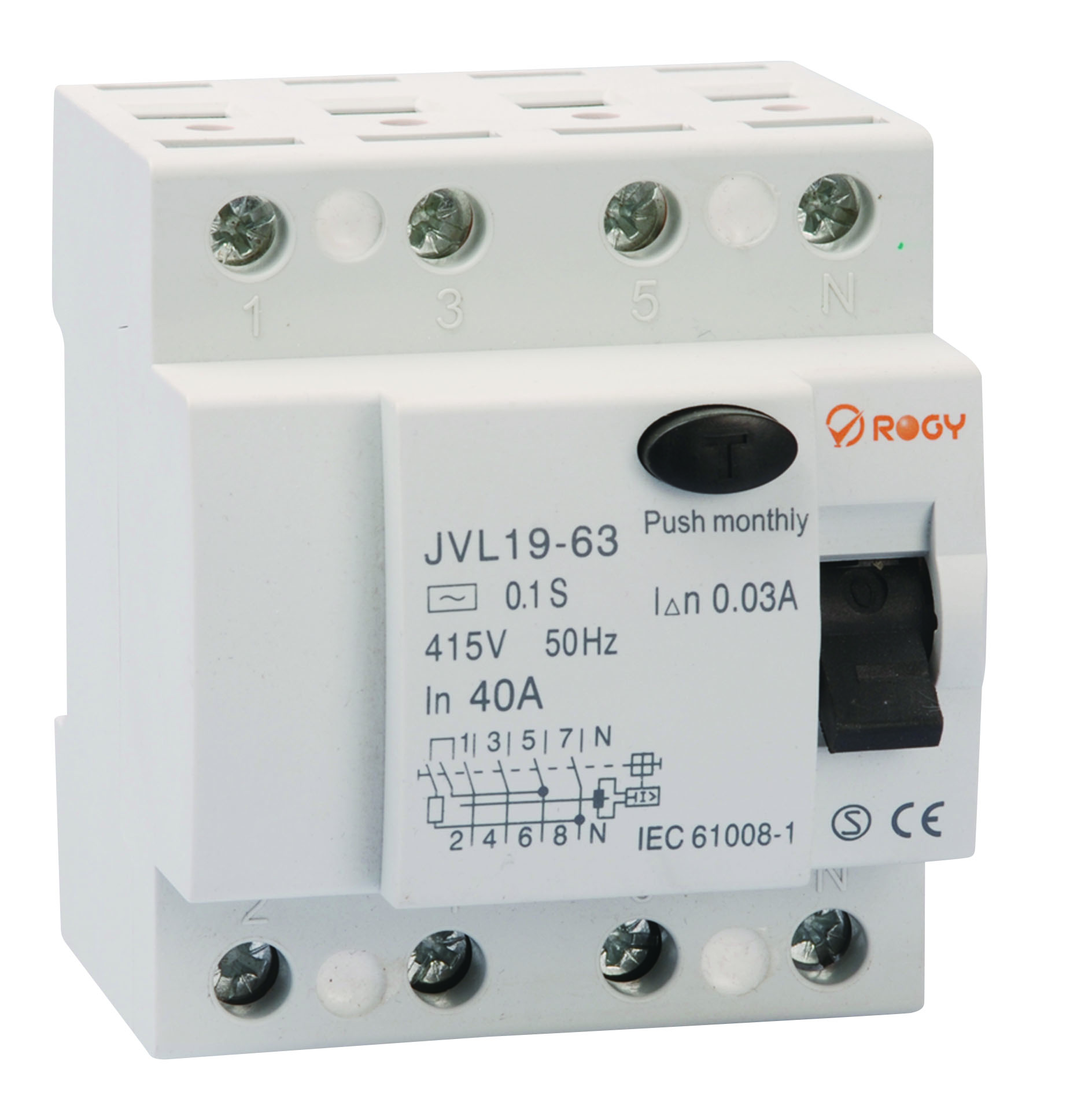

Residual Current Circuit Breaker(R
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Residual Current Circuit Breaker(R
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 86
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 86
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 86 |
|---|
From the supplier
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation.
High short-circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Data
Mode: electro-magnetic type, electronic type
Residual current characteristics: A, AC
Pole No.: 1P+N, 3P+N
Rated making and breaking capacity: 630A
Rated current(A): 16, 25, 40, 63
Rated voltage: AC 230/400V
Rated frequency: 50/60Hz
Rated residual operating current I△n(A): 0.03, 0.1, 0.3, 0.5
Rated residual non operating current I△no: 0.5I△n
Rated conditional short-circuit current Inc: 10kA
Rated conditional residual short-circuit Current I△c: 10kA
Tripping duration: instantaneous tripping≤0.1s
Residual tripping current range: 0.5I△n~I△n
Terminal Connection Height: 19mm
Electro-mechanical endurance: 4000 cycles
