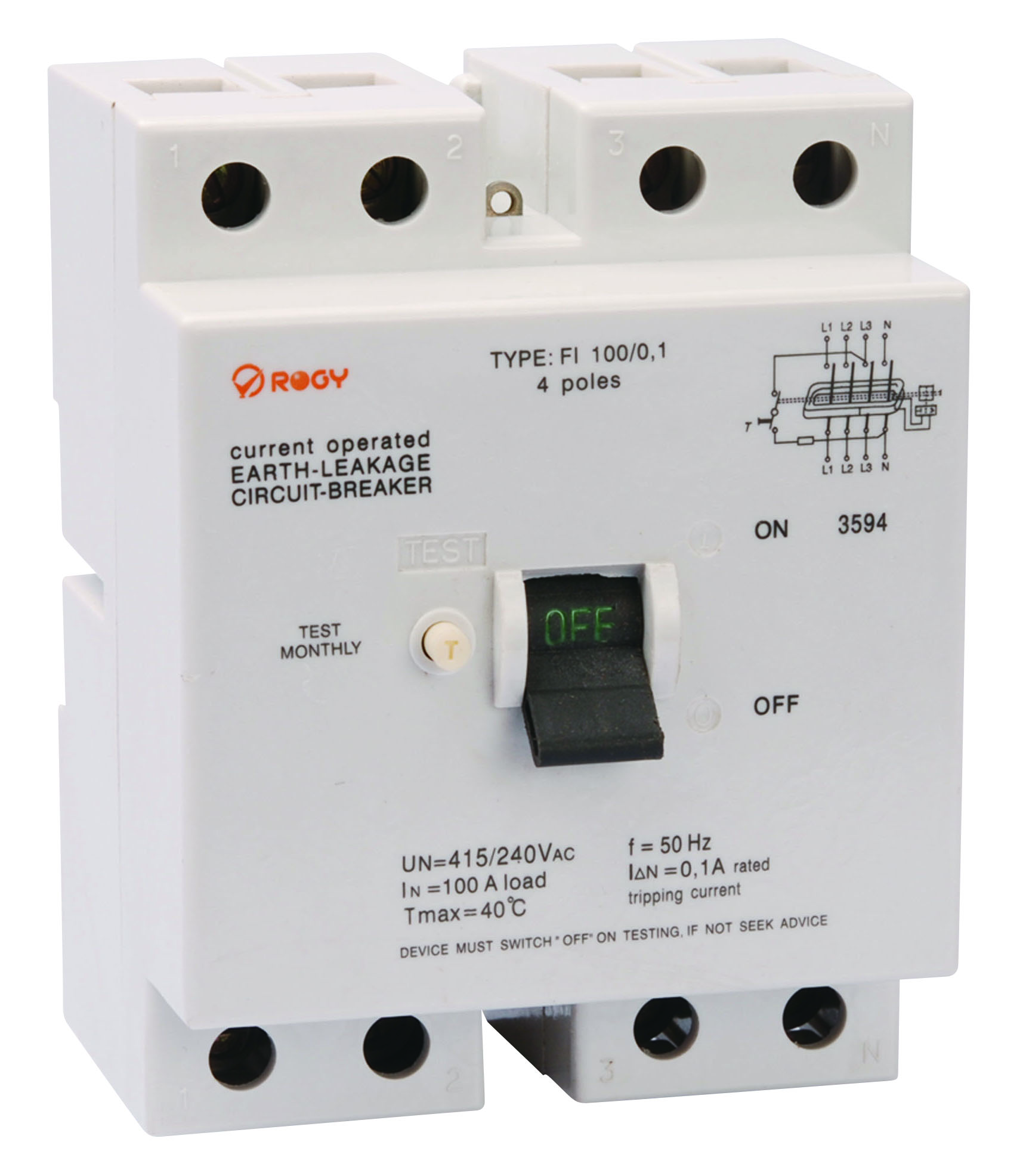

Residual Current Circuit Breaker(R
SHANGHAI YONGJI ELECTRICAL CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Residual Current Circuit Breaker(R
SHANGHAI YONGJI ELECTRICAL CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 116
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 116
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 116 |
|---|
Product details
| Size | 116 |
|---|
From the supplier
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation.
High current rating up to 100A
Applicable to terminal and pin/fork type busbar connection
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Data
Mode: electro-magnetic type
Residual current characteristics: AC
Pole No.: 4
Rated making and breaking capacity: 630A
Rated current(A): 63, 80, 100
Rated voltage: AC 230/400V
Rated frequency: 50/60Hz
Rated residual operating current I△n(A):0.1, 0.3, 0.5
Rated conditional short-circuit current Inc: 6kA
Rated conditional residual short-circuit Current I△c: 6kA
Residual tripping current range: 0.5I△n~I△n
Electro-mechanical endurance: 4000 cycles
From the supplier
Construction and Feature
Provides protection against earth fault/leakage current and function of isolation.
High current rating up to 100A
Applicable to terminal and pin/fork type busbar connection
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from external interference, voltage fluctuation.
Technical Data
Mode: electro-magnetic type
Residual current characteristics: AC
Pole No.: 4
Rated making and breaking capacity: 630A
Rated current(A): 63, 80, 100
Rated voltage: AC 230/400V
Rated frequency: 50/60Hz
Rated residual operating current I△n(A):0.1, 0.3, 0.5
Rated conditional short-circuit current Inc: 6kA
Rated conditional residual short-circuit Current I△c: 6kA
Residual tripping current range: 0.5I△n~I△n
Electro-mechanical endurance: 4000 cycles
About the supplier
Main products: Small breaker ( low-voltage apparatus),Earth Leakage Circuit Breaker,Surge protector,Switch disconnector/Circuit breaker
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2000
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Industry and Trade Company
- Founded 2000
- Canton Fair Premium Supplier
