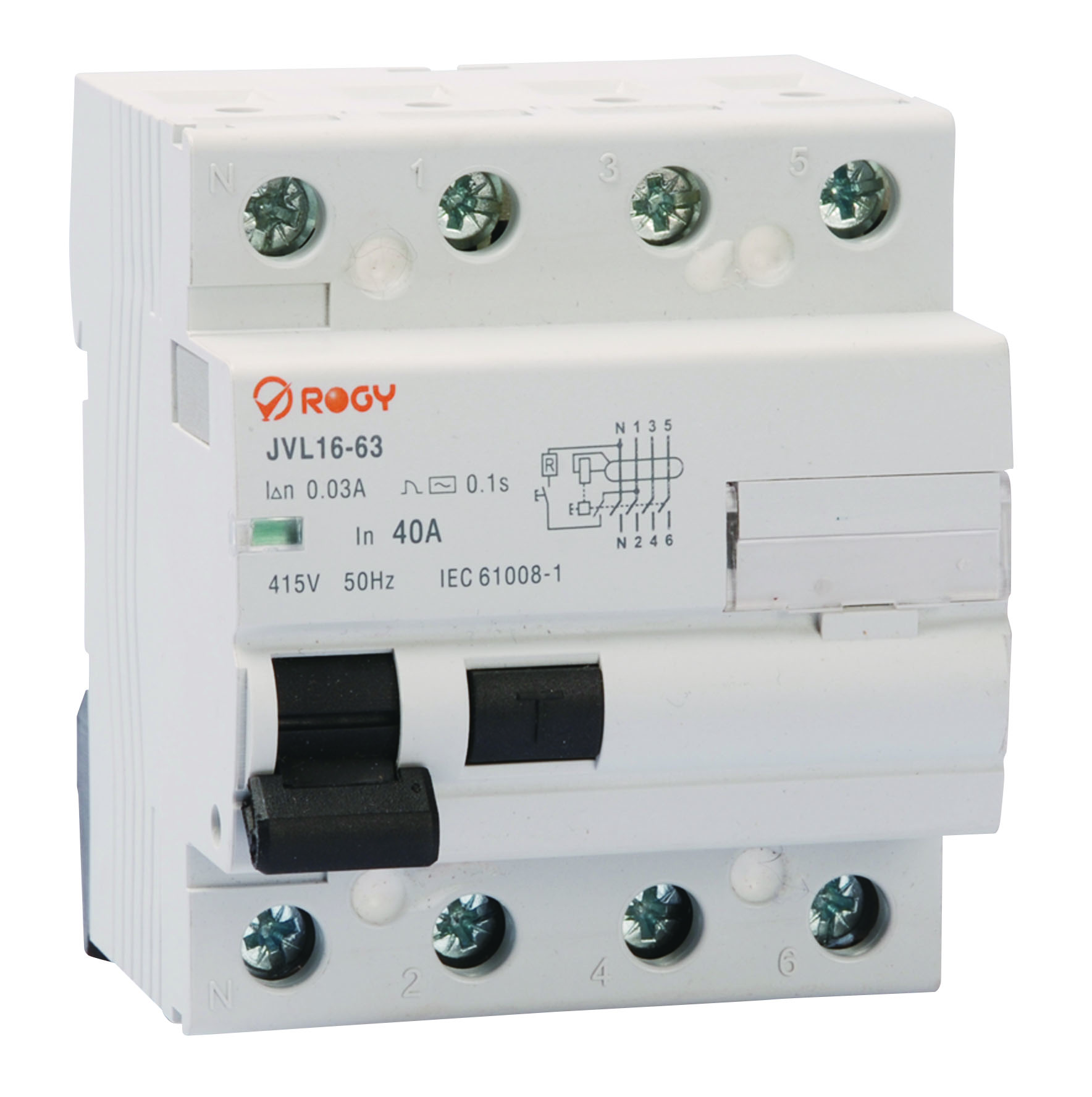

Residual Current Circuit Breaker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Residual Current Circuit Breaker
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 81
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 81 |
|---|
From the supplier
Construction and Feature
Elegant appearance, cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label
In case of overload to protected circuit, RCCB handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.
Provides protection against earth faultleakage current and function of isolation.
High short- circuit current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth faultleakage current occurs and exceeds the rated sensitivity.
Independent of power supply and line voltage, and free from extemal interference, voltage fuctuation.
Technical Data
Mode: electro-magnetic type
Residual current characteristics: A, AC,G,S
Pole No.:2, 4
Rated making and breaking capacity: 500A(In=25A,40A) or 630A(In=63A)
Rated current(A): 25, 40, 63
Rated voltage AC 230(240)/400(415)
Rated frequency: 50/60Hz
Rated residual operating current I△n (A):0.03, 0.1, 03, 0.5
Rated residual non operating current I△no: 0.5 I△n
Rated conditional short-circuit current Inc: 10kA
Rated conditional residual short-circuit Current I△c: 10kA
Residual tripping current range: 0.5I△n~I△n
Terminal Connection Height: 19mm
Electro mechanical endurance: 4000 cycles
