About this product
- Materials: Carbon steel, SUS304316 stainless steel, plastic
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Henan, China
About this product
- Materials: Carbon steel, SUS304316 stainless steel, plastic
- Color: blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Henan, China
Product details
| Materials | Carbon steel, SUS304316 stainless steel, plastic |
|---|---|
| Color | blue |
From the supplier

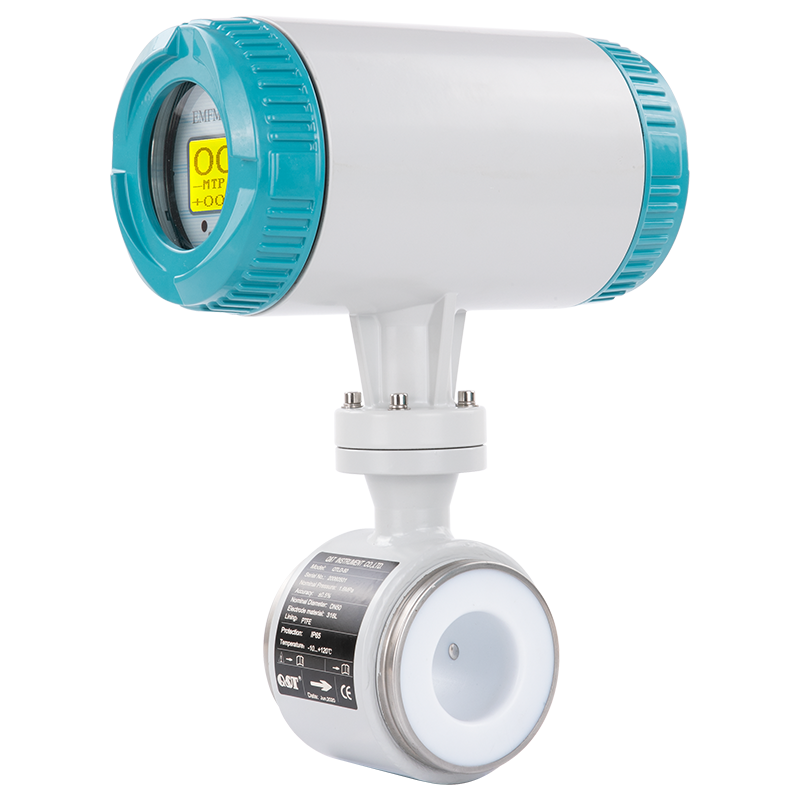

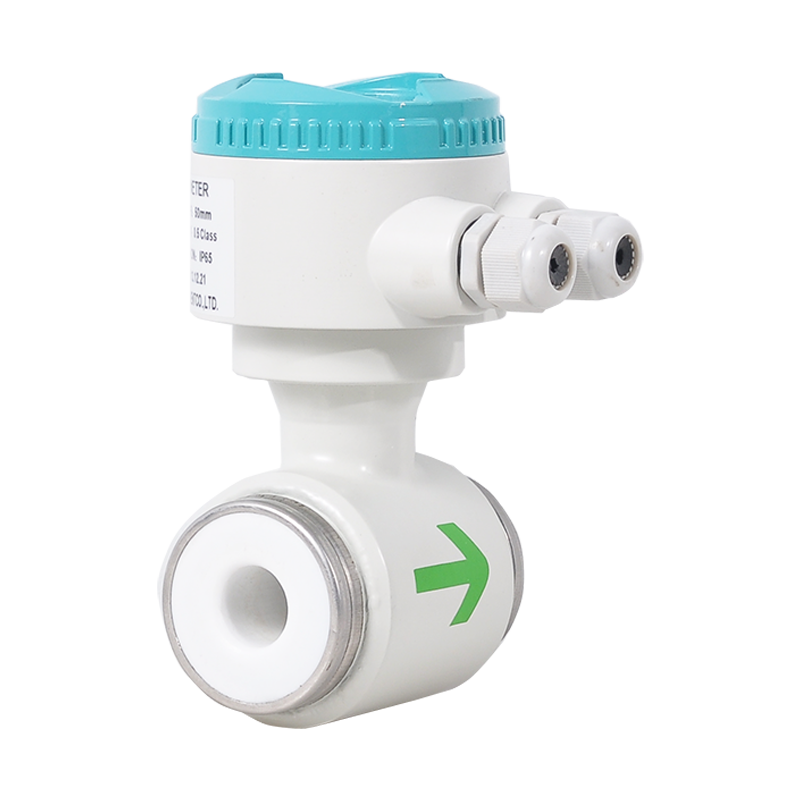

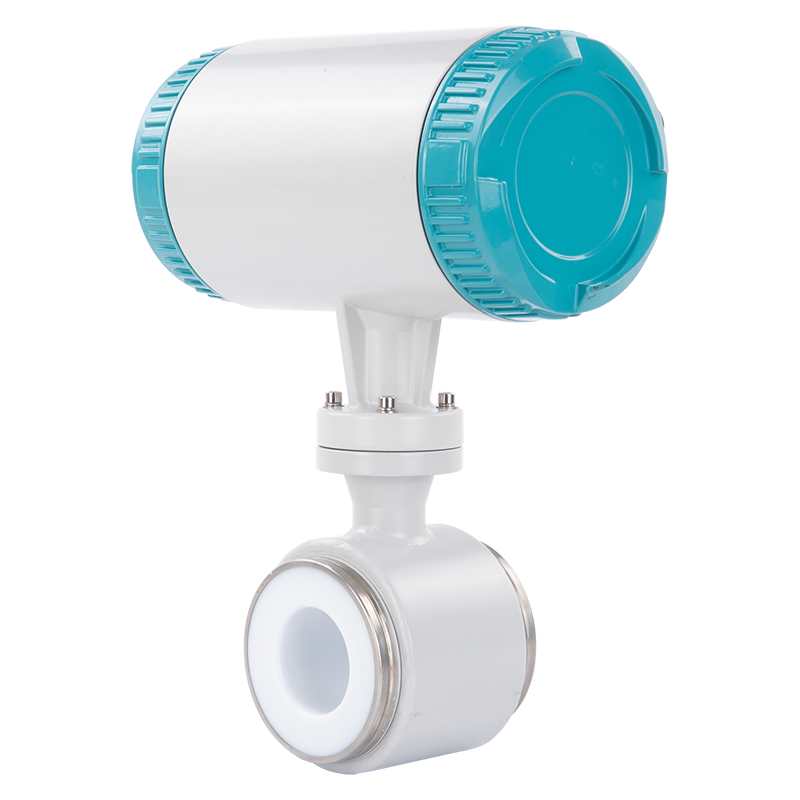

QTLD Wafer Type Electromagnetic Flowmeter
- ≥3mm thickness liner, long service life.
- Anti-falling, anti-flanging, leak-proof, safe and reliable.
High & Low Temperature Tests, Different Humidity Test ,
Make Sure Instruments Can Resist Any Harsh Environments
Main Performances Parameters
Size DN25mm-DN200mm Nominal Pressure 1.6Mpa Accuracy±0.5%(Standard)
±0.3% or ±0.2%(Optional)
Liner PTFE, FEP, PFA ElectrodeSUS316L, Hastelloy B, Hastelloy C,
Titanium, Tantalum, Platinum-iridium

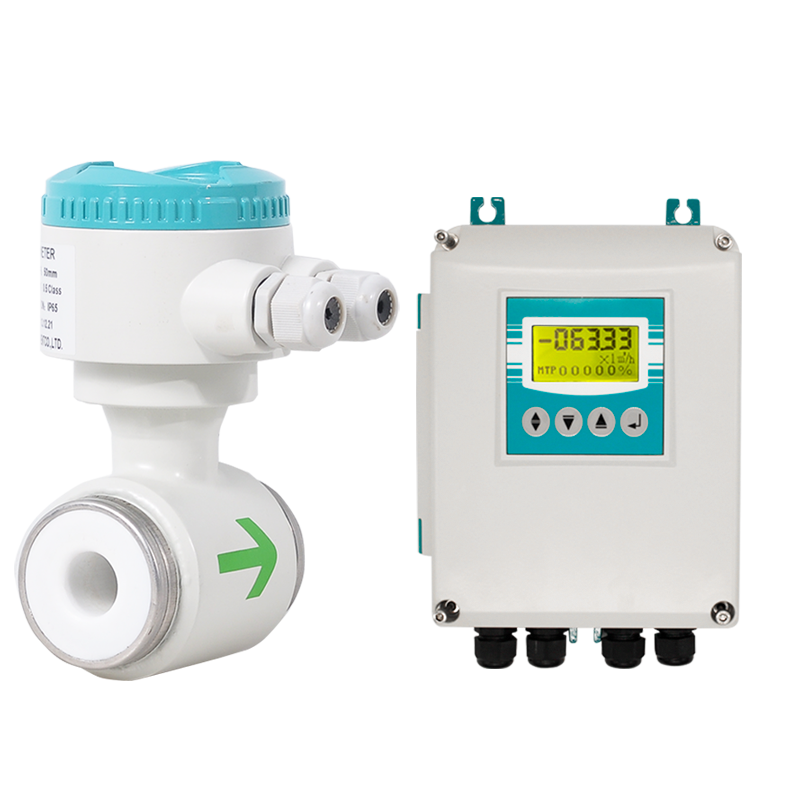

Structure Type Integral type, remote type, submersible type, ex-proof type Medium Temperature -20~+60degC(Integral type)Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature -20~+60degC Ambient Humidity 5~90%RH(relative humidity) Measuring Range Max 15m/s Conductivity >5us/cm Protection Class IP65(Standard); IP68(Optional for remote type) Output Signal 4-20mA pulse relay Communication MODBUS RTU RS485, HART(Optional), GPRS/GSM(Optional) Power SupplyAC220V(Can be used for AC85-250V)
DC24V(Can be used for DC20-36V)
DC12V(Optional),Battery Powered 3.6V(Optional)
Power Consumption <20W Explosion Proof ATEX Exdll T6Gb
Electrode Performance
Electrode material Applications SUS316LApplicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. Hastelloy B
Strong resistance to hydrochloric acids below the boiling point.
Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids.
Hastelloy C Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids TitaniumTitanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali.
Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids.
Tantalum Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali. Platinum-iridium Applicable to all chemical mediums except for Ammonium salts and Fortis.
Velocity-Flow Range Table
Size Flow Range & Velocity Table (mm) 0.1m/s 0.2m/s 0.5m/s 1m/s 4m/s 10m/s 12m/s 15m/s 10 0.028 0.057 0.141 0.283 1.130 2.826 3.391 4.239 15 0.064 0.127 0.318 0.636 2.543 6.359 7.630 9.538 20 0.113 0.226 0.565 1.130 4.522 11.304 13.56 16.956 25 0.177 0.353 0.883 1.766 7.065 17.663 21.2 26.494 32 0.289 0.579 1.447 2.894 11.575 28.938 34.73 43.407 40 0.452 0.904 2.261 4.522 18.086 45.216 54.26 67.824 50 0.707 1.413 3.533 7.065 28.260 70.650 84.78 105.98 65 1.19 2.39 5.97 11.94 47.76 119.40 143.3 179.10 80 1.81 3.62 9.04 18.09 72.35 180.86 217.0 271.30 100 2.83 5.65 14.13 28.26 113.04 282.60 339.1 423.90 125 4.42 8.83 22.08 44.16 176.63 441.56 529.9 662.34 150 6.36 12.72 31.79 63.59 254.34 635.85 763.0 953.78 200 11.3 22.61 56.52 113.04 452.16 1130.40 1356 1696
Recommended Velocity Range: 0.5m/s - 15m/s
