About this product
- Size: 4600*2860*1750mm
- Color: Green
- Transmission: Other
- Color: Green
- Harvest method: Other
- Certification: Other
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Central Asia, Latin America
About this product
- Size: 4600*2860*1750mm
- Color: Green
- Transmission: Other
- Color: Green
- Harvest method: Other
- Certification: Other
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Central Asia, Latin America
Product details
| Size | 4600*2860*1750mm |
|---|---|
| Color | Green |
| Transmission | Other |
| Color | Green |
| Harvest method | Other |
| Certification | Other |
| Application field | Agriculture |
| Power source | Other |
| Portable harvester type | Other |
| Drive type | Other |
| Application | WheatRiceStraw |
Product details
| Size | 4600*2860*1750mm |
|---|---|
| Color | Green |
| Transmission | Other |
| Color | Green |
| Harvest method | Other |
| Certification | Other |
| Application field | Agriculture |
| Power source | Other |
| Portable harvester type | Other |
| Drive type | Other |
| Application | WheatRiceStraw |
From the supplier

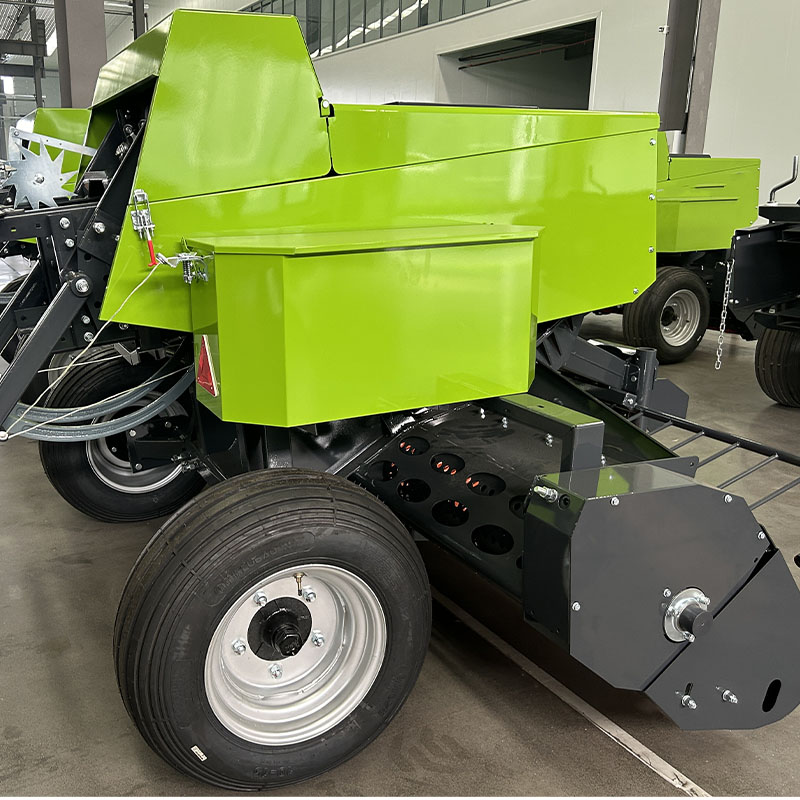

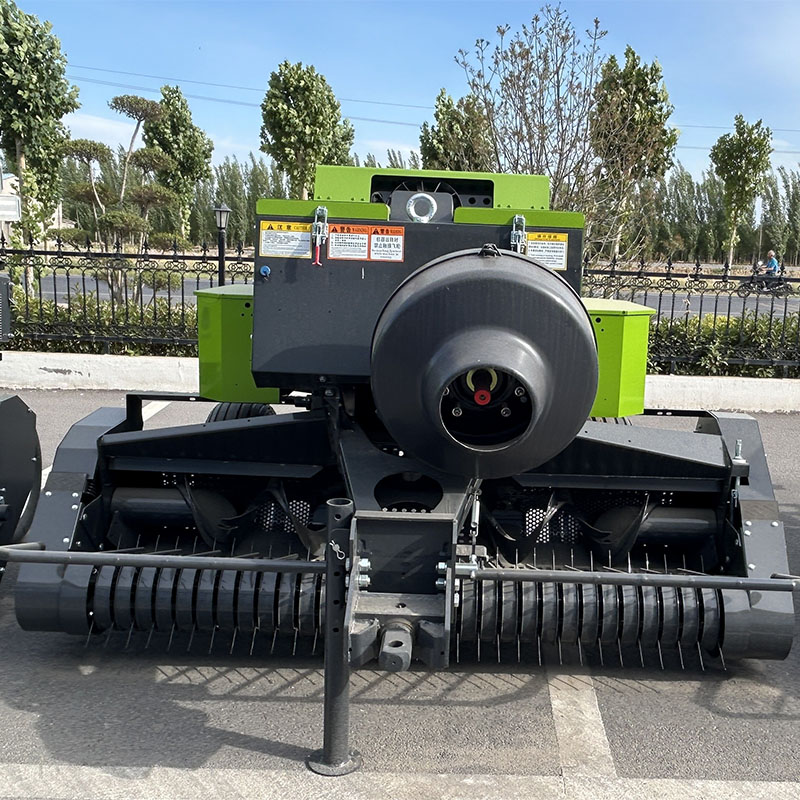

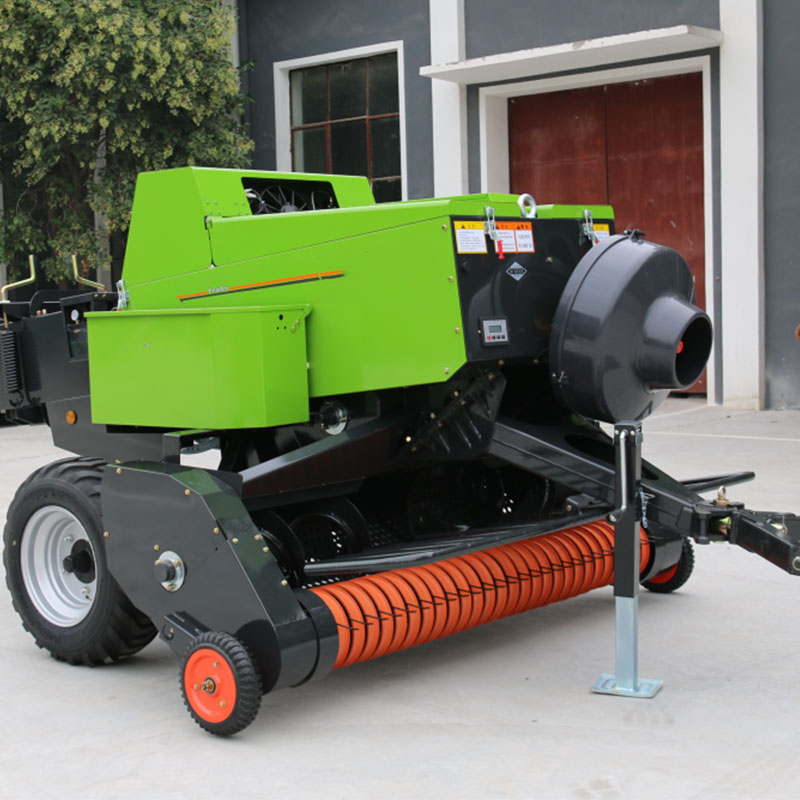

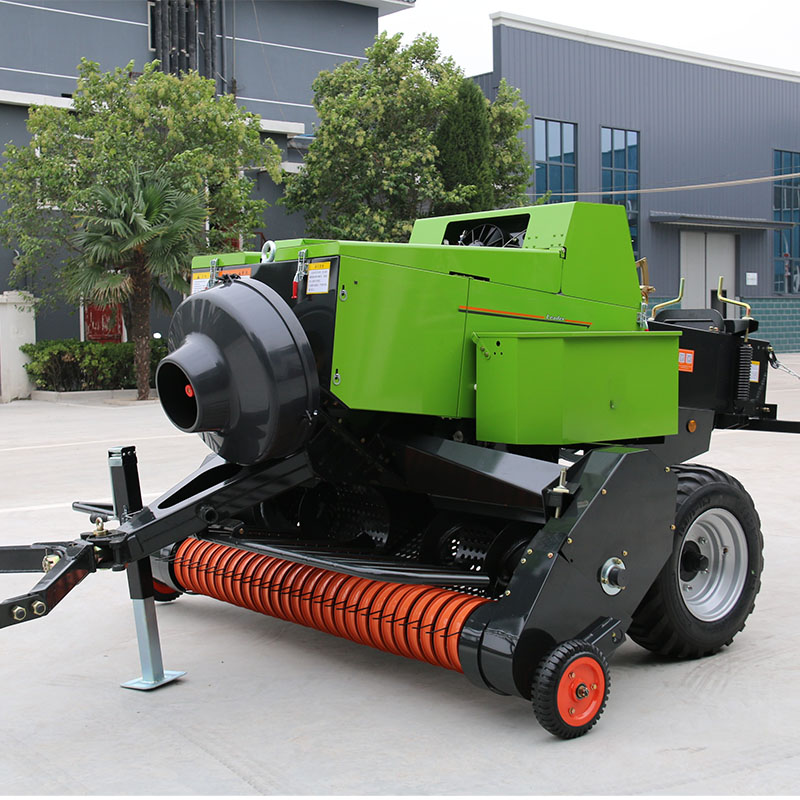

QLN 2.2A square baler is a forage bundling and harvesting machine, which is mainly used for harvesting various forages, rice, wheat and other crop straws in the field. It can automatically pick up the grass and straw cutted in the field, and bundle the scattered straw into rectangular bales with neat and regular shape through the operation procedures of conveying, feeding, compression forming and tying rope. The machine matches with 33.1kw (or 36.8kw) and above wheeled tractor, and is operated by one person of tractor driver. It is suitable for all kinds of grassland and farmland operation. At the same time, it is also suitable for fixed operation by manual feeding or other methods.
Model
QLN-2.2 Square Baler
Overall dimension(mm)
4600×2860×1750
Weight(kg)
1680
Collecting width(mm)
2200
Matched tractor horsepower
Above 50hp
Connection type with tractor
Three point linkage
Traction mode
Mid-mounted
PTO speed(r/min)
540
Knotter number(unit)
2
Compress chamber section size
446*364
Bale length(mm)
500-1350
Bale density(mm
Adjustable spring loading
Productivity(Mu/hour)
10-20
Main configuration
Protective cover
Injection Moulding
Knotter type
Rasspe Germany high strength D shape
Pickup tine
Four rows
Fork type
Adopts eight-shaped pitchfork
Bale damping mechanism
Both side
Density adjustment mode of bale density
Adjustable spring loading
Compression chamber type
Extended compress chamber
Main chain, baling mechanism chain
16A. 12A
Tire
10-15
From the supplier
QLN 2.2A square baler is a forage bundling and harvesting machine, which is mainly used for harvesting various forages, rice, wheat and other crop straws in the field. It can automatically pick up the grass and straw cutted in the field, and bundle the scattered straw into rectangular bales with neat and regular shape through the operation procedures of conveying, feeding, compression forming and tying rope. The machine matches with 33.1kw (or 36.8kw) and above wheeled tractor, and is operated by one person of tractor driver. It is suitable for all kinds of grassland and farmland operation. At the same time, it is also suitable for fixed operation by manual feeding or other methods.
Model
QLN-2.2 Square Baler
Overall dimension(mm)
4600×2860×1750
Weight(kg)
1680
Collecting width(mm)
2200
Matched tractor horsepower
Above 50hp
Connection type with tractor
Three point linkage
Traction mode
Mid-mounted
PTO speed(r/min)
540
Knotter number(unit)
2
Compress chamber section size
446*364
Bale length(mm)
500-1350
Bale density(mm
Adjustable spring loading
Productivity(Mu/hour)
10-20
Main configuration
Protective cover
Injection Moulding
Knotter type
Rasspe Germany high strength D shape
Pickup tine
Four rows
Fork type
Adopts eight-shaped pitchfork
Bale damping mechanism
Both side
Density adjustment mode of bale density
Adjustable spring loading
Compression chamber type
Extended compress chamber
Main chain, baling mechanism chain
16A. 12A
Tire
10-15
