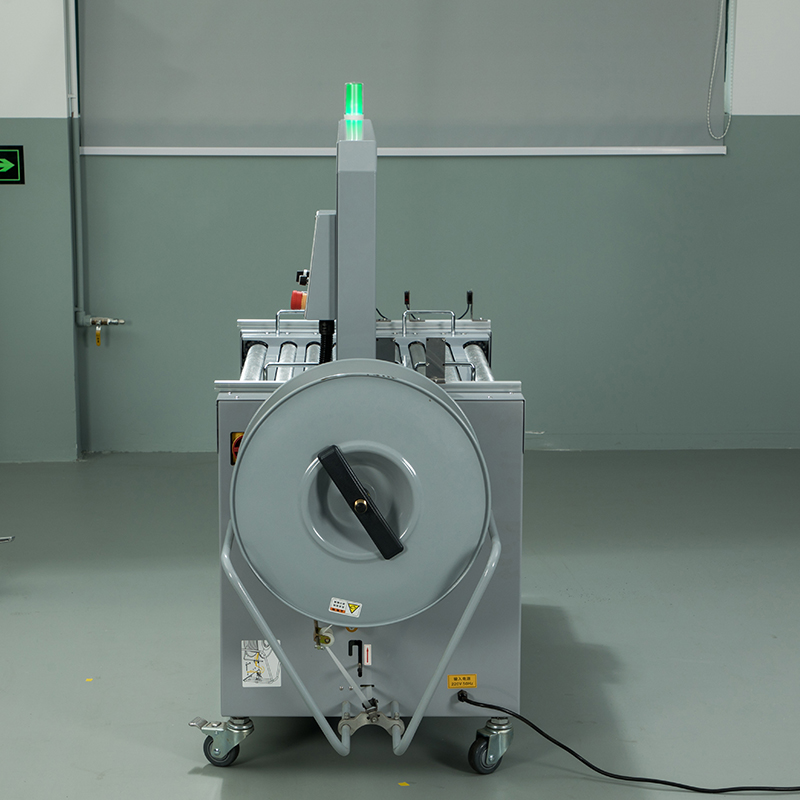

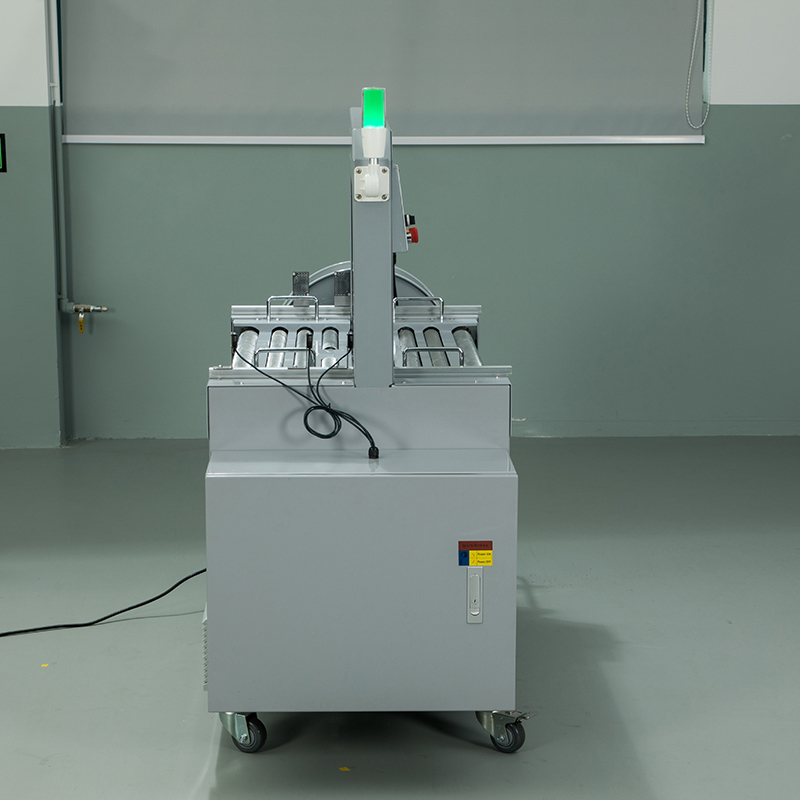

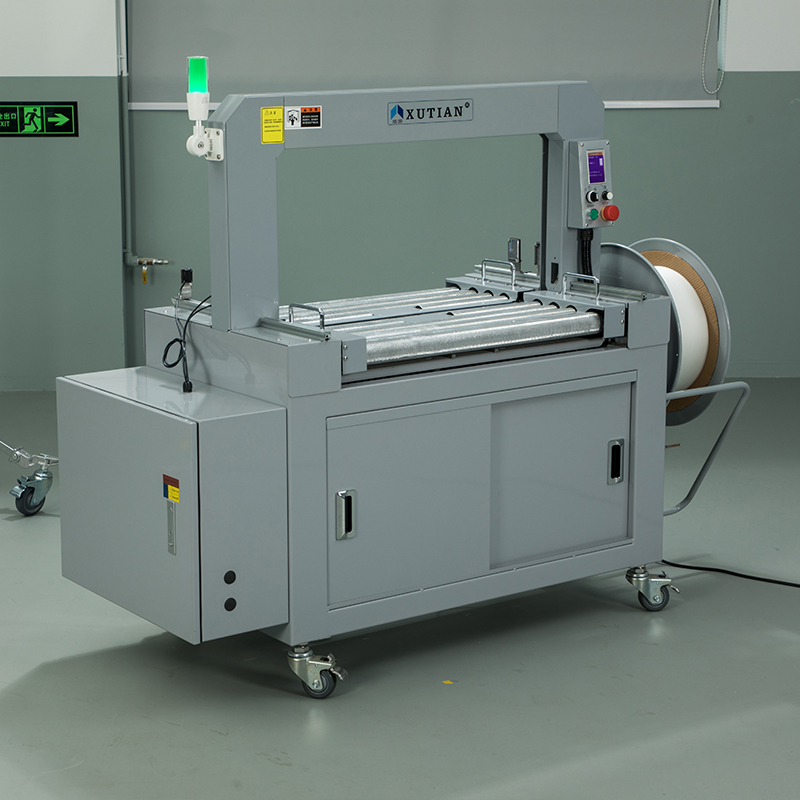

Q8t Automatic Strapping Machine
TAIZHOU XUTIAN PACKING MACHINE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Q8t Automatic Strapping Machine
TAIZHOU XUTIAN PACKING MACHINE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Iron
- Size: 1255*700*1400mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Iron
- Size: 1255*700*1400mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Iron |
|---|---|
| Size | 1255*700*1400mm |
| Color | Gray |
Product details
| Materials | Iron |
|---|---|
| Size | 1255*700*1400mm |
| Color | Gray |
From the supplier

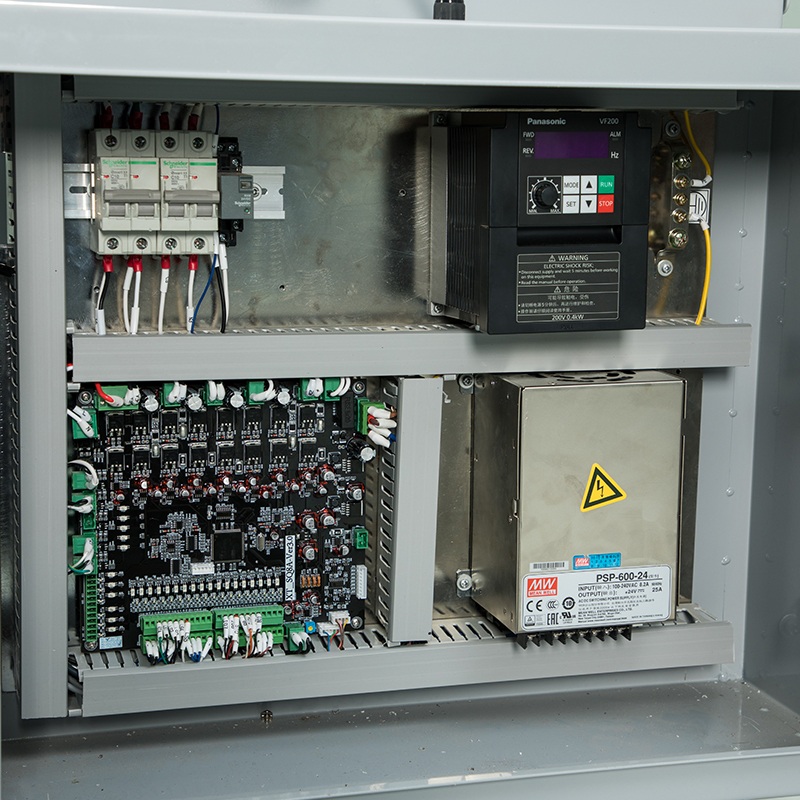

Built with durable spare parts and reliable electrical components. Director current motor enables machine to start working as soon as power connected and No pre-heating and standby- time are required which will help save power consumption. Direct driving design guarantees a low maintenance. Reading tension percentage and heater temperature from the control panel. Faults happen statistics are stored for maintenance analysis.
Specification：
Product name Full automatic high table steel roller table strapping machine Item no Q8-T Material PP strap Material width*thickness new material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) roll Inner diameter Ø200MM arch size W800 x H600mm Max strapping size L no limit*W650 x H550mm Min strapping size L 260*W260*H100mm Loading weight 2-100KG table height 780-850mm(Can be adjusted) power 220V50Hz 900W Contral system PCB+LCD Screen Motor CHINA VTV DC motor strapping speed 1.7 seconds/strap Table conveyor steel roller conveyor, 18m/min, frequency conversion speed regulation shell material Carbon steel sprayed (light gray) Tension 20-400N Welding method Constant temperature melting Packing method Manual or automatic 1-3 straps optional Mechanical size L1700*W685*H1530mm/280kg Applicable industry recommendation Hardware, electrical appliances, furniture, building materials, etc. Customizable items 1. Dunker DC motor or brushless motor2. PLC+touch screen control system
3. Arch size
Product Features and Advantages
High speed up to 1.7 seconds/strap
Auto Feeding
Direct motor driving,No belts.

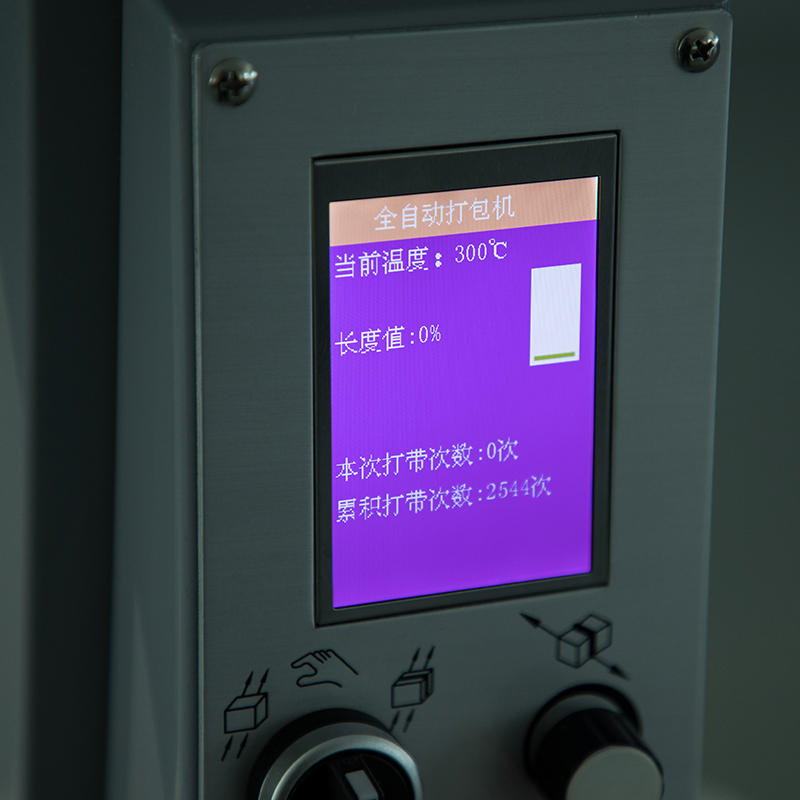

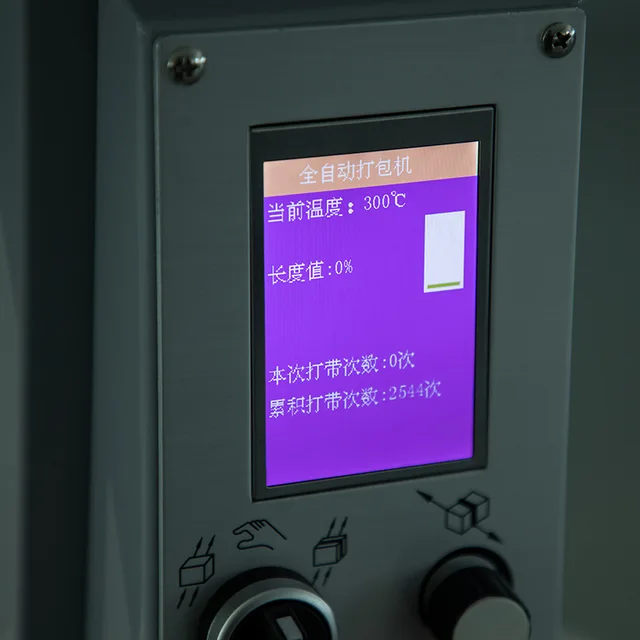

Temperature and tension are displayed from screen
Loop ejecting and re-feed function
Instant heating system, persistent temperature
Tension mode: Fixed tension and Fixed length
Switchable Manual and Auto operation
With counting function
One button to clear strap jam
Built for 24 hours continuous operation

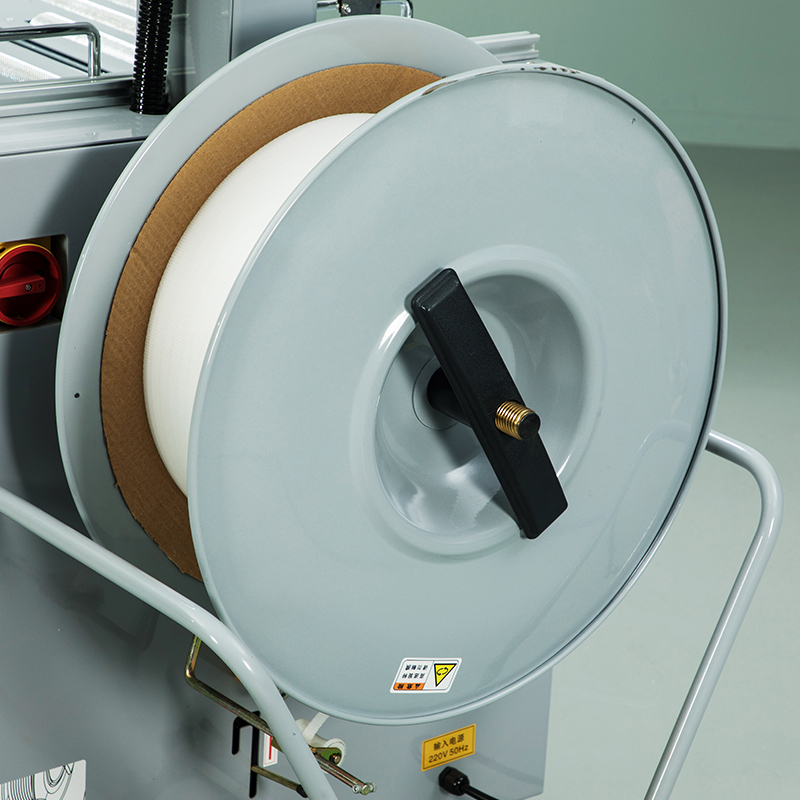

Quick strap loading operation
No tooling required for maintenance
No maintenance for Gear box
Tension adjustment: Very easy from control panel
Easy strap loading and unloading
Front and rear pedal operation
From the supplier
Built with durable spare parts and reliable electrical components. Director current motor enables machine to start working as soon as power connected and No pre-heating and standby- time are required which will help save power consumption. Direct driving design guarantees a low maintenance. Reading tension percentage and heater temperature from the control panel. Faults happen statistics are stored for maintenance analysis.
Specification：
Product name Full automatic high table steel roller table strapping machine Item no Q8-T Material PP strap Material width*thickness new material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) roll Inner diameter Ø200MM arch size W800 x H600mm Max strapping size L no limit*W650 x H550mm Min strapping size L 260*W260*H100mm Loading weight 2-100KG table height 780-850mm(Can be adjusted) power 220V50Hz 900W Contral system PCB+LCD Screen Motor CHINA VTV DC motor strapping speed 1.7 seconds/strap Table conveyor steel roller conveyor, 18m/min, frequency conversion speed regulation shell material Carbon steel sprayed (light gray) Tension 20-400N Welding method Constant temperature melting Packing method Manual or automatic 1-3 straps optional Mechanical size L1700*W685*H1530mm/280kg Applicable industry recommendation Hardware, electrical appliances, furniture, building materials, etc. Customizable items 1. Dunker DC motor or brushless motor2. PLC+touch screen control system
3. Arch size
Product Features and Advantages
High speed up to 1.7 seconds/strap
Auto Feeding
Direct motor driving,No belts.
Temperature and tension are displayed from screen
Loop ejecting and re-feed function
Instant heating system, persistent temperature
Tension mode: Fixed tension and Fixed length
Switchable Manual and Auto operation
With counting function
One button to clear strap jam
Built for 24 hours continuous operation
Quick strap loading operation
No tooling required for maintenance
No maintenance for Gear box
Tension adjustment: Very easy from control panel
Easy strap loading and unloading
Front and rear pedal operation
