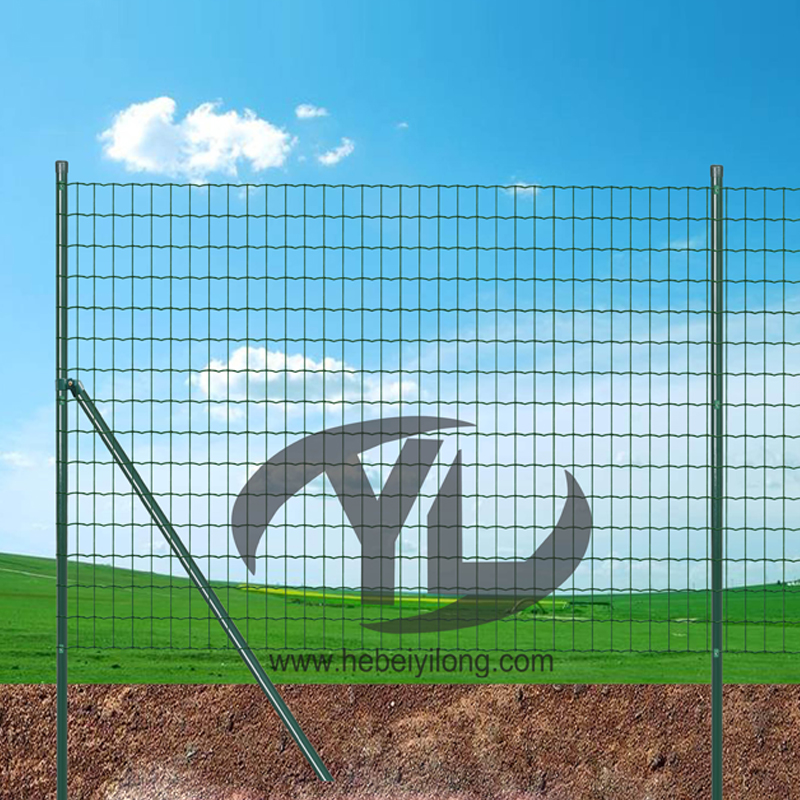

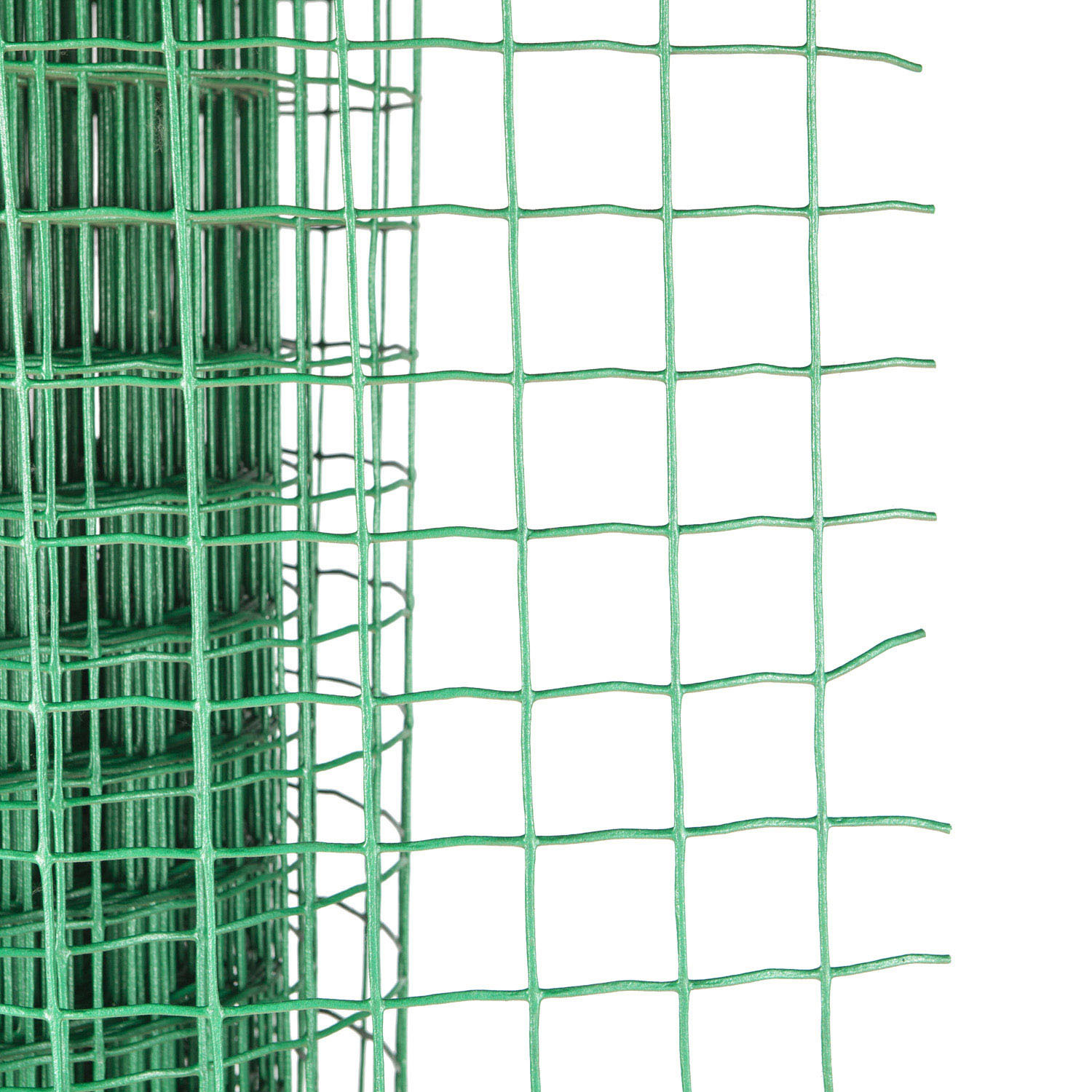

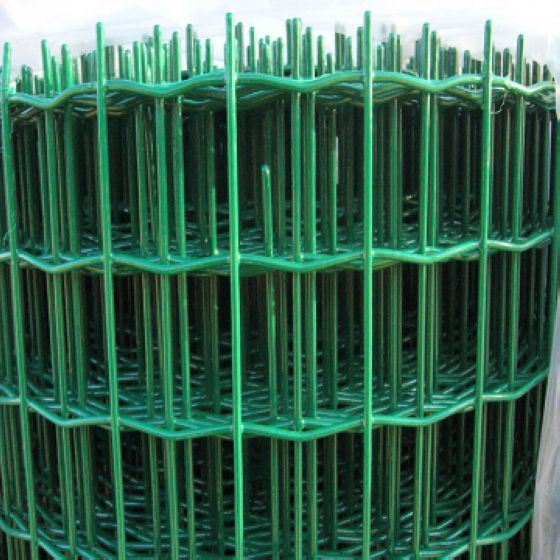

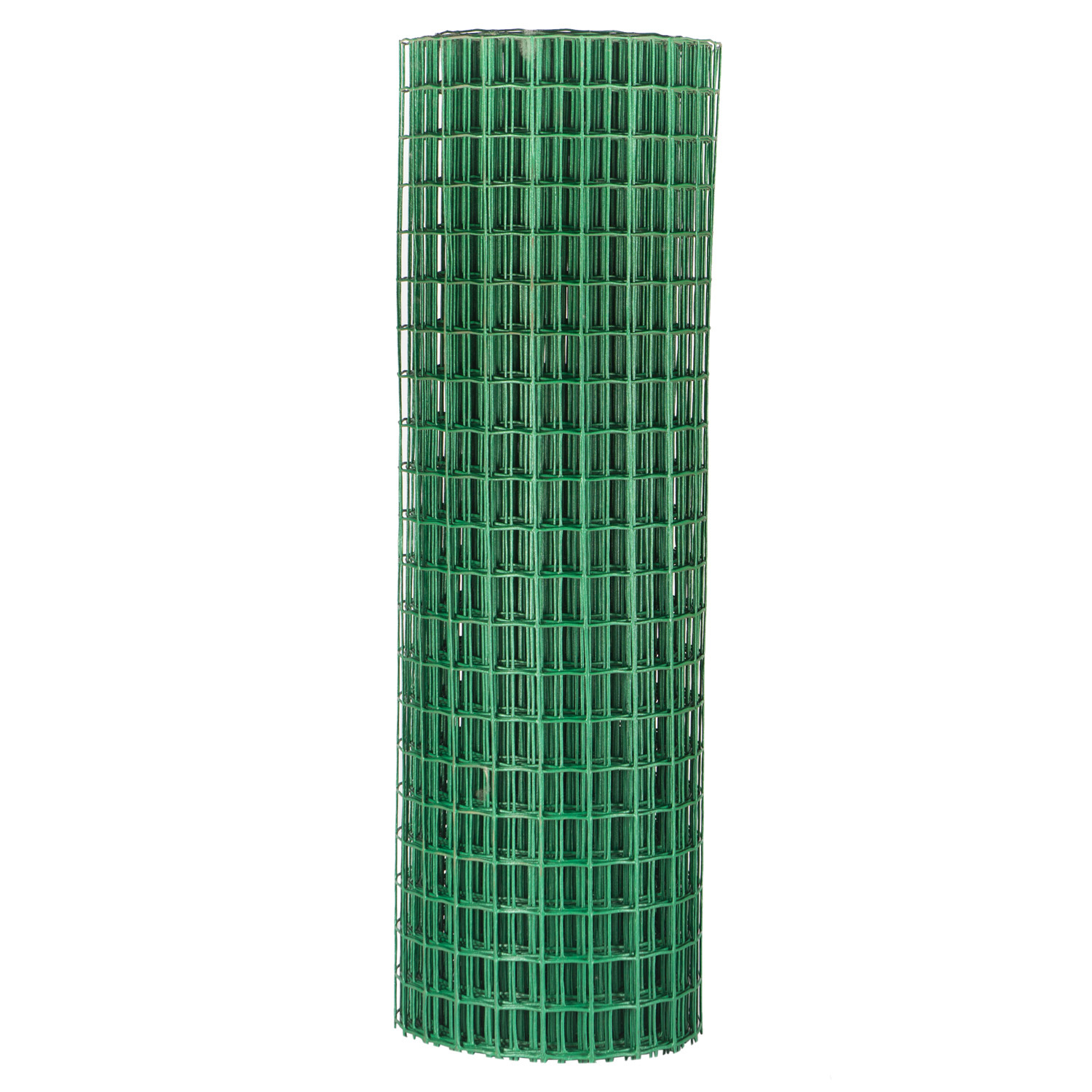

PVC EUROFENCE，100X75MM，PVC COATED，ANJIA BRAND

1.Raw Material

EuroFence is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder.

Throush high-precision processing, the end product is level and flat, strudy structure, and even strength throughout, which is widely used in industry, farming construction, transportation and mining for protection of structure, safety segregation , keeping of poulty and livestock, and decoration.

• 2. Specification

Fence Height Fence Length(2m) Fence Length(2.5m) Cm Wire Gauge Wire Diameter Opening Weight kg/piece Fixing Pole Wire Gauge Wire Diameter mm Opening cm Weight kg/piece Fixing Pole Mm Cm Weight kg/set Weight kg/set 60 10#/8# 3.2 4 5X12 6.5 1.9 10#/8# 3.2 4 5X12 8.6 1.9 80 10#/8# 3.2 4 5X12 7.5 2.3 10#/8# 3.2 4 5X12 9.9 2.3 100 10#/8# 3.2 4 5X12 8.5 2.7 10#/8# 3.2 4 5X12 11.2 2.7 120 10#/8# 3.2 4 5X12 9 3.1 10#/8# 3.2 4 5X12 11.9 3.1 150 10#/8# 3.2 4 5X12 11 3.7 10#/8# 3.2 4 5X12 14.5 3.7 180 10#/8# 3.2 4 5X12 12.5 4.3 10#/8# 3.2 4 5X12 16.5 4.3 200 10#/8# 3.2 4 5X12 13.5 4.7 10#/8# 3.2 4 5X12 17.8 4.7

3. Application

Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine protection cover, animal fence, flower fence, window fence, passage fence, poultry cage, egg basket and home office food basket, paper basket and decoration. Mainly used for general building exterior walls, pouring concrete, high-rise residences, etc. It plays an important structural role in the thermal insulation system. During the construction, the hot-dip galvanized welded wire mesh polystyrene board is placed inside the external wall outer mold to be poured The outer insulation board and the wall survive once, and the insulation board and the wall are integrated into one after the mold is removed.

4.Factory Brief

5. Certificate as below:
