Push Button Switch
China National Instruments Import&Export Group Corporation
See what’s includedHide breakdown
- FOB goods (100)
- $250
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.75
- Section 301 tariff (25.0%)
- $63
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $250
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.75
- Section 301 tariff (25.0%)
- $63
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Push Button Switch
China National Instruments Import&Export Group CorporationSee what’s includedHide breakdown
- FOB goods (100)
- $250
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.75
- Section 301 tariff (25.0%)
- $63
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $250
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $6.75
- Section 301 tariff (25.0%)
- $63
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Stainless steel
- Size: 16mm
- Color: LED color : red green yellow blue white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Stainless steel
- Size: 16mm
- Color: LED color : red green yellow blue white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Stainless steel |
|---|---|
| Size | 16mm |
| Color | LED color : red green yellow blue white |
Product details
| Materials | Stainless steel |
|---|---|
| Size | 16mm |
| Color | LED color : red green yellow blue white |
From the supplier

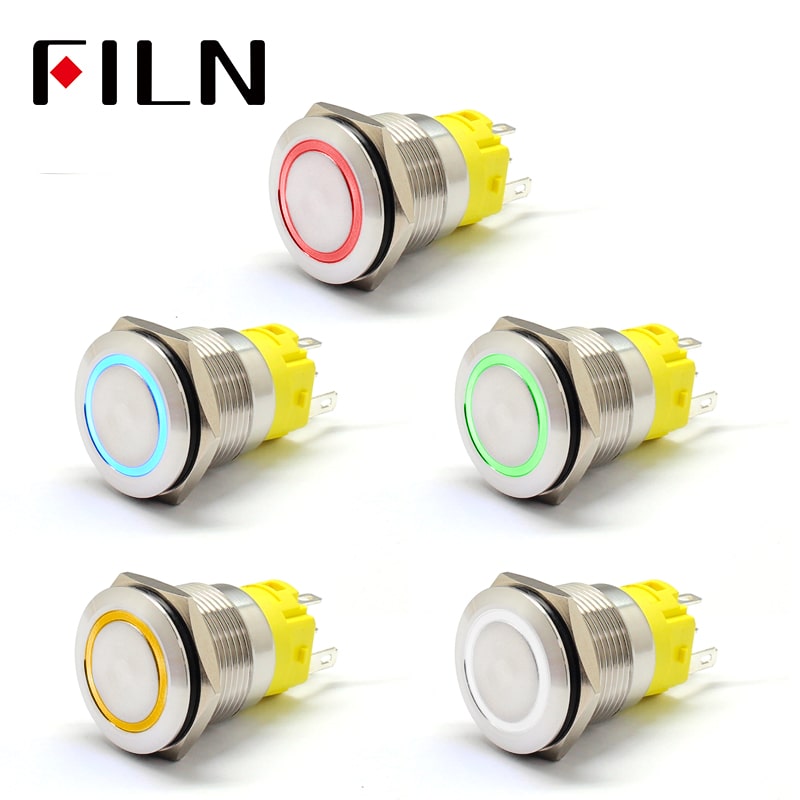

FILN 16mm 12V ring LED Stainless Steel/brass nickel plated 1NO1NC Momentary Latching Push Button Switch with 5 pins
ITEMPARAMETER Install Diameter 16mm Rating 5A/250VAC Switch Function1. Momentary: Press the actuator, switch on; Release actuator, switch off;
2. Latching: Press the actuator, switch on; Release, switch keep on; push again, switch off
Switch Combination 1NO1NC Dielectric Intensity 2000VAC Contact Resistance ≤50mΩ Insulation Resistance ≥1000MΩ Electrical Life ≥50,000 cycles Mechanical Life ≥100,000 cycles Working Temperature -20~+50℃ Protection Level IP65, IK10 Operation Force About 3~5N Operation Stroke About 2.5mm Panel Thickness 1-10mm Led Color Red/Green/Blue/White/Yellow/Bi-color/Tri-color Led Voltage 3~720V Led Rated Current 20mAFrom the supplier
FILN 16mm 12V ring LED Stainless Steel/brass nickel plated 1NO1NC Momentary Latching Push Button Switch with 5 pins
ITEMPARAMETER Install Diameter 16mm Rating 5A/250VAC Switch Function1. Momentary: Press the actuator, switch on; Release actuator, switch off;
2. Latching: Press the actuator, switch on; Release, switch keep on; push again, switch off
Switch Combination 1NO1NC Dielectric Intensity 2000VAC Contact Resistance ≤50mΩ Insulation Resistance ≥1000MΩ Electrical Life ≥50,000 cycles Mechanical Life ≥100,000 cycles Working Temperature -20~+50℃ Protection Level IP65, IK10 Operation Force About 3~5N Operation Stroke About 2.5mm Panel Thickness 1-10mm Led Color Red/Green/Blue/White/Yellow/Bi-color/Tri-color Led Voltage 3~720V Led Rated Current 20mAAbout the supplier
Main products: Compressor,Hair drier,Power switch,Hardware fittings,Trimmer,Room Decorative Lights
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 1955
- ✓AEO-certified exporter (customs-trusted)
Light & Electrical exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 1955
- AEO-certified exporter (customs-trusted)
More from China National Instruments Import&Export Group Corporation
