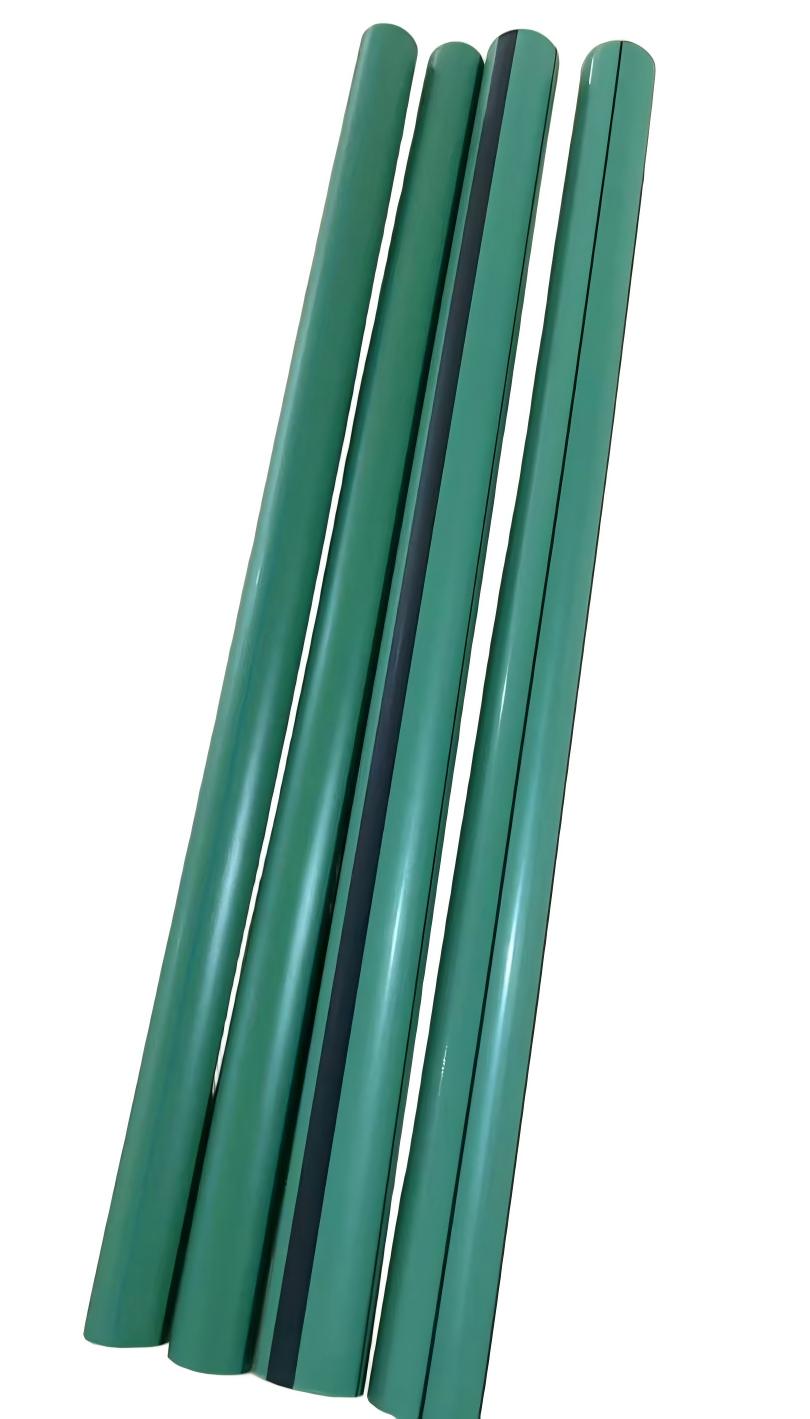

PP-RCT/GFRP/PP-RCT Triple-Layer Composite Pipe
Ningbo Bingley Industry&Trade Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
PP-RCT/GFRP/PP-RCT Triple-Layer Composite Pipe
Ningbo Bingley Industry&Trade Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: PP-RCT/GFRP
- Size: 20-200MM
- Color: Green,white,gray,blue,yellow etc,or customized
- Flexible or rigid: Flexible
- Standard: Standard
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: PP-RCT/GFRP
- Size: 20-200MM
- Color: Green,white,gray,blue,yellow etc,or customized
- Flexible or rigid: Flexible
- Standard: Standard
- Material: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | PP-RCT/GFRP |
|---|---|
| Size | 20-200MM |
| Color | Green,white,gray,blue,yellow etc,or customized |
| Flexible or rigid | Flexible |
| Standard | Standard |
| Material | Other |
| Structure | Other |
Product details
| Materials | PP-RCT/GFRP |
|---|---|
| Size | 20-200MM |
| Color | Green,white,gray,blue,yellow etc,or customized |
| Flexible or rigid | Flexible |
| Standard | Standard |
| Material | Other |
| Structure | Other |
From the supplier
PP-RCT/GFRP/PP-RCT Triple-Layer Composite Pipe

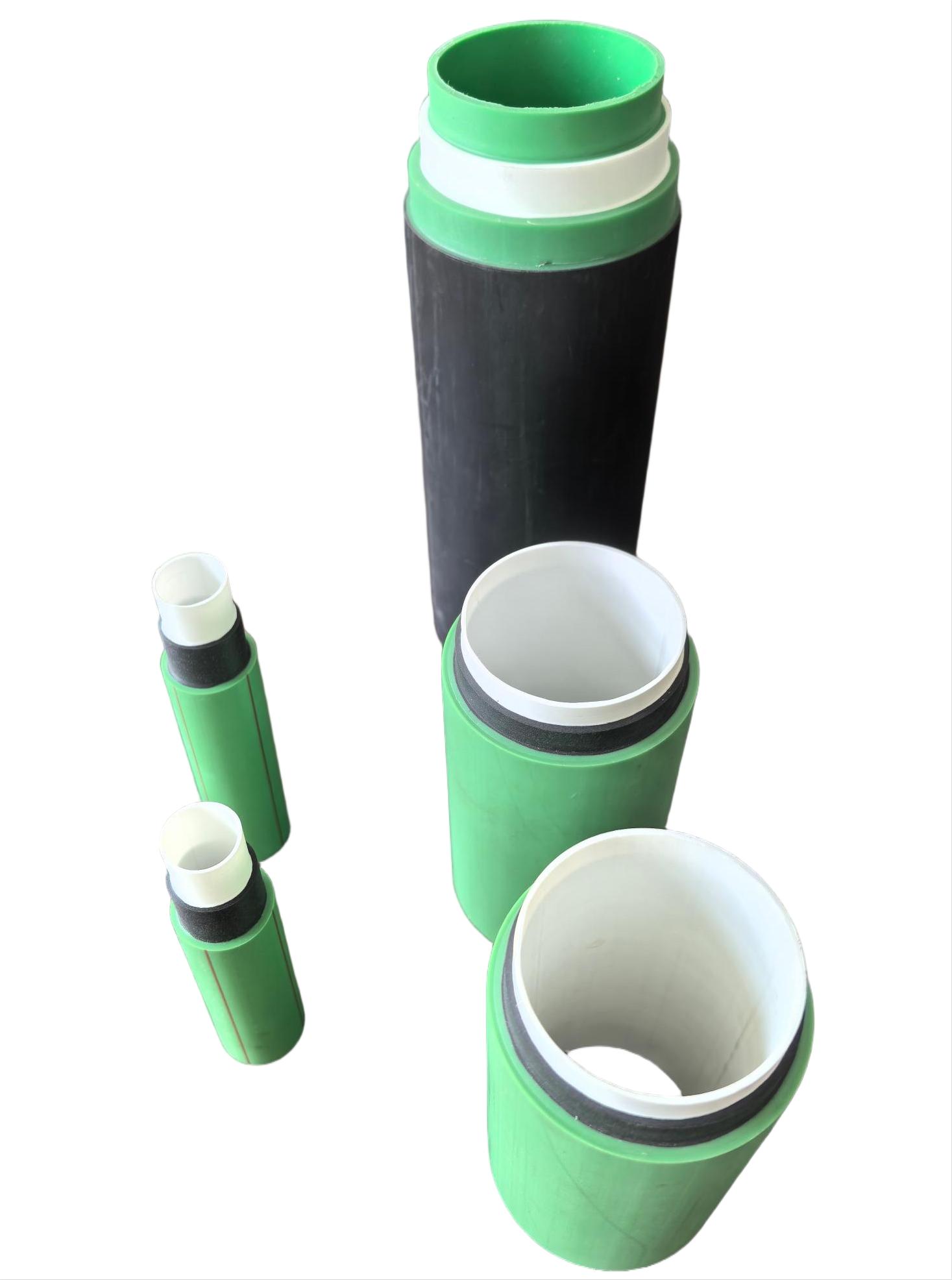

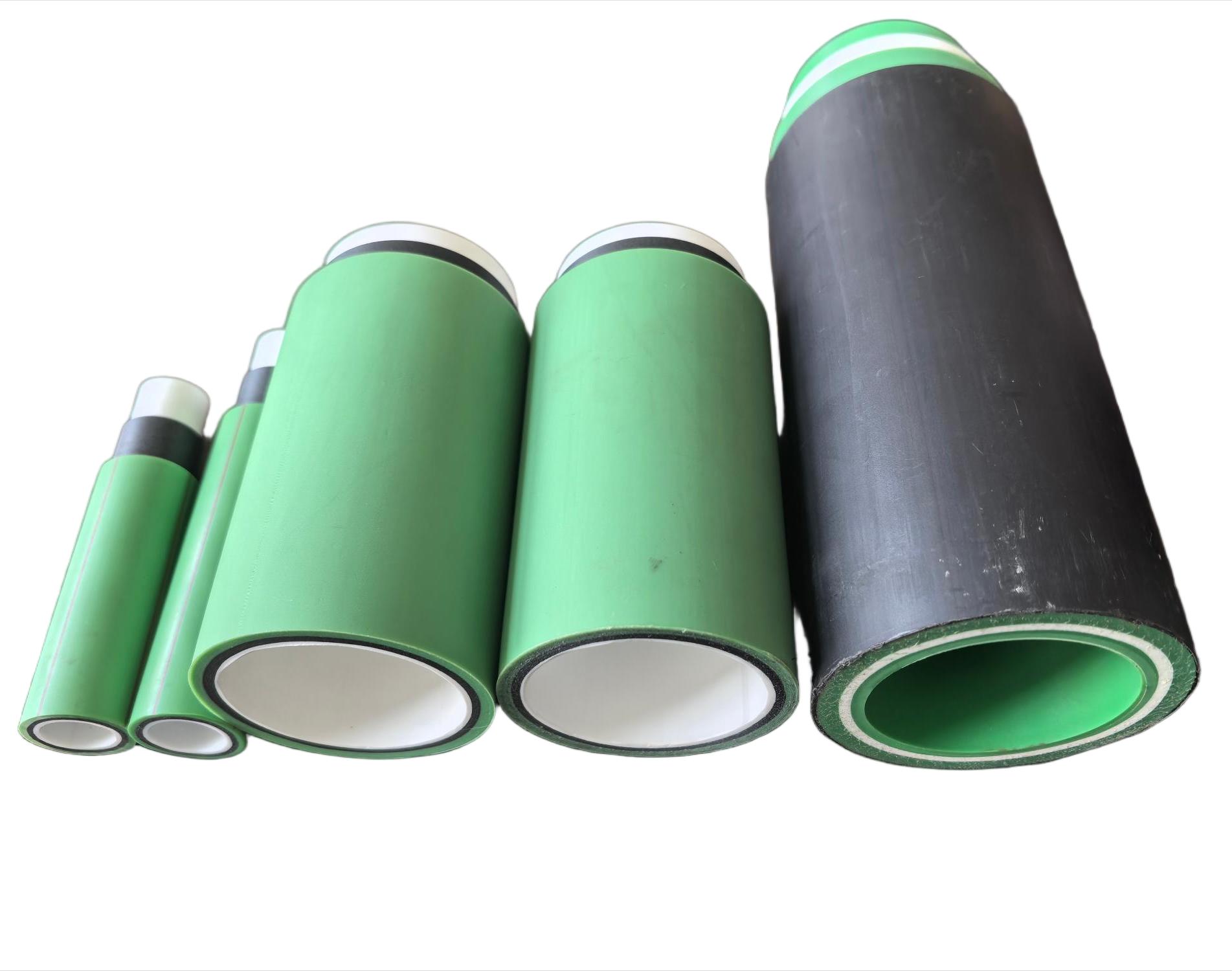

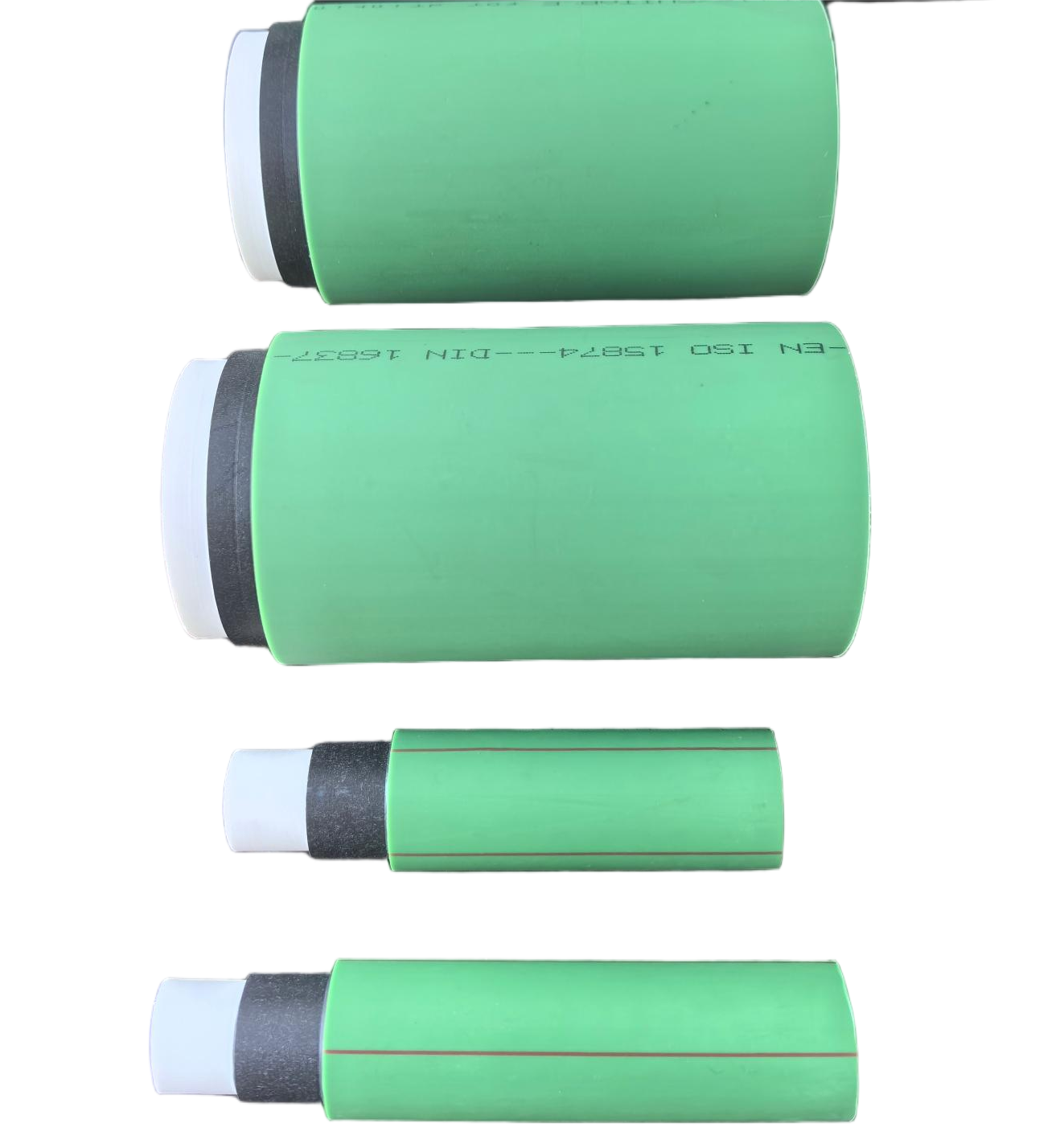

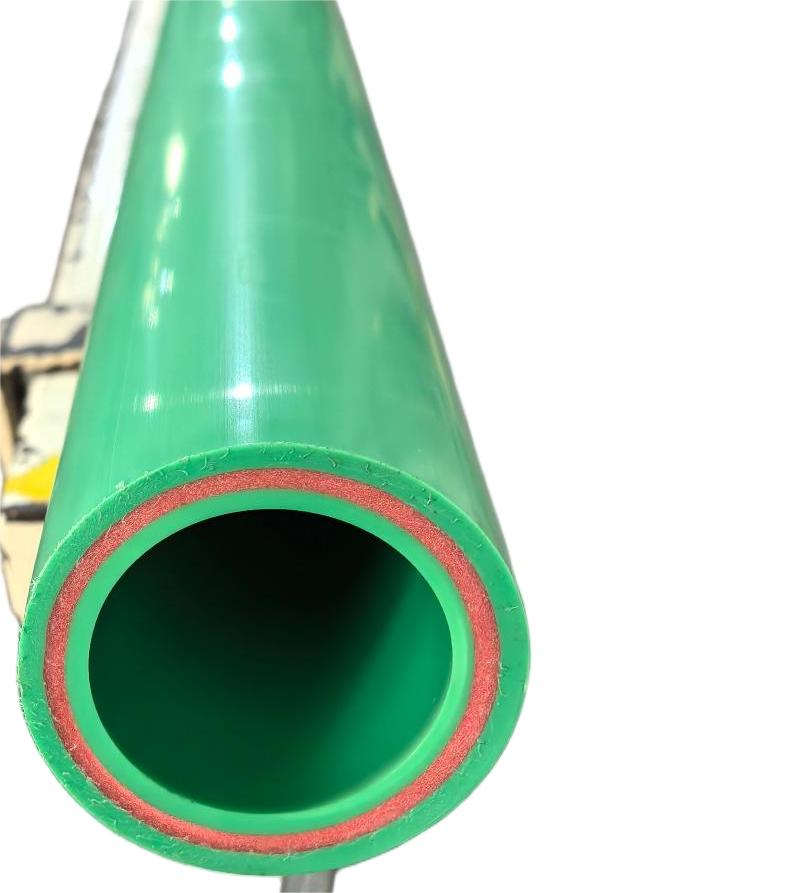

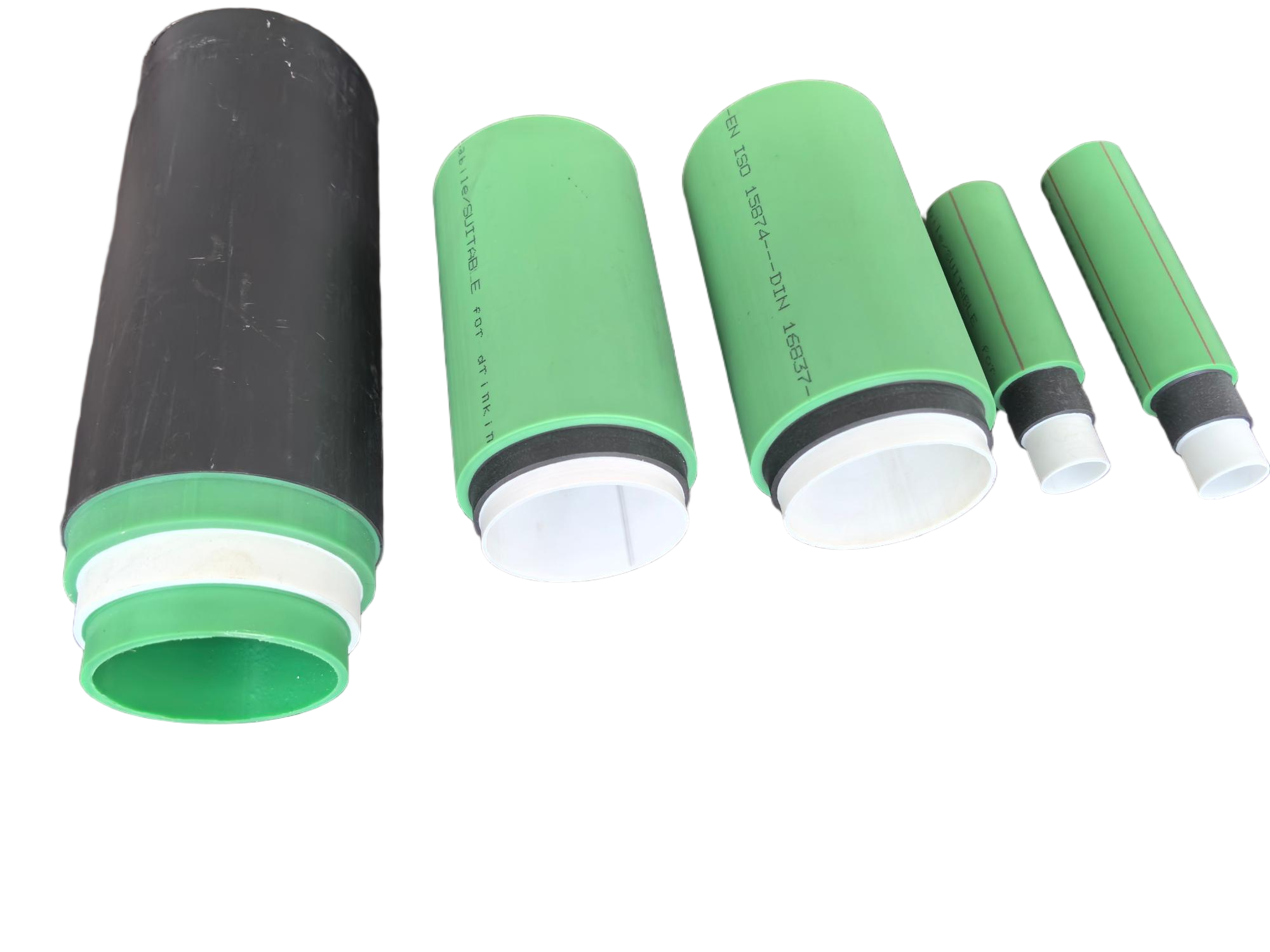

This pipe is co-extruded with a three-layer structure: an inner layer of PP-RCT, a middle layer of glass fiber-reinforced plastic (GFRP), and an outer layer of PP-RCT.
The outer PP-RCT layer contains UV inhibitors, improving heat-fusion welding performance and anti-aging resistance.
The middle GFRP reinforcement layer enhances overall mechanical strength, as well as heat and cold resistance.
The inner antibacterial PP-RCT layer ensures hygienic safety for water supply applications.
PP-RCT/GFRP/PP-RCT is an all-around reinforced fiber composite pipe that effectively overcomes the shortcomings and performance limitations of both metal and conventional plastic pipes.
Performance Characteristics
1. Enhanced Mechanical Strength – Significantly improved strength retention at high temperatures compared to other pipes.
2. High Static Pressure Resistance – Under the same specifications and conditions, its safety factor is increased by over 25%.
3. Exceptional High & Low-Temperature Resistance – ASTM D-648 test shows a heat deflection temperature of 145°C, 30°C higher than standard PP-R pipes, with outstanding impact resistance even in freezing conditions.
4. Safe & Hygienic – The antibacterial inner layer ensures clean water delivery, making it ideal for potable water systems.
5. Long Service Life – UV-resistant and anti-aging, preventing degradation from sunlight exposure.
6. Low Linear Expansion & Density – Density is only 1/7 that of steel, and linear expansion is just 1/3 of PP-R pipes.
7. Easy & Reliable Installation – Simple cutting and heat-fusion welding ensure leak-proof connections.
Application Fields
Building Water Supply & Drainage Systems – Suitable for cold and hot water pipelines, adapting to varying temperature and pressure demands while ensuring safe, stable water delivery.
Heating Systems – Ideal for underfloor heating and other systems, withstanding high-temperature and high-pressure conditions for reliable operation.
Industrial Applications – Used in chemical, pharmaceutical, and other industries requiring high temperature, pressure, and corrosion resistance for transporting various media.
From the supplier
PP-RCT/GFRP/PP-RCT Triple-Layer Composite Pipe
This pipe is co-extruded with a three-layer structure: an inner layer of PP-RCT, a middle layer of glass fiber-reinforced plastic (GFRP), and an outer layer of PP-RCT.
The outer PP-RCT layer contains UV inhibitors, improving heat-fusion welding performance and anti-aging resistance.
The middle GFRP reinforcement layer enhances overall mechanical strength, as well as heat and cold resistance.
The inner antibacterial PP-RCT layer ensures hygienic safety for water supply applications.
PP-RCT/GFRP/PP-RCT is an all-around reinforced fiber composite pipe that effectively overcomes the shortcomings and performance limitations of both metal and conventional plastic pipes.
Performance Characteristics
1. Enhanced Mechanical Strength – Significantly improved strength retention at high temperatures compared to other pipes.
2. High Static Pressure Resistance – Under the same specifications and conditions, its safety factor is increased by over 25%.
3. Exceptional High & Low-Temperature Resistance – ASTM D-648 test shows a heat deflection temperature of 145°C, 30°C higher than standard PP-R pipes, with outstanding impact resistance even in freezing conditions.
4. Safe & Hygienic – The antibacterial inner layer ensures clean water delivery, making it ideal for potable water systems.
5. Long Service Life – UV-resistant and anti-aging, preventing degradation from sunlight exposure.
6. Low Linear Expansion & Density – Density is only 1/7 that of steel, and linear expansion is just 1/3 of PP-R pipes.
7. Easy & Reliable Installation – Simple cutting and heat-fusion welding ensure leak-proof connections.
Application Fields
Building Water Supply & Drainage Systems – Suitable for cold and hot water pipelines, adapting to varying temperature and pressure demands while ensuring safe, stable water delivery.
Heating Systems – Ideal for underfloor heating and other systems, withstanding high-temperature and high-pressure conditions for reliable operation.
Industrial Applications – Used in chemical, pharmaceutical, and other industries requiring high temperature, pressure, and corrosion resistance for transporting various media.
