About this product
- Materials: aluminum
- Size: 484*89*340
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: aluminum
- Size: 484*89*340
- Color: black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | aluminum |
|---|---|
| Size | 484*89*340 |
| Color | black |
Product details
| Materials | aluminum |
|---|---|
| Size | 484*89*340 |
| Color | black |
From the supplier
PRODUCT NAME:Audio power amplifier mixer amplifier, with BLUETOOTH, USB MP3 FM
Audio power amplifier mixer amplifier with BLUETOOTH, USB MP3 FM TUNER & DAB
Pa System mixer amplifier
1) 6-ZONE POWER AMPLIFIER ,INDEPENDENTLY SELECTABLE AND VOLUME CONTROLLED
2) INTEGRAL MEDIA PLAYER WITH FM TUNER, USB AND SD SLOT, DAB+ BLUETOOTH RECEIVER FOR AUDIO STREAMING
3) OVERLOAD PROTECTION
4) CHIME AND FIRE ALARM OVER ALL CHANNELS
5) ZONE VOLUME CANTROL OVER 6 STEPS
6) BASS/TREBLE PAGING
7) 3X MIC INPUTS AND 3 X LINE INPUTS
8)TELEPHONE PAGING
9) 19 INCH MOUNTING WITH THE BRACKETS PSSIBLE (2U)
10) EMERGENCY OPERATION BY 24V BATTERY (NOT SUPPLIED)
11) APPYING FOR ALL OF PULBIC ADDRESS SYSTEM
12) APPLYING FOR BGM SYSTEM
13) POWER SELECTION FROM 60W TO 360W AVAILABLECN
6-ZONE POWER AMPLIFIER
Zone 1-6(output) switches:
The 6-ZONE POWER AMPLIFIER lines(1-6) can be switched on and off by pressing the switches with the corresponding numbers, when the zone(1-6) is enabled, the green light on the corresponding switch will be illuminated. When the “ALL” Switch is pressed, all zone(1-6) outputs will be enabled.
Zone 1-6(output) level control:
The output level of different zone(1-6) can be adjust within a range of -15dB and 0dB by the band switches with the corresponding numbers.

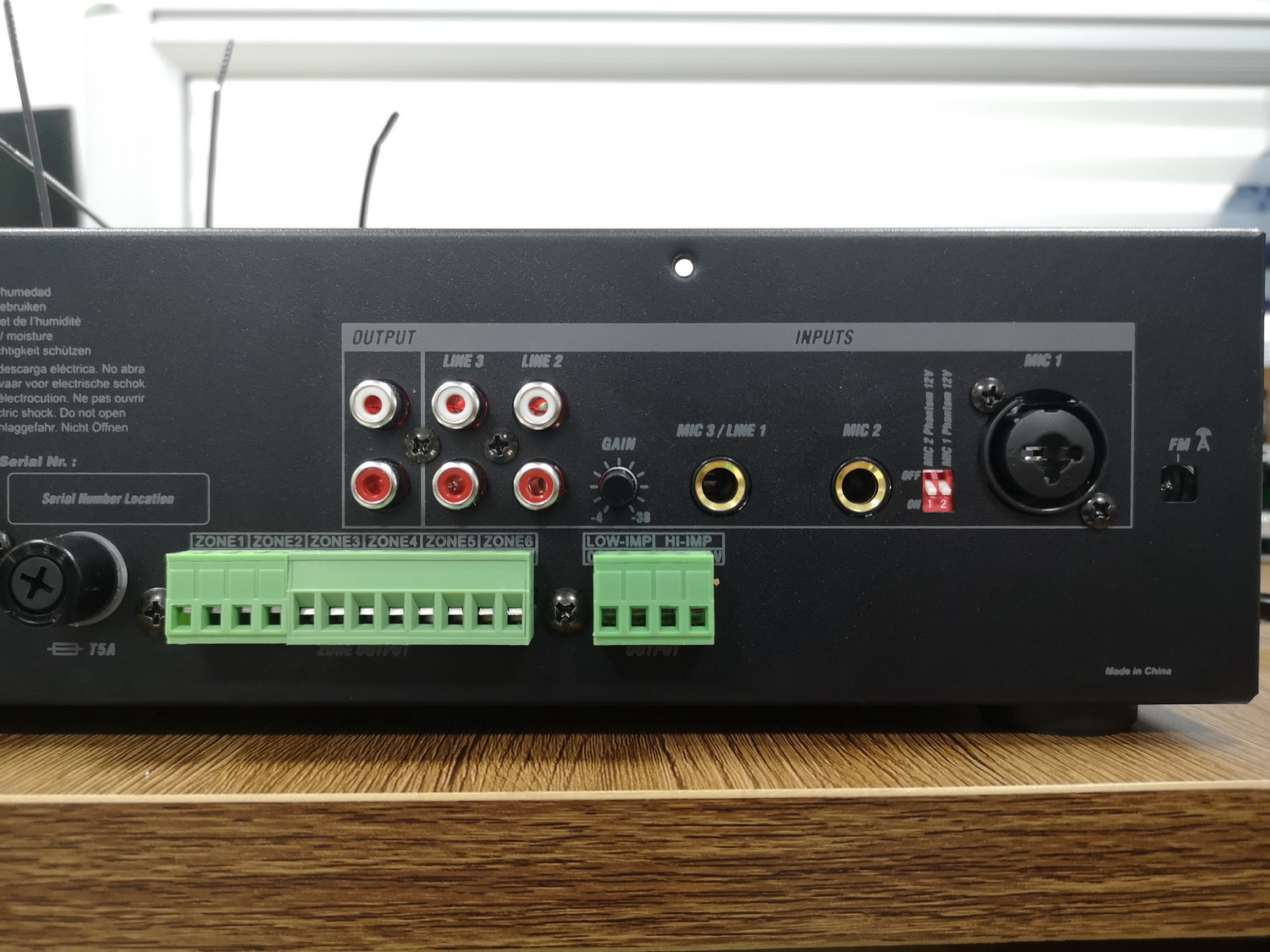

Connecting the loudspeakers:
The 6-ZONE POWER AMPLIFIER should be connect to the euro terminal block connectors on the back of the device. First, the decision should be made which kind of loudspeakers will be used, between low impedance(4ohms) or constant voltage(100V/70V/...) depending on the projects requirements. It is only possible to use one (either constant voltage or low impedance) of both options at a time. For operating using the low impedance(4 ohms) output, any loudspeaker with a minimum impedance load of 4 ohms(that is 4 ohms or greater) can be used.
Technical data HY6060MB+BT HY6120MB+BT HY6240MB+BT HY6360MB+BT Output power 60W 120W 240W 360W Frequency response Mic: -3dB (200Hz~18KHz) Line: -3dB (100Hz~19KHz) T.H.D. at 1 kHz less than 1% Input sensitivity Mic Input: -40dB(10mV).Line:-8dB(400mV) Input interface MIC1,2,3/Line1:6.35mm/XLR. Line2&3:RCA. USB. SD. Bluetooth.FM radio Output interface 8Ohms and 100V. 6-Zones 100V. RMS1V Low Voltage Signal. Signal-to-noise ratio Mic: > 80 dB Line: > 85 dB Power supply 115/230V,DC24V4A 115/230V,DC24V8A 115/230V,DC24V16A 115/230V,DC24V24A Dimensions WxHxD 484*89*340mm 484*89*390mm
From the supplier
PRODUCT NAME:Audio power amplifier mixer amplifier, with BLUETOOTH, USB MP3 FM
Audio power amplifier mixer amplifier with BLUETOOTH, USB MP3 FM TUNER & DAB
Pa System mixer amplifier
1) 6-ZONE POWER AMPLIFIER ,INDEPENDENTLY SELECTABLE AND VOLUME CONTROLLED
2) INTEGRAL MEDIA PLAYER WITH FM TUNER, USB AND SD SLOT, DAB+ BLUETOOTH RECEIVER FOR AUDIO STREAMING
3) OVERLOAD PROTECTION
4) CHIME AND FIRE ALARM OVER ALL CHANNELS
5) ZONE VOLUME CANTROL OVER 6 STEPS
6) BASS/TREBLE PAGING
7) 3X MIC INPUTS AND 3 X LINE INPUTS
8)TELEPHONE PAGING
9) 19 INCH MOUNTING WITH THE BRACKETS PSSIBLE (2U)
10) EMERGENCY OPERATION BY 24V BATTERY (NOT SUPPLIED)
11) APPYING FOR ALL OF PULBIC ADDRESS SYSTEM
12) APPLYING FOR BGM SYSTEM
13) POWER SELECTION FROM 60W TO 360W AVAILABLECN
6-ZONE POWER AMPLIFIER
Zone 1-6(output) switches:
The 6-ZONE POWER AMPLIFIER lines(1-6) can be switched on and off by pressing the switches with the corresponding numbers, when the zone(1-6) is enabled, the green light on the corresponding switch will be illuminated. When the “ALL” Switch is pressed, all zone(1-6) outputs will be enabled.
Zone 1-6(output) level control:
The output level of different zone(1-6) can be adjust within a range of -15dB and 0dB by the band switches with the corresponding numbers.
Connecting the loudspeakers:
The 6-ZONE POWER AMPLIFIER should be connect to the euro terminal block connectors on the back of the device. First, the decision should be made which kind of loudspeakers will be used, between low impedance(4ohms) or constant voltage(100V/70V/...) depending on the projects requirements. It is only possible to use one (either constant voltage or low impedance) of both options at a time. For operating using the low impedance(4 ohms) output, any loudspeaker with a minimum impedance load of 4 ohms(that is 4 ohms or greater) can be used.
Technical data HY6060MB+BT HY6120MB+BT HY6240MB+BT HY6360MB+BT Output power 60W 120W 240W 360W Frequency response Mic: -3dB (200Hz~18KHz) Line: -3dB (100Hz~19KHz) T.H.D. at 1 kHz less than 1% Input sensitivity Mic Input: -40dB(10mV).Line:-8dB(400mV) Input interface MIC1,2,3/Line1:6.35mm/XLR. Line2&3:RCA. USB. SD. Bluetooth.FM radio Output interface 8Ohms and 100V. 6-Zones 100V. RMS1V Low Voltage Signal. Signal-to-noise ratio Mic: > 80 dB Line: > 85 dB Power supply 115/230V,DC24V4A 115/230V,DC24V8A 115/230V,DC24V16A 115/230V,DC24V24A Dimensions WxHxD 484*89*340mm 484*89*390mm
