Plate compactor
SHANDONG HUASHENG ZHONGTIAN ENGIEERING MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Plate compactor
SHANDONG HUASHENG ZHONGTIAN ENGIEERING MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier

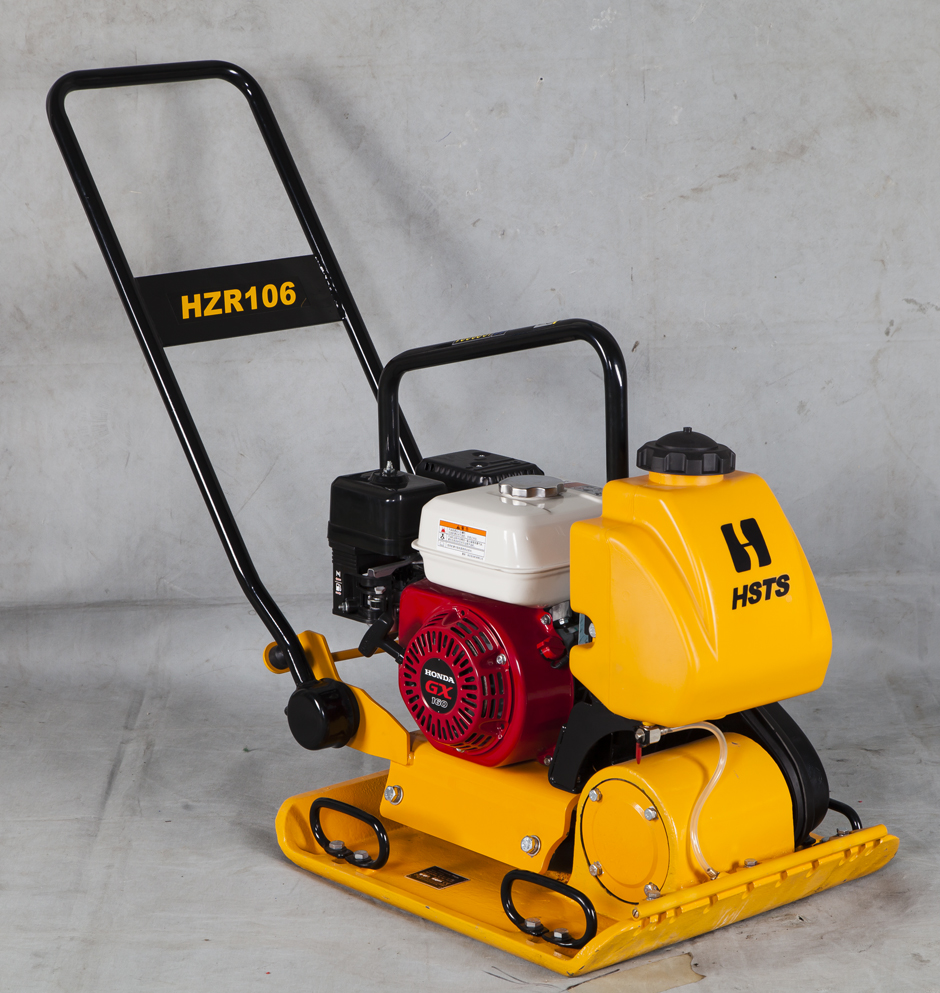

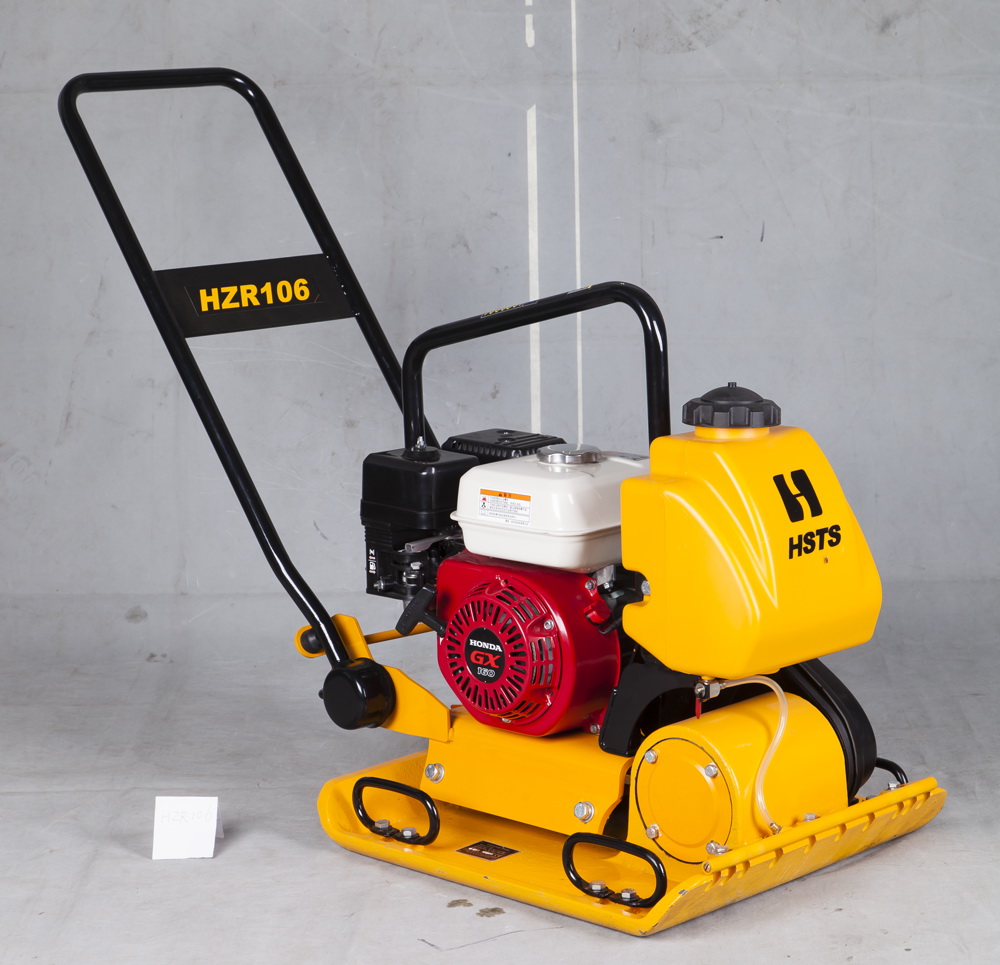

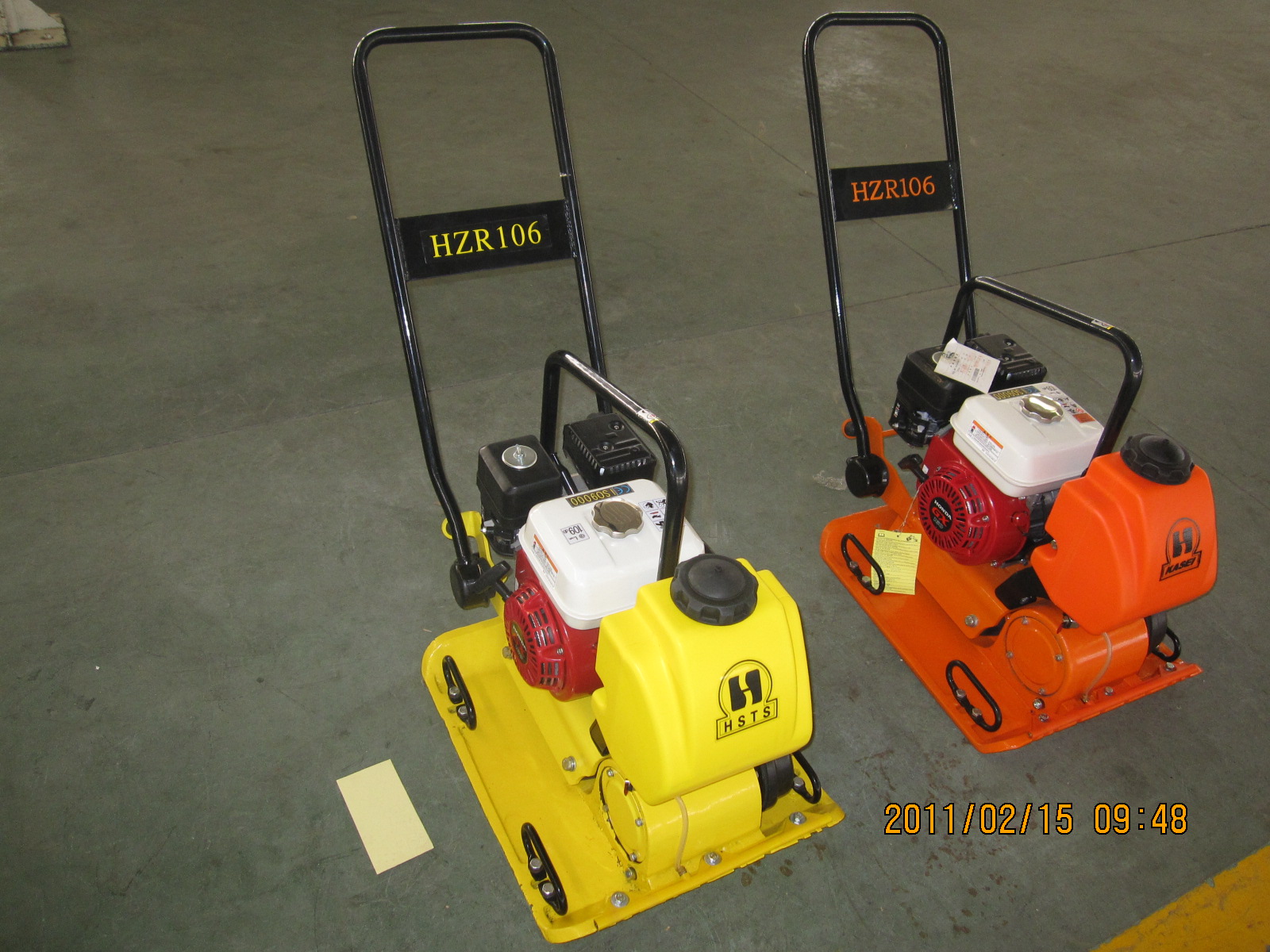

HZR106 Plate Compactor
Product CodeProduct Code
HZR106
Engine ModelEngine Model
Huasheng EX17/168F
Engine TypeEngine Type
Four-stroke, single cylinder, forced air-cooling
DisplacementDisplacement (cc)
163
Impact FrequencyImpact Number/min
90
Compaction DepthPress Depth (cm)
30 (1.5 ton)
Travel SpeedWalk Speed(m/min)
20
Clutch SpeedClutch Revolution (r/min)
2100
Working SpeedWork Revolution (r.min)
3600
Product SizeProduct size (mm)
835*548*705
Package DimensionsPacking size (mm)
1032*632*788
Net WeightNet Weight (kg)
106
Gross WeightGross Weight (kg)
126
Packaging MethodPacking
Plywood Packaging (Fumigation-Free) Plywood (fumigation free)
Product characteristics:
1、 Ductile iron base plate provides better durability.
2、The vibration mechanism and the power part are connected by a high-elastic natural rubber shock absorption column, which is durable and comfortable to operate.
3、The tamper plate is made of ductile iron with high mechanical properties, strong impact resistance and good wear resistance.
4、 Centrally located lifting bar allows easy transportation.
5、Sealed belt cover to prevent sand and soil in.
From the supplier
HZR106 Plate Compactor
Product CodeProduct Code
HZR106
Engine ModelEngine Model
Huasheng EX17/168F
Engine TypeEngine Type
Four-stroke, single cylinder, forced air-cooling
DisplacementDisplacement (cc)
163
Impact FrequencyImpact Number/min
90
Compaction DepthPress Depth (cm)
30 (1.5 ton)
Travel SpeedWalk Speed(m/min)
20
Clutch SpeedClutch Revolution (r/min)
2100
Working SpeedWork Revolution (r.min)
3600
Product SizeProduct size (mm)
835*548*705
Package DimensionsPacking size (mm)
1032*632*788
Net WeightNet Weight (kg)
106
Gross WeightGross Weight (kg)
126
Packaging MethodPacking
Plywood Packaging (Fumigation-Free) Plywood (fumigation free)
Product characteristics:
1、 Ductile iron base plate provides better durability.
2、The vibration mechanism and the power part are connected by a high-elastic natural rubber shock absorption column, which is durable and comfortable to operate.
3、The tamper plate is made of ductile iron with high mechanical properties, strong impact resistance and good wear resistance.
4、 Centrally located lifting bar allows easy transportation.
5、Sealed belt cover to prevent sand and soil in.
About the supplier
Main products: Farming Equipment,Plate Compactors,Fire Fighting Machinery,Other Civil Construction Engineering Machinery
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2004
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2004
- Canton Fair Premium Supplier
