Process line General Description: With the growing variety of pet food, the demand for pet food and the market demand is increasing, and our company has developed various pet food lines and processing line based on the market demand. According to the variety of products, our production line covers various configurations such as staple foods, snacks, toys. By changing parameters such as raw materials, temperature, humidity, etc. Parameters, new style foods, rich in nutrients, perfect textures, can meet the needs of different animals for adaptability and better taste.
Application: pet food, chew food, pet treat.
Capacity: 500 kg / h or less, 800 ~ 1200 kg / h, 1500 ~ 2500 kg / h, 2500 ~ 3500 kg / h and 4500 kg / h ~ 6000 kg / h.
Flow chart:

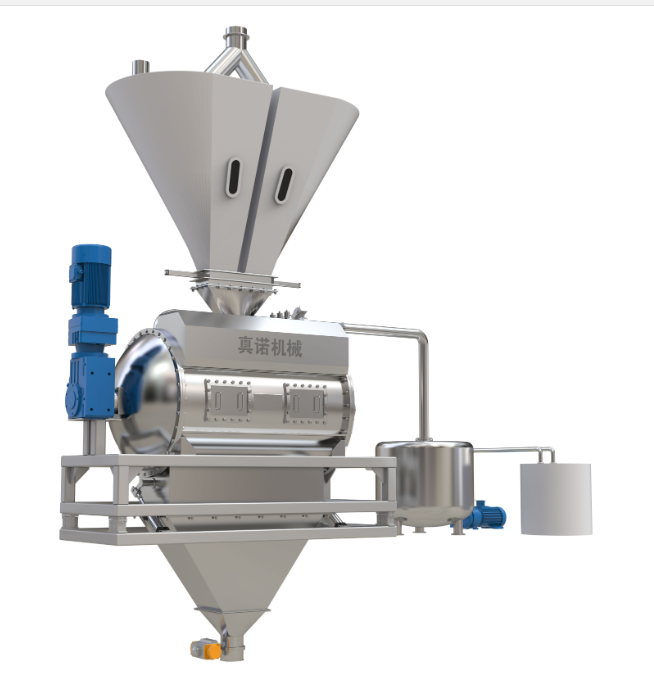

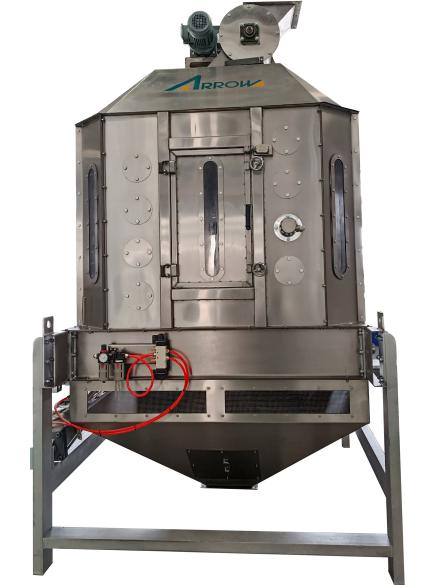

Our engineer could design the layout drawing according to your dimension of the factory for the fish feed production line. grinding→mixing→extruding→drying→flavoring→cooling→packaging Main equipments Description Name material dosing system Usage To prepare raw materials at set ratio and mix the raw materials automatically, controlled by computer. Capacity 500kg/h-6000kg/h Raw

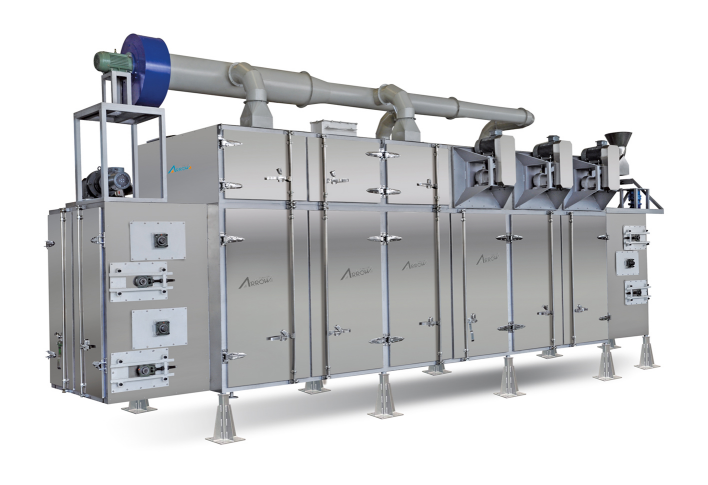

material stainless steel Name AYT series twin screw extruder Usage To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould Capacity 500kg/h-6000kg/h Raw material Stainless steel/Carbon steel Name Dryer Usage To dry the feed pellets produced by the extruder at high temperature to remove part of the water Capacity 500kg/h-6000kg/h Raw material Stainless steel/Carbon steel Core characteristic

Intelligent Twin Screw Configuration Details

1. The screw is a combination modular structure, which can be assembled in any combination to meet different formula and product requirements. 2. The screw and the screw pieces are made of special alloy with high strengh and high wear resistance.
3. The screw adopts fully engaged model, designed by 3D design, CNC machining, smooth surface, high conjunction accuracy, and better self- cleaning function, changing parts flexible.
4. The barrel is a combination of modular circular structure. Increased ( or reduced) is very flexible and convenient.
5. Heating and cooling medium circulation of the internal are optimized to ensure that the temperature control is sensitive and the internal and external temperature difference is small.
6. Heating and cooling medium of each barrel can be controlled independently.
7. Bushing with wear- resistant alloy material, long using life. Strong Gearbox The gearbox is a hard-toothed gear transmission designed specifically for co-rotating parallel twin-screw extruders based on the design concepts and methods of German and Austrian counterparts. This series of products have novel and beautiful appearance, compact and reasonable structure, low noise index, strong carrying capacity, high dispatching efficiency, and can meet long-term trouble-free operation. The oil leakage rate is less than one thousandth, and the life of main parts is more than 50,000 hours. PLC control system touch screen 1.Adopt multi-user management, set password operation authority management parameters 2. HMI man-machine interface, man-machine interactive interface, the user can modify all parameters and complete various operating instructions by touching the touch screen. 3. The memory storage function of various parameter settings for users to use 4. The system has alarm processing, alarm data viewing, and shutdown protection functions, such as ordinary failure shutdown, special failure emergency shutdown, etc., which can better protect equipment and simplify shutdown procedures. Product packaging &delivery Company Introduction Since its establishment in 2006, Shandong Arrow Machinery Co., Ltd. has developed into one of the largest manufacturers of puffed food machinery in China. Among them, the Jinan factory covers an area of 20,000 square meters with 6 workshops, and the Jiyang factory covers an area of 50,000 square meters with 2 workshops and a food research and development center. There are more than 80 sets of processing equipments and more than 30 sets of experimental equipments. Shandong Arrow Machinery Co., Ltd. is a company specializing in R&D, production, sales, application promotion of food engineering projects. As a professional food processing equipment &whole plant engineering problem solvers in China, machines served for more than 970 companies, export to 116 countries, more than 20 years engineering team. We aim to create a great future together with global customers.
* More than 20 years experience
* Professional design,fabrication,installation team
* Professional R&D center FAQ Q: What kinds of products can be made?
A: corn flakes, puffs, breakfast cereals food, animal feed, animal feed, soy protein texture food.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product, so machine wash-change.
Q: What about the installation service?
A: Depending on the whole line of equipment price list, it usually takes 2-3 weeks. We will provide you with installation instructions, such as start, as well as their operation machines for quality control, testing of different recipes.
Q: What is the warranty period for using the device?
A: 1 year for auger and cylinder due to modular design, changing the wearing parts will be OK, unlike a full set of screws, no
need to change the whole set.
