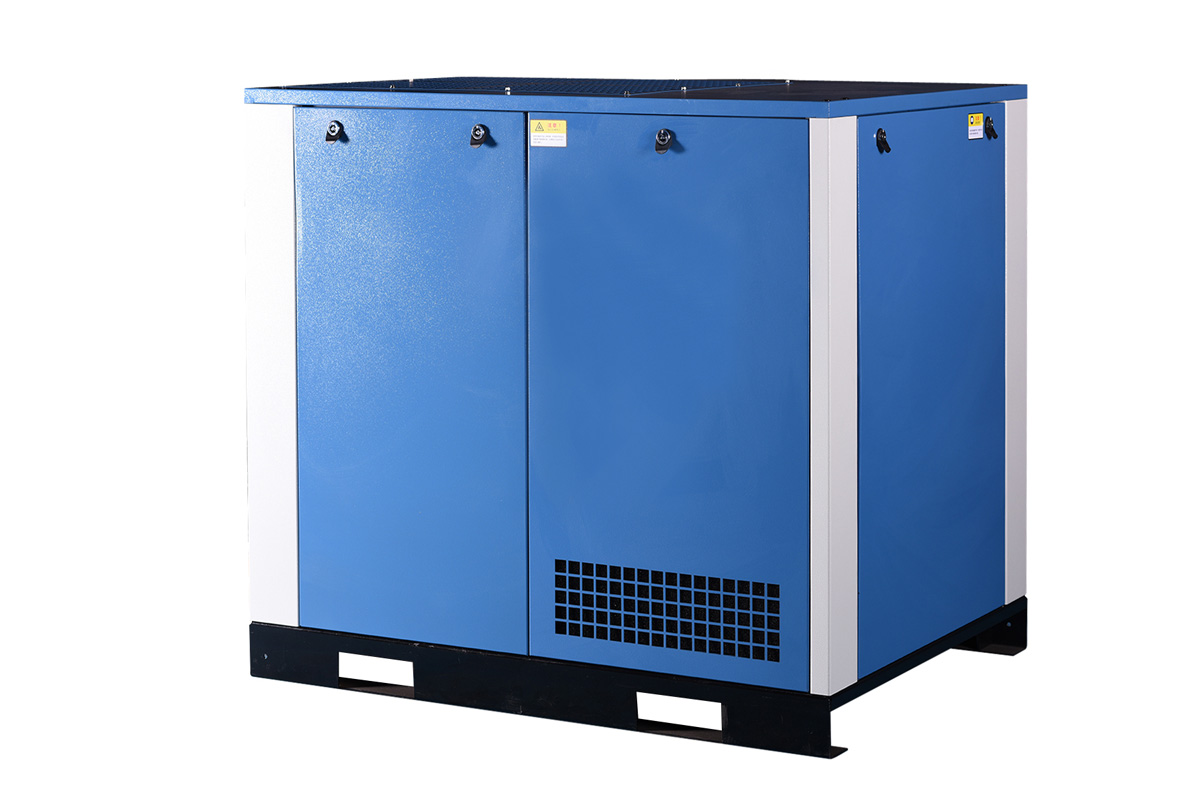

Permanent-magnetic motor drive screw compressor_LD-50PM
LIDA (CHINA) MACHINE EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Permanent-magnetic motor drive screw compressor_LD-50PM
LIDA (CHINA) MACHINE EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 1300*1000*1210
- Color: blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Size: 1300*1000*1210
- Color: blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Size | 1300*1000*1210 |
|---|---|
| Color | blue |
Product details
| Size | 1300*1000*1210 |
|---|---|
| Color | blue |
From the supplier
Permanent-magnetic motor drive screw compressor
To improve variable speed control
To increase the efficiency of compressor operation
To reduce the running costs
To reduce for the overall dimensions and installation space
To eliminate the losses of speed multi plying systems.
Low capital and low operation cost
Advanced motor control technology
Industrial grade electrical compenents
outstanding reliability
Stable motor torque control
Proportional motor speed control as per variable air pressure
20%-110% wide motor load control range
Digital control panel
Monitoring & control key compressor functions
Protects compressor in the event of faults
Provide service required information
Sequencing of up to 8 compressors
Comfortable touch panel
RS 485 interface
Design Features
Full side open cabinet structure for easy maintenance
316 stainless steel control tubing increase reliability due to corrosion free
High efficiency IE4 grade permanent-magnetic motor
Long operation life, lower power use
Optional IP55 motor provider for dust
Easy maintenance
Cartridge type oil separator and oil filter
Simple internal structure
For stable running and reliability
ProductPowerWorking
pressureCapacityDrivenWeightDimensionAir
OutletModelKw Hpbargm³/minkglbsLxWxH (mm)bsp Standard Package (380v, 50/60hz,)LDE-10PM7.51080.3 - 1.3Direct 240529900x650x950R3/4"LDE-15PM11150.45 - 1.8300662900x750x1150R3/4"LDE-20PM15200.6 - 2.3330728900x750x1150R3/4"LDE-30PM22300.85 - 3.43708161150x895x1150R1"LDE-50PM37501.5 - 6.150511141300x1000x1210R1-1/2"LDE-75PM55752.4-9.395020951900x1300x1600R2"LDE-100PM751004.0 - 14100022051900x1300x1600R2"
From the supplier
Permanent-magnetic motor drive screw compressor
To improve variable speed control
To increase the efficiency of compressor operation
To reduce the running costs
To reduce for the overall dimensions and installation space
To eliminate the losses of speed multi plying systems.
Low capital and low operation cost
Advanced motor control technology
Industrial grade electrical compenents
outstanding reliability
Stable motor torque control
Proportional motor speed control as per variable air pressure
20%-110% wide motor load control range
Digital control panel
Monitoring & control key compressor functions
Protects compressor in the event of faults
Provide service required information
Sequencing of up to 8 compressors
Comfortable touch panel
RS 485 interface
Design Features
Full side open cabinet structure for easy maintenance
316 stainless steel control tubing increase reliability due to corrosion free
High efficiency IE4 grade permanent-magnetic motor
Long operation life, lower power use
Optional IP55 motor provider for dust
Easy maintenance
Cartridge type oil separator and oil filter
Simple internal structure
For stable running and reliability
ProductPowerWorking
pressureCapacityDrivenWeightDimensionAir
OutletModelKw Hpbargm³/minkglbsLxWxH (mm)bsp Standard Package (380v, 50/60hz,)LDE-10PM7.51080.3 - 1.3Direct 240529900x650x950R3/4"LDE-15PM11150.45 - 1.8300662900x750x1150R3/4"LDE-20PM15200.6 - 2.3330728900x750x1150R3/4"LDE-30PM22300.85 - 3.43708161150x895x1150R1"LDE-50PM37501.5 - 6.150511141300x1000x1210R1-1/2"LDE-75PM55752.4-9.395020951900x1300x1600R2"LDE-100PM751004.0 - 14100022051900x1300x1600R2"
