About this product
- Materials: ABS
- Size: 135
- Color: white
- Exports to: Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: ABS
- Size: 135
- Color: white
- Exports to: Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | ABS |
|---|---|
| Size | 135 |
| Color | white |
Product details
| Materials | ABS |
|---|---|
| Size | 135 |
| Color | white |
From the supplier
Description
This model series has a high –quality 2 ways coaxial speaker this 2ways coaxial speaker has a very wide band basic membrane with a separate high toner integrated .
This coaxial speaker fulfills the professional demand for sound pressure and tone reproduction
Maximum capacity 50W
A high quality matching 100v transformer or 12db Crossover suppliers best music and speech quality
This speaker has the most modern and easy fitting method a quick fastening clasp
It sets new standards in security and easiness
Four screws to mount or dismount and lifting off the grille (with a screwdriver) is all that is necessary
Features as below consider ;
Modern ,discreet design with a rim height of approx 2mm

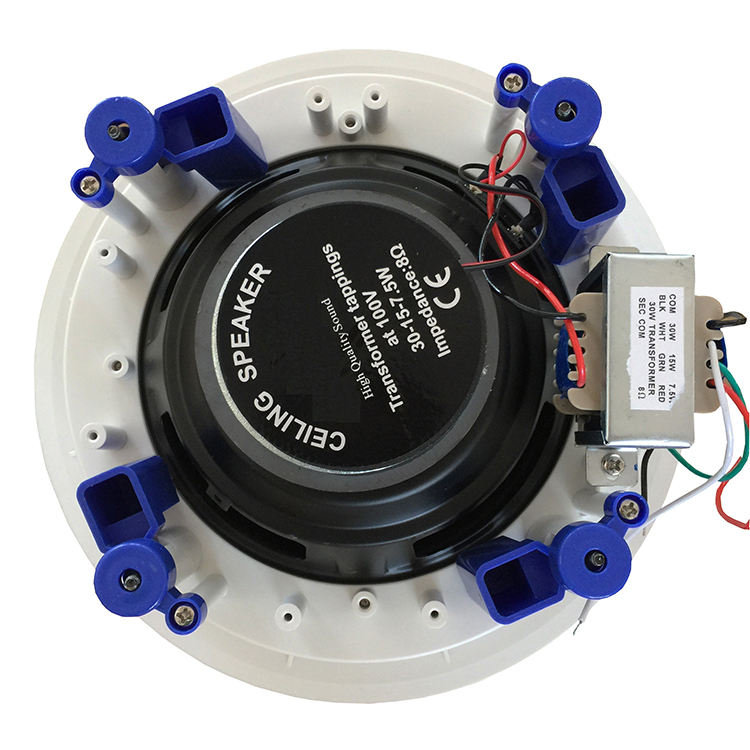

The speaker is available impregnated ,with a specially prepared chassis and matching transformer
With frameless grills and high magnetism grilles on the top of speaker
For those of high end quality ceiling speaker with hifi sound range for 12db crossover build
And 100v line transformer with 8ohm to select the power for ohms or volts
Technical data
HSR108-4T
HSR108-5T
HSR108-6T
HSR108-8T
Load rating
10W
20W
30W
40W
Transformer tappings
10-5-2.5W
20-10-5W
30-15-7.5W
40-20-10W
Frequency range
100-20KHz
70-20KHz
50-20KHz
40-20KHz
SPL(@1W/m)
86dB
88dB
90dB
92dB
Speaker Ø and Impedance
4” ; 2-way
5 1/4”, 2-way
6 1/2” ; 2-way
8” , 2-way
Dimension Ø,Install depth
Ø170(60)m
Ø202(78)mm
Ø238(86)mm
Ø276(93)mm
Install dimension
Ø135
Ø166mm
Ø202mm
240 mm
Material, Colour
ABS white
ABS white
ABS white
ABS white
Technical data
HSR108-4C
HSR108-5C
HSR108-6C
HSR108-8C
Load rating
10W
20W
30W
40W
Frequency range
100-20KHz
70-20KHz
50-20KHz
40-20KHz
SPL(@1W/m)
86dB
88dB
90dB
92dB
Speaker Ø and Impedance
4 inch / 8ohms
5 ¼ inch / 8ohms
6 ½ inch / 8ohms
8 inch / 8ohms
Tweeter
½ inch mylar
½ inch mylar
½ inch mylar
½ inch mylar
Dimension Ø, install depth
Ø170 (60) mm
Ø202 (82) mm
Ø238 (87) mm
Ø276 (95) mm
Install dimension
Ø135
Ø166mm
Ø202mm
239 mm
Colour
ABS white
ABS white
ABS white
ABS white
HSR108 C OR T series.pdf
