About this product
- Materials: aluminium parts
- Size: 1225*720*490
- Color: BLACK COLOR
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: aluminium parts
- Size: 1225*720*490
- Color: BLACK COLOR
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | aluminium parts |
|---|---|
| Size | 1225*720*490 |
| Color | BLACK COLOR |
From the supplier

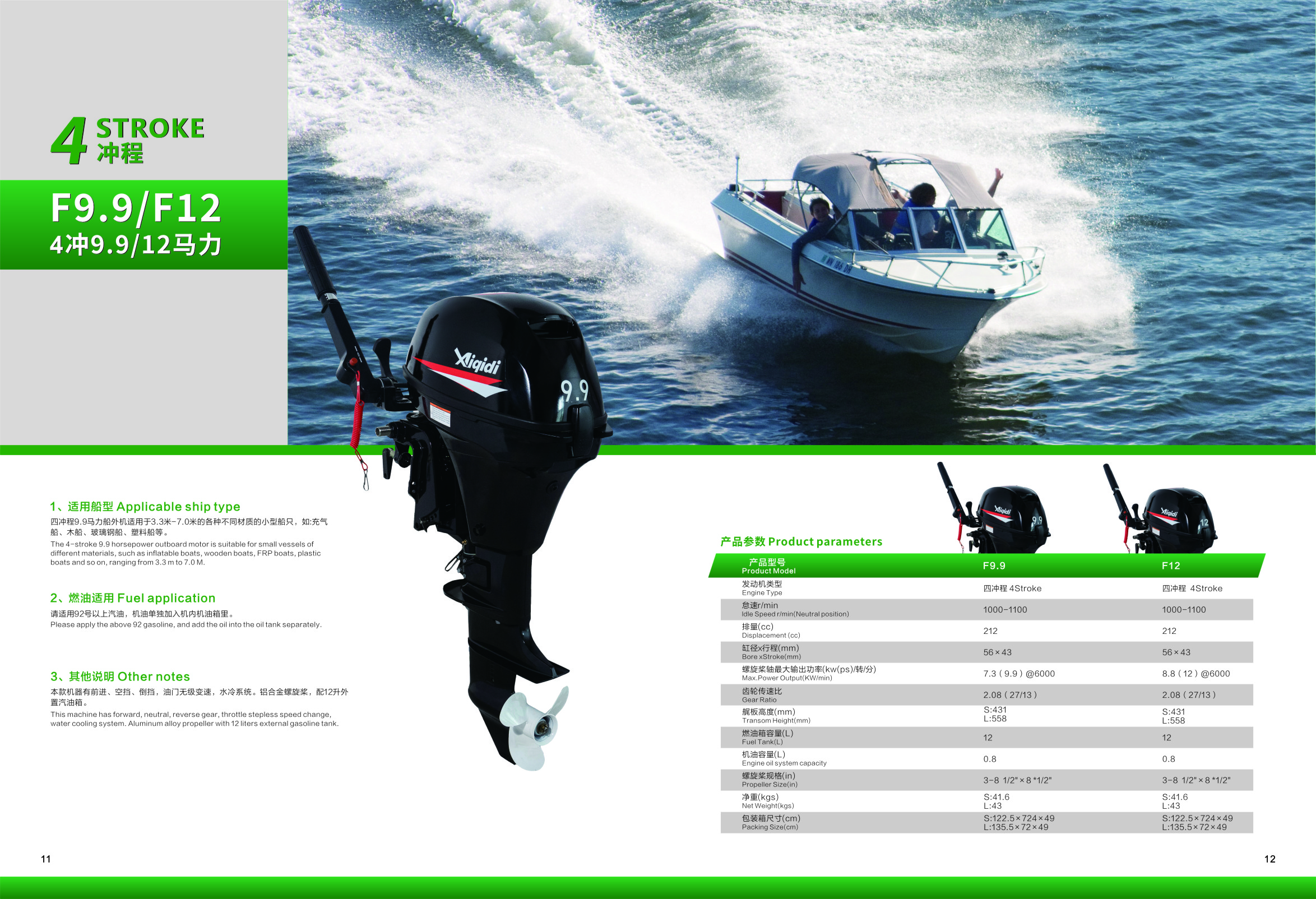

Product modelF12Engine type4 Stroke ,2 cylinder gasoline engineIdle speed r/min(Neutral position)1000-1100r/minDisplacement (cm³）212cm³Bore ×Stroke(mm)56.0mm×43.0mmMax.Power Output(KW/r/min)8.8(12)@6000Gear ratio2.08(27/13)Transom Height(mm)S:431 L:558Fuel tank(L)12LPropeller Size(in)3-8 1/2×8 1/2G.W/N.Weight(KG)S:49/40kgs L:50/41kgsPACKING SIZE(mm)S:1240×725×535 L:1370×725×535
Specifications and requirements
Specifications
TIP:
“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.
Dimension and weight:
Overall length:983 mm (38.7 in)
Overall width:357 mm (14.1 in)
Overall height S:1008mm (39.7 in)
Overall height L:1135mm (44.7 in)
Motor transom height S:431 mm (17.0 in)
Motor transom height L:558 mm (22.0 in)
Dry weight (AL) S:40 KG (88 lb)
Dry weight (AL) L:41KG (90lb)
Performance:
Full throttle operating range:5000-6000 r/min
Rate power:7.3 KW(9.9hp)
Idle speed (in neutral):1000-1100 r/min
Power unit:
Type:4-stroke SOHC L2 4 valves
Total displacement:212 cm3 (12.9 c.i. )
Bore×stroke:56.0×43.0 mm (2.2×1.69 in)
Ignition system:CDI
Spark plug (NGK):BR6HS-10
Spark plug gap:0.9-1.0 mm (0.035-0.039 in)
Steering system:Tiller handle
Starting system:Manual starter
Starting carburetion system:Choke valve
Valve clearance IN (cold engine):0.15-0.20 mm (0.0059-0.0079 in)
Valve clearance EX (cold engine):0.20-0.25 mm (0.0079-0.0098 in)
Lower unit
Gear shift positions:Forward-neutral-reverse
Gear ratio:2.08 (27/13)
Trim and tilt system:Manual tilt
Propeller mark:8 1/2 x 8 1/2
Fuel and oil:
Recommended fuel:Regular unleaded gasoline
Unleaded gasoline
Min. research octane number (RON):90
Fuel tank capacity:12 L (3.17 US gal. 2.64 Imp. gal)
Recommended engine oil:4-stroke outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter replacement):
0.8 L (0.85 US qt, 0.7 lmp. qt)
Lubrication system:Wet sump
Recommended gear oil: Hypoid gear oil
Recommended gear oil grade:SAE 90 API GL-4
Gear oil quantity:0.150 L (0.159 US qt, 0.132 Imp. qt)
Tightening torque:
Spark plug: 24 Nm (2.45 kgf-m,17.7ft-lb) Propeller nut:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Engine oil drain bolt:24 Nm (2.45 kgf-m,17.7 ft-lb)
