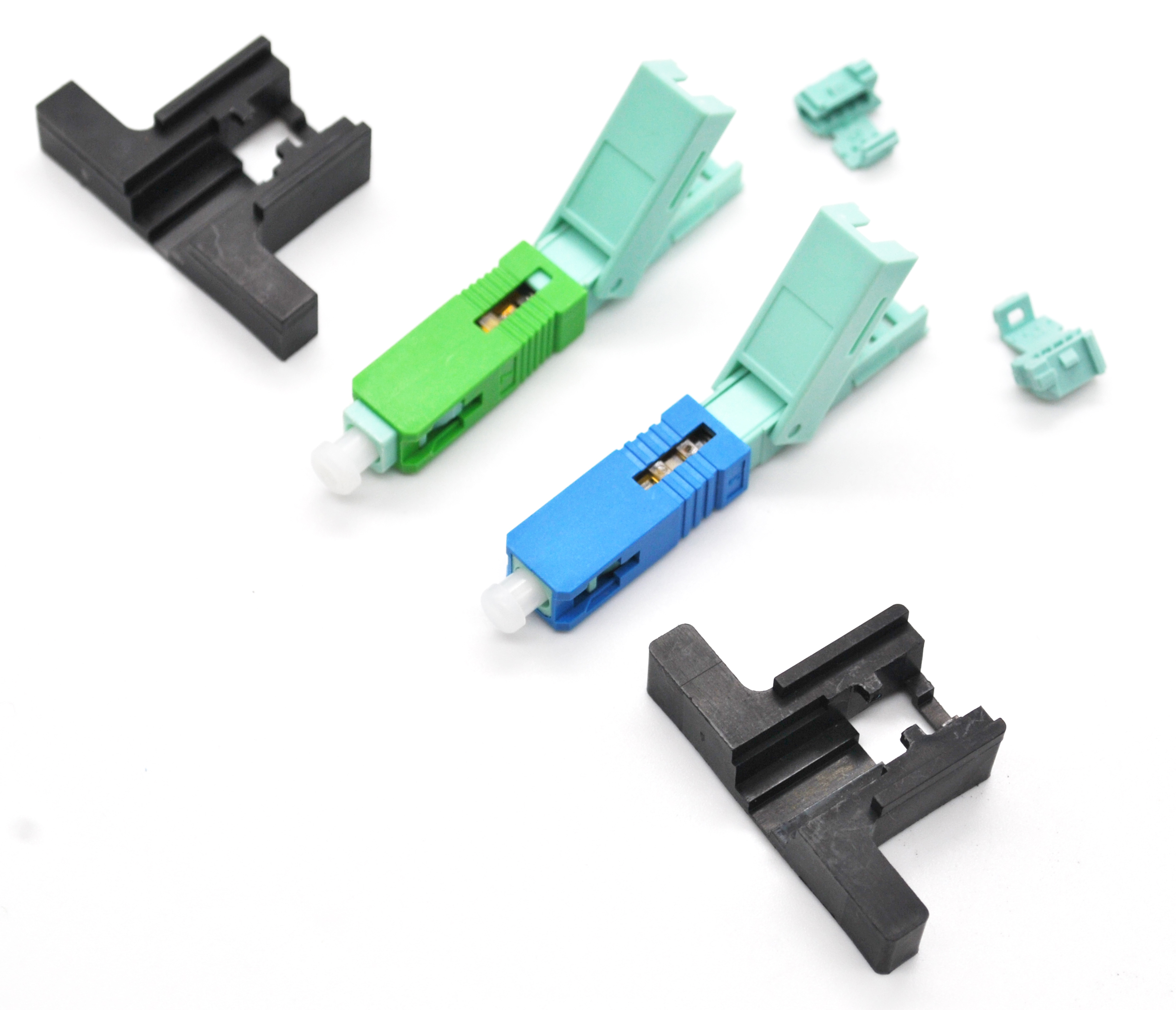

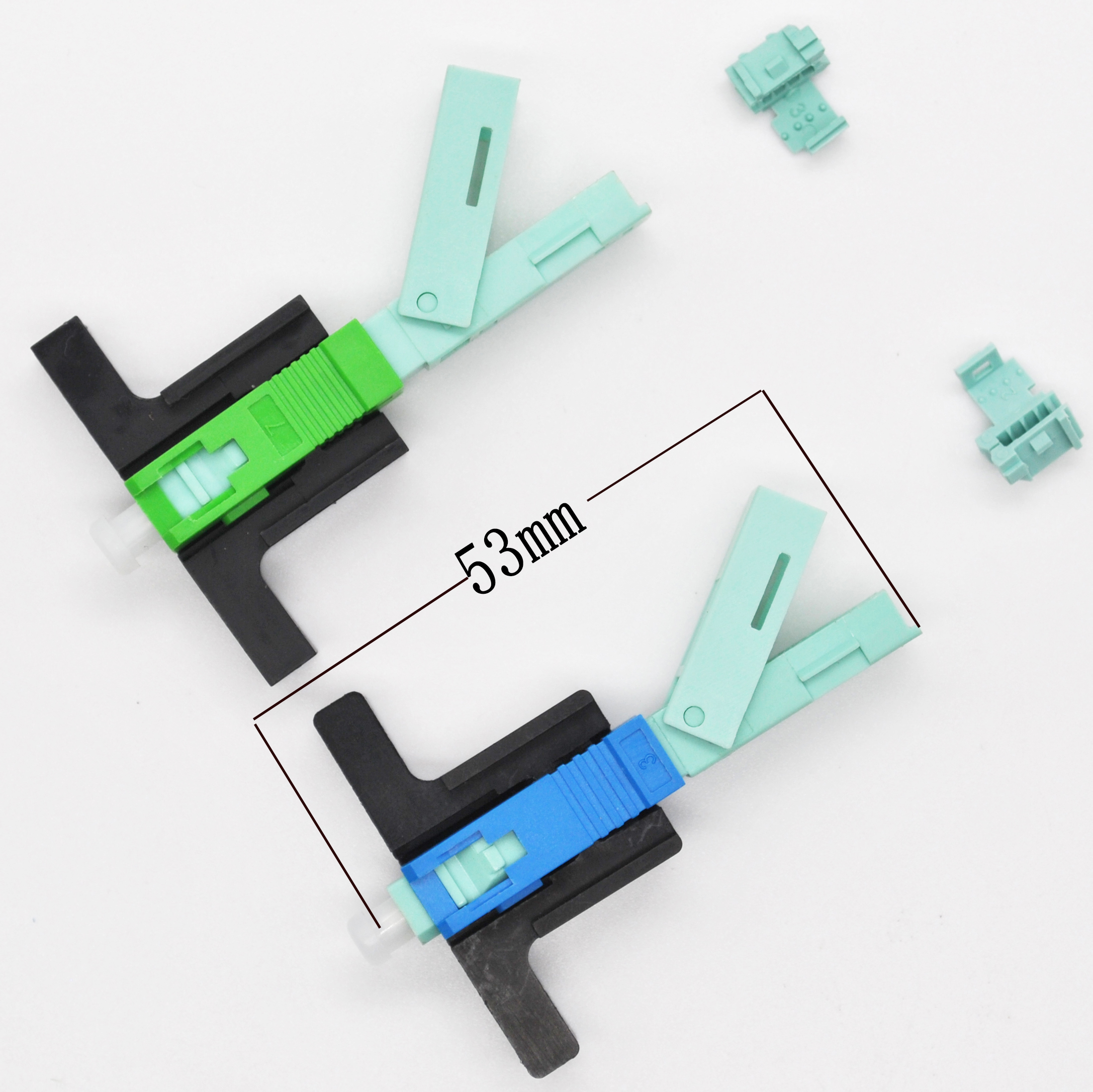

Optical fiber fast connector
Zhuhai Zhanquan Electronic Technology Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Optical fiber fast connector
Zhuhai Zhanquan Electronic Technology Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Planting machine type: Other
- Sowing: Other
- Application field: Other
- Function: Other
- Power source: Other
- Mechanization: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Planting machine type: Other
- Sowing: Other
- Application field: Other
- Function: Other
- Power source: Other
- Mechanization: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Planting machine type | Other |
|---|---|
| Sowing | Other |
| Application field | Other |
| Function | Other |
| Power source | Other |
| Mechanization | Other |
Product details
| Planting machine type | Other |
|---|---|
| Sowing | Other |
| Application field | Other |
| Function | Other |
| Power source | Other |
| Mechanization | Other |
From the supplier
Connector Type
SC/APC-SC/UPC
ROHS
Connector Angle
UPC/ sphere、APC/8°
Fiber Type
Single mode
Pre-Embedded Fiber Type
G657-
Compatible Drop Cable Diameter
3.0*2.0mm/0.9mm
Diameter of Ceramic Core
2.499±0.0005mm
Concentricity of Ceramic Core
≤1um
Material of Plastic Parts
Main-body(PBT/PC) Inner-core(PEI) Dust Cap(PE )
Spring Material
SUS304
5. Function and performance parameters
Parameters
Requirement
Remarks
Operating Wavelength
1260~1650nm
Insertion Loss
0.3dB(Typical);0.5dB(Max.)
Return Loss
UPC≥45dB. APC≥50dB
Repeatablity
100 repetitions(IL≤0.3dB)
Tensile strength
≥40N(IL≤0.3dB)
Operation Time
About 2min
Reusable
≥10times
Operating Temperature
-40~85℃
Storage Temperature
-40~85℃
Operation Humidity
≤95%(+30℃)
Type of Assembly
Mechanicalmechanical
From the supplier
Connector Type
SC/APC-SC/UPC
ROHS
Connector Angle
UPC/ sphere、APC/8°
Fiber Type
Single mode
Pre-Embedded Fiber Type
G657-
Compatible Drop Cable Diameter
3.0*2.0mm/0.9mm
Diameter of Ceramic Core
2.499±0.0005mm
Concentricity of Ceramic Core
≤1um
Material of Plastic Parts
Main-body(PBT/PC) Inner-core(PEI) Dust Cap(PE )
Spring Material
SUS304
5. Function and performance parameters
Parameters
Requirement
Remarks
Operating Wavelength
1260~1650nm
Insertion Loss
0.3dB(Typical);0.5dB(Max.)
Return Loss
UPC≥45dB. APC≥50dB
Repeatablity
100 repetitions(IL≤0.3dB)
Tensile strength
≥40N(IL≤0.3dB)
Operation Time
About 2min
Reusable
≥10times
Operating Temperature
-40~85℃
Storage Temperature
-40~85℃
Operation Humidity
≤95%(+30℃)
Type of Assembly
Mechanicalmechanical
