Factory price soyabean groundnut peanut palm kernel coconut sunflower seed mustard seed canola castor seeds small automatic screw oil press expeller machine oil extraction equipment



Screw Oil Press Machine Structure

Feeder: It is composed of feeder, feeder flange, etc.Pressing cage: It is composed of upper and lower pressing cages, roll bar, pressing rings, cake output ring and pressing screws, etc.Gear Box: It is composed of gear box, stainless steel cover, clinder gear, driving axis, rolling bearing, triangle belt wheel, etc.Stand: It is composed of base, stand, screw nut. The base is the basic component for the assembling and installtion of the entire oil mill. In addition to support the whole machine parts, stand also works as a cookie outlet.Screw Axis: It is composed of screw axis, pressing screw, cake guide ring, press nut, adjusting bolt and planer bearing, etc.

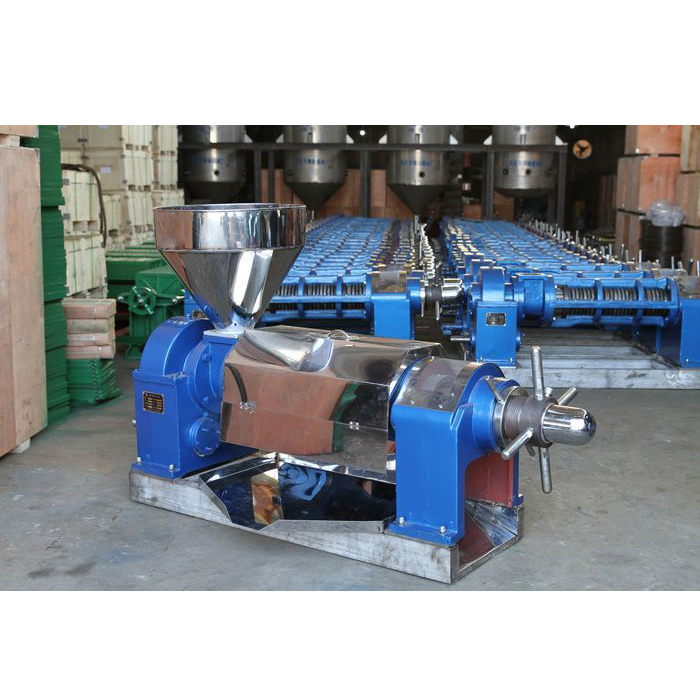

YZS series screw oil press with CE, ISO9001:2000 certificate is the screw type equipment which is widely used for plant oil. This oil expeller has advantage of high efficiency, high output, low energy consumption and labor cost. Adjustable feed system and innovation screw are equipped; this machine is mainly composed with complex alloy steel and castings, which ensure its longtime continuous stable workding,And by its simple design, it is easy to operate and maintain.


Small Oil Extraction Machine Features



Technical Data of YZS Series Oil Press MachineModelCapacity(T/24H)Power(KW)Dimensions(MM)Weight(KG)YZS-680.8-15.5920*390*750150YZS-851.4-25.51200*400*900200YZS-9047.51540*510*680370YZS-9557.51920*550*765480YZS-1004-5111910*610*765550YZS-1055-7152140*550*765580YZS-1206151970*700*780680YZS-1287-9152010*600*1170685YZS-1309-1218.52320 *700 *780820YZS-16515-2022-302290*750*10201600



Raw Materials Small Oil Expeller Machine can Process

The screw oil press machine is designed to extract oil from a very wide range of oil-bearing seeds, including soybean, peanut/groundnut, sesame seed, sunflower seed, niger seed, palm kernel, cottonseed, flaxseed, moringa seed, hemp seed, black cumin seed, mustard seed, coconut/copra, rice bran, corn germ and more.



Small Oil Press Machine Setup Mini Oil Mill Plant



Small Oil Extraction Machine Spare Parts

Screw Oil Press Machine Factory



Turnkey Project of Vegetable Oil Processing Plant



Packaging and Delivery of Oil Press Machine

Factory Price Oil Press Machine

Screw Oil Press Machine Certifications

Customer Visits for Small Oil Press Machine
