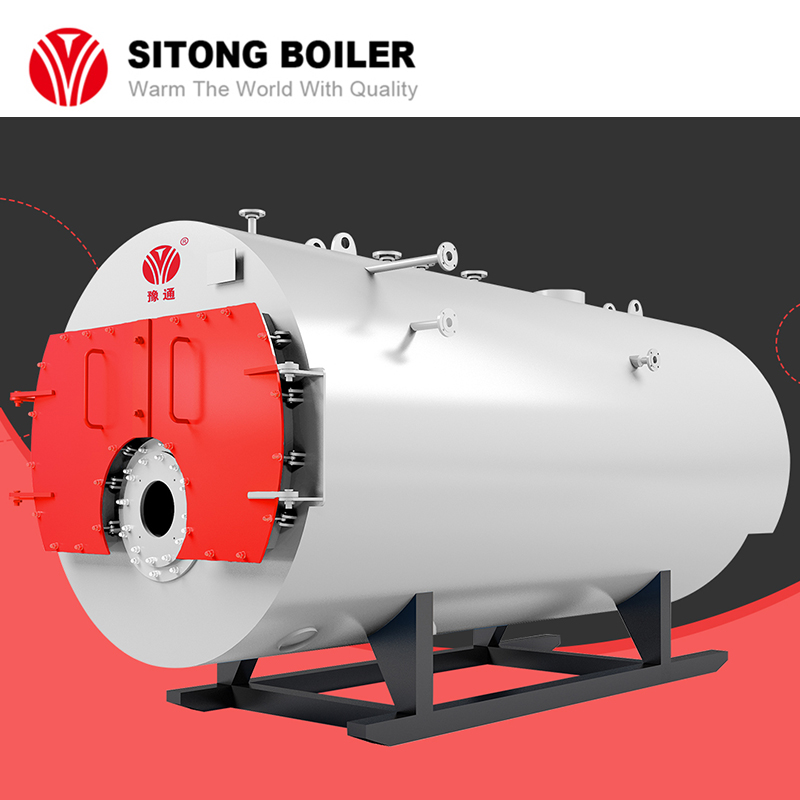

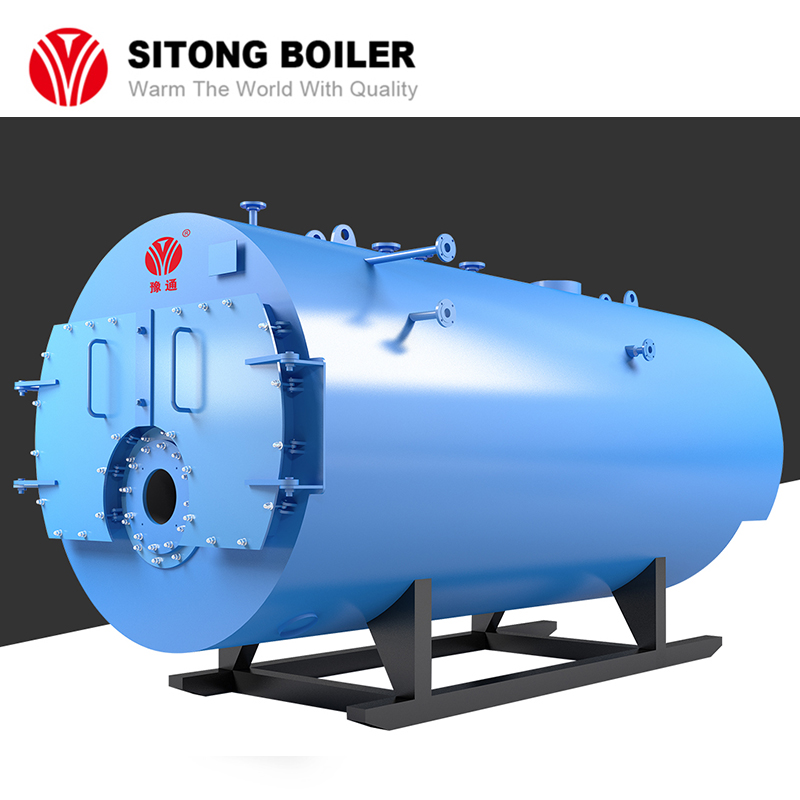

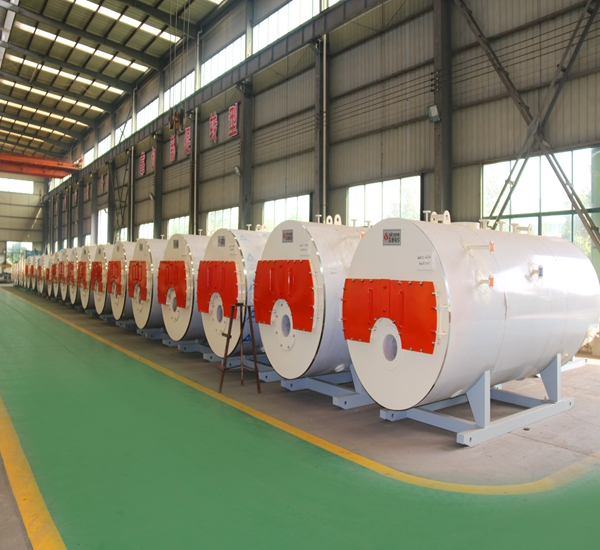

WNS series oil gas fired condensing boiler is a kind of safe and high efficiency heating equipment with full automatic control system. It is the patent products of Sitong Boiler, the patent number is 2014 2 0504448.2. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet back structure, it can adapt to high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

Characteristics of Condenser

1. By equipped with the condenser (economizer) at the tail of the boiler, make full use of flue gas heat, decrease the exhaust smoke temperature, improve the thermal efficiency to 98%.

2. The condenser uses fanned tubes to increase the heating surface, improve heat transfer efficiency.

3. The fanned tube adopts stainless steel to avoid low temperature corrosion.

Performance Advantages

1. High Efficiency

1) Equipped with high quality and reliable burner, high combustion efficiency, low harmful gas emission and noiseless operation.

2) Adopts horizontal type three pass structure, absorbs the thermal expansion effectively. Uses large diameter corrugated furnace, large combustion space, high combustion efficiency.

3) The spirally corrugated tube strengthen the disturbance of flue gas, high heat transfer efficiency.

4) The boiler shell use aluminium silicate board for heat preservation, low heat loss.

5) Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency could be increased to as high as 98%.

2. High Safety Performance

1) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

2) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, safety valve, etc.

3) Equipped with explosion proof equipment, discharge high energy when deflagration happened in furnace, to ensure the boiler operate safety and efficiently.

3. Full Automatic Control

Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

4. Low Cost

1) Adopts proprietary technology of Sitong Boiler, the boiler is 100% butt welding, high quality, and long working life, low maintenance fee.

2) The boiler has high combustion efficiency，energy saving, and low cost on fuel.



5. Save Space

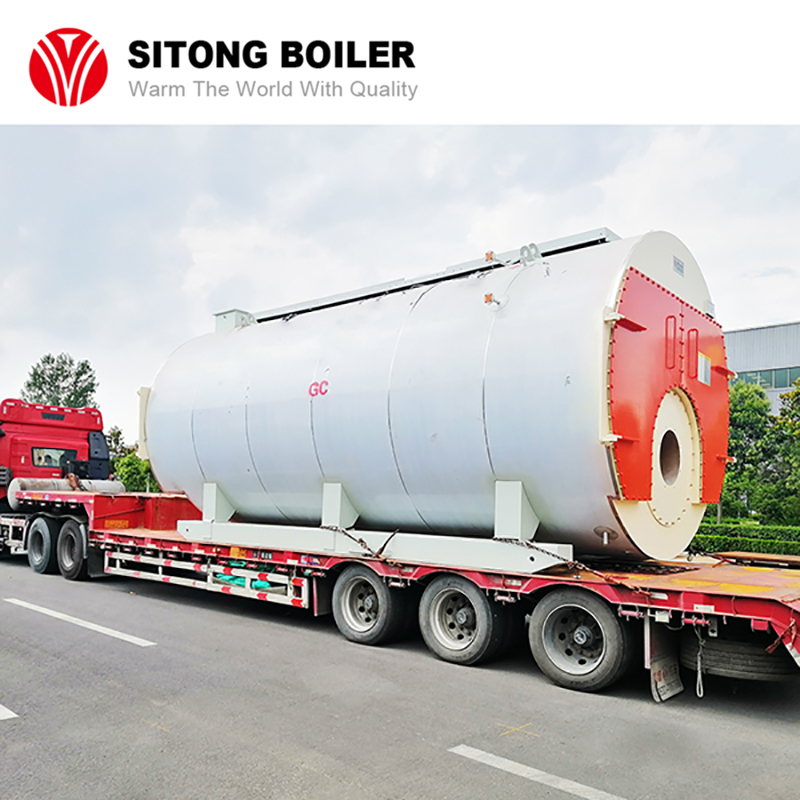

Adopts fast assemble structure, compact structure, convenient for transportation, small occupation.



6. Convenient Maintenance

1) There are manhole, head hole, and special hand hole on the boiler. The front and back smoke chambers are equipped with movable doors, convenient for boiler internal installation, inspection and clean.

2) The explosion proof door has the fire sight glass and inspection gallery, convenient for furnace checking and maintaining.

Parameter

Steam Boiler

Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

 (％)

Fuel consumption

Overall dimension

 (m)

Weight

(t)

Body Heating

Area (m2)

Light oil (Kg/h)Natural gas (Nm³/h)WNS1-0.7/1.0-Y(Q)10.7/1.0>9066.5753.6×2.0×2.0425WNS2-1.0/1.25-Y(Q)21.0/1.25>90.21331504.8×2.5×2.46860WNS4-1.0/1.25-Y(Q)41.0/1.25>912663005.8×2.85×2.813113WNS6-1.25/1.6-Y(Q)61.25/1.6>91.53994507.25×3.1×3.1519181WN8-1.25/1.6-Y(Q)81.25/1.6>91.65326007.45×3.26×3.222.6190WNS15-1.25/1.6-Y(Q)151.25/1.6>91.899711258.7×3.7×3.534346WNS20-1.25/1.6-Y(Q)201.25/1.6>921204141810×3.6×4.045467Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

Hot Water Boiler

ModelRated Power (MW)Working Pressure (MPa)Efficiency (%)Fuel consumptionWeight (kg)

Overall Dimension

 Length×Width×Height (mm)

Light Oil (kg/h)LNG (Nm3/H)CG (Nm3/H)WNS 1.05-95/70-Y(Q)1.050.791~9398.5119.4253.734003500×1800×2050WNS 1.75-95/70-Y(Q)1.751.091~93164.2198.9422.848004500×1950×2300WNS 2.1-95/70-Y(Q)2.11.091~93197238.7507.366824800×2000×2500WNS4.2-95/70-Y(Q)4.21.091~93394477.51014.6124007850×2750×3460WNS7-95/70-Y(Q)71.091~93656.7795.81691153008600×3770×4150

Note: 1. The hot value of LNG: 8500kal/Nm3, hot value of light oil: 10300kal/Nm3, hot value of the city coal gas: 4000kal/Nm3

2. Parameter is for reference, if any changes, should follow the actual drawing.
