SpecificationsAbrasive MaterialAluminum Oxide, Silicon CarbideAttachment TypeInstall with angle grinder useBrandXinsiluCenter Hole Diameter (Imperial)5/8 in, 7/8 inCenter Hole Diameter (Metric)16 mm, 22 mmProduct FormAbrasive DiscDensity5P, 7P, 9P, 12P / U1,U3,U5,U8Form TypeUnitizedGrade180#，240#Max RPM15300,13300,12200Overall Diameter (Imperial) 4 in, 4·1/2in, 5 in, 6 in Overall Diameter (Metric)100 mm, 115 mm, 125 mm, 150 mmOverall Width (Imperial)1/2 in, 3/5 inOverall Width (Metric)13 mm, 15 mmProduct ColorBlack

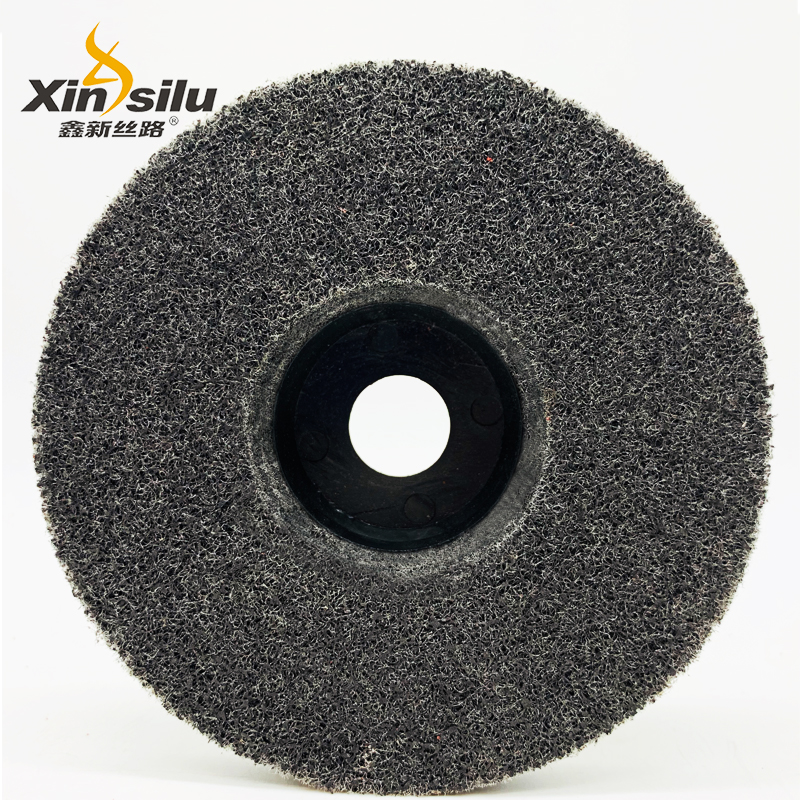

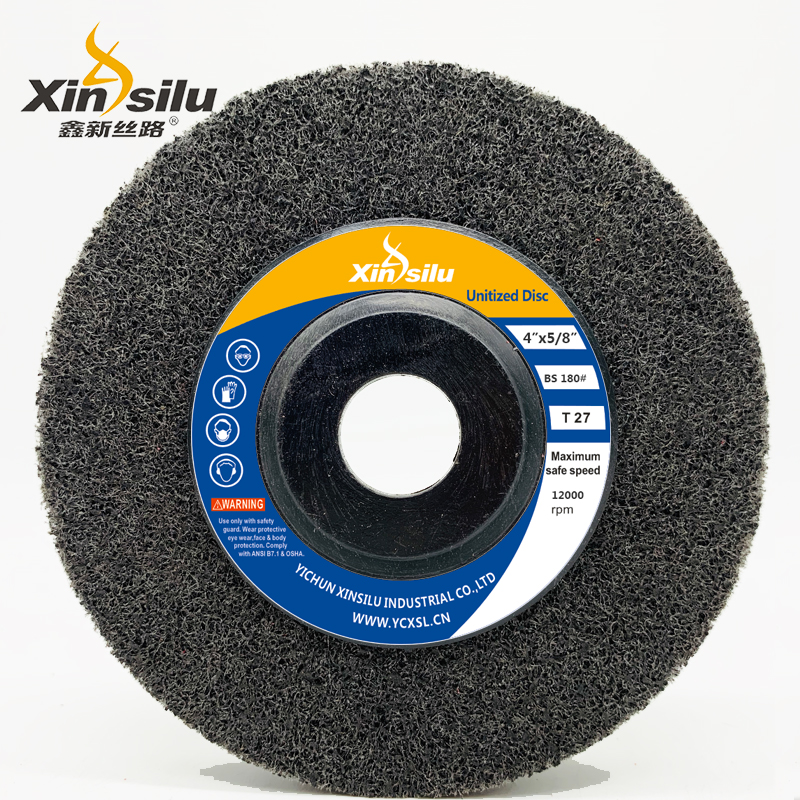

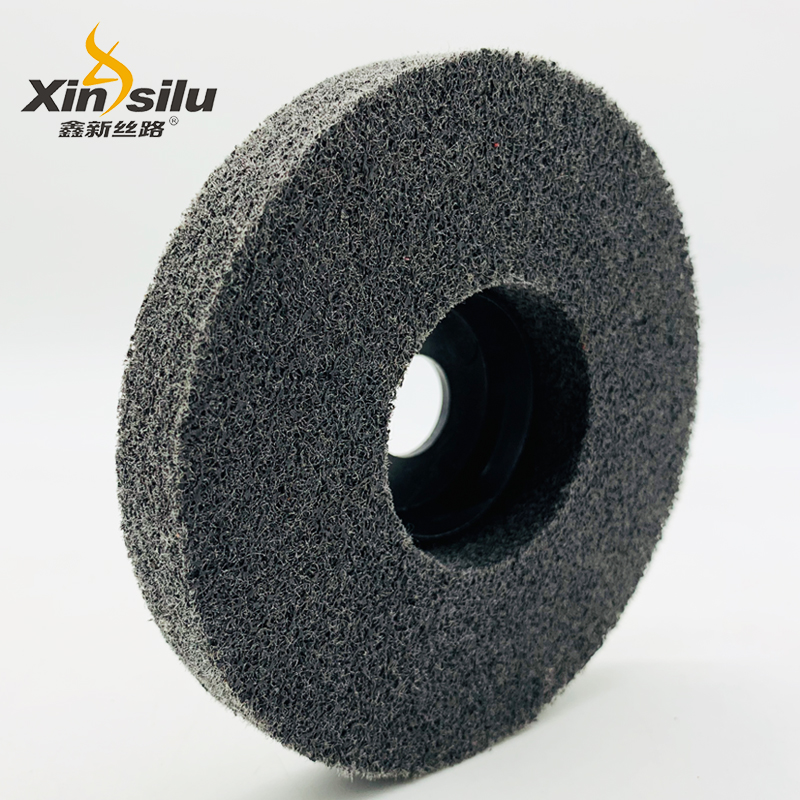

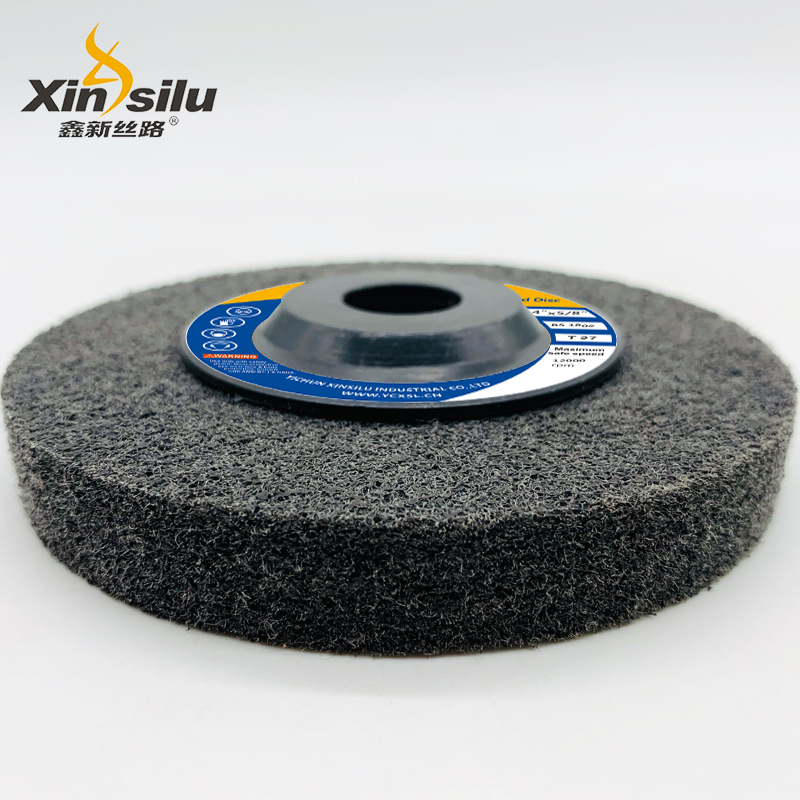

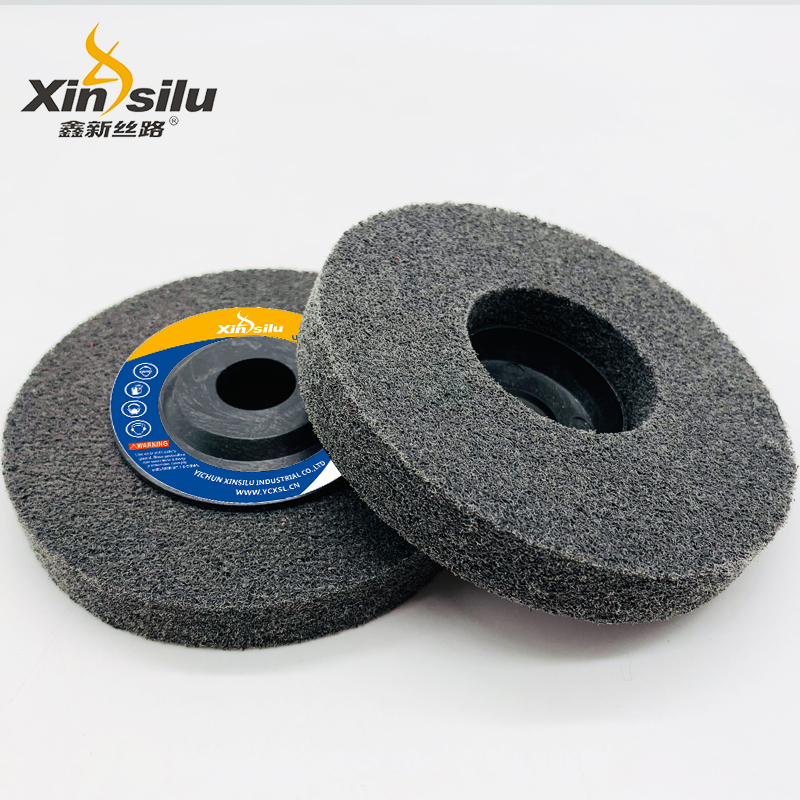

Non-Woven Polishing Disc

Non-woven discs for angle grinders have three components: strong synthetic fiber mesh and quality abrasives, bonded together by

a smear-resistant adhesive. Rapid Strip discs have anopen web construction that enables aggressive cutting action while maintaining

a cool, non-loading surface. Rapid Blend discs have a unitized construction with varying weave – from open to tighter – for

deburring and finishing. Rapid Prep discs have a more open weave that excels in surface preparation and clean-ing. Each product

provides excellent cutting action while improving surface finish.

Why there?

• Deburring, blending and finishing with one product to

reduce the number of steps

• Provides a controlled, sustained finish

• Prevents undercutting and gouging

• Provides a cooler grinding action to lessen the chance

of warping or discoloration

• Ideal when loading is an issue, on fiberglass, adhesives

and soft metals

• For stripping coatings and paint off of hard materials like

concrete, cement, and stone

• Less vibration and quieter for high operator acceptance

• Provides an alternative to wire brushes

Components of Non-Woven Abrasives

 While non-wovens are made in a different way than conventional coated abrasives, both types of products use many of the same

abrasive minerals. Silicon carbide is sharper, cuts faster, and produces finer scratch patterns on most surfaces. Aluminum oxide is

more durable and tends to last longer. It is more aggressive on certain applications (such as hardened steel parts), and produces

less discoloration on aluminum. When the non-woven supplier talks about grit, he is referring to the size of the abrasive grain

 impregnated into the nylon web. The lower the number, the larger the grains. The use of large particles (coarse grit) results in a

more aggressive cut and a coarser finish. Small size particles result in a non-woven product that produces fine surface finish,

if all other conditions are equal. In specifying a conventional bonded or coated abrasive product, the purchaser selects a

specific grit size – say, 120 grit. With non-woven abrasives, by comparison, one of the following designations is used:



Grit Designation and Comparable Grit Ranges

Coarse (C) 50 – 80

Medium (M) 100 – 150

Fine (F) 180 – 220

Very Fine (VF) 240 – 360

Ultra Fine (UF) 600

Micro Fine (SF) 1000 – 1200



Another term used in the specification that is probably unfamiliar to the buyer of conventional abrasives is density. This refers

to the number of bonding agents and the amount of abrasive grain that has been compressed into the non-woven product. In

general, harder density products cut faster, last longer, and produce finer finishes than softer density products. However,

softer densities offer more conformability to the work surface and less tendency to load or burn the workpiece. Two other

factors in the design and manufacture of non-woven abrasives are the sizing of the nylon fibers and the bonding agents used.

 Fiber size has a significant effect on the product’s cutting characteristics, while the type of waterproof resin used to bond the

fibers together (and to anchor the abrasive to the web) can alter the characteristics of the product. The non-woven

manufacturer selects the appropriate fiber size and bonding agent based on the intended application for the product;

therefore, these components are not included in the product offering specifications.

A typical specification on a non-woven abrasive product might look like this: 8 A/O MED. The first symbol – in this example,

the “8” – refers to the product’s density. This can range from 2 (open/most conformable) to 9 (densest/ most durable).

The second symbol denotes the abrasive used. “A” or “A/O” refers to aluminum oxide, while “S” or “SC” stands for silicon

carbide. The final designation – “MED” – denotes the grit size of the product, as outlined above.
