Non-Pneumatic Anti-Shock Garment for managing uncontrollable postpartum haemorrhage(PPH)

Product name Non-Pneumatic Anti-Shock Garment Model Number NASG Color Blue Product contents Non-Pneumatic Anti-Shock Garment 1pcs user manual 1pcs Non-Pneumatic Anti-Shock Garment Customizable Customizable Individual NASG Polybag NASG Size Large Medium Small Weight 1.6Kg 1.4Kg 1.2Kg size 126x123mm 110x104mm 95x90mm export Corrugated Carton Qty per Caton 4 Carton Size 57*44*29cm 56*42*25cm 52*39*22cm cube 0.073cmb 0.058Cmb 0.045Cmb G.W. 7.4Kg 6.4Kg 5.4kg N.W. 6.4kg 5.6kg 4.8kg

A small/medium/large sized, non-pneumatic ant-shock garment (NASG) to be used for managing uncontrollable postpartum haemorrhage(PPH) and to keep women alive until they can get the treatment they need.
Description:
The NASG must allow perineal access so that examinations and vaginal procedures can be performed without it being removed.
Shape:

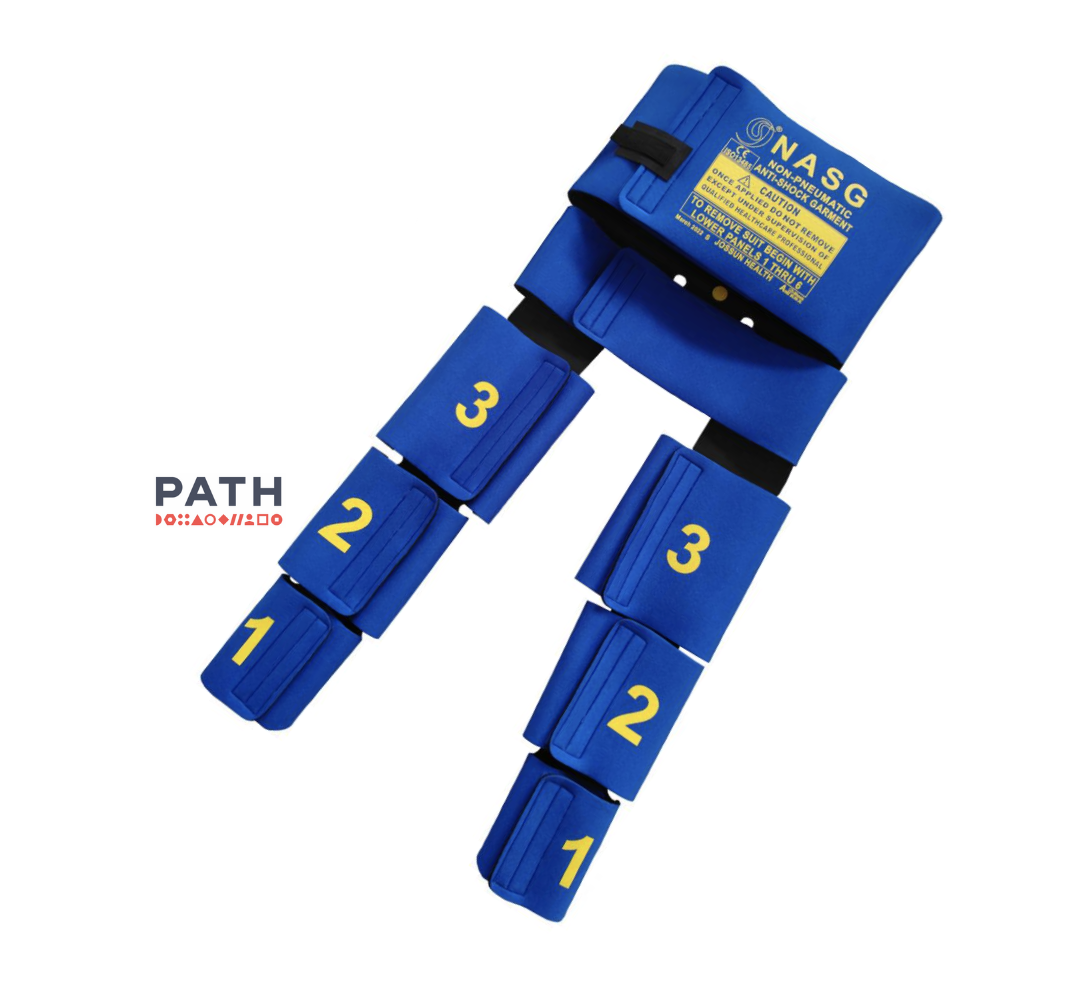

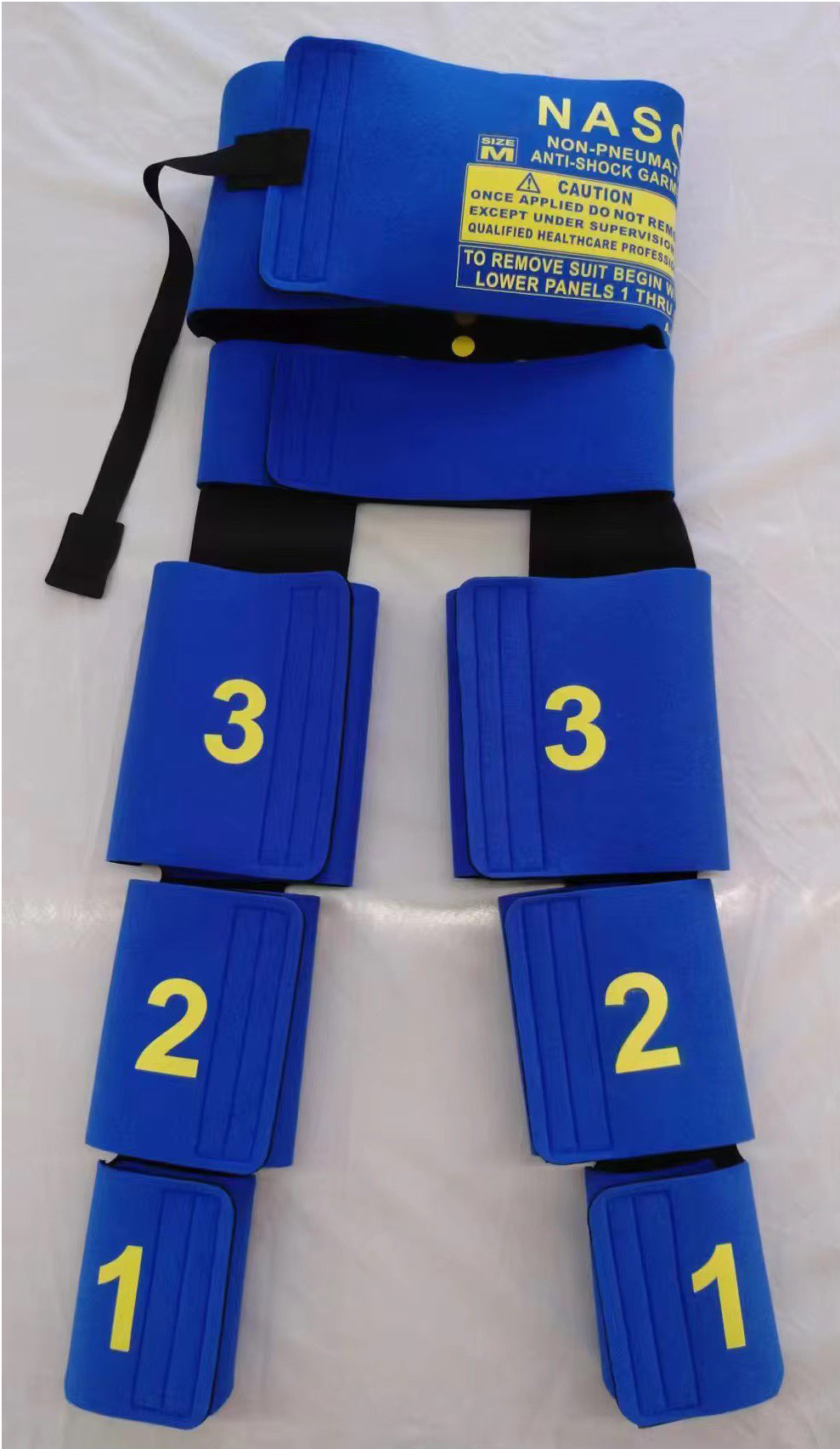

Made in the shape of trousers divided into five or six segments for ease of application to different parts of lower body below the diaphragm with Velcro fasteners.
The segment 1 must consist of 2 pieces to be used in each ankles.
The segment 2 must consist of 2 pieces to be used in each calf.
The segment 3 must consist of 2 pieces to be used in each thigh.
The segment 4 must consist of 1 piece to be used around the pelvis.
The segment 5 and/or 6 must consist of 1 piece to be used aground the abdomen/umbilicus. This segment must apply extra compression with a foam ball.
The garment must be able to apply 30 to 50 mm Hg of pressure to the lower body pressure.
Life time:
At least 200 uses(Washing with brush has a lifespan 174 uses).
Suitable for washing machines.
Features:
Light weight,flexible and comfortable for the wearer Reusable No metal parts,safe for X-rays and MRIs.
Material:
Made of a lightweight neoprene garment and Velcro.
Instructions For Use:
Intended for women suffering from uncontrollable postpartum haemorrhage (PPH), to control the bleeding, reverse the shock, and stabilize the patient for safe transport to a comprehensive obstetric care facility.The NASG applies pressure to the lower body and abdomen, thereby stabilizing vital signs and resolving hypovolemic shock.
When fitted correctly, the NASG reverses the shock by returning blood to the essential organs - heart, lungs, and brain.
Place the NASG under the woman:
Close the segments 1 tightly around the ankles;
Close the segments 2 tightly around each calf;
Close the segments 3 tightly around each thigh, leave knees free;
Close the segment 4 around pelvis with lower edge at level of pubic bone; Close the segment 5 with pressure ball over the umbilicus and finally, close the NASG with segment 6.
The segments 1. 2. 3 can be applied by two persons simultaneously, but segments 4, 5 and 6 should only be applied by one
Make sure the woman can breathe normally after close the NASG.It is extremely important not to remove the NASG before a woman receives IV fluids, blood and before all vital signs are restored. Early removal can be dangerous and even fatal.

When to use:

The NASG can be used for all types of obstetric hemorrhage. Obstetric hemorrhage can take place antepartum (before delivery), peripartum (during delivery), with postpartum (after delivery) being the most frequent. Using the NASG especially after delivery is highly recommended when a woman is diagnosed with postpartum hemorrhage. It can also be used during a referral (the transport of a woman to a higher level health facility), to stabilize a woman while she receives medical treatment (e.g. uterotonics) and even during and after vaginal surgery.

use Precautions

The NASG should NOT be placed on a woman before delivery, who still has a viable baby inside her uterus, unless there is no other way to save the woman. Do not use it in pulmonary hypertension, congestive heart failure, mitral stenosis, or in patients with a bleeding above the diaphragm.

Precautions:
For cleaning: Mix a 0.01% bleach solution. immerse the NASG in that solution and soak for 10min. Scrub to remove tissue and particles.
Wash and rinse with clean and cool water, Squeeze and should be hung outside in the shade, not in direct sunlight.
