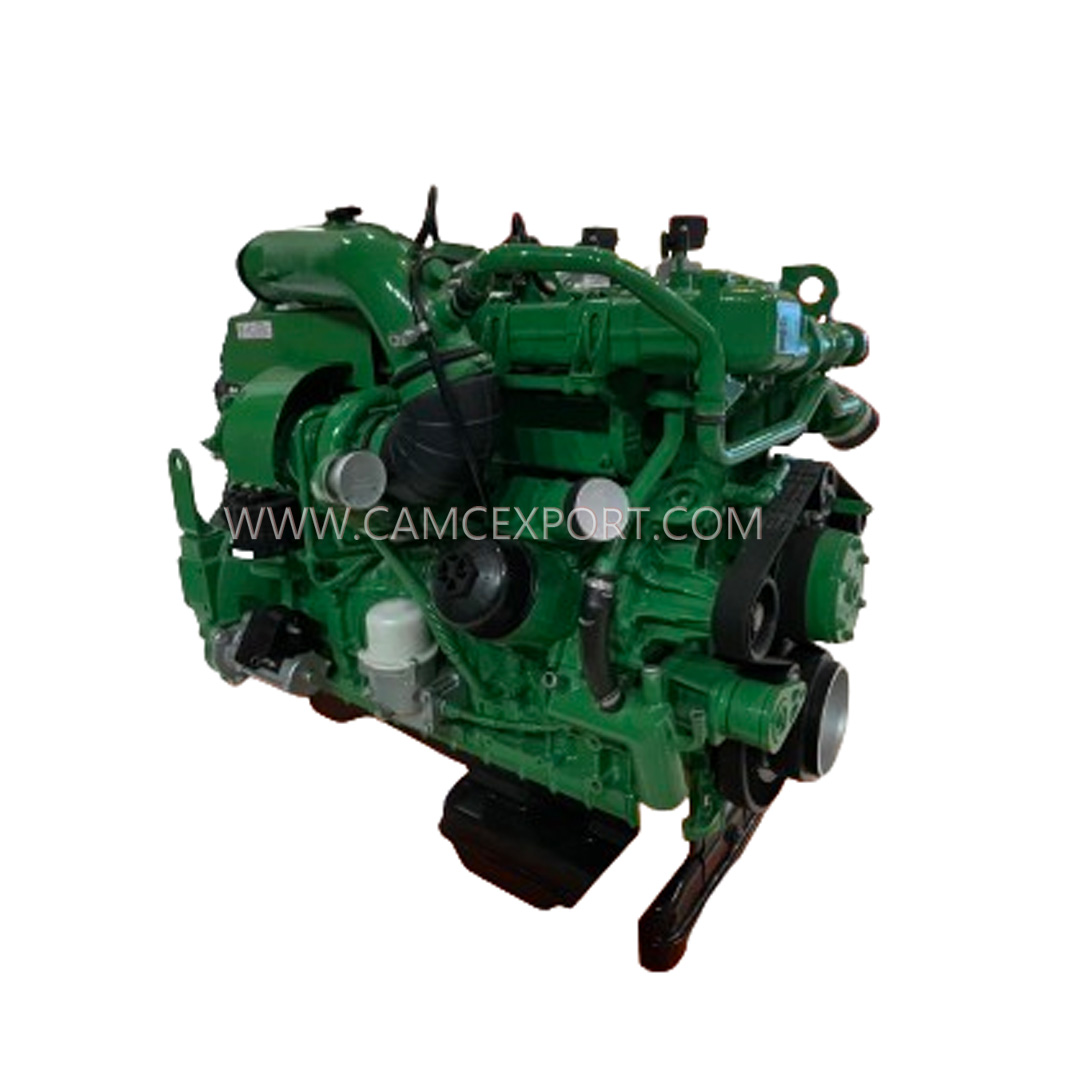

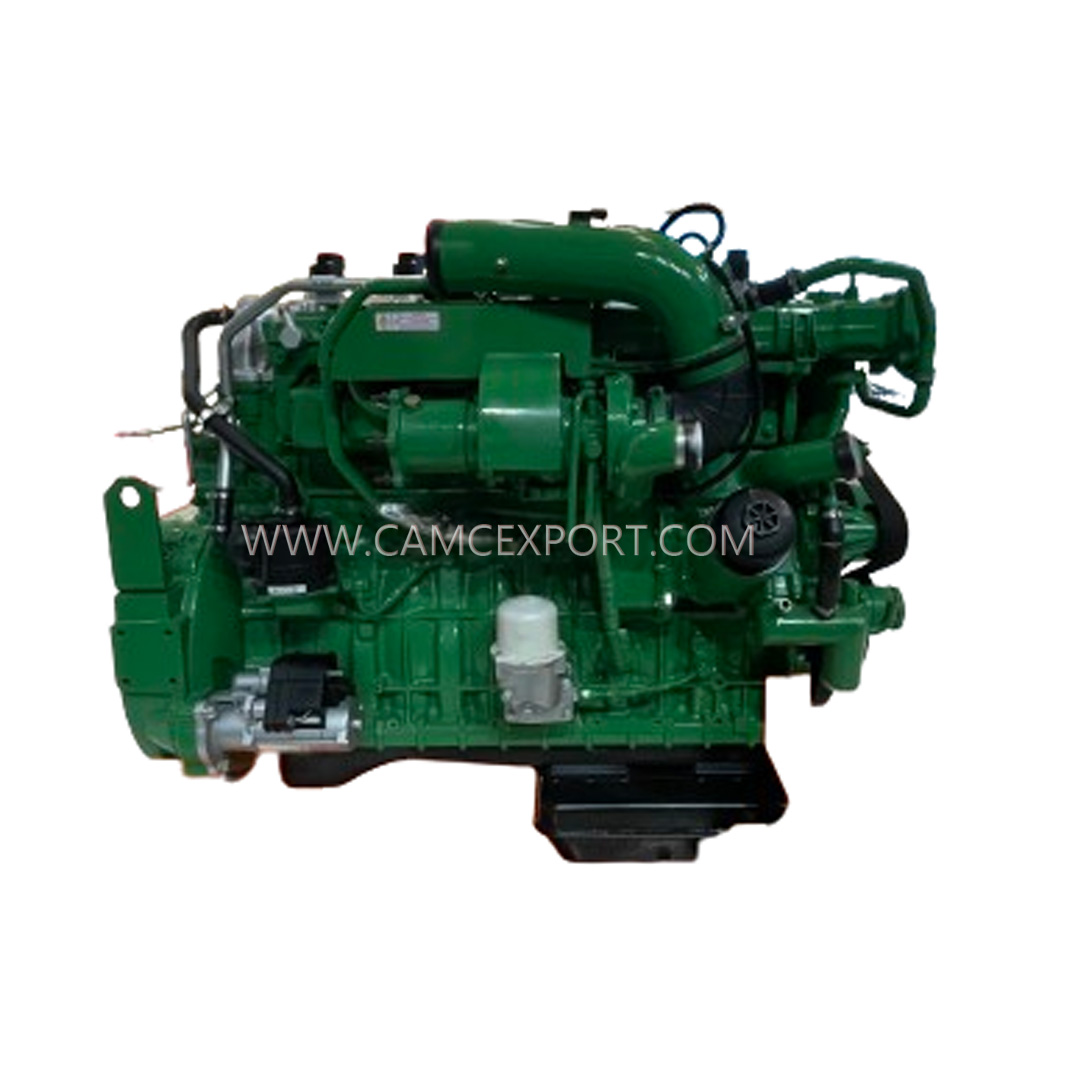

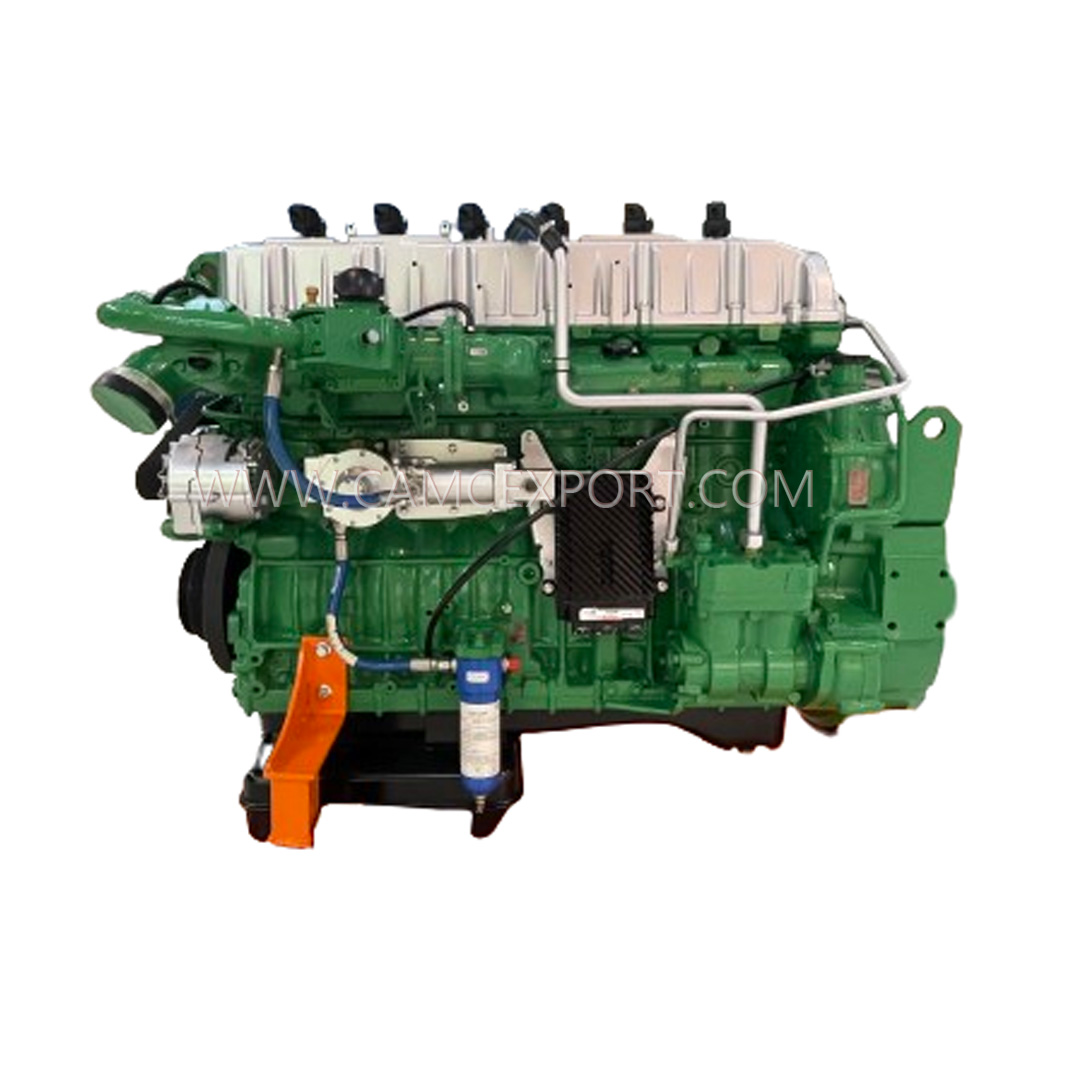

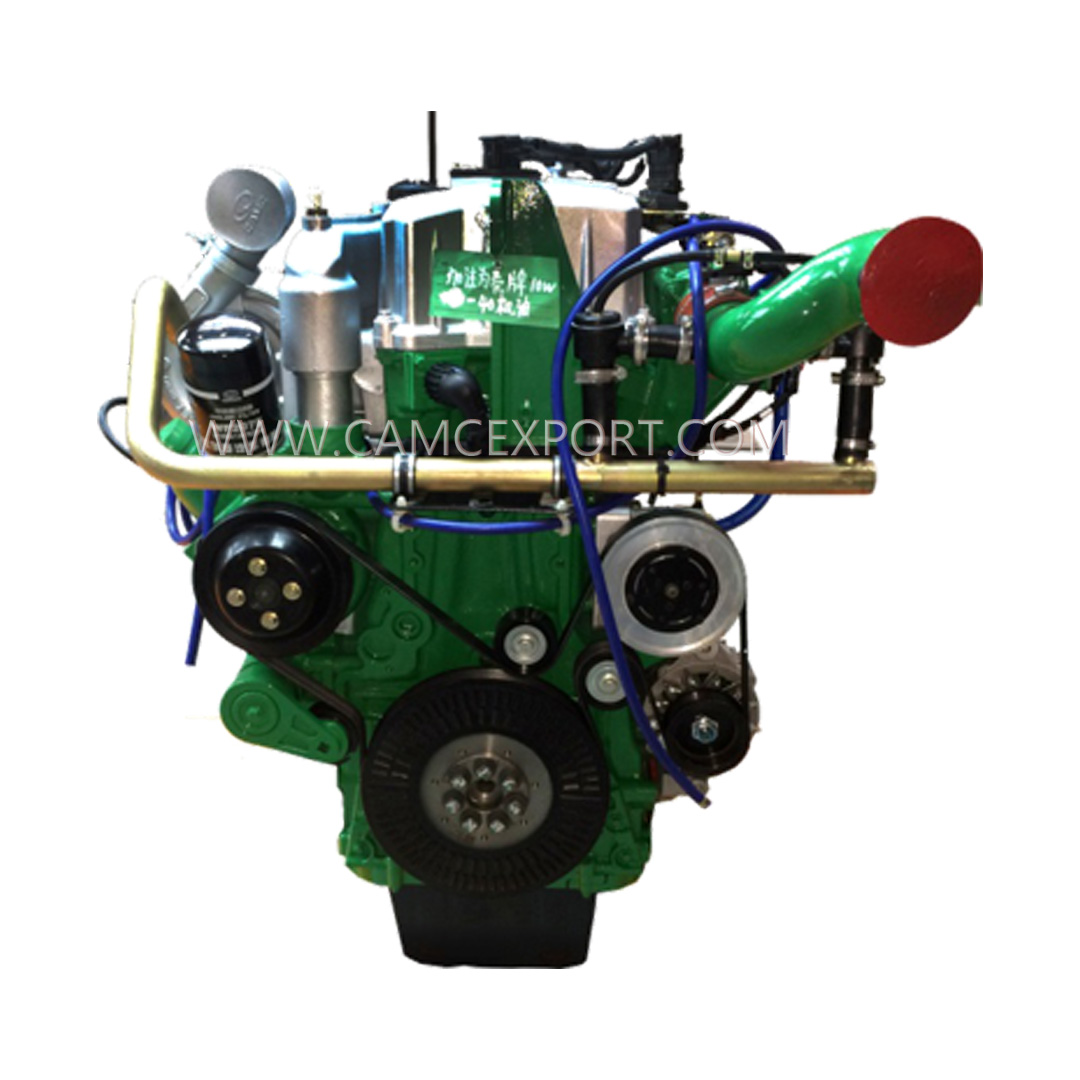

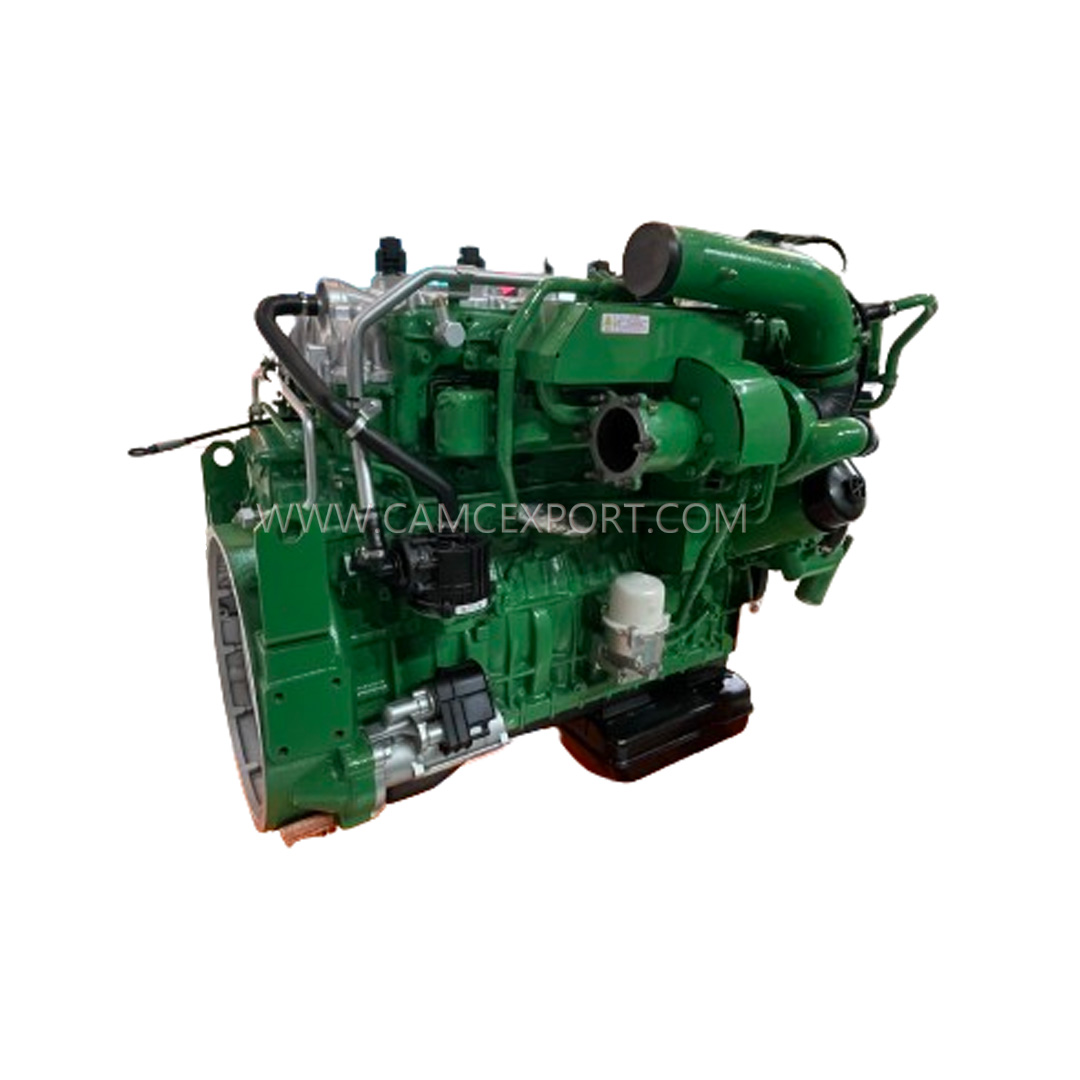

The general layout design of the CM6T28F series CAMC natural gas - powered generator is a design scheme determined by fully considering the characteristics of natural gas combustion. Main structural features: Adopt advanced design structures such as single overhead camshaft, integral four - valve cylinder head, in - line six cylinders, water - cooled wet cylinder liner, four - stroke, rear gear chamber, etc.; Water - cooled turbocharger, special piston for shallow - basin type gas engine, high temperature and wear - resistant valve seat ring, special piston ring for gas engine to prevent oil burning. Control system: Woodward PG + low - pressure gas injection system, and matching intelligent high - energy ignition system. Model Unit HMT 12F.380 30 HMT 12F.408 32 HMT 13F.408 30 HMT 13F.435 32 Rated power/Speed KW/r/min 280/1500 300/1800 300/1500 320/1800 Overload power/Speed kW/r/min 308/1500 330/1800 330/1500 352/1800 Type Vertical Inline Water-cooled four stroke Intake way Turbo-charged & inter-cooled Number of cylinders 6 6 6 6 Bore*Stroke mm x mm 128 x 153 128 x 153 130 x 161 130 x 161 Compression ratio 12:1 12:1 11.5:1 11.5:1 Displacement L 11.8 11.8 12.8 12.8 Specific fuel consumption g/kW·h ≤190 ≤191 ≤192 ≤192 Oil capacity L 38 38 41 41 Noise ≤97dB(A) Emission level GB20891 China Phase III L x W x H mm 1360x898x1138 1360x898x1138 1436x939x1479 1436x939x1479 Weight kg 1065 1065 1078 1078
