About this product
- Materials: ABS
- Size: 480*335*460mm
- Color: bule
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: ABS
- Size: 480*335*460mm
- Color: bule
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | ABS |
|---|---|
| Size | 480*335*460mm |
| Color | bule |
Product details
| Materials | ABS |
|---|---|
| Size | 480*335*460mm |
| Color | bule |
From the supplier

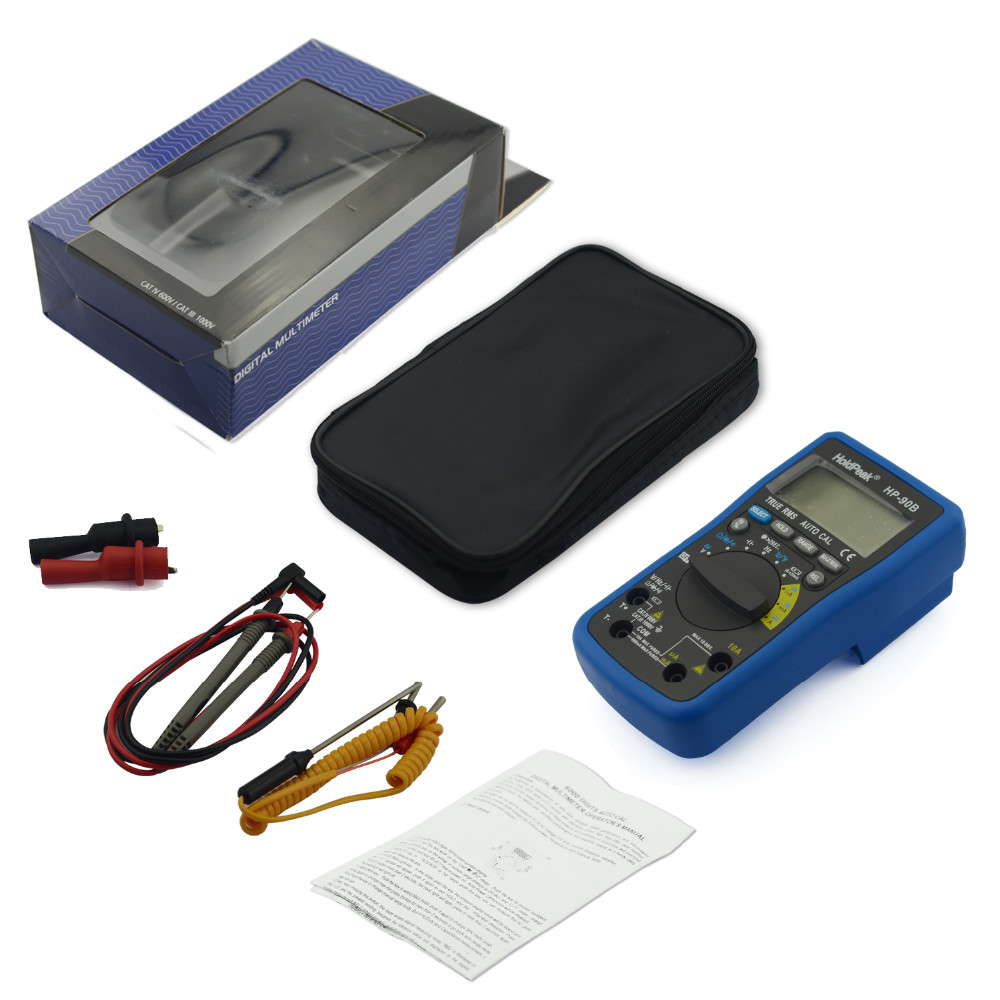

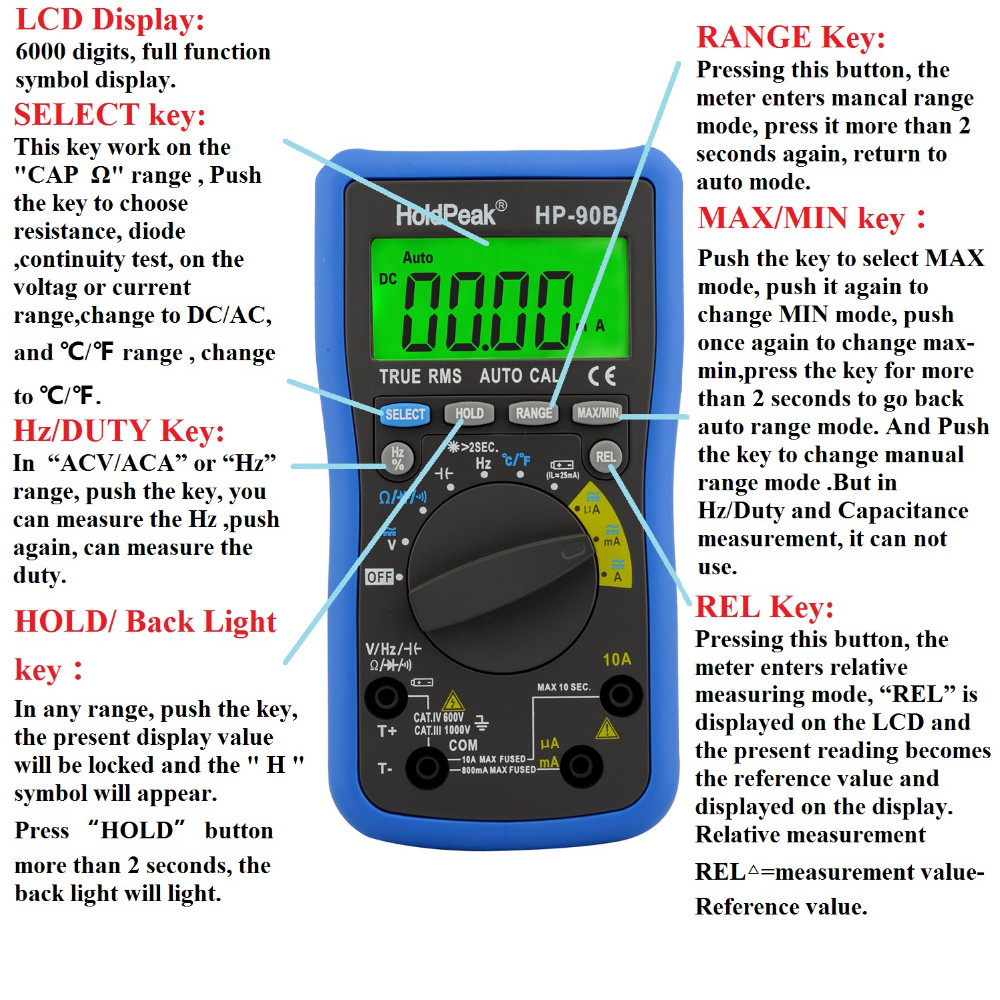

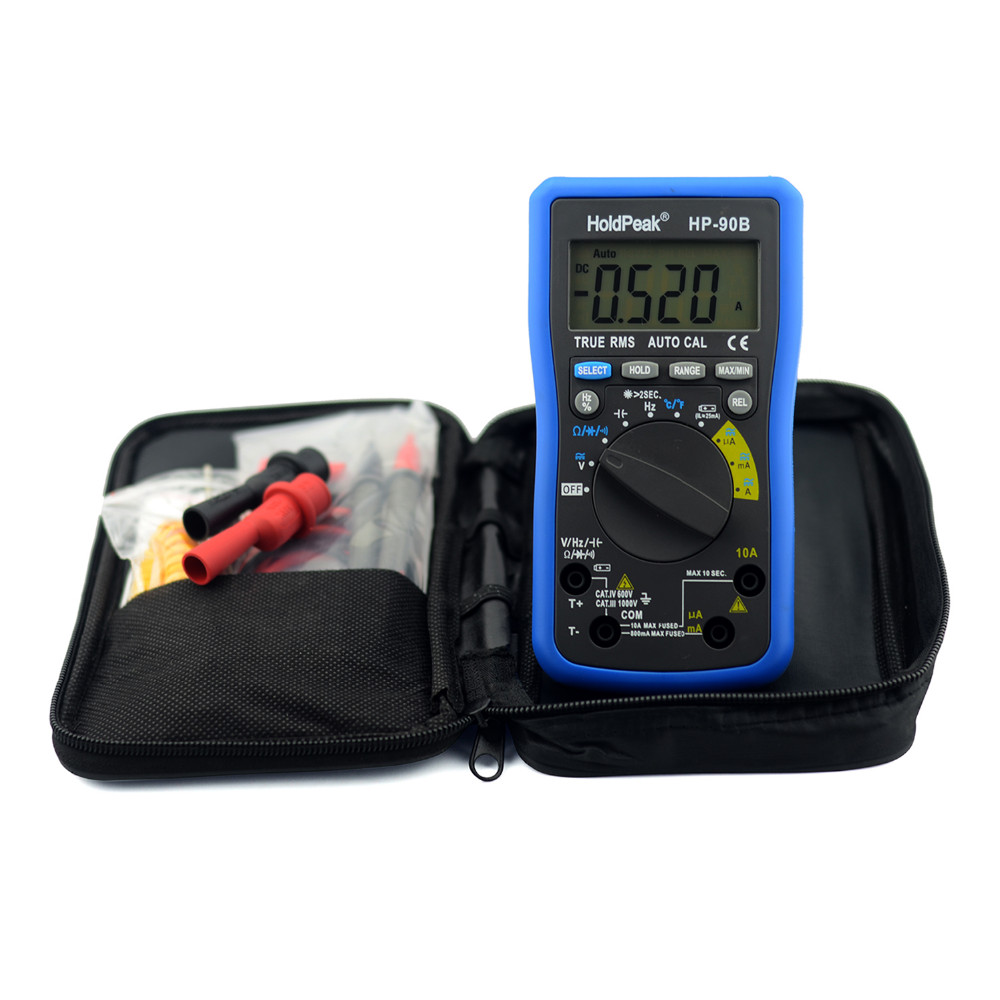

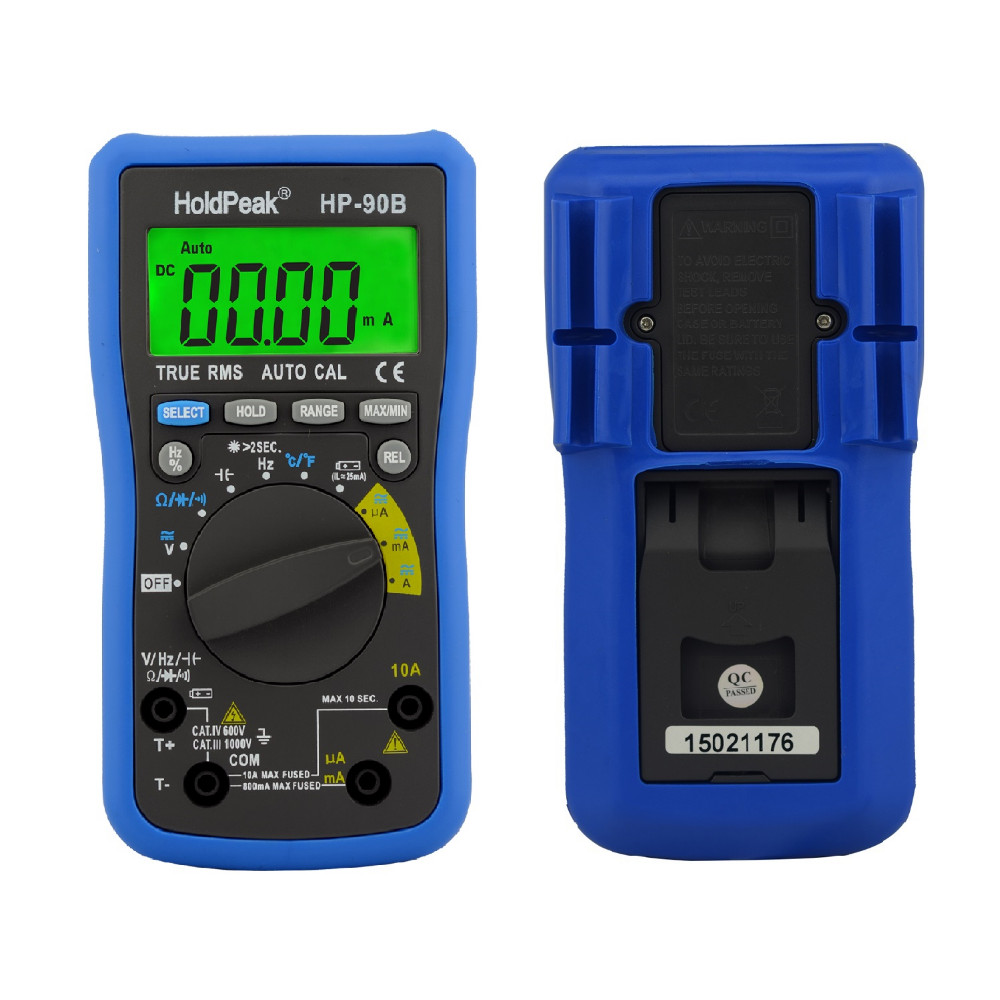

● HP-90B is a new 6000 count digital multimeter for the new handheld LCD display developed by our company.
●High safety level, automatic calibration function makes the meter measurement more accurate, and the capacitance measurement is fast and the measurable capacity is 99.99mF.
● True rms measurement makes AC measurements more meaningful, large LCD display and high-brightness backlight, making it easy for users to read.
● The meter can be used to measure AC/DC voltage, AC and DC current, resistance, frequency, capacitance, diode positive voltage, on-off, Celsius/Fahrenheit and battery measurement, and has maximum, minimum, and data retention functions.
● The power consumption of the whole machine is small. The instrument is unique in structure, equipped with a safety sheath, easy to operate and easy to carry, and is an ideal tool for electrical measurement.
Display: LCD Display with Backlight, "6000" or 9999 (capacitance, frequency file)
Operating Environment: 600V CAT IV and 1000V CAT III
DC Voltage Range: 600mV/6V/60V/600V/1000V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 6V/60V/600V/750V
AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 600μA/6mA/60mA/600mA/20.00A
DC Current Resolution: 0.01μA/0.01mA/0.1mA/10mA
AC Current Range: 60mA/600mA/20A
AC Current Resolution: 0.01mA/0.1mA/10mA
Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz/0.001MHz
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/1nF/10nF/100nF/0.1μF/0.001mF
Temperature Range: -20~1000℃(-4~1832℉)
Duty Cycle: 1%~99%
Diode Test: √
Continuity Buzzer: √
Battery Test: 1.5~12V
Auto Power Off: √
℃/℉: √
True RMS: √
Relative Value: √
Data Hold MAX/MIN: √
Working Temperature/Humidity: 0~40°C;
Storage Temperature/Humidity: -10~60°C;

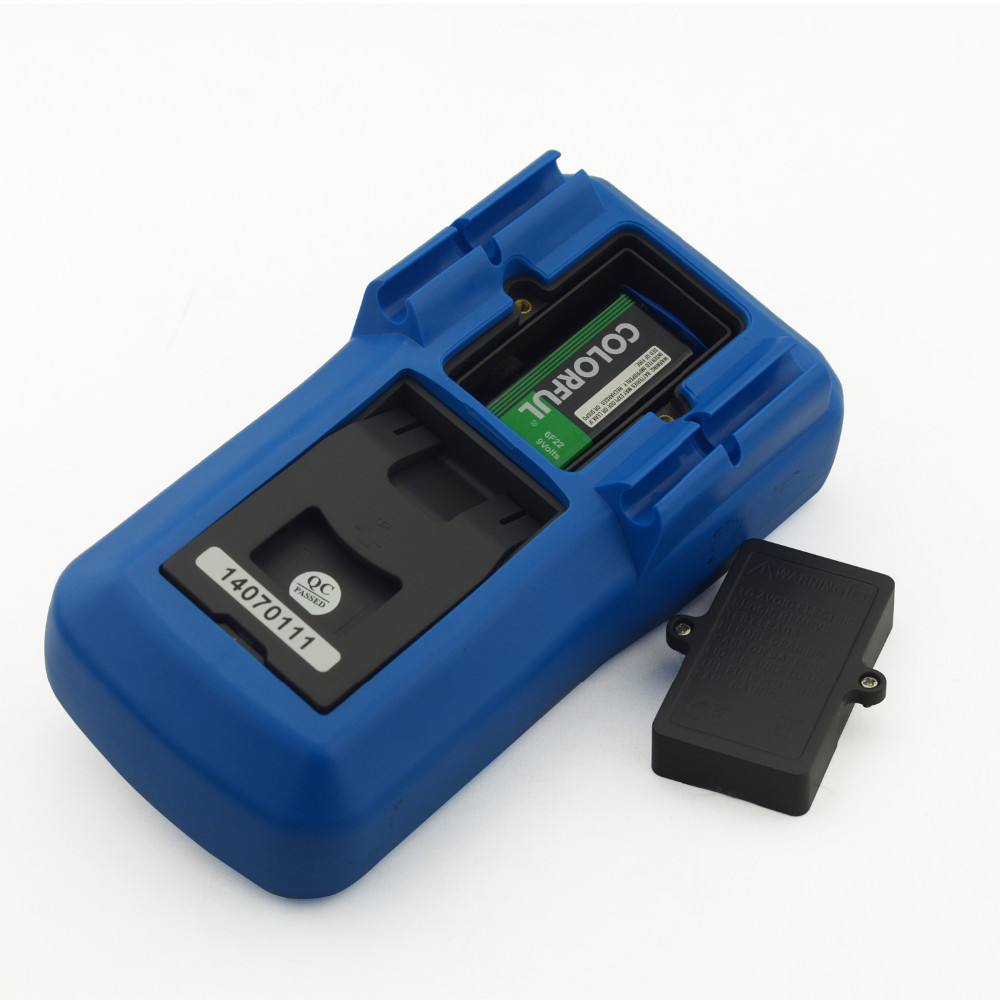

Power Supply: 9V(6F22)*1(not included)
Item Size: 167*90*50mm
Item Weight: 320g
From the supplier
● HP-90B is a new 6000 count digital multimeter for the new handheld LCD display developed by our company.
●High safety level, automatic calibration function makes the meter measurement more accurate, and the capacitance measurement is fast and the measurable capacity is 99.99mF.
● True rms measurement makes AC measurements more meaningful, large LCD display and high-brightness backlight, making it easy for users to read.
● The meter can be used to measure AC/DC voltage, AC and DC current, resistance, frequency, capacitance, diode positive voltage, on-off, Celsius/Fahrenheit and battery measurement, and has maximum, minimum, and data retention functions.
● The power consumption of the whole machine is small. The instrument is unique in structure, equipped with a safety sheath, easy to operate and easy to carry, and is an ideal tool for electrical measurement.
Display: LCD Display with Backlight, "6000" or 9999 (capacitance, frequency file)
Operating Environment: 600V CAT IV and 1000V CAT III
DC Voltage Range: 600mV/6V/60V/600V/1000V
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 6V/60V/600V/750V
AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 600μA/6mA/60mA/600mA/20.00A
DC Current Resolution: 0.01μA/0.01mA/0.1mA/10mA
AC Current Range: 60mA/600mA/20A
AC Current Resolution: 0.01mA/0.1mA/10mA
Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz/0.001MHz
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/1nF/10nF/100nF/0.1μF/0.001mF
Temperature Range: -20~1000℃(-4~1832℉)
Duty Cycle: 1%~99%
Diode Test: √
Continuity Buzzer: √
Battery Test: 1.5~12V
Auto Power Off: √
℃/℉: √
True RMS: √
Relative Value: √
Data Hold MAX/MIN: √
Working Temperature/Humidity: 0~40°C;
Storage Temperature/Humidity: -10~60°C;
Power Supply: 9V(6F22)*1(not included)
Item Size: 167*90*50mm
Item Weight: 320g
