About this product
- Materials: Plastic body/Brass Body
- Size: DN15~20mm
- Color: white，black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Plastic body/Brass Body
- Size: DN15~20mm
- Color: white，black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Plastic body/Brass Body |
|---|---|
| Size | DN15~20mm |
| Color | white，black |
From the supplier

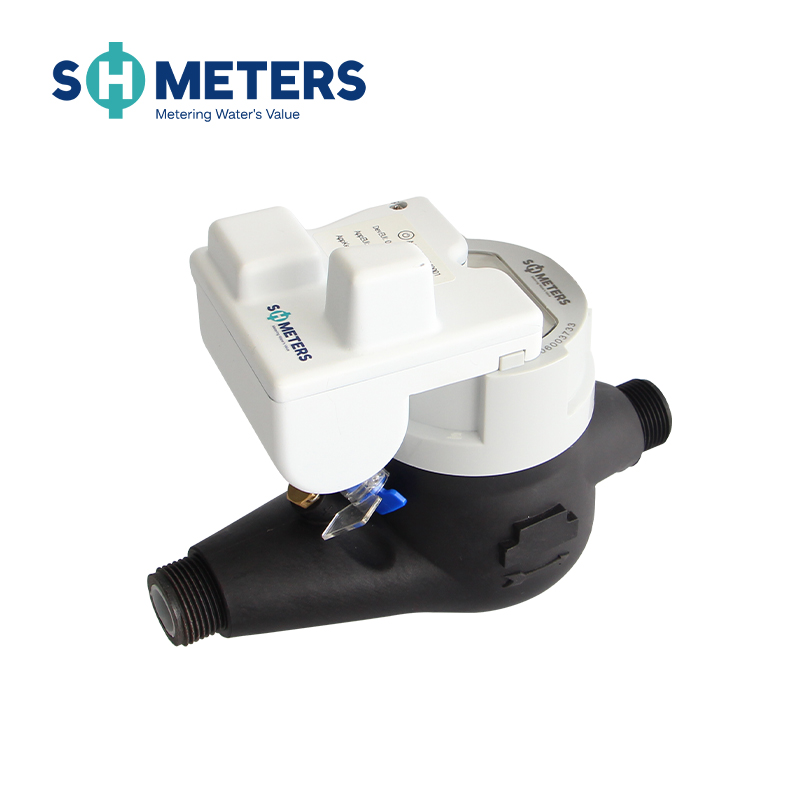

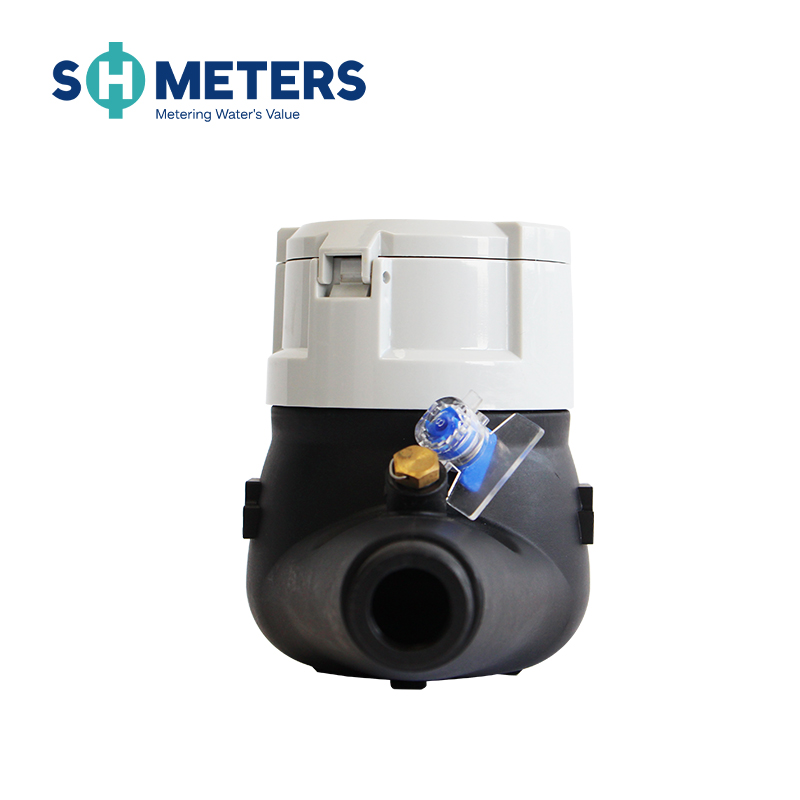

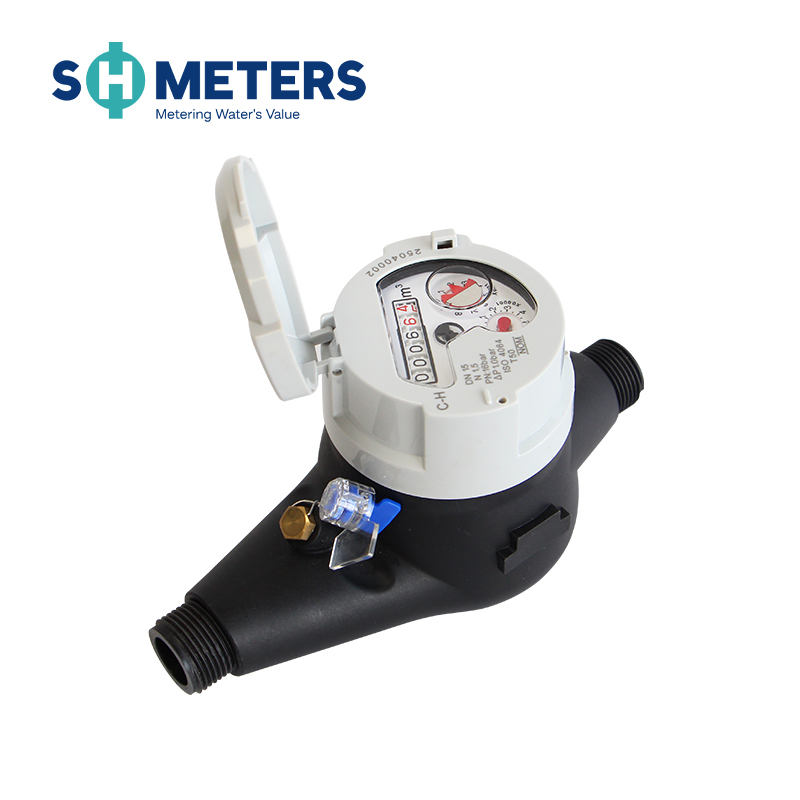

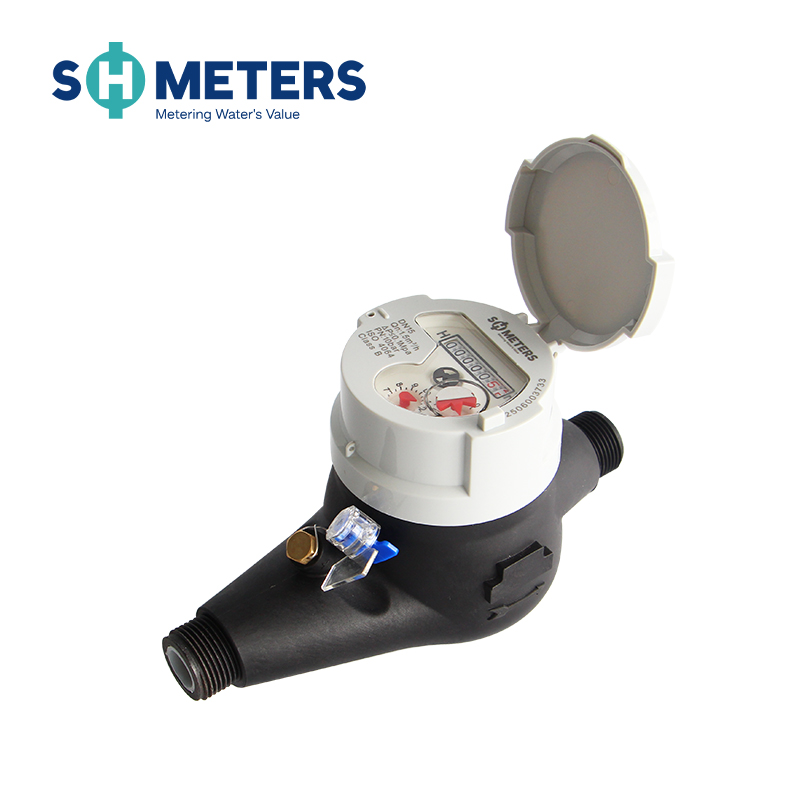

Multi Jet Water Meter Application:
Measuring the total volume of cold water passing through the pipeline
Multi Jet Water Meter Features:
Multi-jet, dry-dial; Magnetic drive；
· Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long term service;
· Anti-magnetic function；
· Plastic body,Out-adjust,small volume and light weight；
· Remote transmission device can be added upon request : such as Reed Switch or Hall , Pulse Output :10 L/P
Working Condition:
·Water temperature: T30 T50
·Water pressure class: MAP16
·Pressure loss class： △p63
Dimensions
DN
Size
Length (L)
Width (W)
Height (H)
Connection threads
mm
D
R
15
1/2"
165
88
114
G3/4
R1/2
1/2"
190
88
114
G3/4
R1/2
20
3/4"
190
88
114
G1
R3/4
Technical Data
Item
Unit
Details
Nominal Diameter
mm
15
20
25
32
40
50
Size
inch
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
Q4
3125
5000
7875
12500
20000
312500
Q3
2500
4000
6300
10000
16000
25000
Q2
L/h
25
40
63
100
200
312.5
Q1
L/h
15.62
25
39.37
62.5
100
156.25
Max. Reading
m3
99,999
99,999
99,999
99,999
99,999
99,999
Min.Reading
L
0.05
0.05
0.05
0.05
0.05
0.05
Accuracy Class
Class2
Temperature Class
T50/T90
Maximum Admissible Pressure
PN16
Pressure Loss Classes
△P63
Pulse Output Option
Vmax=24V
Imax=100mA
Pmax=2W
