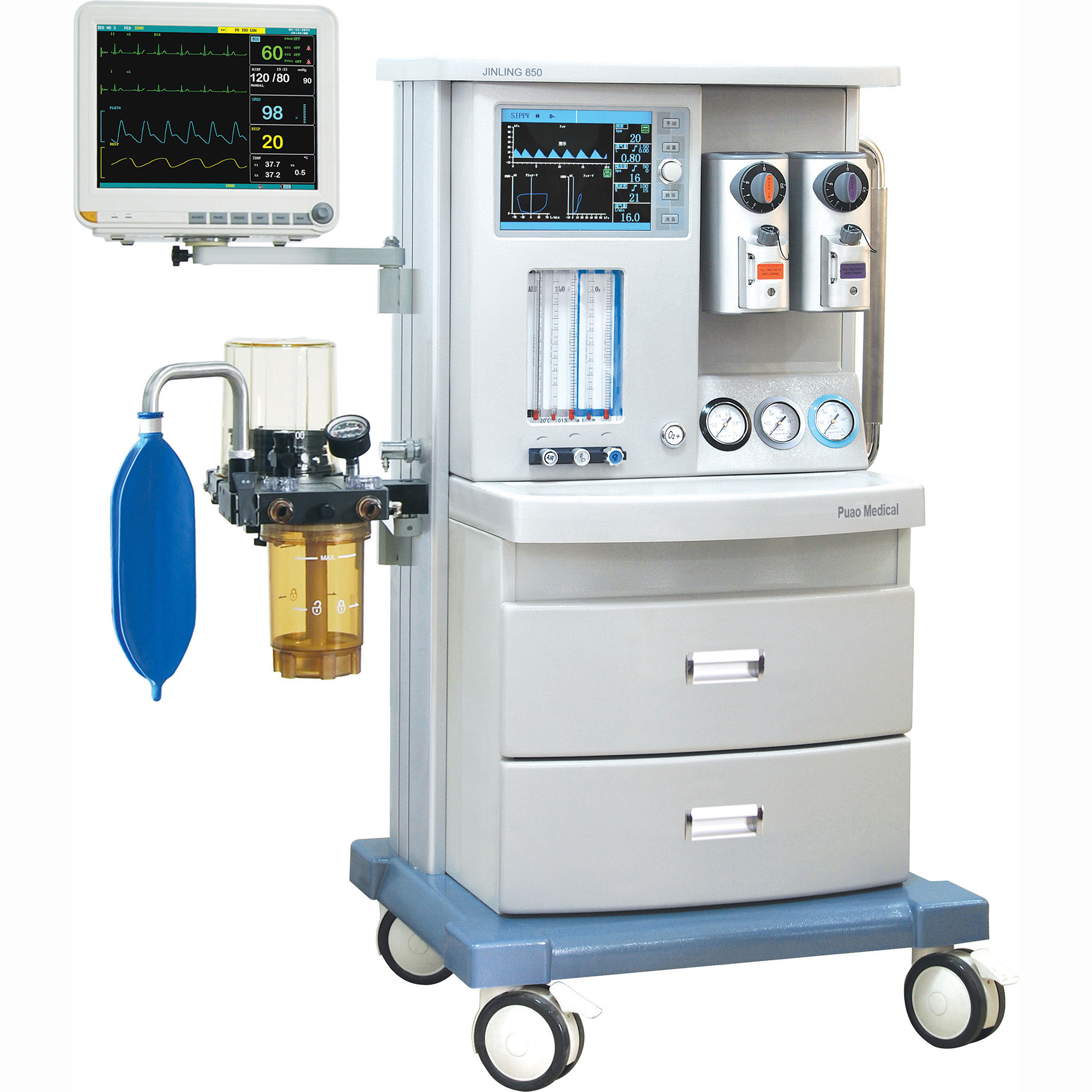

Multi-functional Anesthesia Machine
Perlong Medical Equipment Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Multi-functional Anesthesia Machine
Perlong Medical Equipment Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
Common Features
●Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
●Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
●Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
●Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
●Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
●High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
●Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
●Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
●Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
●Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
●Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
● Multi-parameter Patient Monitor: Optional
Specifications
Model
850 (Standard Model)
850 (Advanced Model)
Display
8.4 inch TFT display
10.4 inch TFT display
Flowmeter Range
O2: 0.1-10L/min
N2O: 0.1-10L/min
Air: 0.1-10L/min
Ventilation Mode
IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply
At least 4 hours
Tidal Volume
Adjustable range: 20-1500ml
Display range: 0-2000ml
Respiratory Rate
1-100bpm
Inspiratory/Expiratory (I:E) Ratio
8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range
0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range
.-10-10cmH2O (electronically controlled)
SIGH
1 sigh breath in every 80-120 breaths
Inhaled Oxygen Concentration Monitor
21-100%
SIMV Rate
1-20bpm
Inspiratory Plateau
0-1 second
Vaporizer Concentration Ranges
0-5%
Vaporizer Slots
Double PA-I type slots
From the supplier
Common Features
●Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
●Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
●Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
●Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
●Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
●High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
●Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
●Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
●Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
●Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
●Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
● Multi-parameter Patient Monitor: Optional
Specifications
Model
850 (Standard Model)
850 (Advanced Model)
Display
8.4 inch TFT display
10.4 inch TFT display
Flowmeter Range
O2: 0.1-10L/min
N2O: 0.1-10L/min
Air: 0.1-10L/min
Ventilation Mode
IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply
At least 4 hours
Tidal Volume
Adjustable range: 20-1500ml
Display range: 0-2000ml
Respiratory Rate
1-100bpm
Inspiratory/Expiratory (I:E) Ratio
8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range
0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range
.-10-10cmH2O (electronically controlled)
SIGH
1 sigh breath in every 80-120 breaths
Inhaled Oxygen Concentration Monitor
21-100%
SIMV Rate
1-20bpm
Inspiratory Plateau
0-1 second
Vaporizer Concentration Ranges
0-5%
Vaporizer Slots
Double PA-I type slots
