Mixing Valve (Nickel Plating)
SAS (SHANGHAI) INDUSTRIAL & TRADING CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Mixing Valve (Nickel Plating)
SAS (SHANGHAI) INDUSTRIAL & TRADING CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Brass
- Size: 3/4"
- Color: Nickel Plating
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: Brass
- Size: 3/4"
- Color: Nickel Plating
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | Brass |
|---|---|
| Size | 3/4" |
| Color | Nickel Plating |
Product details
| Materials | Brass |
|---|---|
| Size | 3/4" |
| Color | Nickel Plating |
From the supplier
Product introduction:

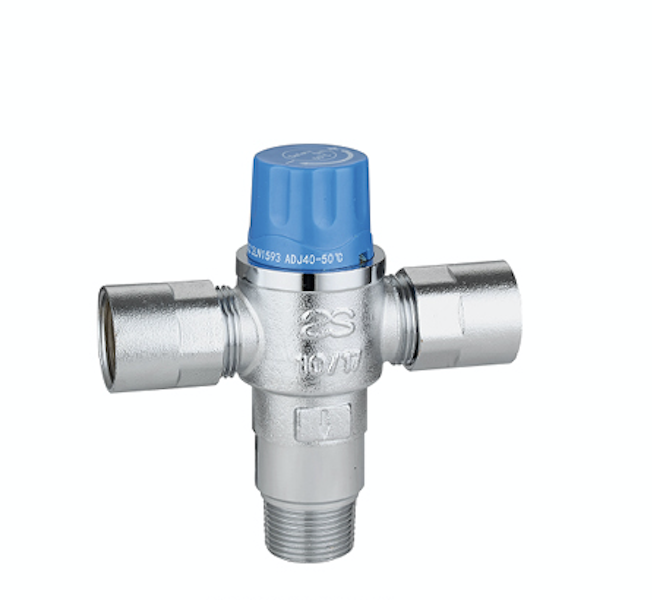

The mixing valve should be used for all kinds of domestic and small commercial water installation. It is installed normally in the kitchen and bathroom in order to adjust the temperature. It prevents people from scald and legionellosis.
Working Performance:
- Prior to set the valve it is necessary for the hot water source to be switched on and delivering hot water at normal operating temperature.
- Test the mixed water temperature at the nearest outlet being supplied by the valve.
- Allow the water to run for at least one minute to ensure the mixed water temperature has settled.
- If the cap is looked, use a screw drive to remove the screw and pull on the cap(1)
- To obtain the right setting temperature: turn the cap clockwise to reduce the temperature, or turn anti-clockwise to increase the temperature(2)
- When the desired outlet temperature has been set, either returns the cap to the locked position, or leaved it unlocked if it is desired(3)
- Secure the cap with looking the screw.
Technical Specification:
Temperature setting：30-50℃
Temperature range：±2℃
Max working pressure:16Bar
Max temperature entrance：100℃
Body material: CW614N/510L
Please contact email SAS@SASVALVE.COM for more info.
From the supplier
Product introduction:
The mixing valve should be used for all kinds of domestic and small commercial water installation. It is installed normally in the kitchen and bathroom in order to adjust the temperature. It prevents people from scald and legionellosis.
Working Performance:
- Prior to set the valve it is necessary for the hot water source to be switched on and delivering hot water at normal operating temperature.
- Test the mixed water temperature at the nearest outlet being supplied by the valve.
- Allow the water to run for at least one minute to ensure the mixed water temperature has settled.
- If the cap is looked, use a screw drive to remove the screw and pull on the cap(1)
- To obtain the right setting temperature: turn the cap clockwise to reduce the temperature, or turn anti-clockwise to increase the temperature(2)
- When the desired outlet temperature has been set, either returns the cap to the locked position, or leaved it unlocked if it is desired(3)
- Secure the cap with looking the screw.
Technical Specification:
Temperature setting：30-50℃
Temperature range：±2℃
Max working pressure:16Bar
Max temperature entrance：100℃
Body material: CW614N/510L
Please contact email SAS@SASVALVE.COM for more info.
