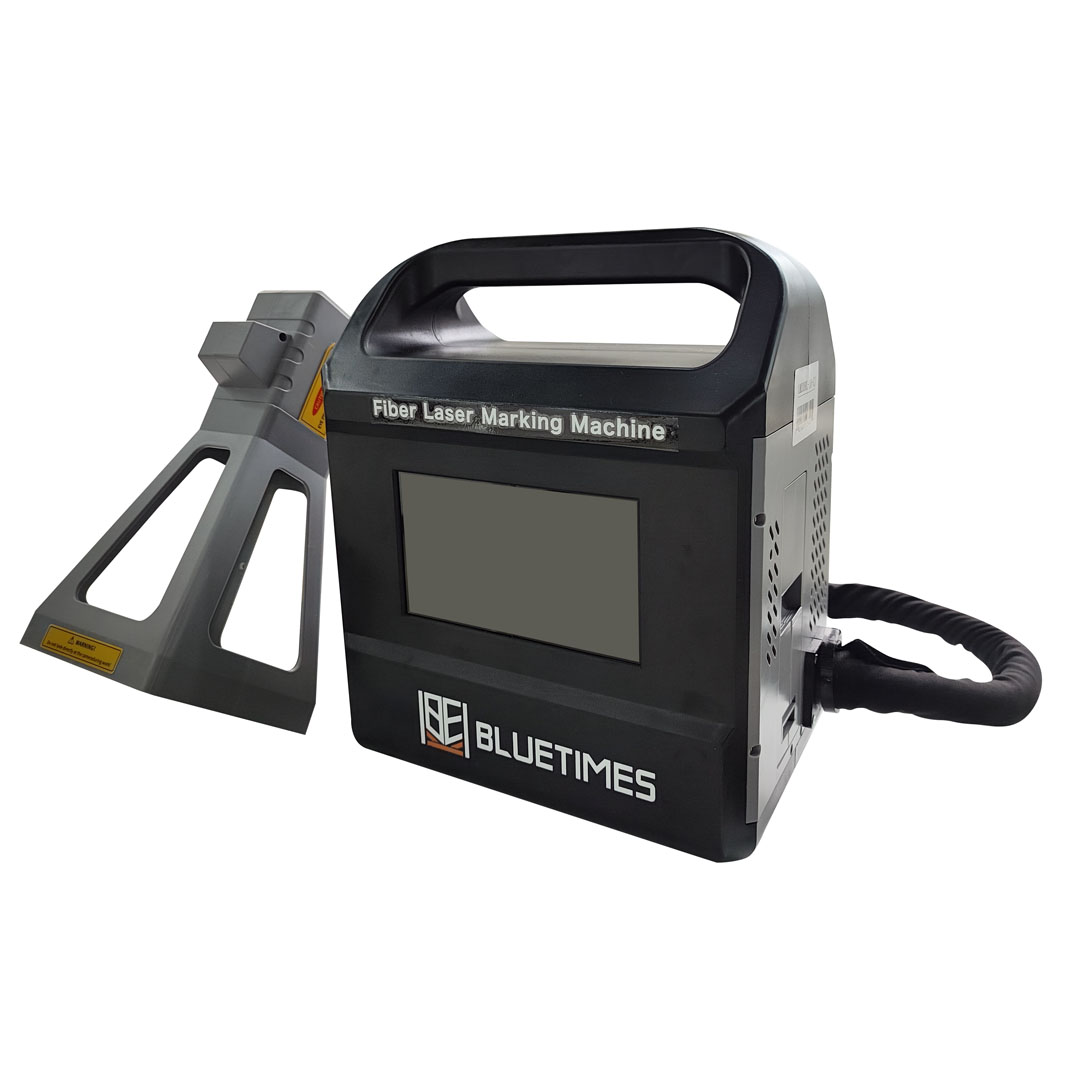

Mini Portable Handheld Laser Marking Machine
changchun bluetimes international trading co.,ltd6/10 fairsForeign Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Mini Portable Handheld Laser Marking Machine
changchun bluetimes international trading co.,ltd6/10 fairsForeign Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 540*280*320mm
- Color: black
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Russia, Other European Countries
About this product
- Size: 540*280*320mm
- Color: black
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Russia, Other European Countries
Product details
| Size | 540*280*320mm |
|---|---|
| Color | black |
Product details
| Size | 540*280*320mm |
|---|---|
| Color | black |
From the supplier
Technical Parameters
Model LM/LMB complete Engineering plastic Machine material Laser type Optical Fiber Laser Generator Laser power 20W/30W/50W Laser wavelength 1064nm Maximum pulse energy 0.7mJ/1mJ/1.1mJ Frequency adjustable range 27-170KHZ Print way High-precision two-dimensional scanning mode Scaling speed ≦7000mm/s Operation interface Built-in 7-inch touch screen,Linux operating system Cooling method Built air cooling Type of marking line lattice and vector all-in-one machine (both lattice and vector) Reflector size Standard standard:10mm Scope of marking 100mm*100mm Location mode Red light positioning Number of scaled characters Any row within the marking range Print out rate 600 Character/second(specific speed is related to product material, print content) Language Simplified Chinese, English, Korean, German, Arabicnumerals, ect File format png、jpg、bmp、dxf、 plt 、svg Barcode / QR code CODE25,CODE39,CODE49,CODE93,CODE126,CODE128
EAN13,EAN128,PDF417,CODBAR, UPCA, UPCA_CHK,UPCE_CHK, DataMatrix.,QRCode et al Source 220 V or/110V Maximum power consumption 20W:120W/30W:150W150W:200W Machine net weight 8.4KG/6KG Full power Continuous working hours 6-8 hours (lithium battery) Adapt to the temperature 0-40'C Relative humidity of environment 30-85 RH(no-condensation) Appearance size 540mm*280mm*320mm Type of marking QR code,bar code, Chinese, English, date, logo, pattern, ect
Model LM/LMB complete Engineering plastic Machine material Laser type Optical Fiber Laser Generator Laser power 20W/30W/50W Laser wavelength 1064nm Maximum pulse energy 0.7mJ/1mJ/1.1mJ Frequency adjustable range 27-170KHZ Print way High-precision two-dimensional scanning mode Scaling speed ≦7000mm/s Operation interface Built-in 7-inch touch screen,Linux operating system Cooling method Built air cooling Type of marking line lattice and vector all-in-one machine (both lattice and vector) Reflector size Standard standard:10mm Scope of marking 100mm*100mm Location mode Red light positioning Number of scaled characters Any row within the marking range Print out rate 600 Character/second(specific speed is related to product material, print content) Language Simplified Chinese, English, Korean, German, Arabicnumerals, ect File format png、jpg、bmp、dxf、 plt 、svg Barcode / QR code CODE25,CODE39,CODE49,CODE93,CODE126,CODE128
EAN13,EAN128,PDF417,CODBAR, UPCA, UPCA_CHK,UPCE_CHK, DataMatrix.,QRCode et al Source 220 V or/110V Maximum power consumption 20W:120W/30W:150W150W:200W Machine net weight 8.4KG/6KG Full power Continuous working hours 6-8 hours (lithium battery) Adapt to the temperature 0-40'C Relative humidity of environment 30-85 RH(no-condensation) Appearance size 540mm*280mm*320mm Type of marking QR code,bar code, Chinese, English, date, logo, pattern, ect
From the supplier
Technical Parameters
Model LM/LMB complete Engineering plastic Machine material Laser type Optical Fiber Laser Generator Laser power 20W/30W/50W Laser wavelength 1064nm Maximum pulse energy 0.7mJ/1mJ/1.1mJ Frequency adjustable range 27-170KHZ Print way High-precision two-dimensional scanning mode Scaling speed ≦7000mm/s Operation interface Built-in 7-inch touch screen,Linux operating system Cooling method Built air cooling Type of marking line lattice and vector all-in-one machine (both lattice and vector) Reflector size Standard standard:10mm Scope of marking 100mm*100mm Location mode Red light positioning Number of scaled characters Any row within the marking range Print out rate 600 Character/second(specific speed is related to product material, print content) Language Simplified Chinese, English, Korean, German, Arabicnumerals, ect File format png、jpg、bmp、dxf、 plt 、svg Barcode / QR code CODE25,CODE39,CODE49,CODE93,CODE126,CODE128
EAN13,EAN128,PDF417,CODBAR, UPCA, UPCA_CHK,UPCE_CHK, DataMatrix.,QRCode et al Source 220 V or/110V Maximum power consumption 20W:120W/30W:150W150W:200W Machine net weight 8.4KG/6KG Full power Continuous working hours 6-8 hours (lithium battery) Adapt to the temperature 0-40'C Relative humidity of environment 30-85 RH(no-condensation) Appearance size 540mm*280mm*320mm Type of marking QR code,bar code, Chinese, English, date, logo, pattern, ect
Model LM/LMB complete Engineering plastic Machine material Laser type Optical Fiber Laser Generator Laser power 20W/30W/50W Laser wavelength 1064nm Maximum pulse energy 0.7mJ/1mJ/1.1mJ Frequency adjustable range 27-170KHZ Print way High-precision two-dimensional scanning mode Scaling speed ≦7000mm/s Operation interface Built-in 7-inch touch screen,Linux operating system Cooling method Built air cooling Type of marking line lattice and vector all-in-one machine (both lattice and vector) Reflector size Standard standard:10mm Scope of marking 100mm*100mm Location mode Red light positioning Number of scaled characters Any row within the marking range Print out rate 600 Character/second(specific speed is related to product material, print content) Language Simplified Chinese, English, Korean, German, Arabicnumerals, ect File format png、jpg、bmp、dxf、 plt 、svg Barcode / QR code CODE25,CODE39,CODE49,CODE93,CODE126,CODE128
EAN13,EAN128,PDF417,CODBAR, UPCA, UPCA_CHK,UPCE_CHK, DataMatrix.,QRCode et al Source 220 V or/110V Maximum power consumption 20W:120W/30W:150W150W:200W Machine net weight 8.4KG/6KG Full power Continuous working hours 6-8 hours (lithium battery) Adapt to the temperature 0-40'C Relative humidity of environment 30-85 RH(no-condensation) Appearance size 540mm*280mm*320mm Type of marking QR code,bar code, Chinese, English, date, logo, pattern, ect
About the supplier
changchun bluetimes international trading co.,ltd
- ✓Exhibited at 6 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2021
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
44
trust
- Exhibited at 6 recent Canton Fairs
- Foreign Trade Company
- Founded 2021
Canton Fair booth: 19.1F27-28 · Large Machinery & Equipment (140th session)
More from changchun bluetimes international trading co.,ltd
Similar products from other suppliers

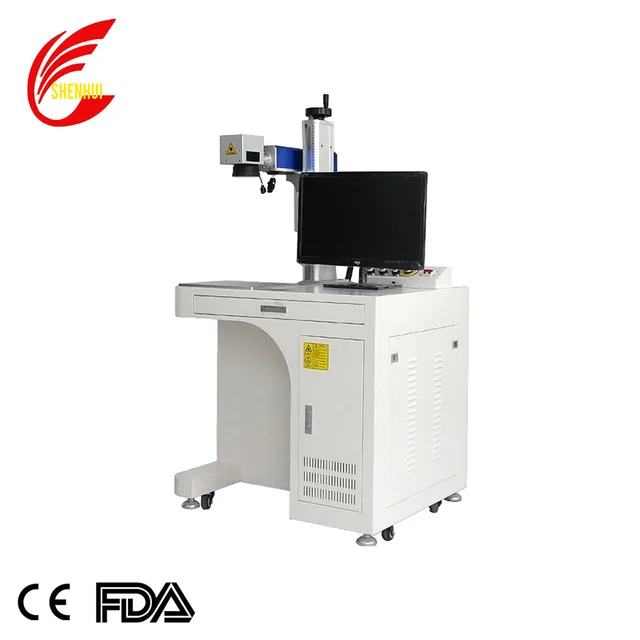

Desktop Fiber Laser Marking Machine
$2,000.00–$3,200.00 / unit FOB
~$3363.60 landed · 100 pcs

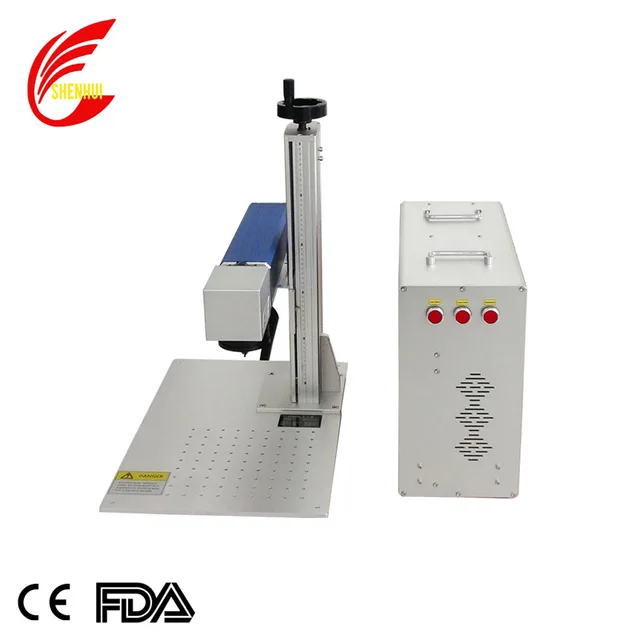

Split fiber laser marking machine
