Other Construction Machinery（Indoor Area）

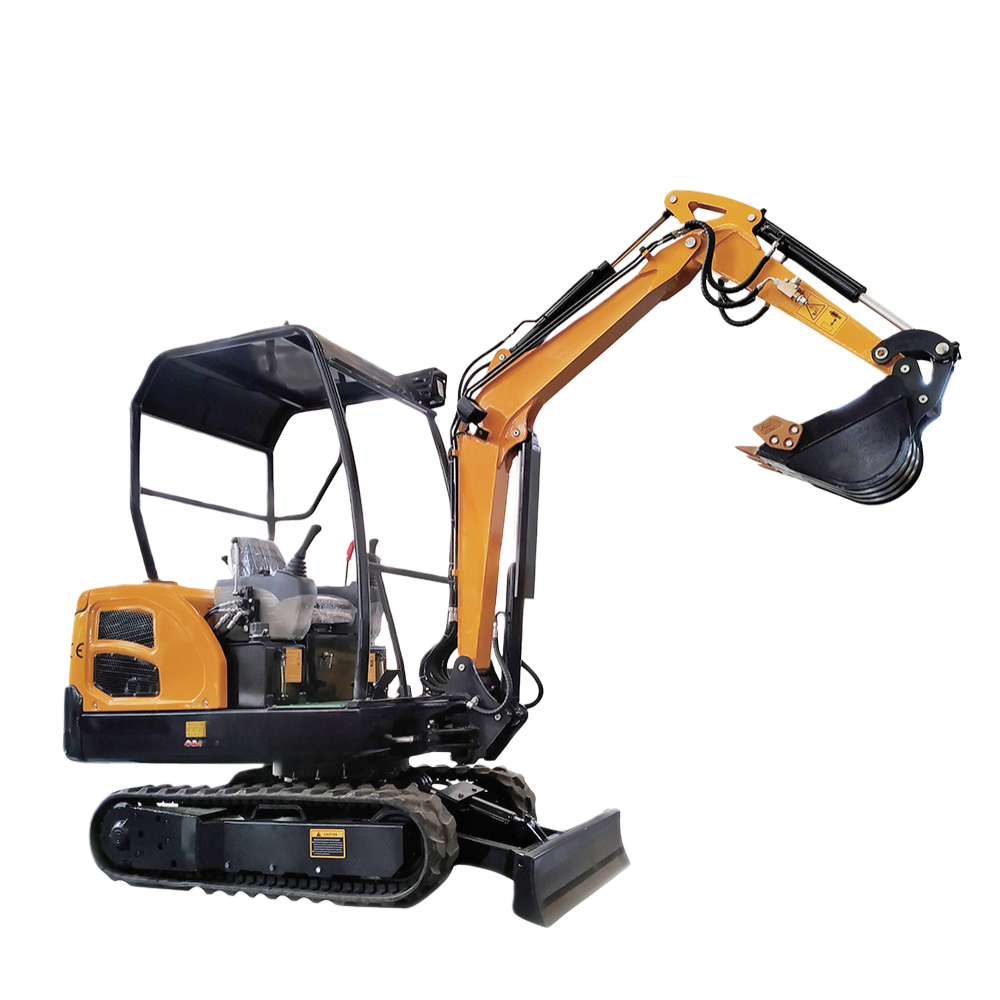

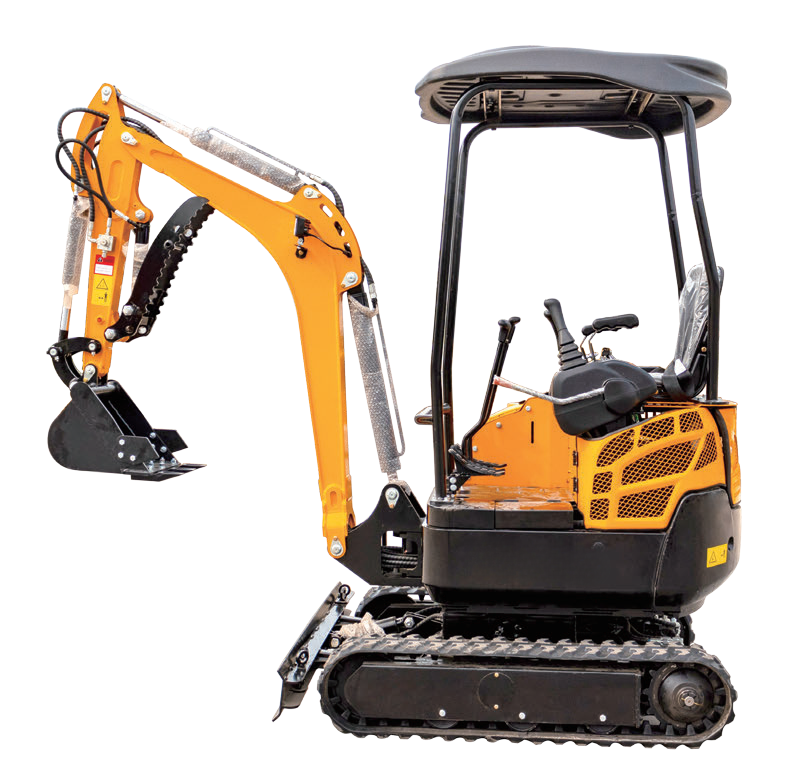

Mini excavator
Henan Zhongsheng Lechi Machinery Co., LTD3/10 fairsIndustry and Trade CompanyModel ZSTE-18G
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Mini excavator
Henan Zhongsheng Lechi Machinery Co., LTD3/10 fairsIndustry and Trade CompanyModel ZSTE-18G
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Size: 3885mm'1050mm'2270mm
- Color: Yellow and other customized colors
- Engine type: Other
- Customized: Non-CustomizedCustomizedOther
- Automatic grade: Other
- Walking mode: OtherCrawler
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 3885mm'1050mm'2270mm
- Color: Yellow and other customized colors
- Engine type: Other
- Customized: Non-CustomizedCustomizedOther
- Automatic grade: Other
- Walking mode: OtherCrawler
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 3885mm'1050mm'2270mm |
|---|---|
| Color | Yellow and other customized colors |
| Engine type | Other |
| Customized | Non-CustomizedCustomizedOther |
| Automatic grade | Other |
| Walking mode | OtherCrawler |
| Power source | Other |
Product details
| Size | 3885mm'1050mm'2270mm |
|---|---|
| Color | Yellow and other customized colors |
| Engine type | Other |
| Customized | Non-CustomizedCustomizedOther |
| Automatic grade | Other |
| Walking mode | OtherCrawler |
| Power source | Other |
From the supplier
Model:HT18-1
Engine
KUBOTA D722,KOOP 292
Min.ground clearance
119mm
Mainvalve
BEIFANG
Tail turning radius
790mm
Working weight(kg)
1800kg
Track ground length
1050mm
Bucket capacity
0.03m³
Track length
1545mm
Power
10.2kw/14kw
Max digging height
2580mm
Swing speed
12RMP
Max.unloading height
1637mm
Gradeability
30
Max.digging depth
2060mm
Overall legnth
4325/1655mm
Max.digging distance
3160mm
Overall width
1100mm
Min.turning radiuse
1711mm
Upper width
990mm
Max height at minimum
turning radius 2048mm Overall height 2272mm Standard track shoe width 180mm Boom swing Angle(lef)° 75 Track Gauge 920mm Boom swing Angle(right)° 45 Model:HT18-2 Engine Kubota/Laidog18.4kw Power 11.2kw wheelbase 1130mm Maximum ground Digging radius 3470mm Track length total 1500mm Maximum Digging depth 2150mm Platform ground clearance 437mm Maximum Digging height 3275mm Turning radius at the end of the platform 740mm Maximum Loading and unloading height 2310mm Track retraction 950mm Maximum vertical digging depth 1740mm Track extension 1300mm Minimum radius of gyration 1440mm Walking length 3160mm Maximum lifting height of bulldozer 262mm Full height 2380mm Bulldozer maximum diging depth 192mm Bucket capacity 0.045m³
turning radius 2048mm Overall height 2272mm Standard track shoe width 180mm Boom swing Angle(lef)° 75 Track Gauge 920mm Boom swing Angle(right)° 45 Model:HT18-2 Engine Kubota/Laidog18.4kw Power 11.2kw wheelbase 1130mm Maximum ground Digging radius 3470mm Track length total 1500mm Maximum Digging depth 2150mm Platform ground clearance 437mm Maximum Digging height 3275mm Turning radius at the end of the platform 740mm Maximum Loading and unloading height 2310mm Track retraction 950mm Maximum vertical digging depth 1740mm Track extension 1300mm Minimum radius of gyration 1440mm Walking length 3160mm Maximum lifting height of bulldozer 262mm Full height 2380mm Bulldozer maximum diging depth 192mm Bucket capacity 0.045m³
From the supplier
Model:HT18-1
Engine
KUBOTA D722,KOOP 292
Min.ground clearance
119mm
Mainvalve
BEIFANG
Tail turning radius
790mm
Working weight(kg)
1800kg
Track ground length
1050mm
Bucket capacity
0.03m³
Track length
1545mm
Power
10.2kw/14kw
Max digging height
2580mm
Swing speed
12RMP
Max.unloading height
1637mm
Gradeability
30
Max.digging depth
2060mm
Overall legnth
4325/1655mm
Max.digging distance
3160mm
Overall width
1100mm
Min.turning radiuse
1711mm
Upper width
990mm
Max height at minimum
turning radius 2048mm Overall height 2272mm Standard track shoe width 180mm Boom swing Angle(lef)° 75 Track Gauge 920mm Boom swing Angle(right)° 45 Model:HT18-2 Engine Kubota/Laidog18.4kw Power 11.2kw wheelbase 1130mm Maximum ground Digging radius 3470mm Track length total 1500mm Maximum Digging depth 2150mm Platform ground clearance 437mm Maximum Digging height 3275mm Turning radius at the end of the platform 740mm Maximum Loading and unloading height 2310mm Track retraction 950mm Maximum vertical digging depth 1740mm Track extension 1300mm Minimum radius of gyration 1440mm Walking length 3160mm Maximum lifting height of bulldozer 262mm Full height 2380mm Bulldozer maximum diging depth 192mm Bucket capacity 0.045m³
turning radius 2048mm Overall height 2272mm Standard track shoe width 180mm Boom swing Angle(lef)° 75 Track Gauge 920mm Boom swing Angle(right)° 45 Model:HT18-2 Engine Kubota/Laidog18.4kw Power 11.2kw wheelbase 1130mm Maximum ground Digging radius 3470mm Track length total 1500mm Maximum Digging depth 2150mm Platform ground clearance 437mm Maximum Digging height 3275mm Turning radius at the end of the platform 740mm Maximum Loading and unloading height 2310mm Track retraction 950mm Maximum vertical digging depth 1740mm Track extension 1300mm Minimum radius of gyration 1440mm Walking length 3160mm Maximum lifting height of bulldozer 262mm Full height 2380mm Bulldozer maximum diging depth 192mm Bucket capacity 0.045m³
About the supplier
Henan Zhongsheng Lechi Machinery Co., LTD
Main products: Other Small Construction Machinery
- ✓Exhibited at 3 recent Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2023
- ✓1 certificate on file
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
