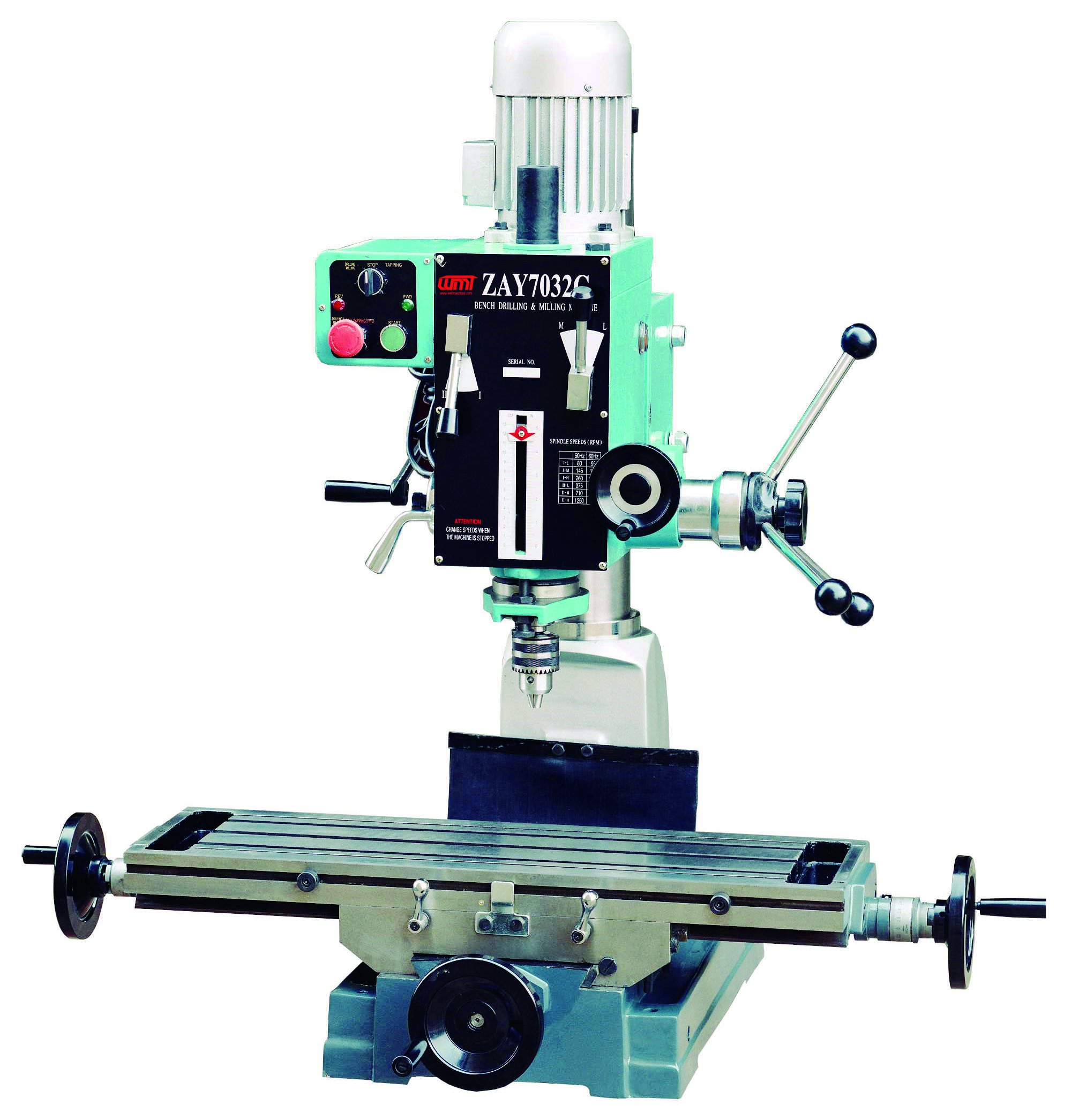

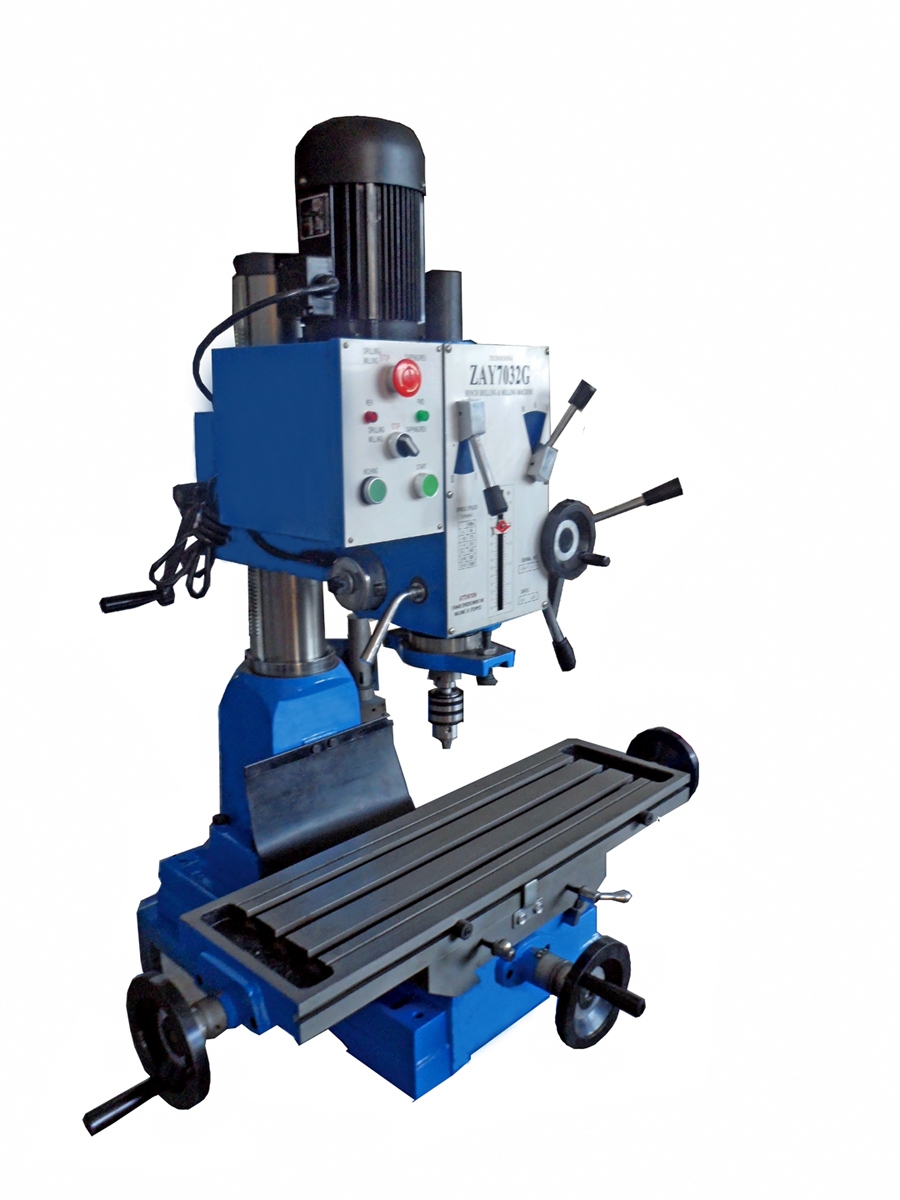

Milling and Drilling Machine ZAY7032G

10/10 fairsForeign Trade CompanyModel Milling and Drilling Machine ZAY7032G
Milling and Drilling Machine ZAY7032G
$90000–$1,80000/ set FOB
MOQ 1 set
Estimated landed cost
$1,749 / set
range $1,169–$2,330 Β· total β‰ˆ $174,931
FOB goods (100)
$135,000
Ocean freight + handling (1.0 CBM)
$820
US duty (3.5%)
$4,725
Section 301 tariff (25.0%)
$33,750
Customs fees (MPF/HMF)
$636

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: Metal
  • Size: 770Γ—880Γ—1160mm
  • Color: Yellow&Grey&White
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China

Product details

MaterialsMetal
Size770Γ—880Γ—1160mm
ColorYellow&Grey&White

From the supplier

Main Features
  1. Milling ,drilling, tapping,boring,reaming.
  2. Head swivels ±45°vertically.
  3. Spindle micro feed precision.
  4. Adjustable gibs on table precision.
  5. Accurate position ,strong rigidity , powerful cutting.
  6. Gear-driven type and round column.
Specifications Specification ZAY7032G ZAY7040G ZAY7045G Drilling capacity Φ32mm Φ40mm Φ45mm Face milling capacity Φ63mm Φ80mm Φ80mm End milling capacity Φ20mm Φ32mm Φ32mm Distance from spindle nose to table 440mm(optional 670mm) Min.distance from spindle axis to column 272.5mm Spindle travel 130mm Spindle taper MT3 or R8 MT4 or R8 Step of spindle speed 6 steps Range of spindle speed 50Hz 80-1250 r.p.m 60Hz 95-1500 r.p.m Swivel angle of headstock (horizontal) 360° (vertical) ±90° Table size 800×240mm Forward and backward travel of table 175mm Left and right travel of table 500mm Motor Power 0.75kw 1.1kw 1.1kw N.W/G.W 315/365kgs 318/368kgs Packing size 770×880×1160mm Loading amount/20" container 36pcs Machine Details
